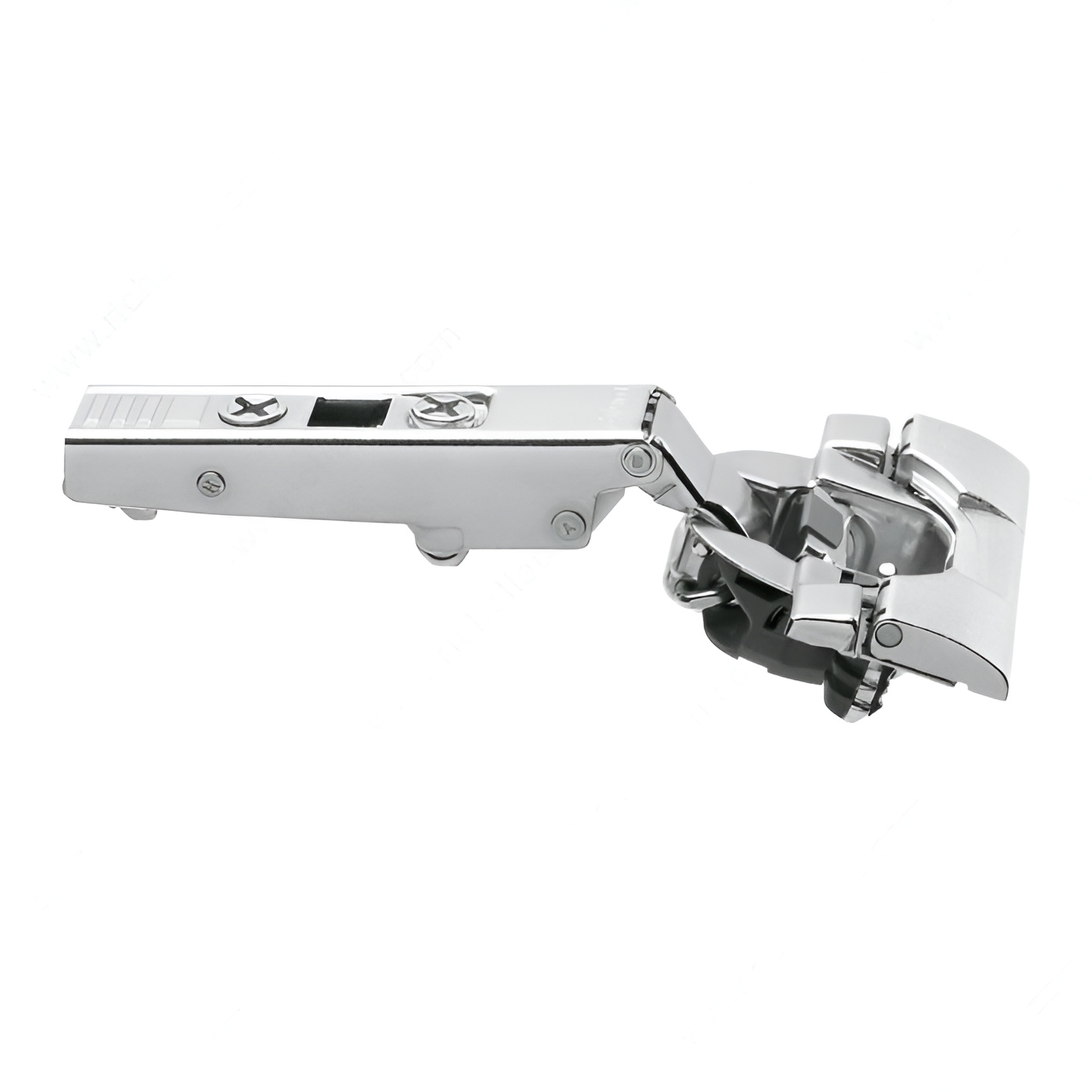

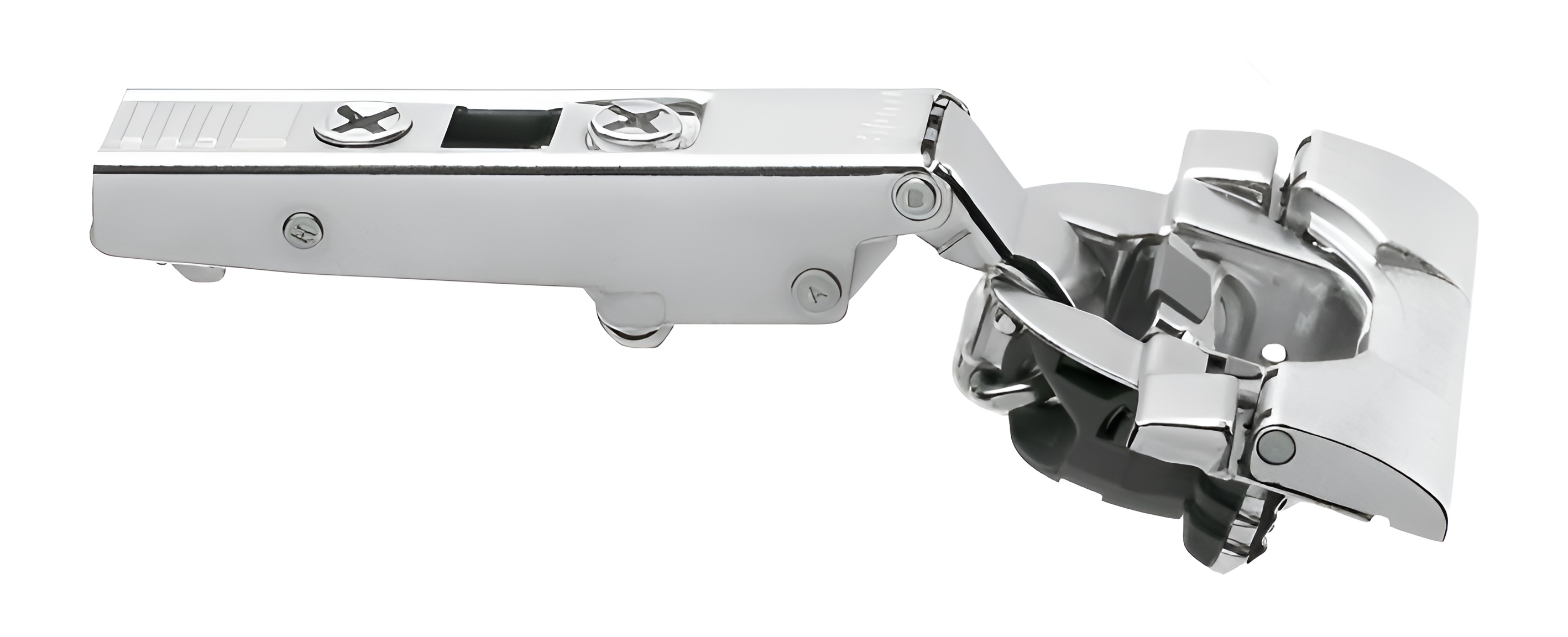

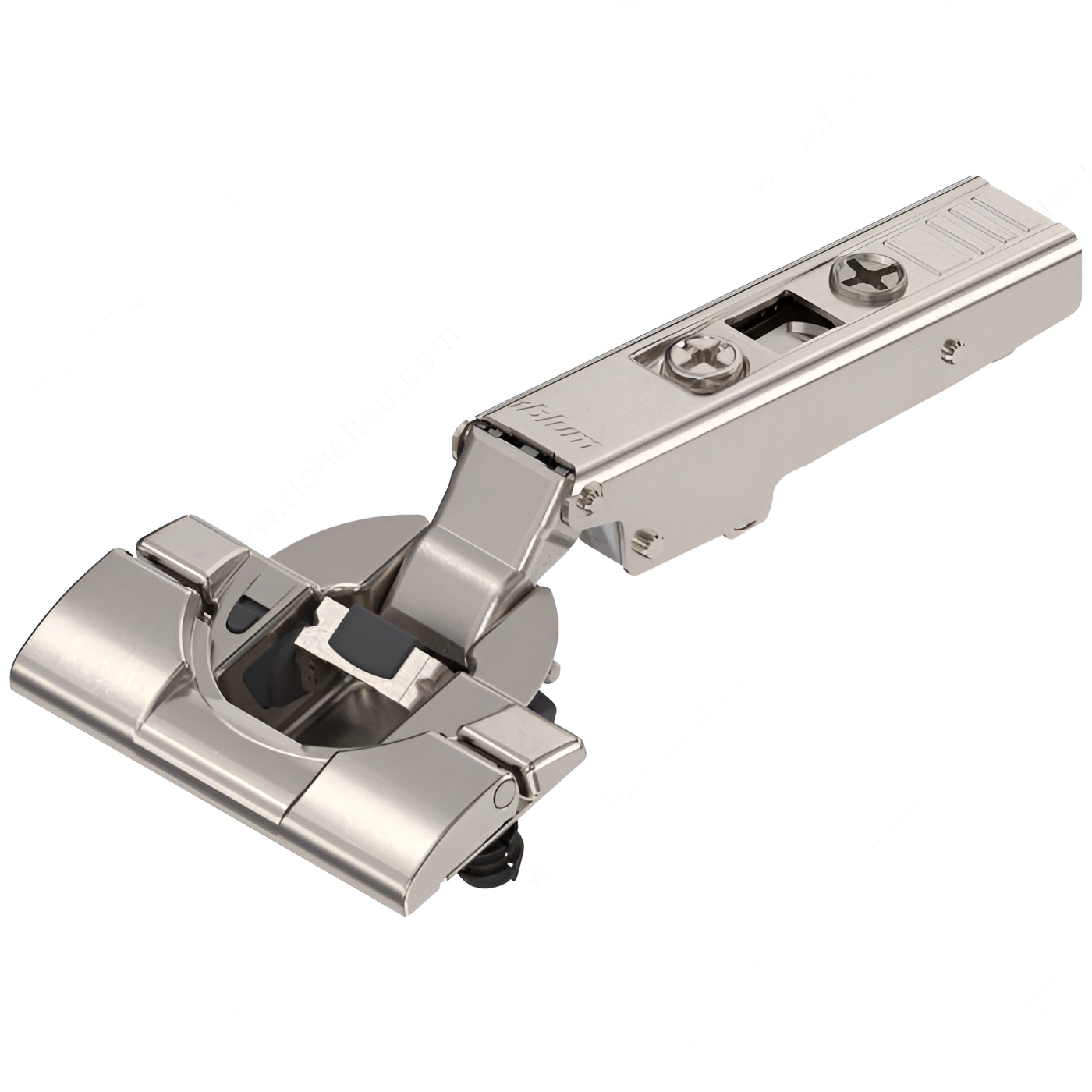

Richelieu 71B359180 CLIP top BLUMOTION - Hinge 110 offers a masterclass in precision and functionality for frameless cabinetry. Designed to accommodate a minimum cabinet thickness of 5/8 inches, this hinge is perfect for modern furniture applications where space is at a premium. The integrated BLUMOTION feature ensures that your doors close silently and effortlessly, enhancing the user experience while providing durability that supports at least 200,000 openings and closings. With a generous hinge opening angle of +110°, this hinge allows for easy access to the contents of your cabinets, making it an ideal choice for standard doors. The self-closing mechanism guarantees that doors will secure themselves gently, reducing slamming and wear over time. Constructed from high-quality steel and finished in a sleek nickel, the hinge not only performs exceptionally but also adds a touch of sophistication to your cabinetry. Installation is straightforward with the Inserta fixing type, and it requires a milling depth of at least 1/2 inch and a diameter of 1 3/8 inches. Note that screws and nails are not included in the packaging, which is designed for industrial use, ensuring that you receive each unit in optimal condition. Upgrade your cabinetry with Richelieu’s CLIP top BLUMOTION hinge for lasting performance and refined elegance.
CLIP top BLUMOTION - Hinge 110
Cabinet Thickness: Min. 19/32 in*
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +110°
Hinge Type: CLIP top BLUMOTION
Material: Steel
Mechanism: Spring Closing, Soft-Closing

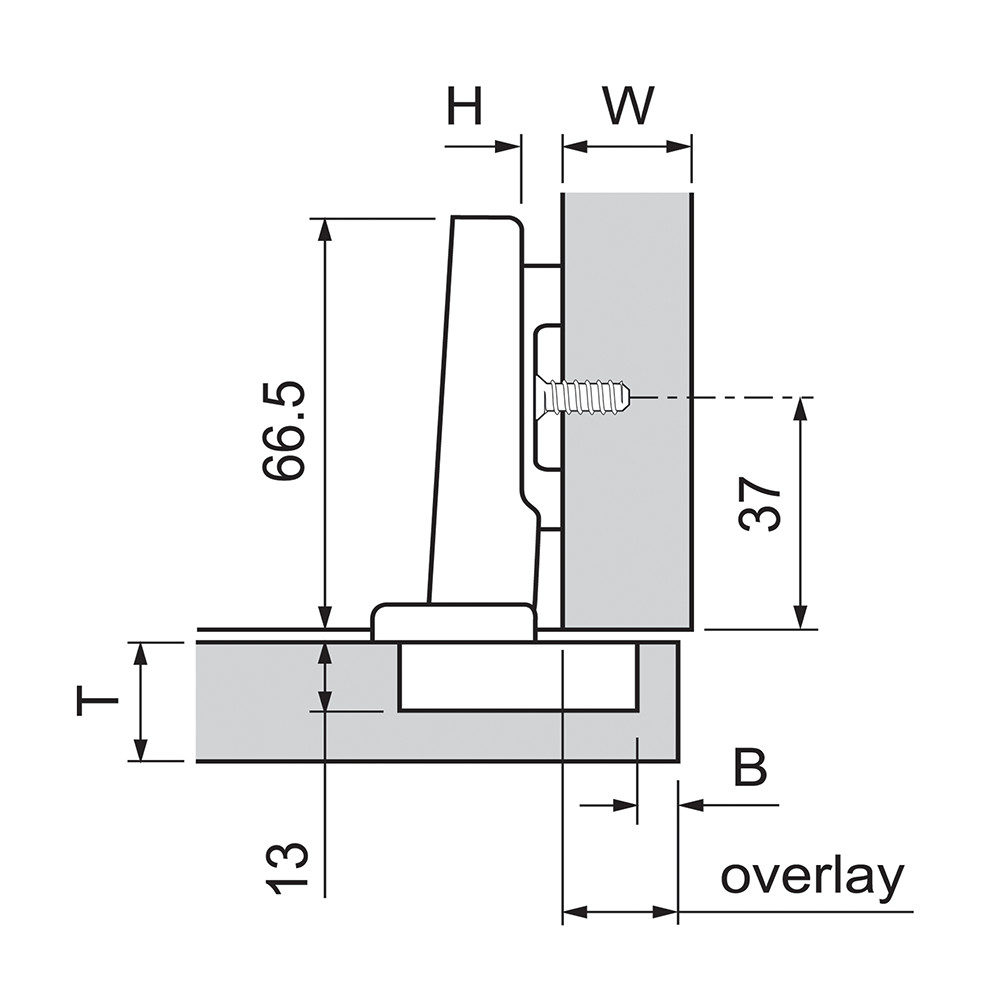

Milling Depth: 13 mm
Milling Diameter: 35 mm
Packaging Specifications: Industrial Packaging
Packaging format: Per unit
Product #: 71B359180
Product number: 71B359180
Screw/ Nail: Not Included
Unit 1: case - 250
Use Type: Standard Door
