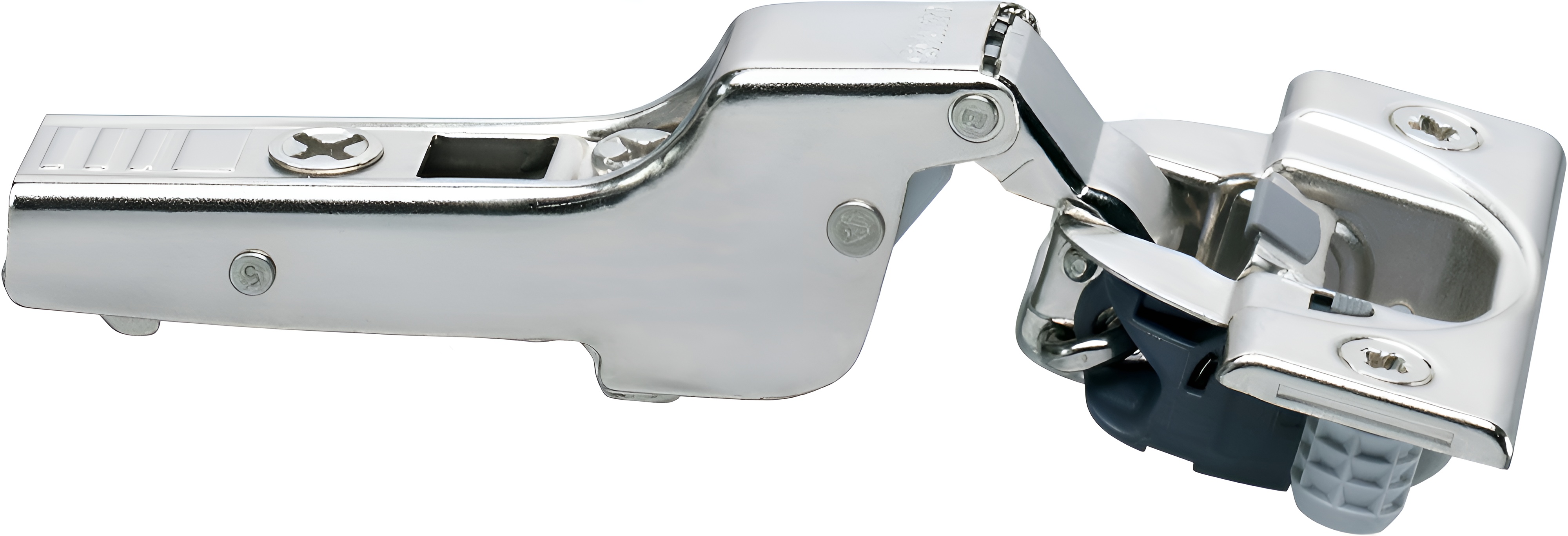

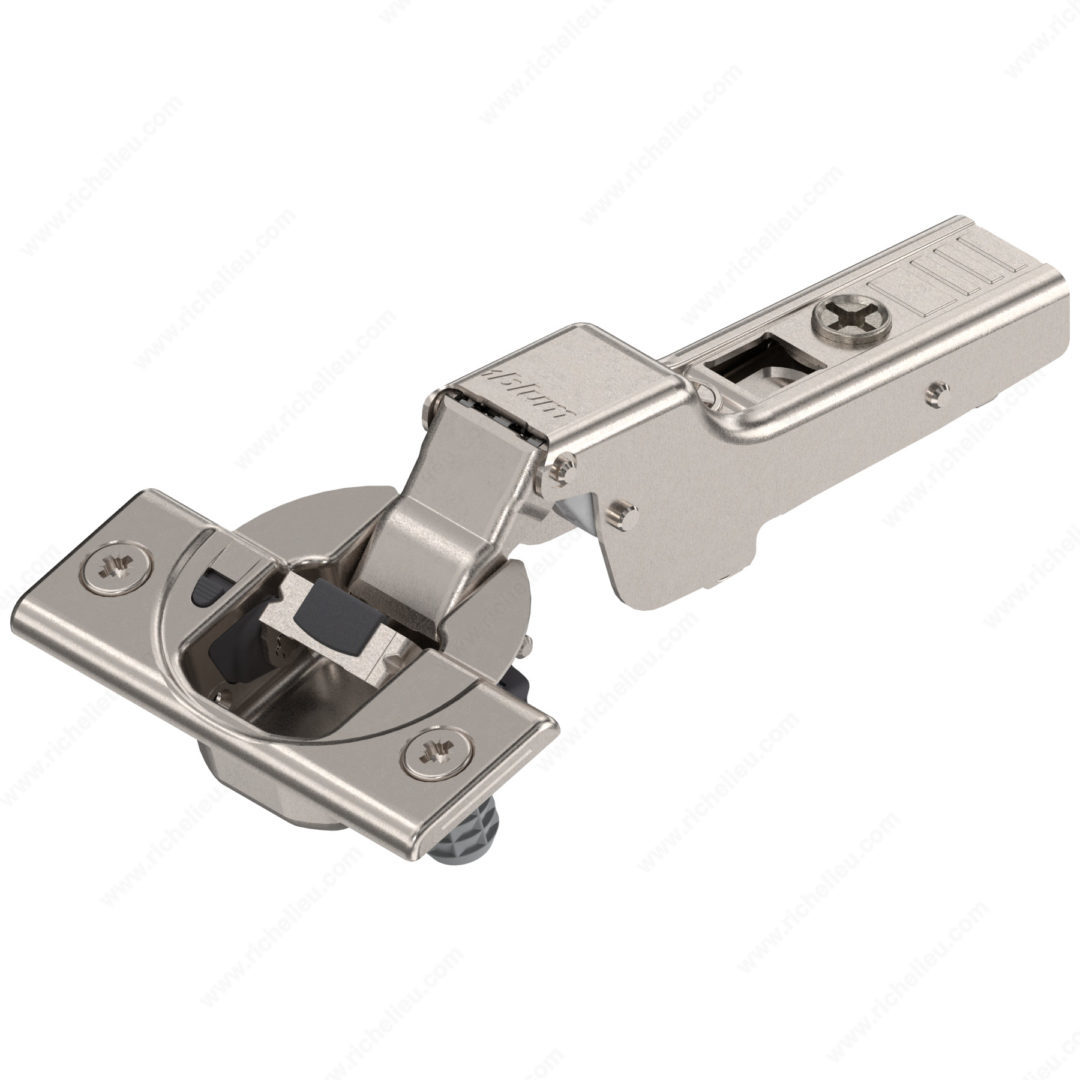

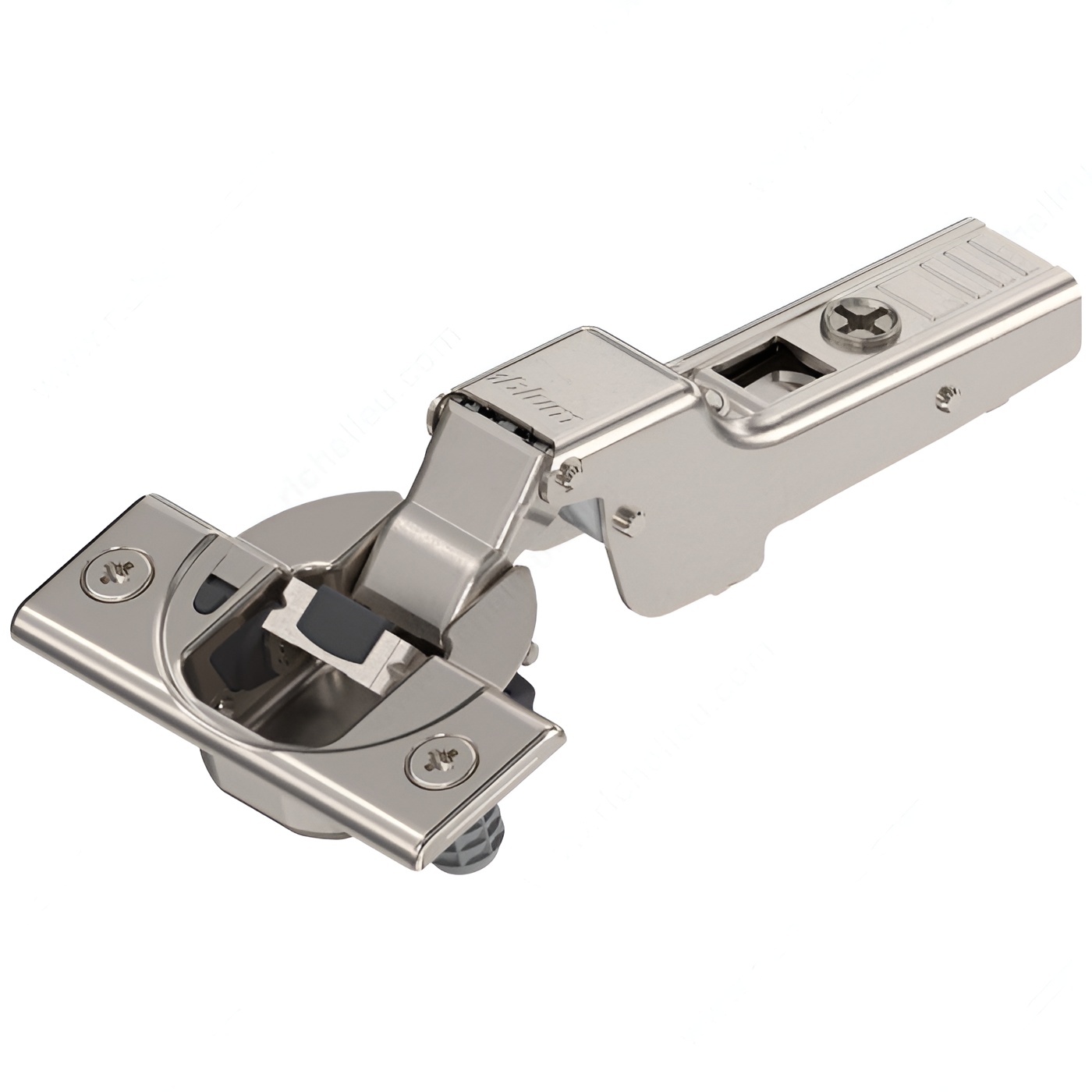

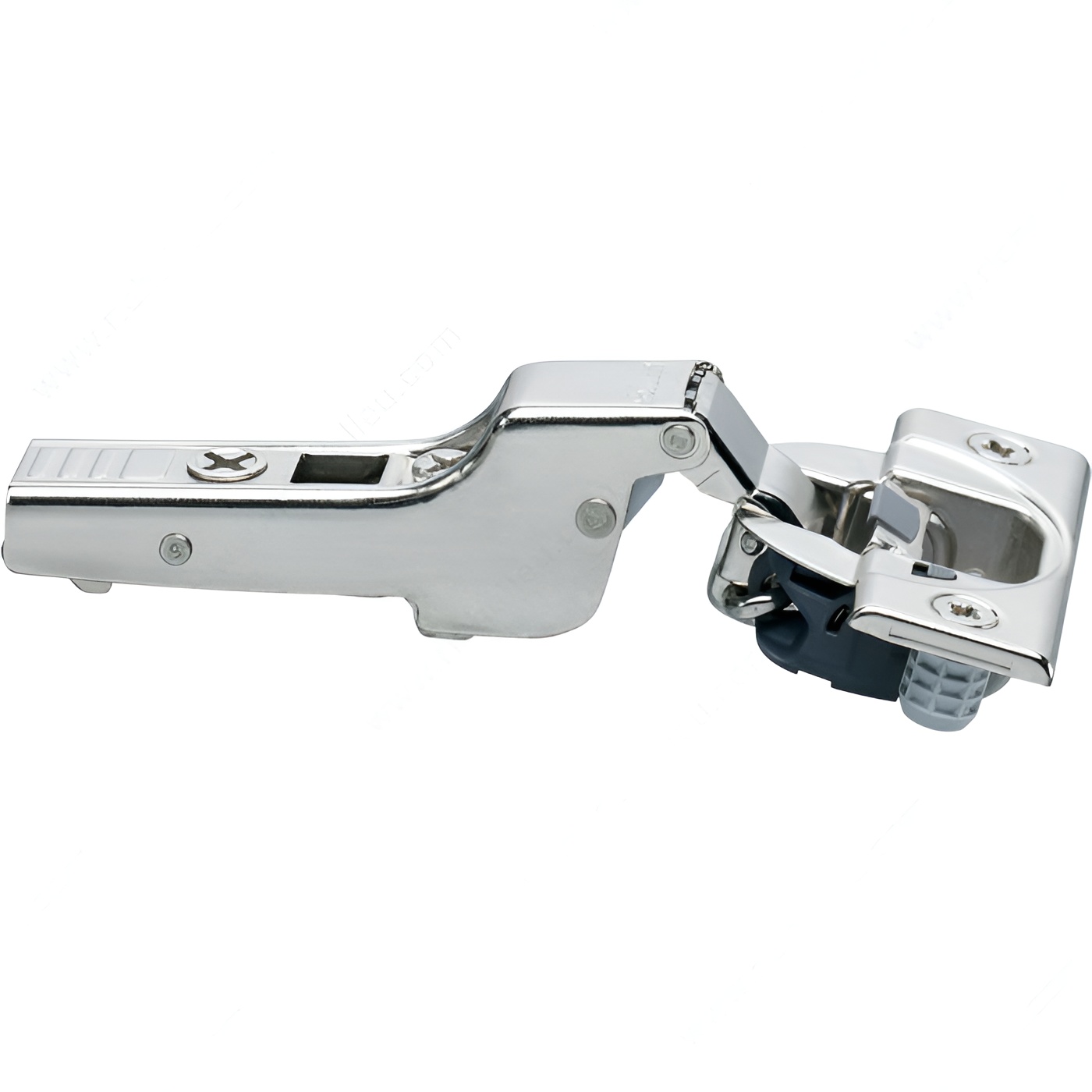

Richelieu 71B368180 CLIP top BLUMOTION - Hinge 110 offers a seamless blend of precision engineering and elegant functionality, making it an ideal choice for modern cabinetry. This hinge features an integrated BLUMOTION system that ensures your furniture doors close silently and effortlessly, enhancing the overall user experience. Designed to endure at least 200,000 cycles of opening and closing, this hinge promises to maintain its compelling motion quality throughout the lifetime of your furniture. Crafted from durable steel and finished in a sleek nickel, the hinge is suitable for frameless cabinet types with a minimum cabinet and door thickness of 5/8 inch. Its self-closing mechanism guarantees that doors close securely, while the hinge opening angle of +110° provides ample access to cabinet interiors. The CLIP top design simplifies installation with a knock-in fixing type, making it user-friendly for both professionals and skilled DIYers. The milling depth of 1/2 inch and diameter of 1 3/8 inches ensure compatibility with various cabinetry designs. Packaged per unit in industrial packaging, the Richelieu 71B368180 is ready for immediate use. Elevate your cabinetry with this reliable and sophisticated hinge solution.
CLIP top BLUMOTION - Hinge 110
Cabinet Thickness: Min. 19/32 in*
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Door Position: Half Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +110°
Hinge Type: CLIP top BLUMOTION
Material: Steel
Mechanism: Spring Closing, Soft-Closing

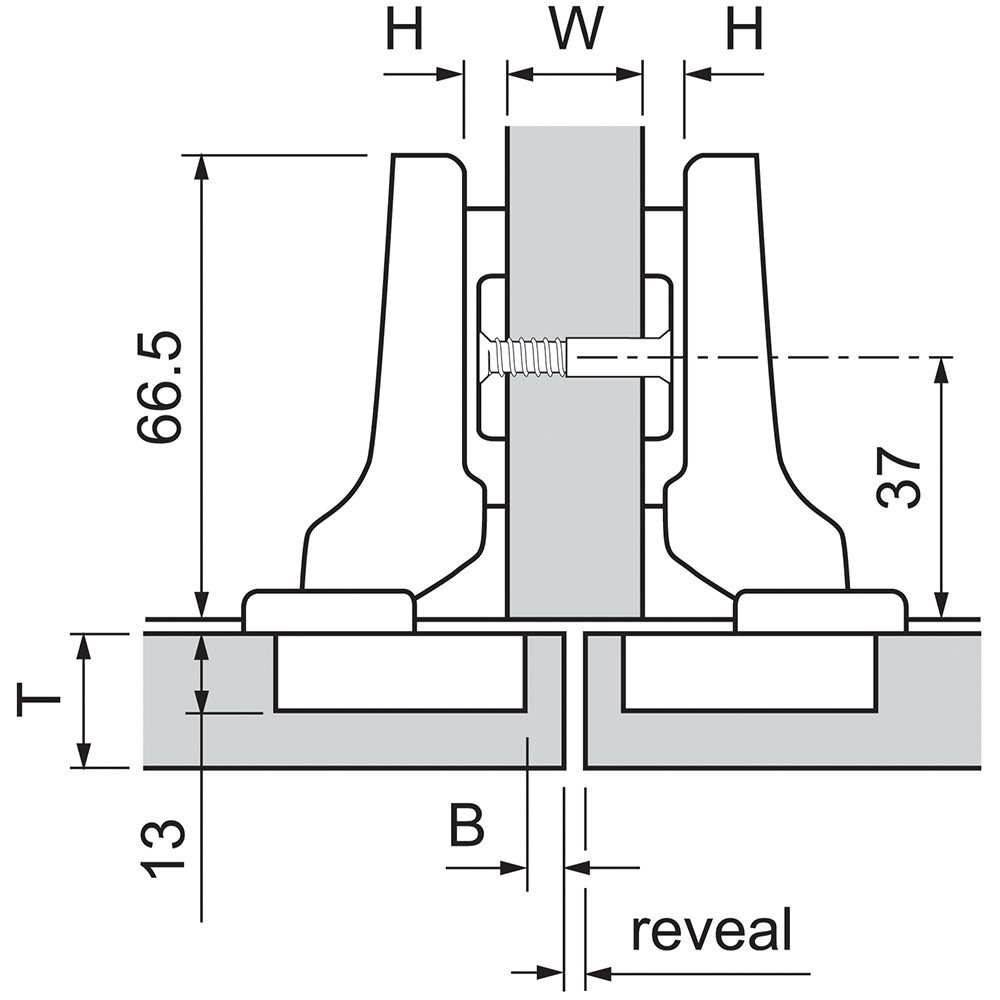

Milling Depth: 13 mm
Milling Diameter: 35 mm
Packaging Specifications: Industrial Packaging
Packaging format: Per unit
Product #: 71B368180
Product number: 71B368180
Screw/ Nail: Not Included
Unit 1: case - 250
Use Type: Standard Door
