Richelieu 71B369180 CLIP top BLUMOTION - Hinge 110 offers a seamless solution for your cabinetry needs, combining precision engineering with exceptional functionality. Designed for frameless cabinets, this hinge ensures effortless door operation while providing a self-closing feature that enhances the overall user experience. With an opening angle of +110°, it allows for full access to cabinet interiors, making it an ideal choice for both professional builders and discerning homeowners. The integrated BLUMOTION technology guarantees silent and smooth closing, effectively reducing wear and tear, and ensuring that each door can open and close at least 200,000 times throughout its lifespan. Constructed from high-quality steel with a sleek nickel finish, this hinge not only delivers durability but also complements modern design aesthetics. With a minimum cabinet and door thickness of 5/8 inches, along with a milling depth of at least 1/2 inch, the 71B369180 is suitable for standard door applications and has a milling diameter of 1 3/8 inches. Although screws and nails are not included, the hinge features an Inserta fixing type for easy installation. Packaged per unit in industrial packaging, it’s a reliable choice for any cabinetry project requiring precision and quality.

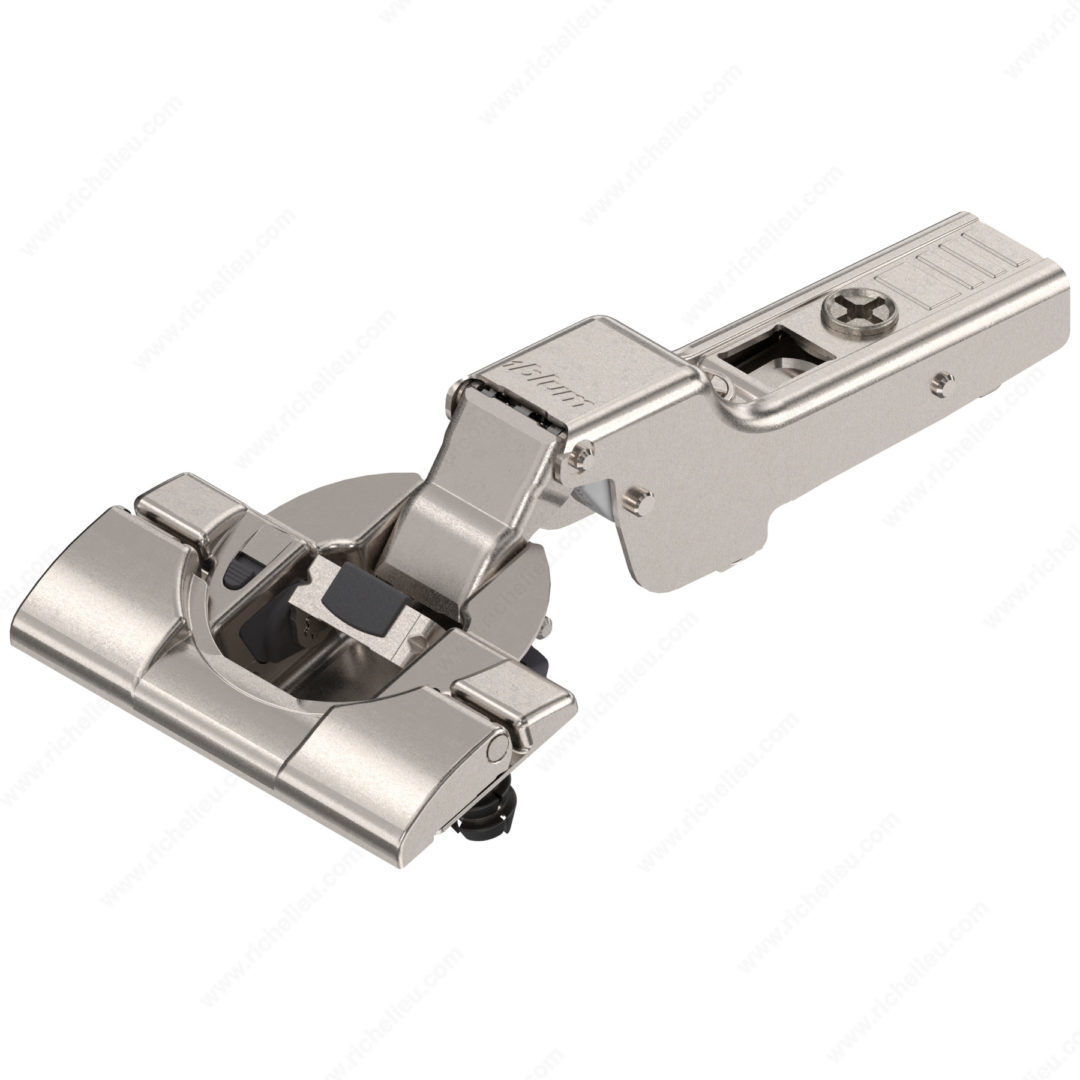

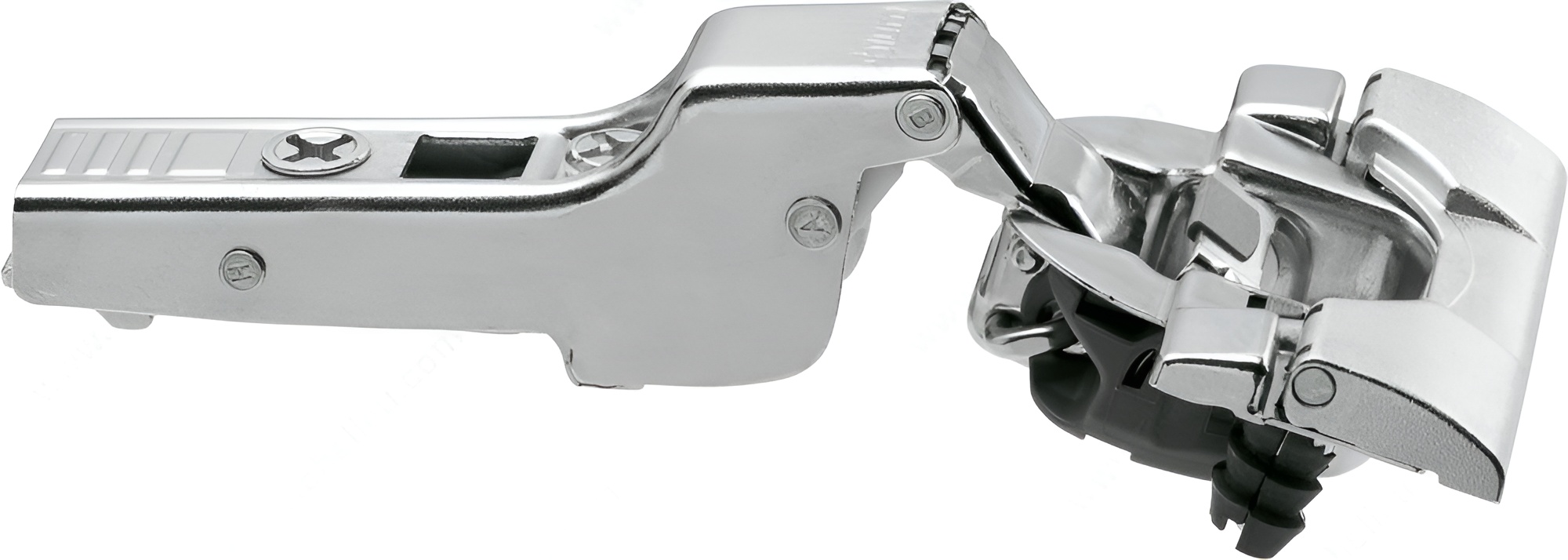

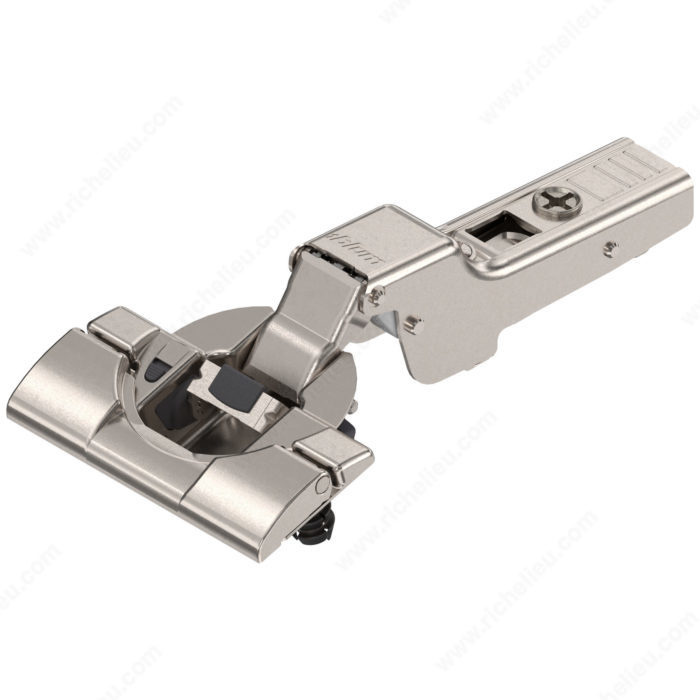

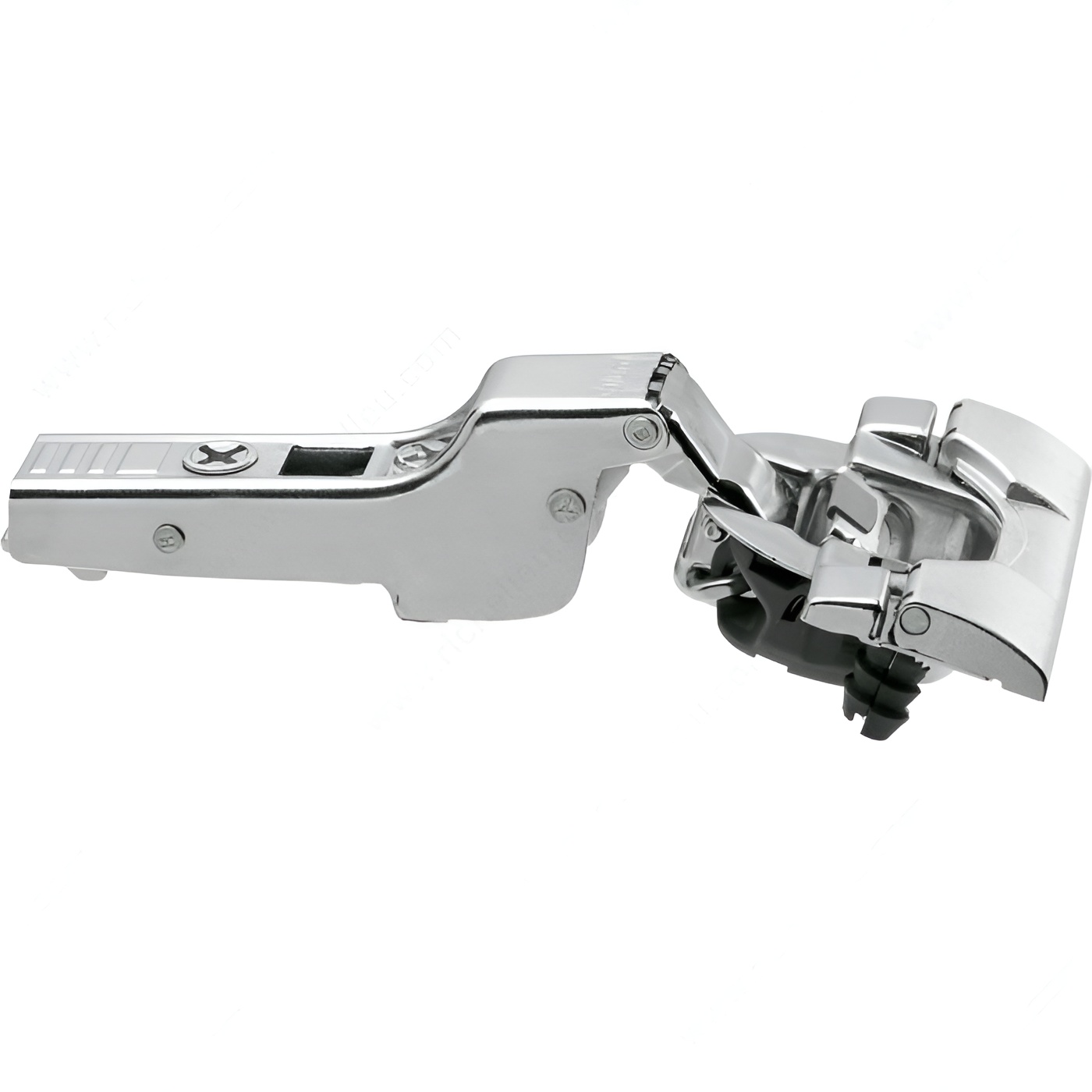

CLIP top BLUMOTION - Hinge 110
Cabinet Thickness: Min. 19/32 in*
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Door Position: Half Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +110°
Hinge Type: CLIP top BLUMOTION
Material: Steel
Mechanism: Spring Closing, Soft-Closing

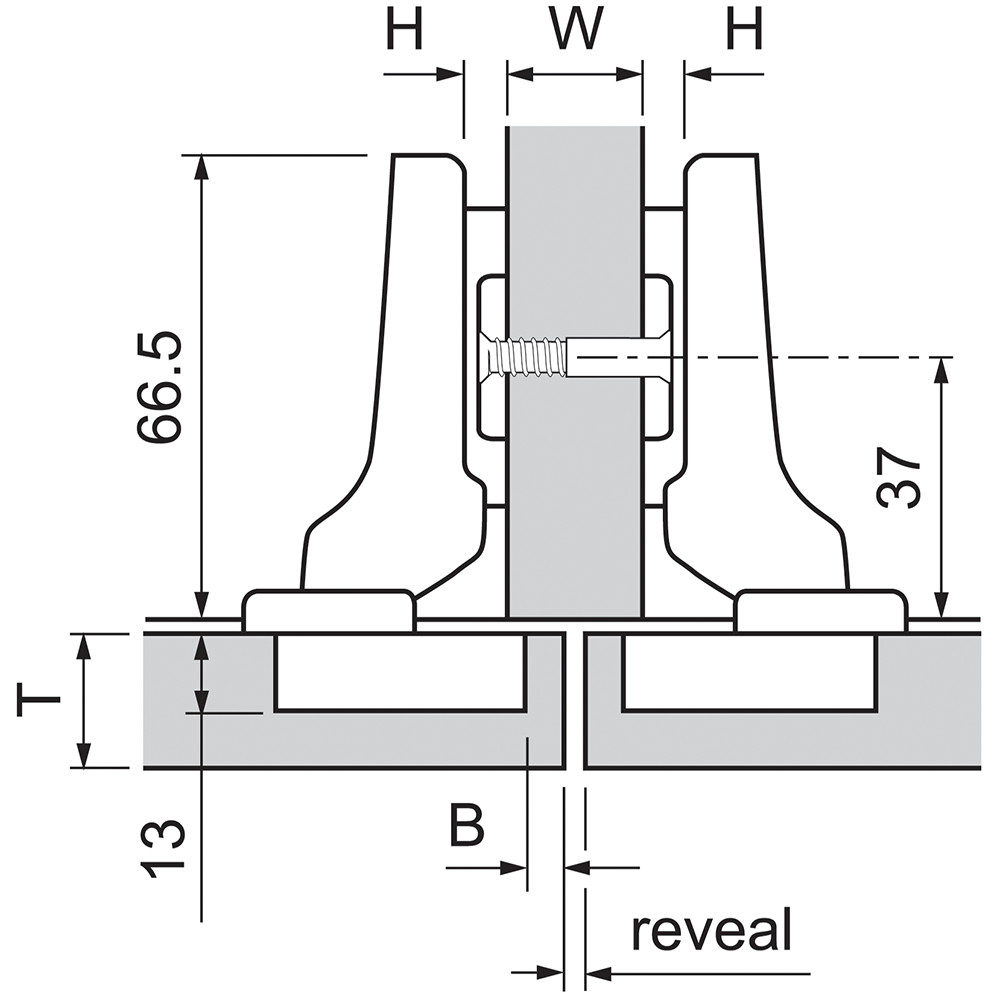

Milling Depth: 13 mm
Milling Diameter: 35 mm
Packaging Specifications: Industrial Packaging
Packaging format: Per unit
Product #: 71B369180
Product number: 71B369180
Screw/ Nail: Not Included
Unit 1: case - 250
Use Type: Standard Door
