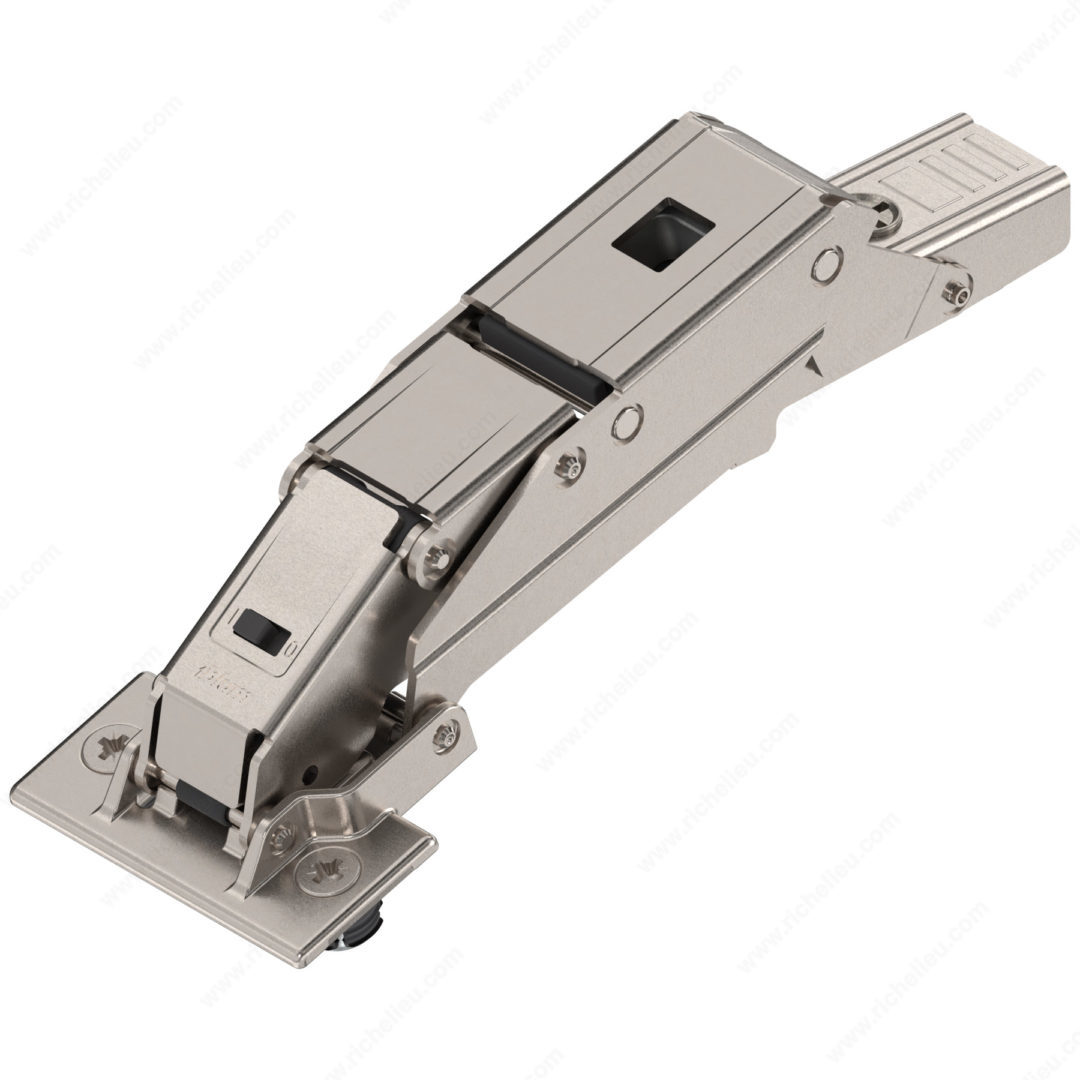

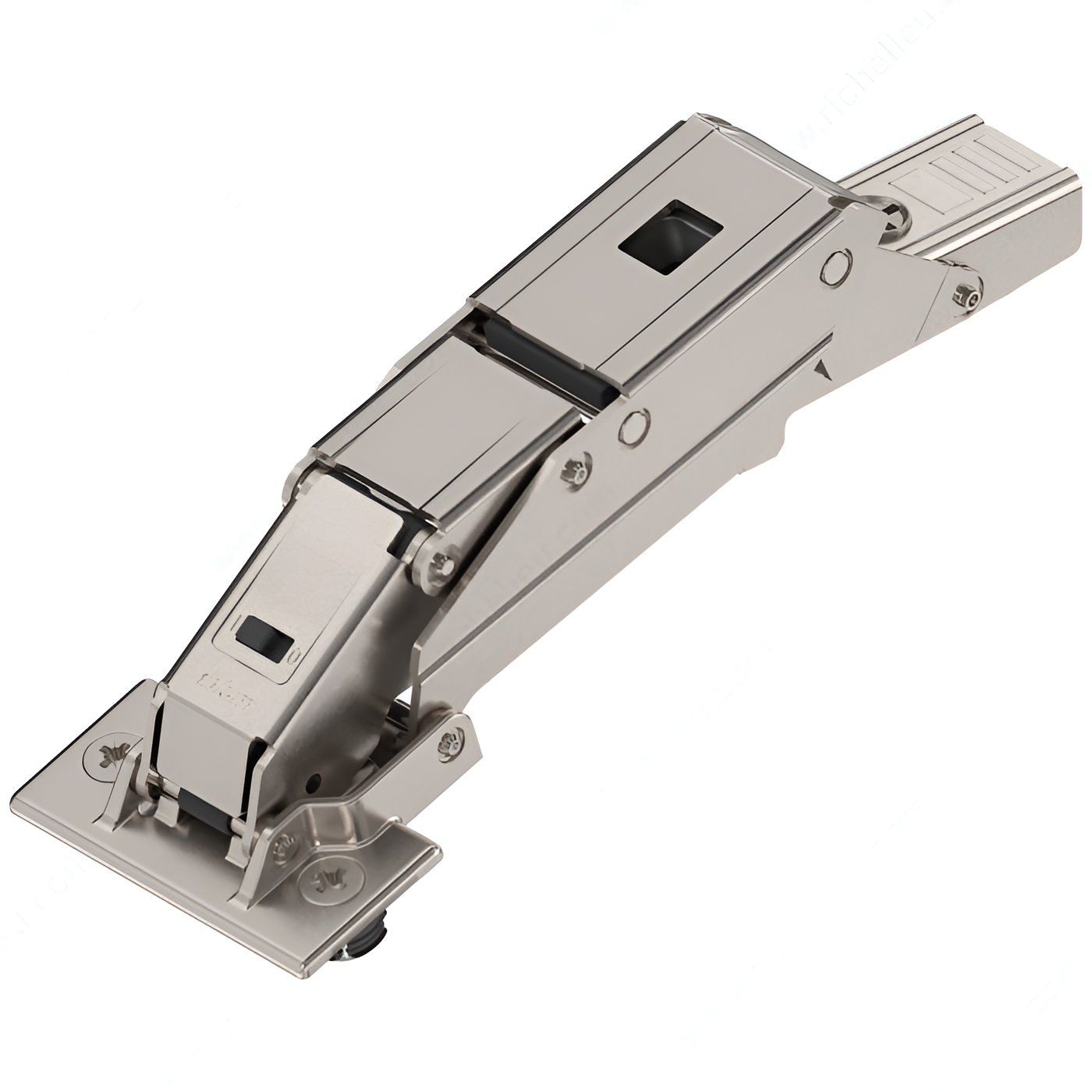

Richelieu 71B453T180 CLIP top BLUMOTION for Thin Door Hinge is engineered for modern cabinetry, combining innovative design with practical functionality. This revolutionary hinge integrates soft-close technology directly into its structure, eliminating the need for a separate hinge cup. Its 110° opening angle allows for versatile application, making it ideal for frameless cabinets with full overlay doors. Designed for doors with a thickness ranging from 5/16 to 9/16 inches, this hinge features a zero protrusion design, ensuring a sleek and unobtrusive appearance. The integrated BLUMOTION can be deactivated for lighter doors, allowing for tailored functionality based on your project needs. Additionally, the overload safety feature enhances durability and reliability, making it a practical choice for everyday use. Compatible with existing CLIP mounting plates, installation is straightforward, and the expanding dowel fixing type ensures a secure fit. Available in a nickel finish, the Richelieu 71B453T180 not only performs well but also complements a variety of design aesthetics. This hinge is perfect for anyone looking to enhance their cabinetry with a blend of style and advanced engineering. For specific requirements, angle restriction clips (92°) are also available to further customize your application.
110 CLIP top BLUMOTION for Thin Door Hinge
Brand: Blum
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Door Position: Full Overlay
Door Thickness: 8 to 14 mm
Finish: Nickel

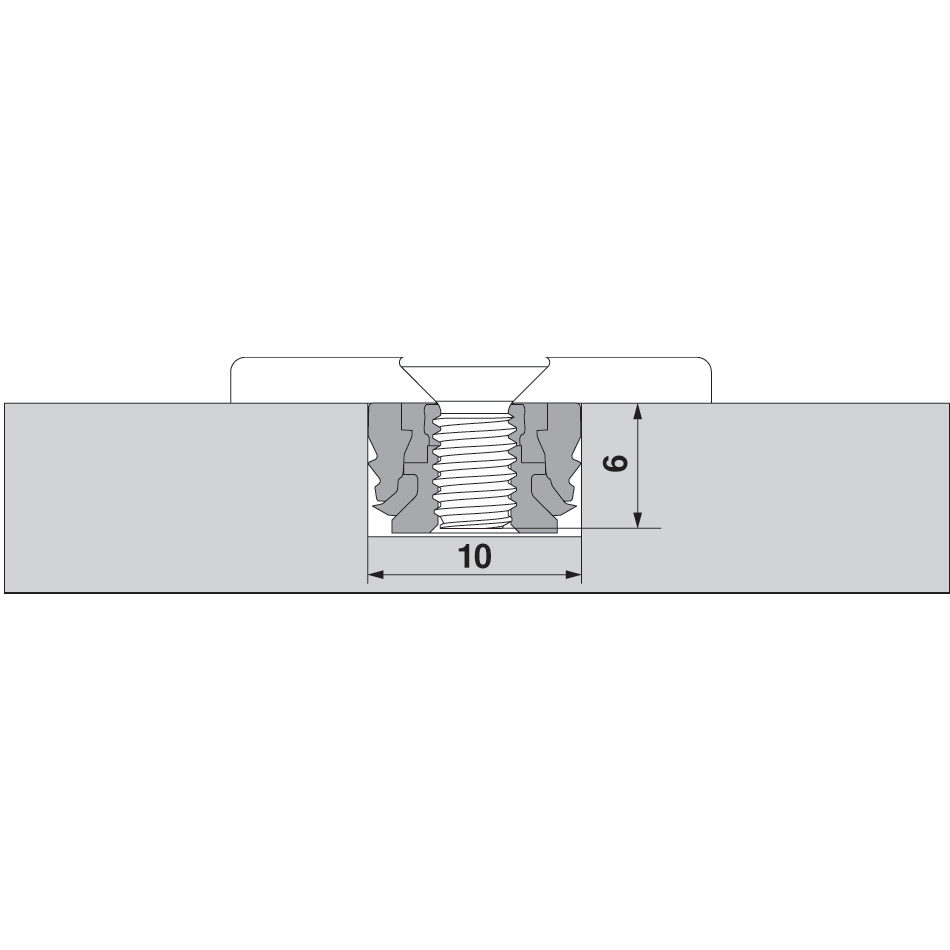

Fixing Type: Expanding Dowel
Hinge Type: CLIP top BLUMOTION
Mechanism: Spring Closing, Soft-Closing
Mounting Type: Frameless
Product #: 71B453T180
Product number: 71B453T180
Unit 1: case - 125
Use Type: Thin Doors
