Richelieu 71B965180 CLIP top BLUMOTION Hinge for Thick Doors offers an exceptional combination of precision and durability, engineered for the modern kitchen or cabinetry. This innovative hinge features integrated BLUMOTION technology, ensuring your furniture doors close quietly and effortlessly, making it a true technical masterpiece designed to fit into even the tightest spaces. Built to withstand at least 200,000 openings and closings, the CLIP top BLUMOTION hinge guarantees a smooth and reliable operation throughout its lifetime. It is compatible with frameless cabinets and accommodates door thicknesses ranging from 5/8 to 1 1/4 inches, providing versatility for various applications. The hinge boasts a nickel finish that enhances its aesthetic appeal while offering resilience against wear and tear. With a hinge opening angle of +95°, it allows for easy access and functionality in your cabinet spaces. The screw-on fixing type ensures a secure installation, complemented by the required milling depth of 1/2 inch and diameter of 1 3/8 inches. Designed specifically for thick doors, the Richelieu 71B965180 hinge is the ideal choice for those seeking reliable, high-quality hardware that combines modern design with practical performance.

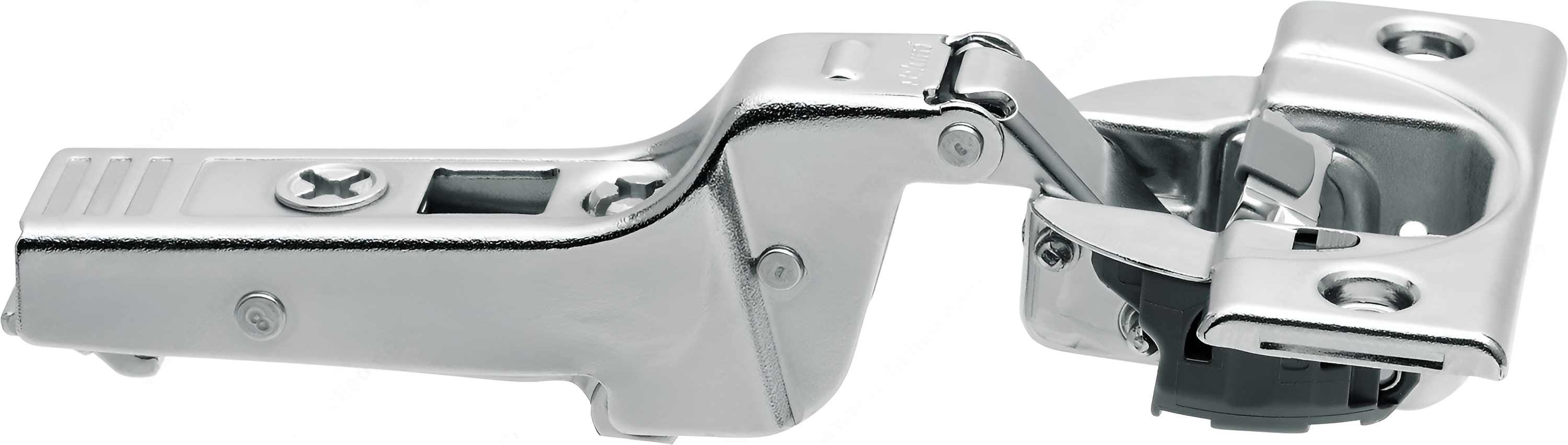

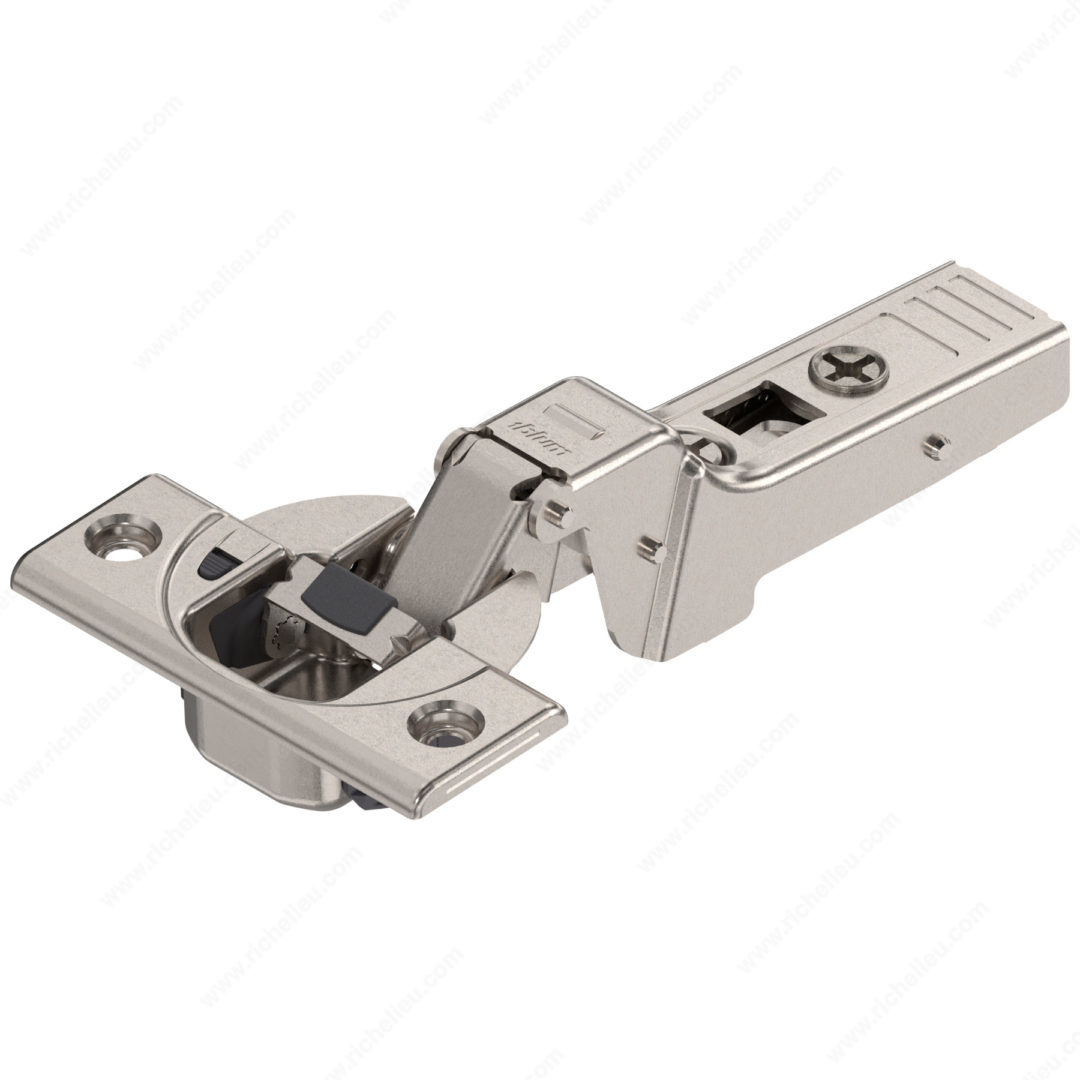

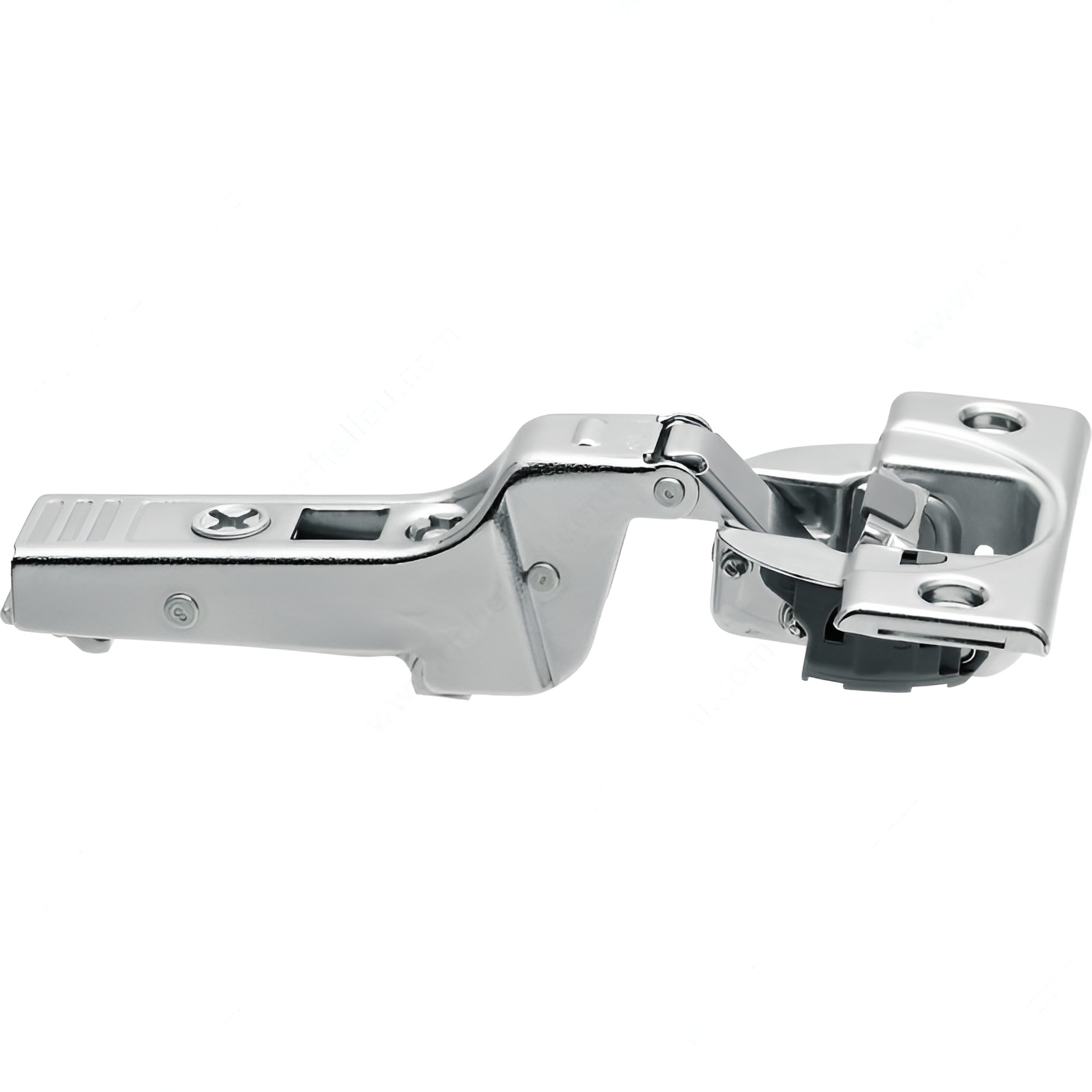

CLIP top BLUMOTION Hinge for Thick Doors
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing

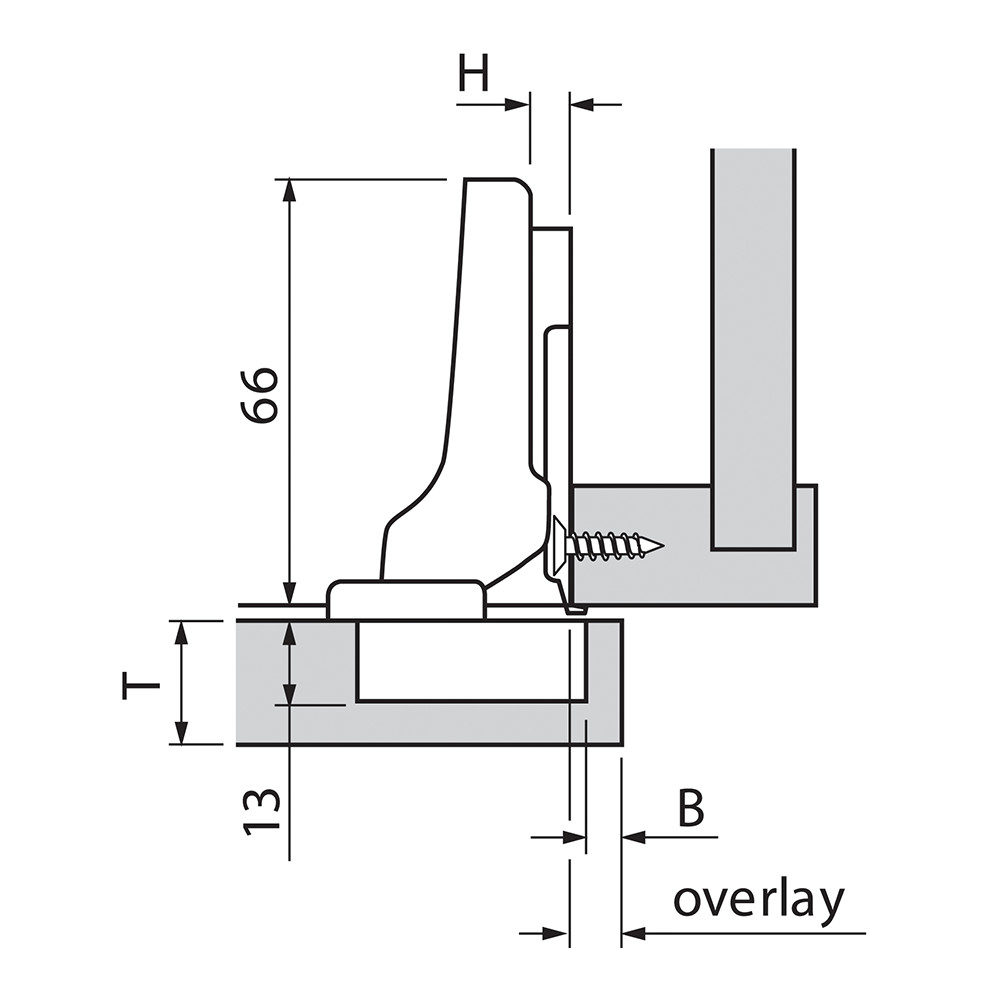

Door Position: Half Overlay
Door Thickness: 16 to 32 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +95°
Hinge Type: CLIP top BLUMOTION
Mechanism: Spring Closing, Soft-Closing
Milling Depth: 13 mm
Milling Diameter: 35 mm
Product #: 71B965180
Product number: 71B965180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Thick Door
