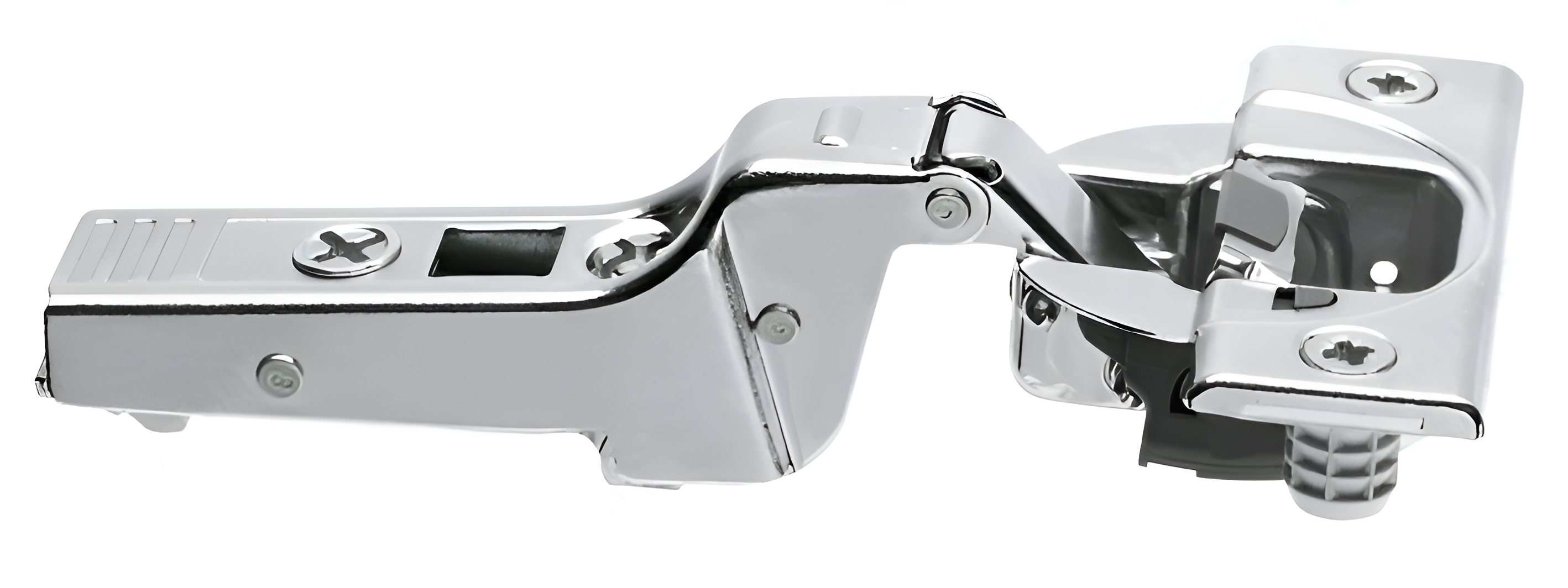

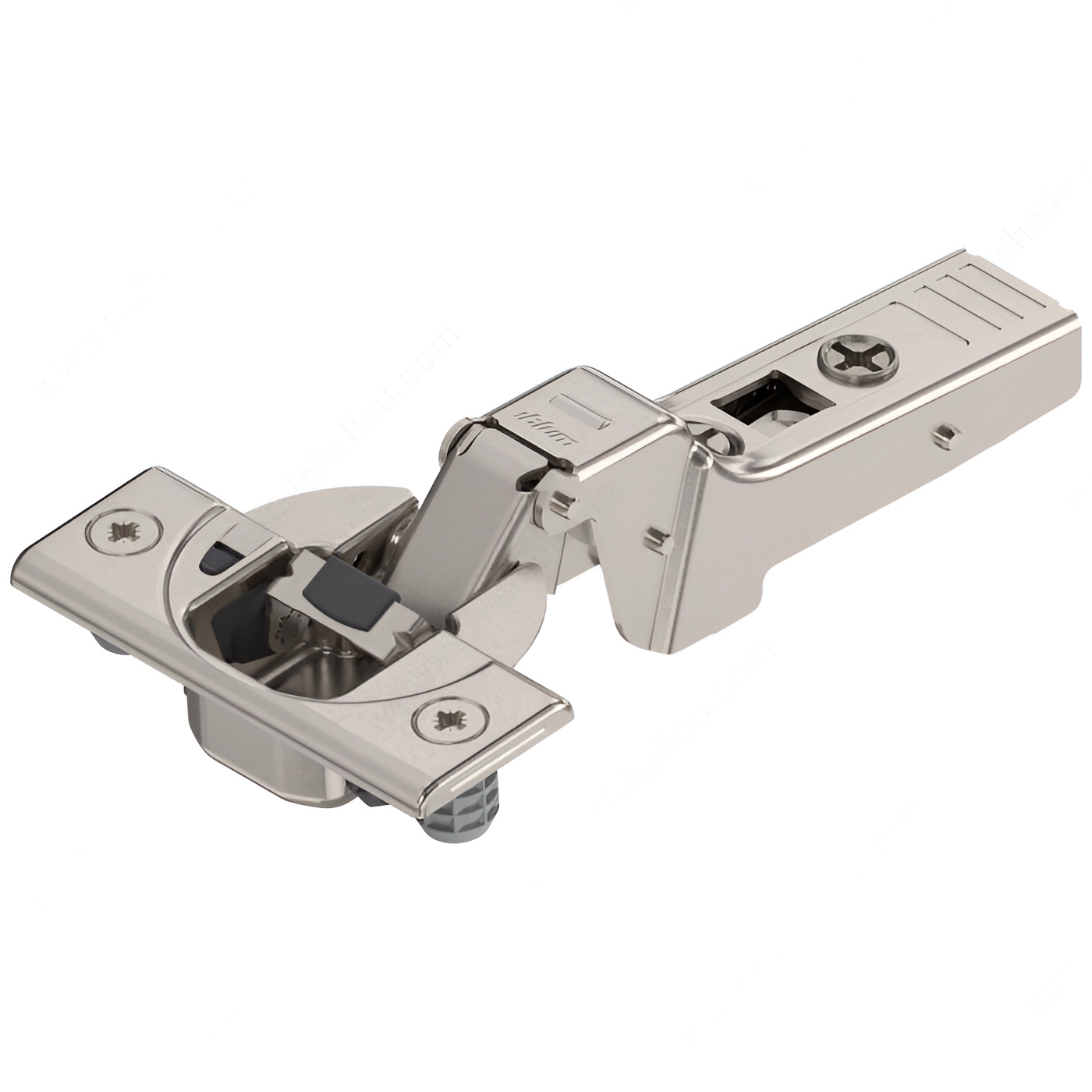

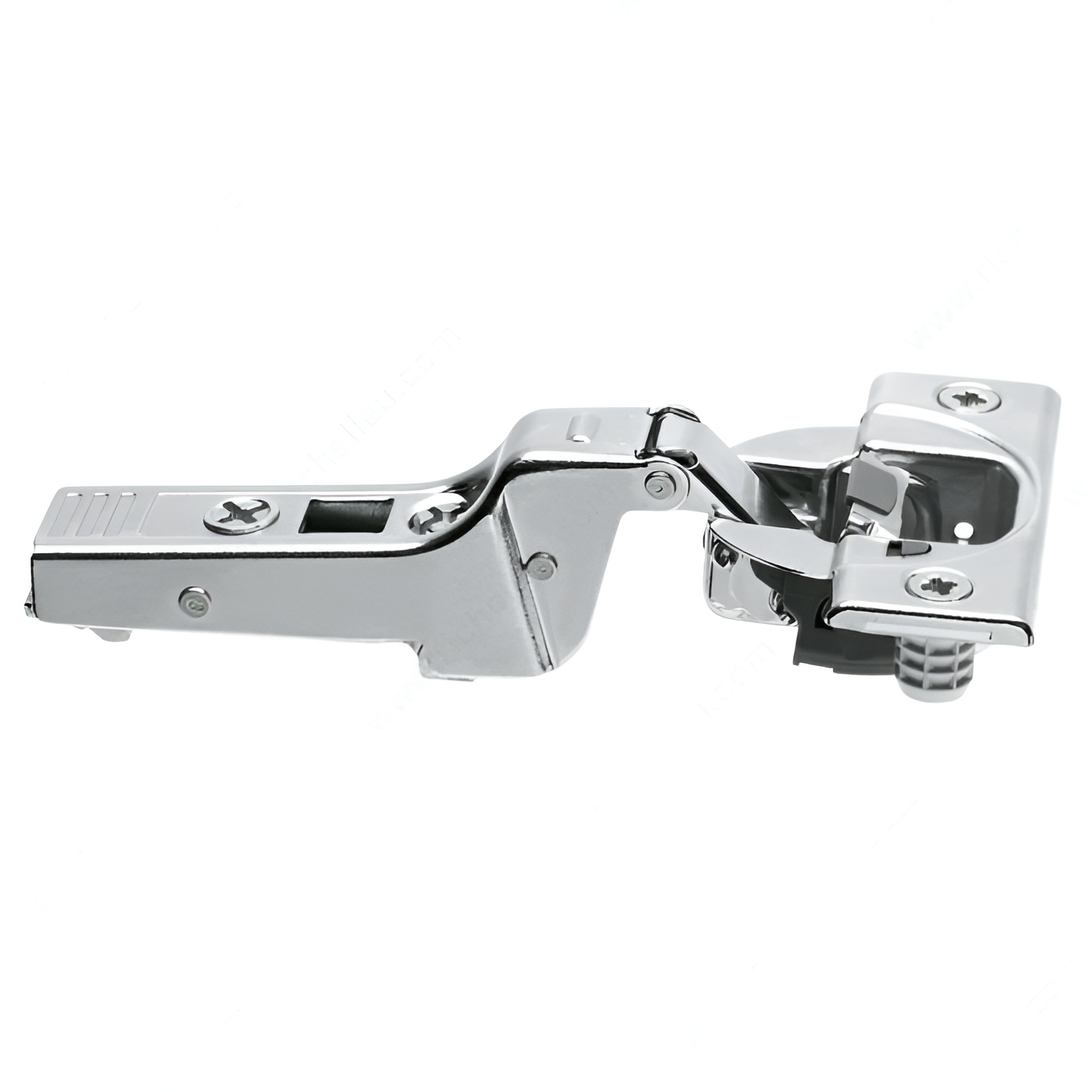

Richelieu 71B968180 CLIP top BLUMOTION Hinge for Thick Doors delivers exceptional performance for your cabinetry needs. Engineered for precision, this innovative hinge incorporates integrated BLUMOTION technology, ensuring your furniture doors close silently and effortlessly, enhancing the user experience in any space. Built to endure, this hinge is designed to perform at least 200,000 opening and closing cycles, providing you with reliability that lasts for the lifetime of your furniture. This hinge is suitable for frameless cabinet types, with a minimum cabinet thickness of 5/8 inches and accommodating door thicknesses ranging from 5/8 to 1 1/4 inches. Featuring a nickel finish, it blends seamlessly with various decor styles while maintaining a modern aesthetic. The hinge opens to an impressive +95°, allowing for easy access to your cabinet interiors. To install, simply use the dowel fixing type, with a milling depth of 1/2 inch and a milling diameter of 1 3/8 inches. The spring closing and soft-closing mechanisms work together to provide a smooth and gentle closure, making this hinge an ideal choice for thick doors. Upgrade your cabinetry with the Richelieu CLIP top BLUMOTION Hinge and experience a blend of functionality and elegance.
CLIP top BLUMOTION Hinge for Thick Doors
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: 16 to 32 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +95°
Hinge Type: CLIP top BLUMOTION
Mechanism: Spring Closing, Soft-Closing

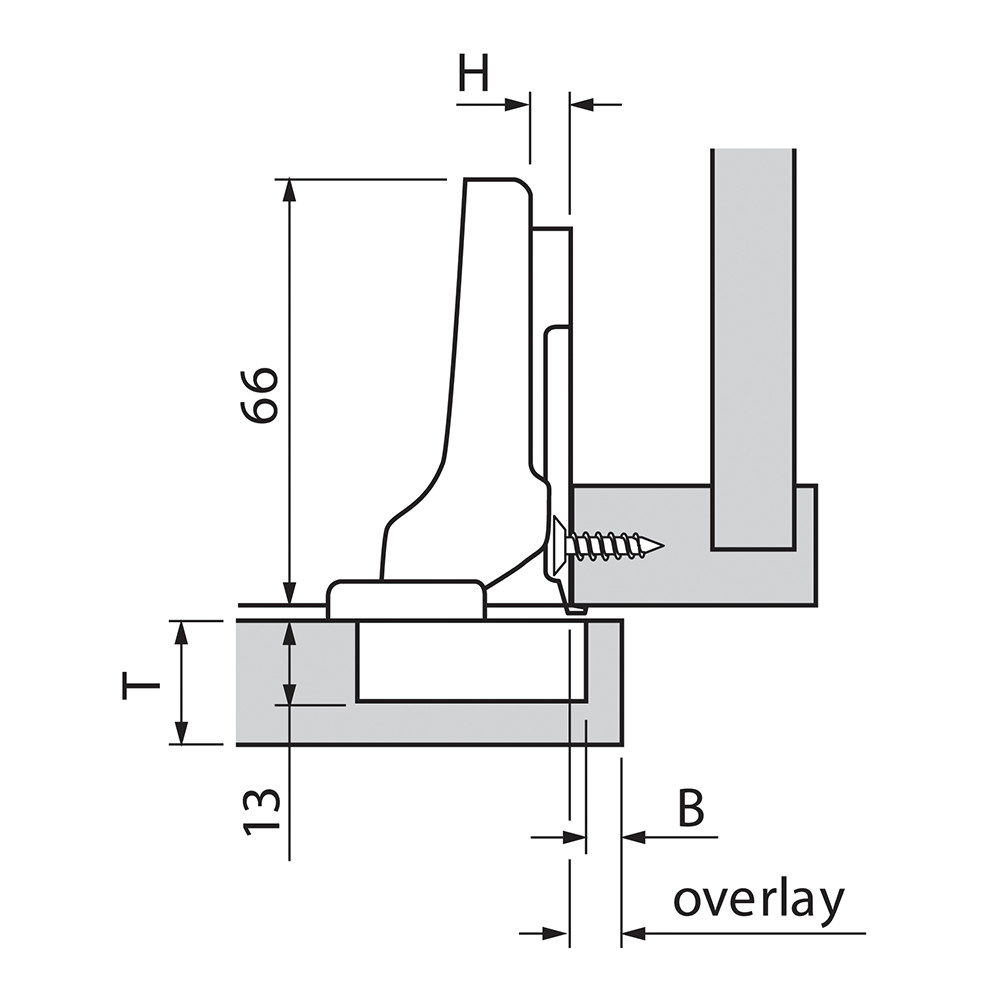

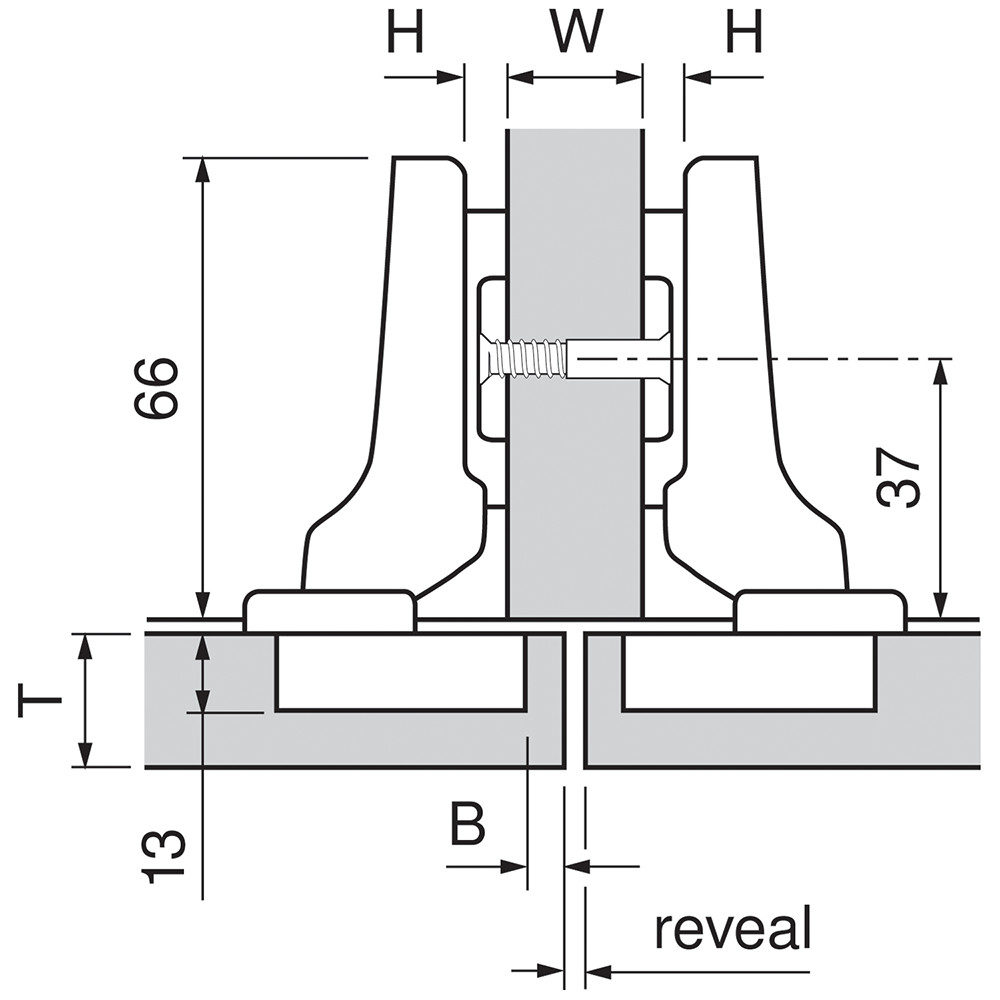

Milling Depth: 13 mm
Milling Diameter: 35 mm
Product #: 71B968180
Product number: 71B968180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Thick Door
