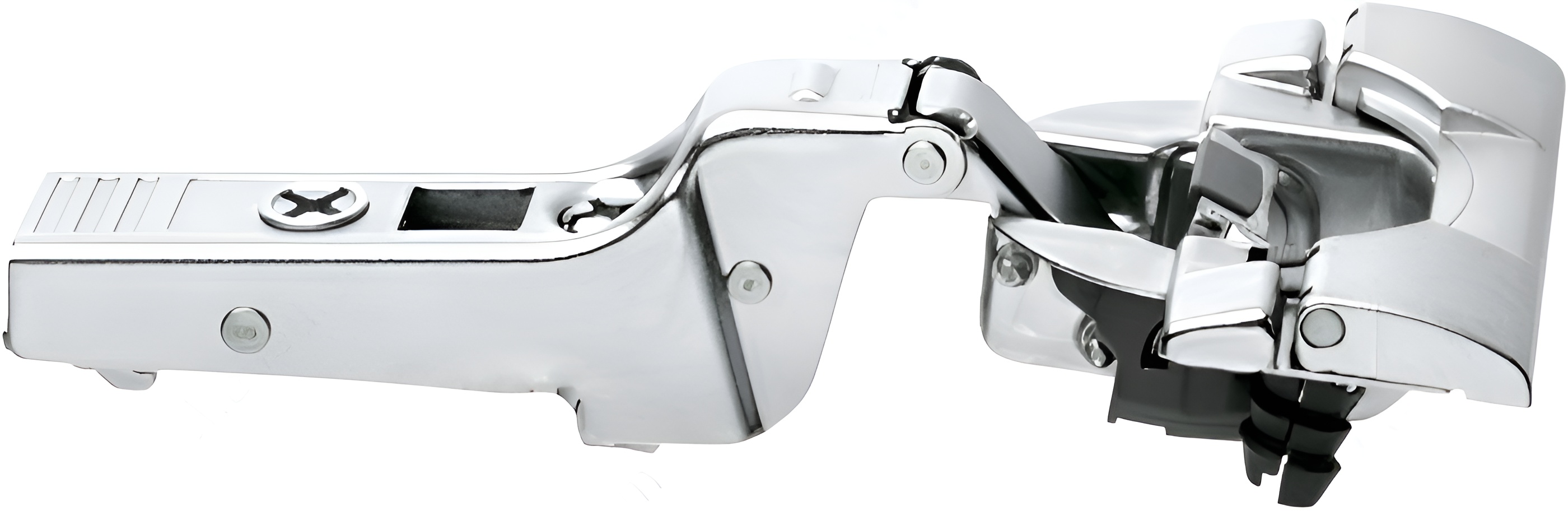

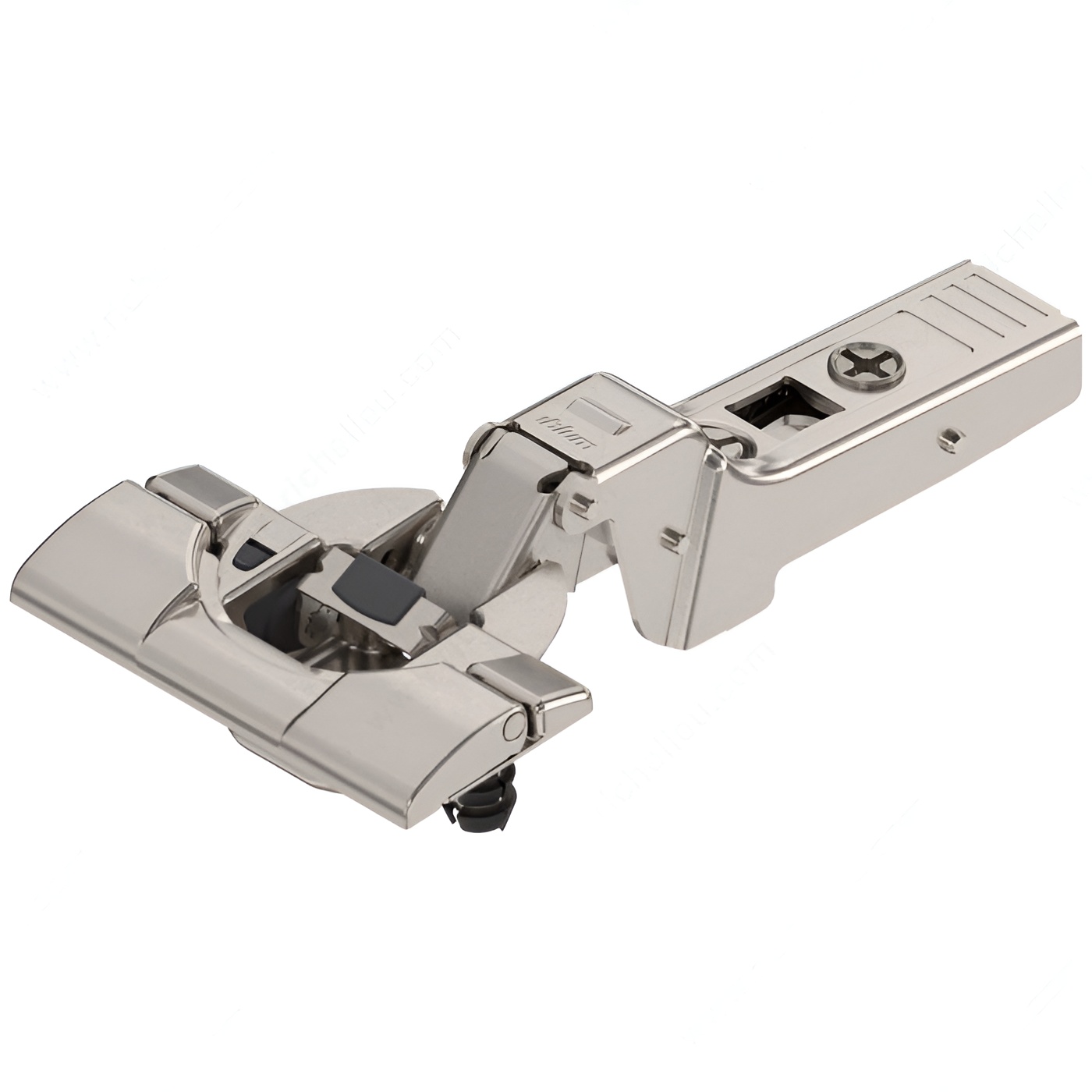

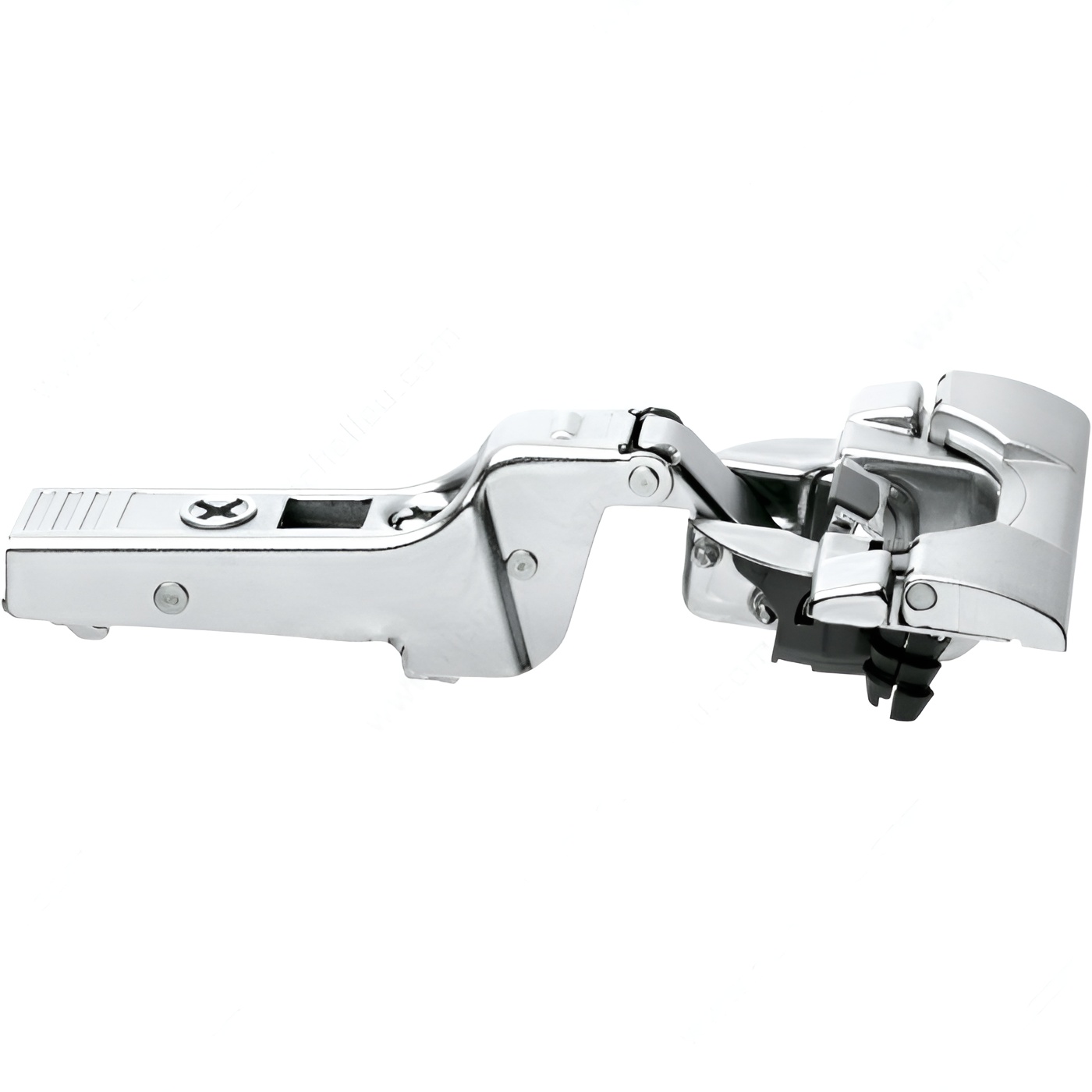

Richelieu 71B969180 CLIP top BLUMOTION Hinge for Thick Doors offers precise movement and innovative engineering, ensuring silent and effortless closing for your furniture doors. This technical masterpiece incorporates integrated BLUMOTION technology, allowing for smooth operation in even the tightest spaces. Designed to withstand at least 200,000 cycles, this hinge guarantees a compelling quality of motion that will endure throughout the lifetime of your cabinetry. The hinge is specifically crafted for frameless cabinets with a minimum material thickness of 5/8 inches, accommodating doors ranging from 5/8 to 1 1/4 inches thick. Its half overlay door position enhances the aesthetic appeal while the nickel finish complements a variety of interior designs. Featuring a +95° hinge opening angle and a spring closing mechanism, the CLIP top BLUMOTION hinge ensures that your doors close softly and securely. Installation is straightforward, with an inserta fixing type and required milling depth of 1/2 inch, alongside a milling diameter of 1 3/8 inches. This hinge is an ideal solution for professionals and discerning homeowners looking to enhance the functionality and elegance of their cabinetry. Invest in quality with Richelieu's reliable and efficient hinge technology.
CLIP top BLUMOTION Hinge for Thick Doors
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing

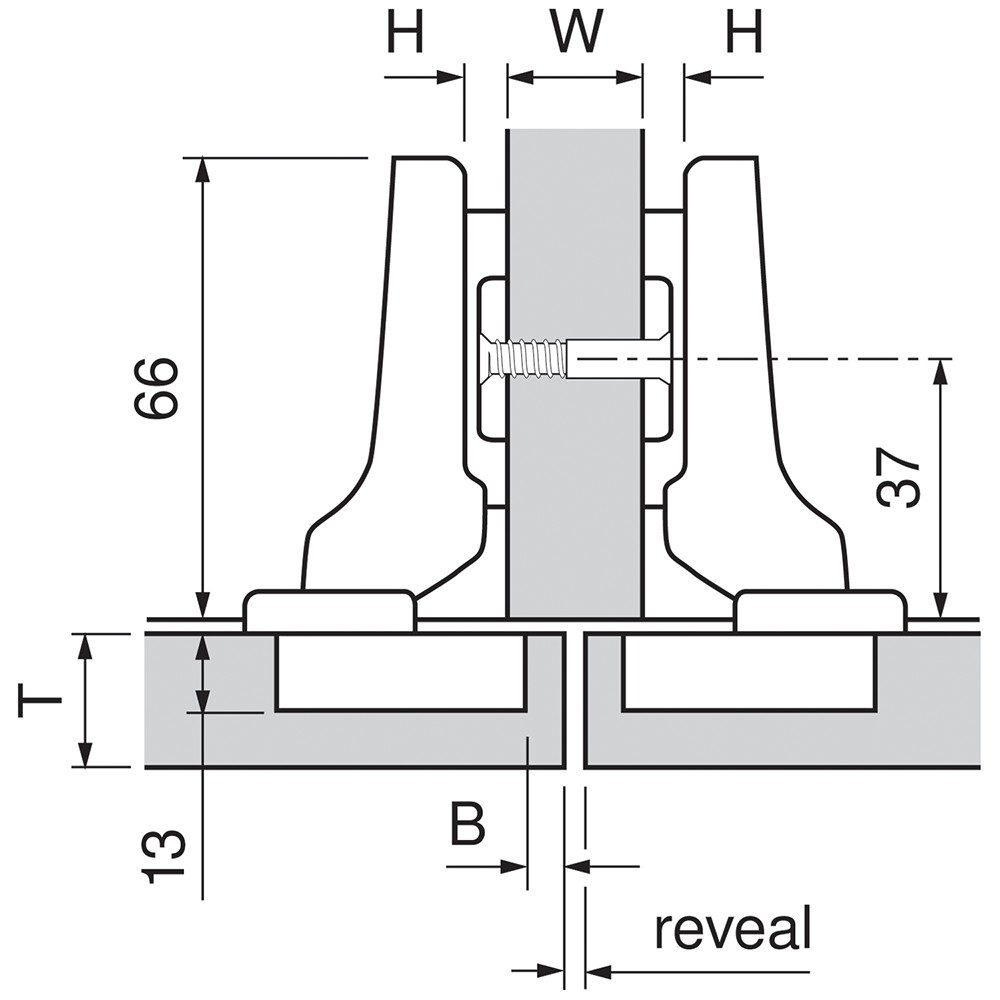

Door Position: Half Overlay
Door Thickness: 16 to 32 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +95°
Hinge Type: CLIP top BLUMOTION
Mechanism: Spring Closing, Soft-Closing
Milling Depth: 13 mm
Milling Diameter: 35 mm
Product #: 71B969180
Product number: 71B969180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Thick Door
