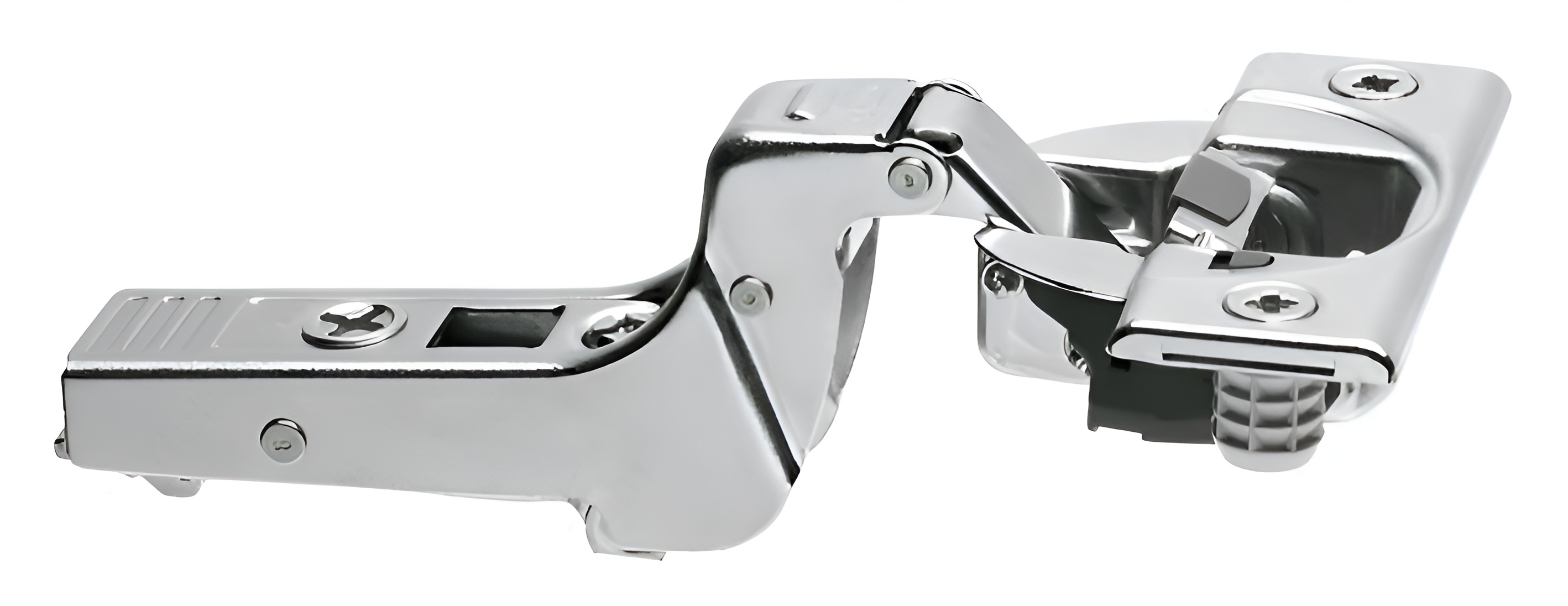

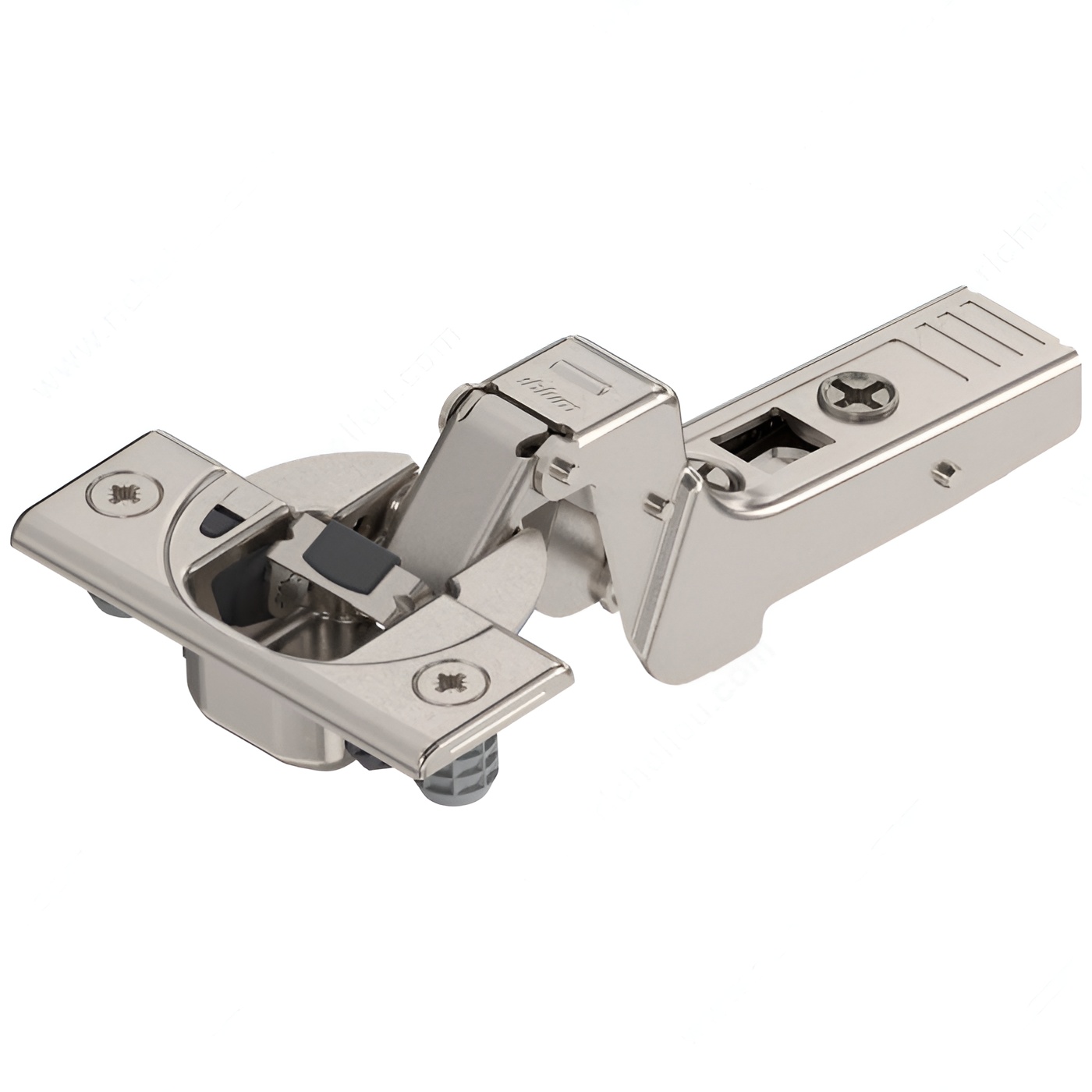

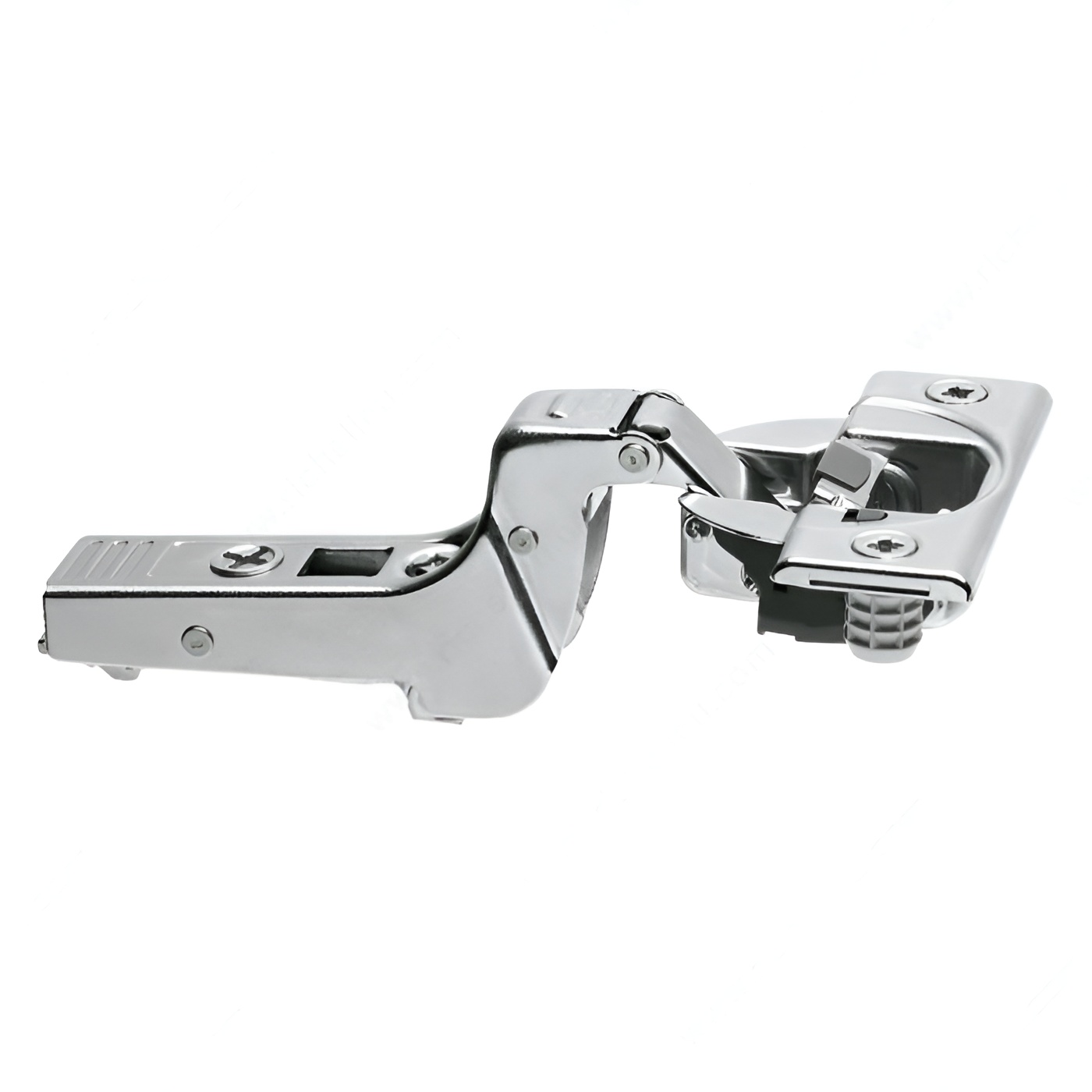

Richelieu 71B978180 CLIP top BLUMOTION Hinge for Thick Doors offers precision and reliability for your cabinetry needs. Designed specifically for frameless cabinets, this hinge ensures that your doors open and close smoothly with a remarkable quality of motion. The integrated BLUMOTION technology provides a soft-closing feature, allowing for silent and effortless door closure, making it ideal for high-traffic areas. Engineered for durability, the CLIP top BLUMOTION hinge can withstand at least 200,000 cycles, ensuring it lasts throughout the lifespan of your furniture. It accommodates door thicknesses ranging from 5/8 to 1 1/4 inches and requires a minimum cabinet thickness of 5/8 inches. With a hinge opening angle of +95°, it provides ample access and functionality. The nickel finish adds a touch of elegance, while the dowel fixing type ensures secure installation. This hinge is also designed for easy milling, requiring a depth of 1/2 inch and a diameter of 1 3/8 inches. Whether you’re a building professional or a knowledgeable homeowner, the Richelieu 71B978180 CLIP top BLUMOTION Hinge is the perfect choice for enhancing your cabinetry with both style and superior performance.
CLIP top BLUMOTION Hinge for Thick Doors
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Inset
Door Thickness: 16 to 32 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +95°
Hinge Type: CLIP top BLUMOTION
Mechanism: Spring Closing, Soft-Closing

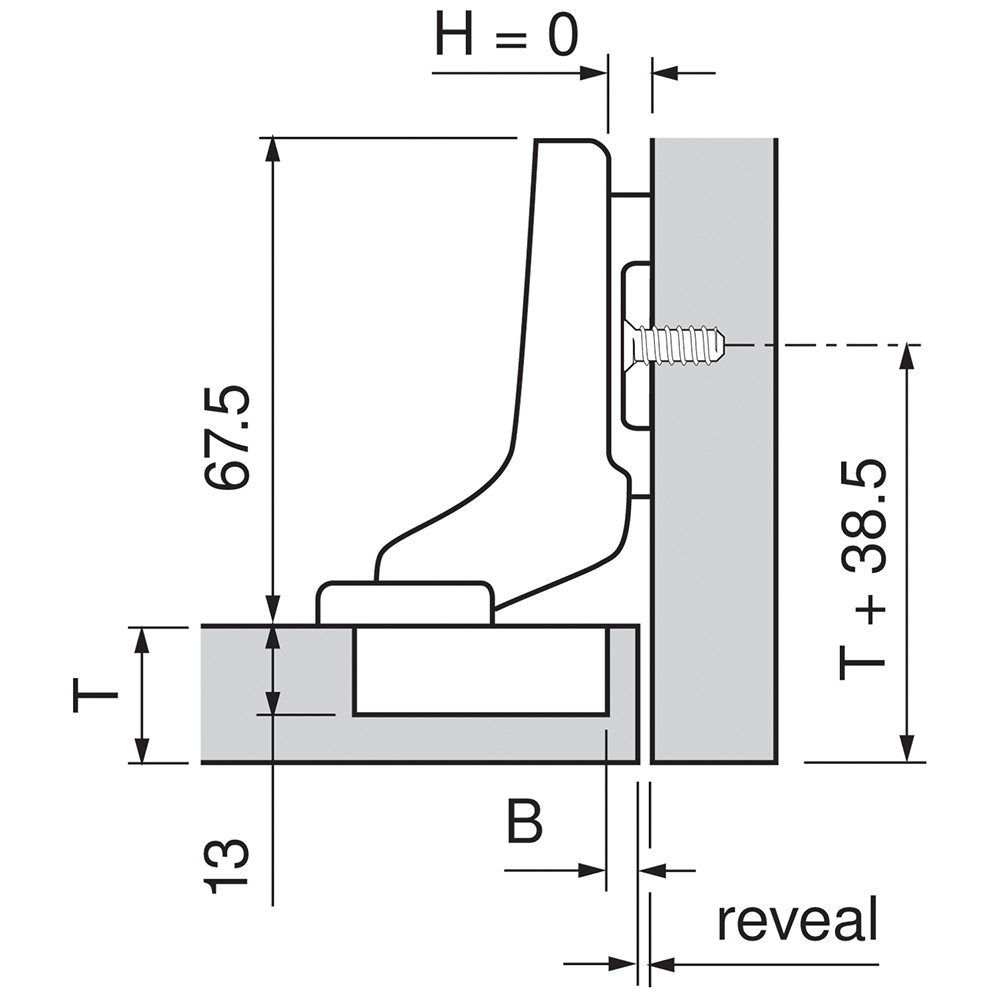

Milling Depth: 13 mm
Milling Diameter: 35 mm
Product #: 71B978180
Product number: 71B978180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Thick Door
