Richelieu 71M075180 CLIP top Mini Hinge - 94 offers a sophisticated solution for frameless cabinet installations. Designed specifically for inset doors, this hinge accommodates a minimum cabinet and door thickness of 5/8 inches, ensuring a seamless fit for your cabinetry needs. With a remarkable hinge opening angle of +94°, it allows for easy access while maintaining a sleek aesthetic. This hinge features a screw-on fixing type, allowing for straightforward installation and reliable performance. The spring closing mechanism ensures that doors shut smoothly and securely, enhancing both functionality and user experience. The milling depth of 1/2 inch and a diameter of 1 1/32 inches make it compatible with various door designs, particularly thin frame doors. Crafted for durability and designed with precision, the Richelieu 71M075180 hinge is an essential component for high-quality cabinetry. Its ability to ship via UPS ensures convenience and timely delivery for your projects. Whether you are a building professional or a knowledgeable homeowner, this hinge combines practical engineering with elegant design, making it an excellent choice for your next cabinetry project.

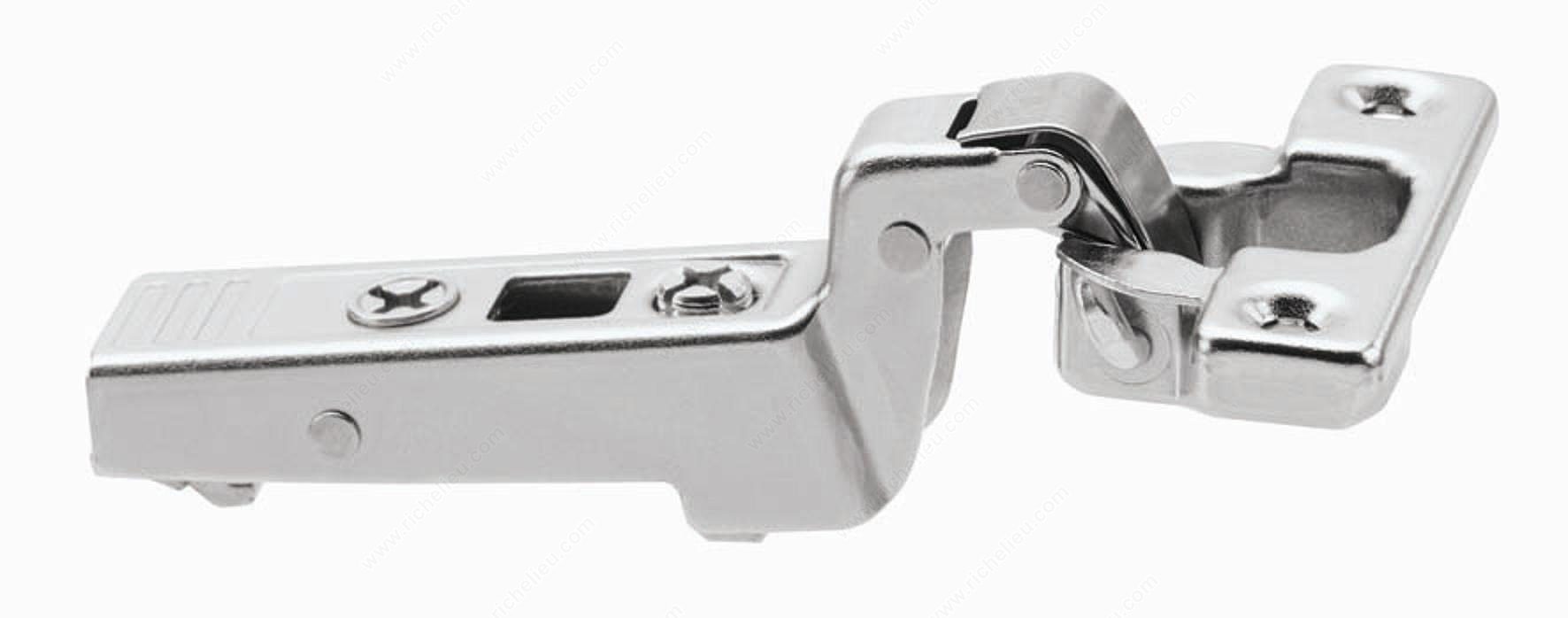

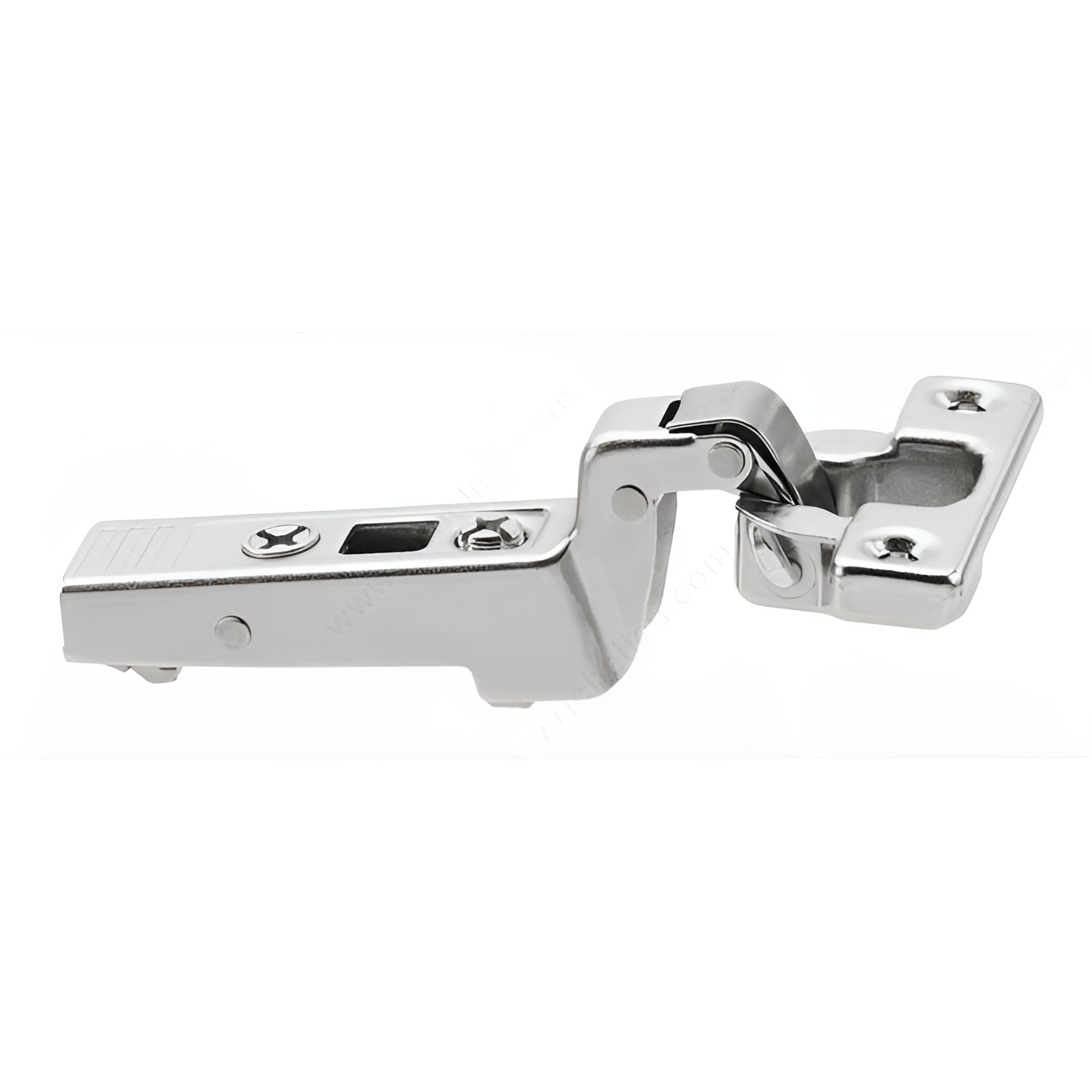

CLIP top Mini Hinge - 94
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Inset
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +94°
Hinge Type: CLIP top
Mechanism: Spring Closing
Milling Depth: 12.5 mm
Milling Diameter: 26 mm
Product #: 71M075180
Product number: 71M075180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Thin Frame Door
