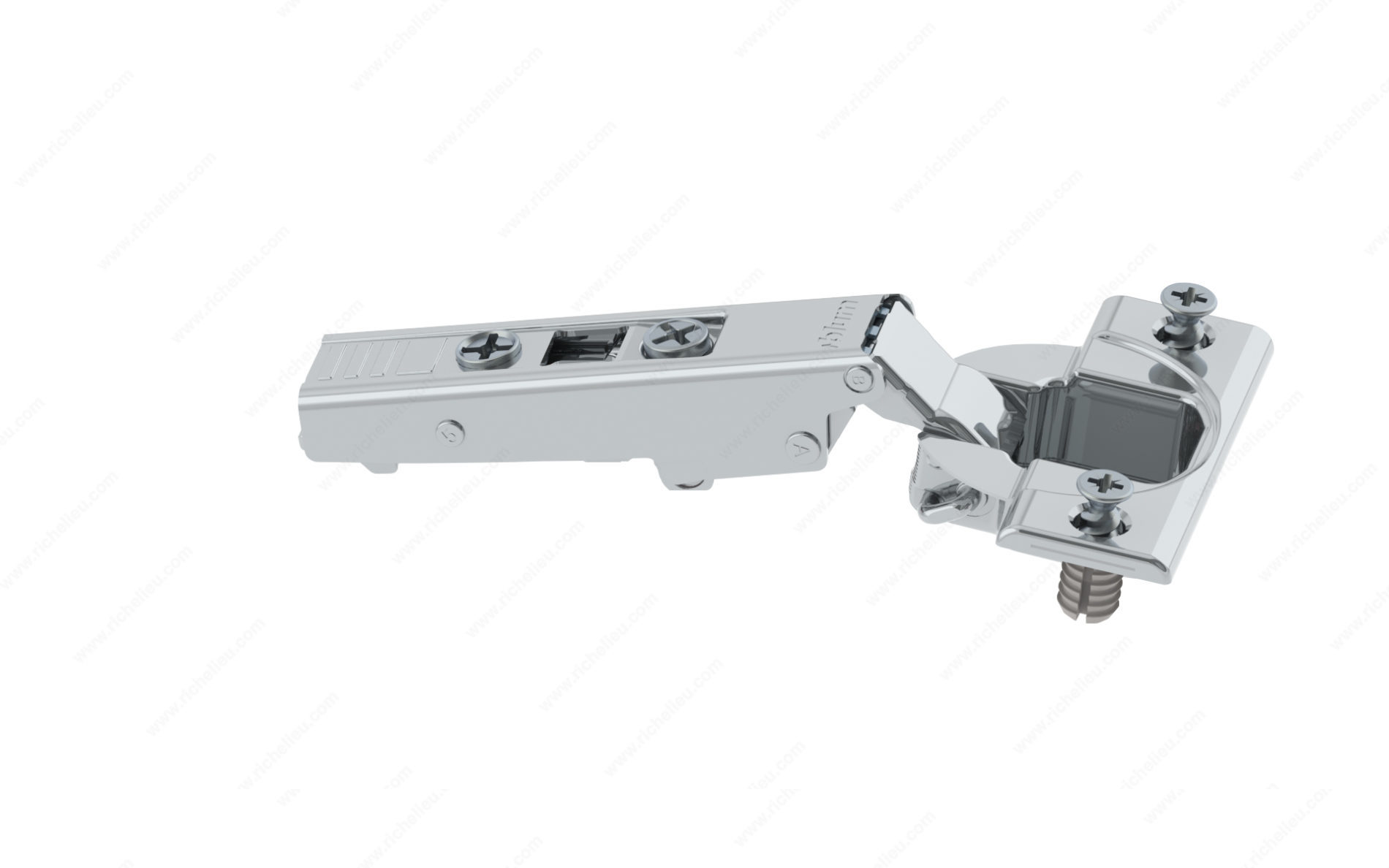

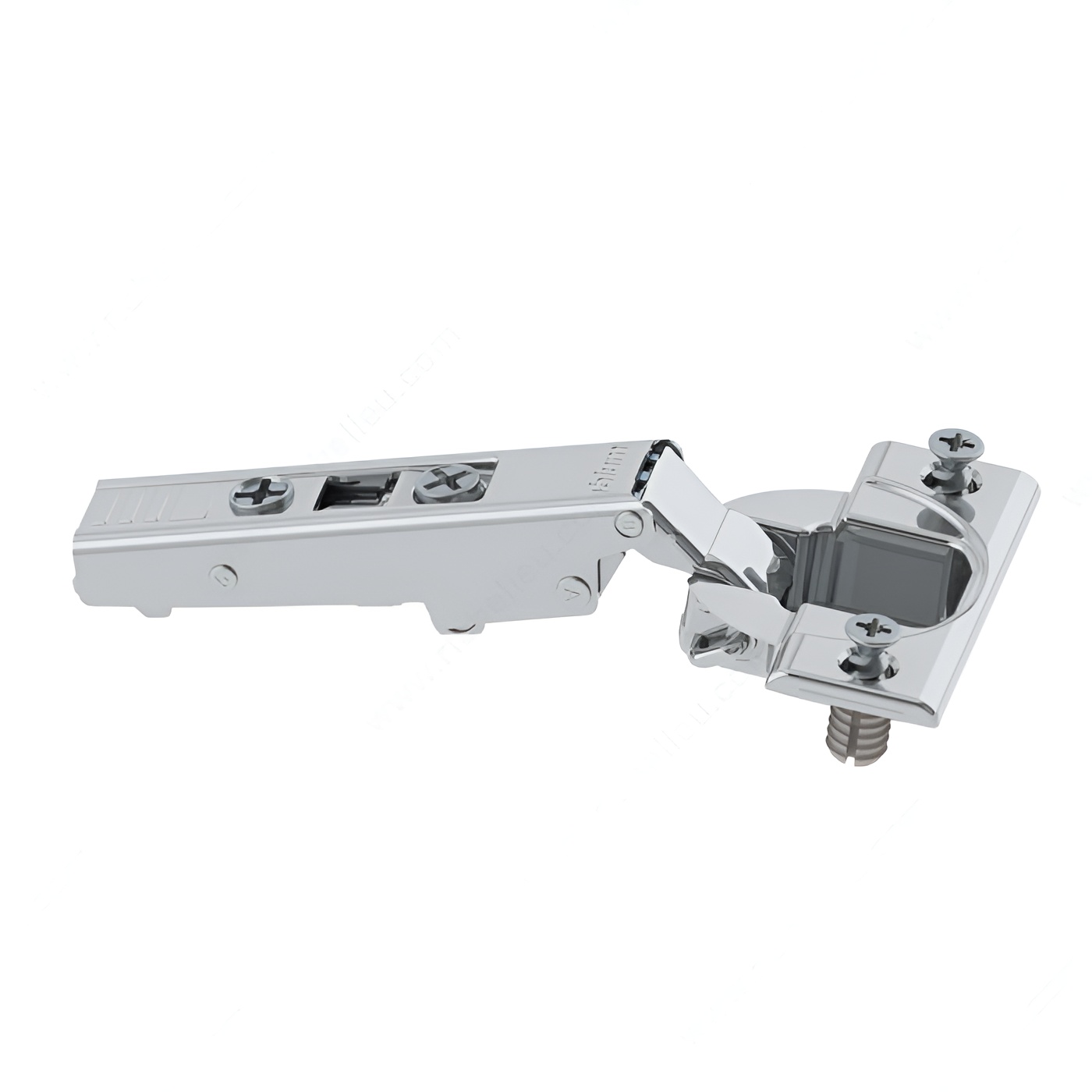

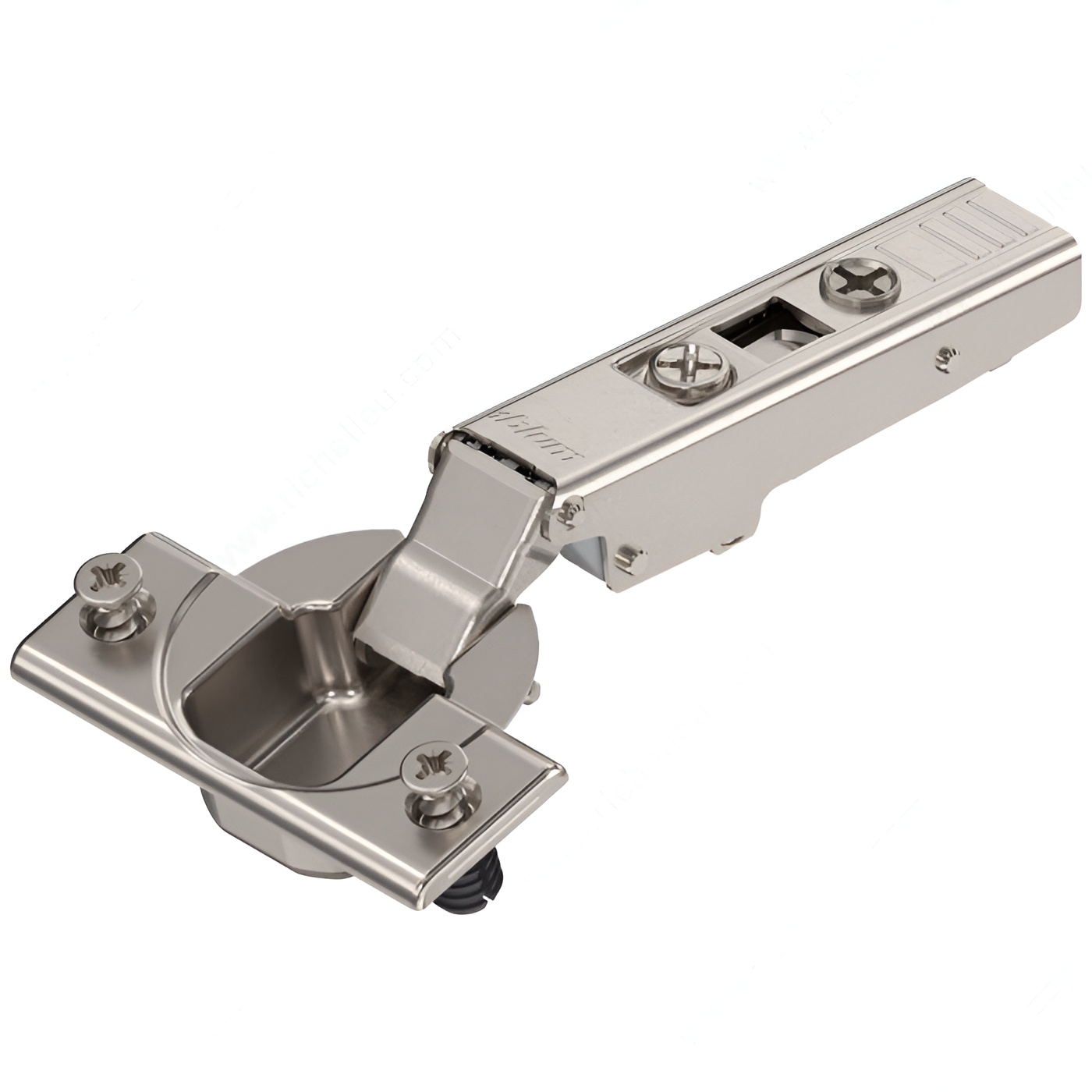

Richelieu 71T358E180 CLIP top Hinge 110 offers an exceptional solution for frameless cabinet applications. Designed for full overlay doors, this hinge supports a minimum cabinet thickness of 5/8 inches, ensuring a seamless fit and stylish appearance. With a durable nickel finish, it not only enhances your cabinetry but also provides long-lasting functionality. This hinge features a spring closing mechanism, allowing for smooth and reliable door operation. The hinge opening angle of +110° ensures easy access to your cabinets, making it ideal for both residential and commercial settings. The expanding dowel fixing type simplifies installation, providing a secure hold that you can trust. In terms of specifications, the milling depth is set at 1/2 inch, with a milling diameter of 1 3/8 inches, allowing for precise adjustments during installation. With its standard door use type, the Richelieu 71T358E180 is a versatile choice for various projects. Whether you are a building professional or a knowledgeable homeowner, this hinge meets high standards of quality and performance. It can ship via UPS, making it a convenient option for your next cabinetry project. Upgrade your cabinet hardware with the reliability and style that Richelieu products are known for.
CLIP top Hinge 110
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel

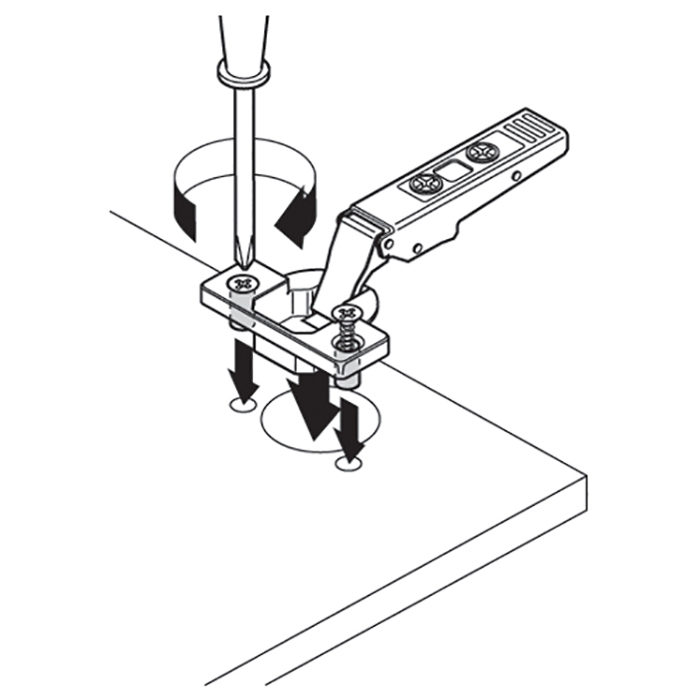

Fixing Type: Expanding Dowel
Hinge Opening Angle: +110°
Hinge Type: CLIP top
Mechanism: Spring Closing

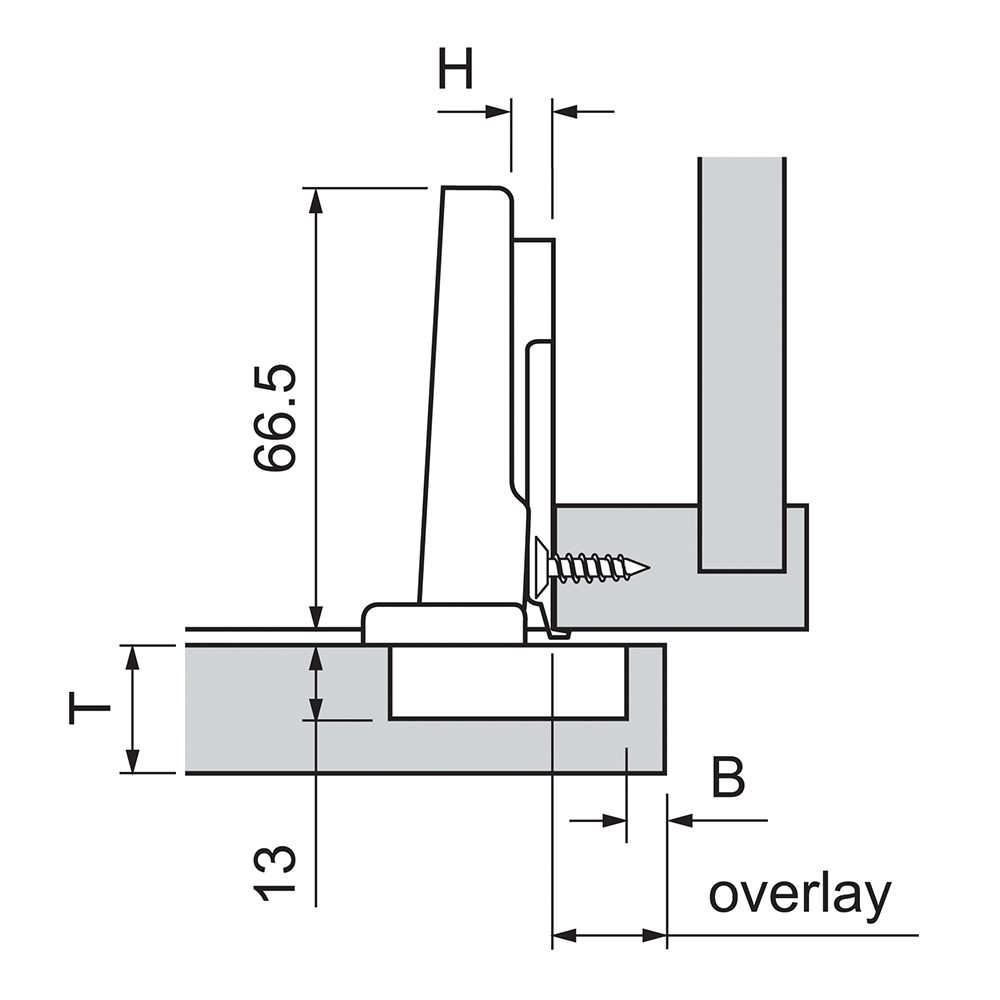

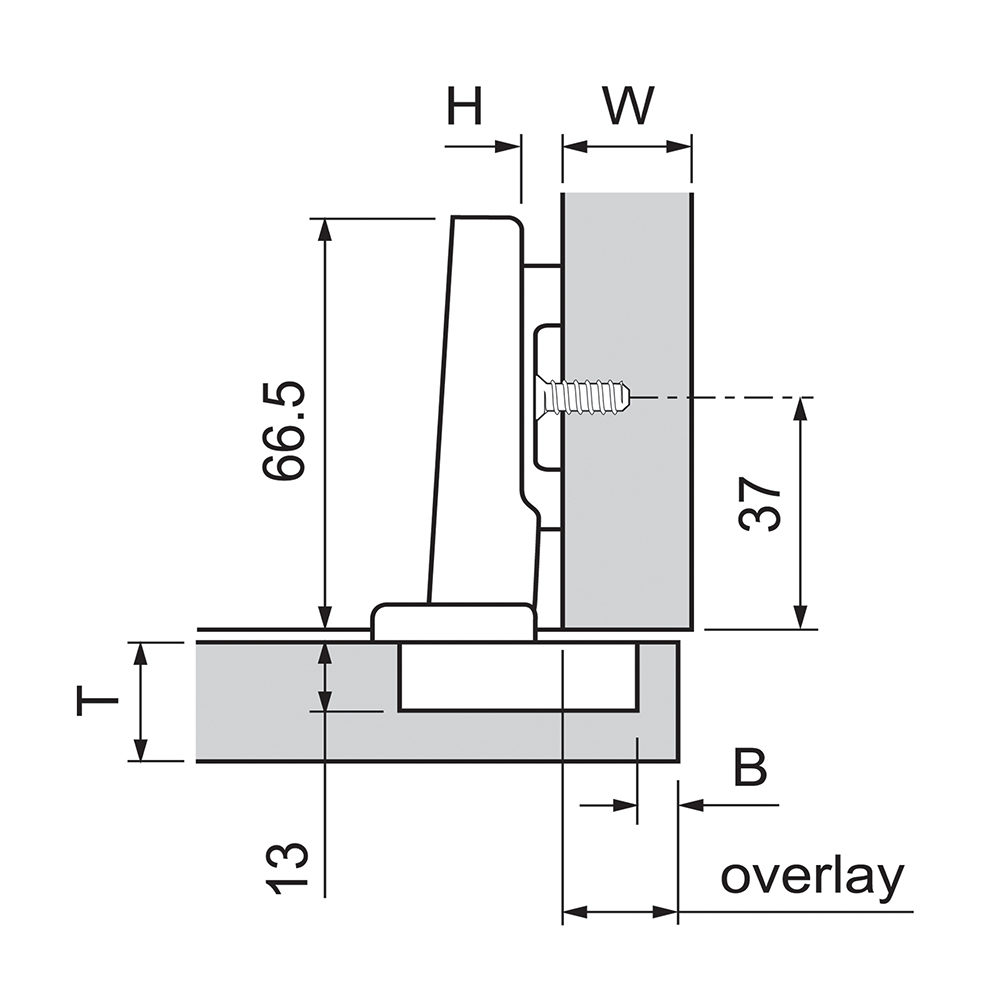

Milling Depth: 13 mm
Milling Diameter: 35 mm
Product #: 71T358E180
Product number: 71T358E180
Unit 1: case - 250
Use Type: Standard Door
