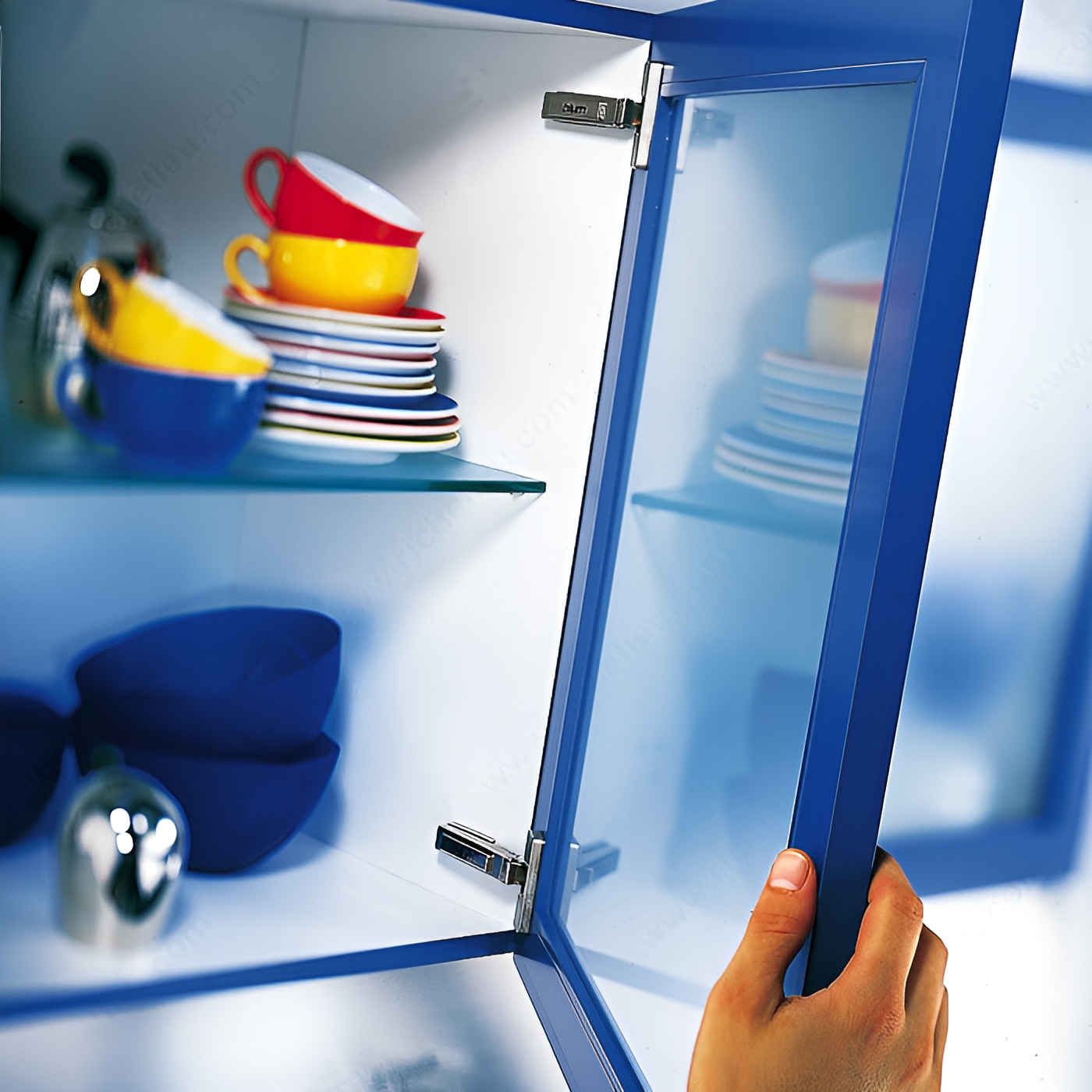

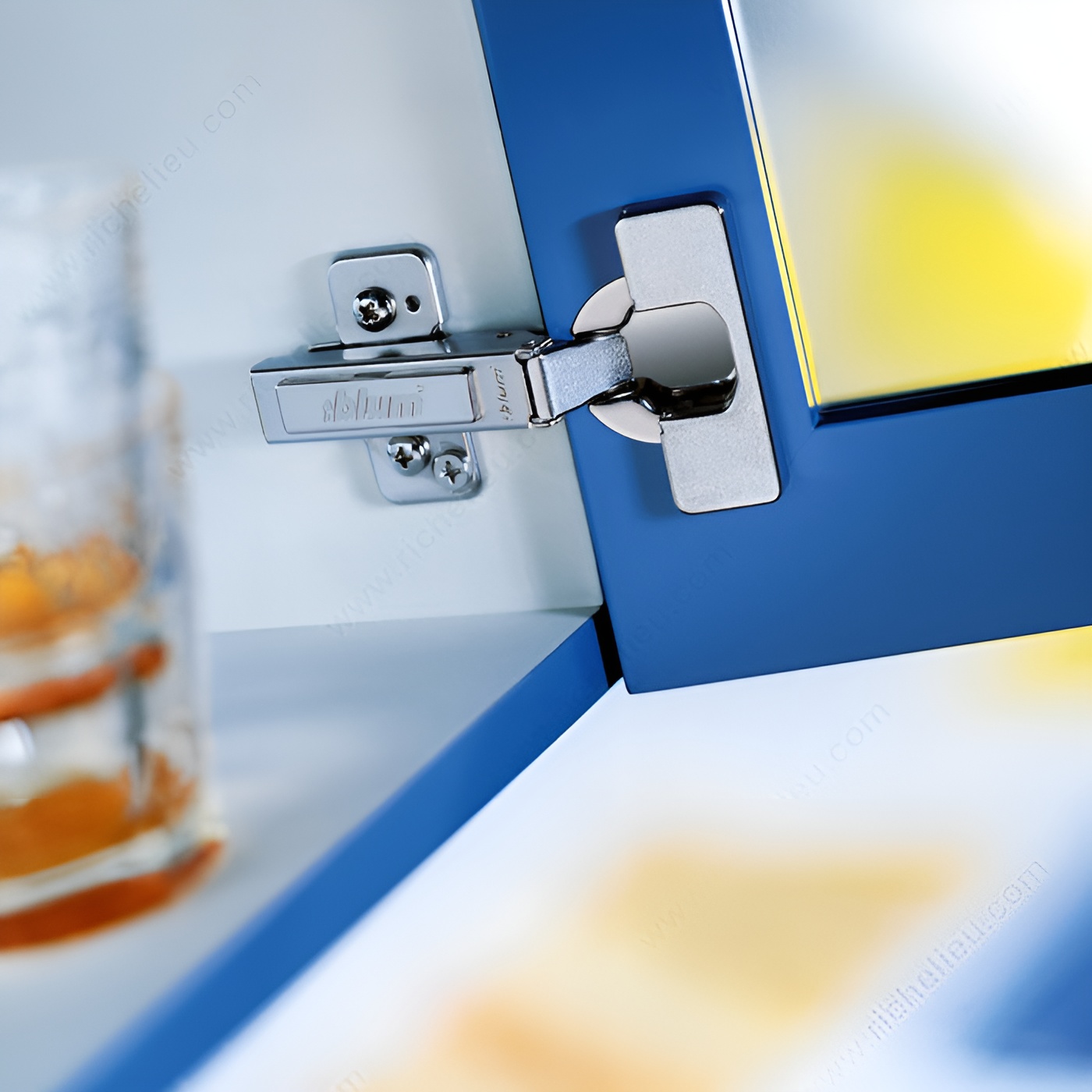

Richelieu 71T654180 CLIP top Hinge 170 is an exceptional choice for those seeking concealed hinges for cabinet doors. Designed to remain hidden when the door is closed, these hinges offer a sleek and modern look. Their versatility shines through, as they can be utilized in both frameless and face frame cabinets, accommodating various design preferences. With a hinge opening angle of +170°, this hinge allows for maximum accessibility, making it ideal for bi-fold door applications. Constructed from durable steel and Zamac materials, the Richelieu CLIP top hinge is built to withstand daily use while maintaining optimal performance. The spring closing mechanism further enhances functionality, ensuring a smooth and quiet operation. The hinge is compatible with cabinet and door thicknesses of a minimum of 5/8 inch, catering to a wide range of cabinet designs. Moreover, the option to upgrade to soft closing BLUMOTION provides added flexibility and reliability, offering a gentle closure every time. Packaged per unit for convenience, the Richelieu 71T654180 CLIP top Hinge 170 is an essential component for any cabinetry project, blending functionality with a polished aesthetic. Choose this hinge to elevate your cabinet design and enhance user experience.

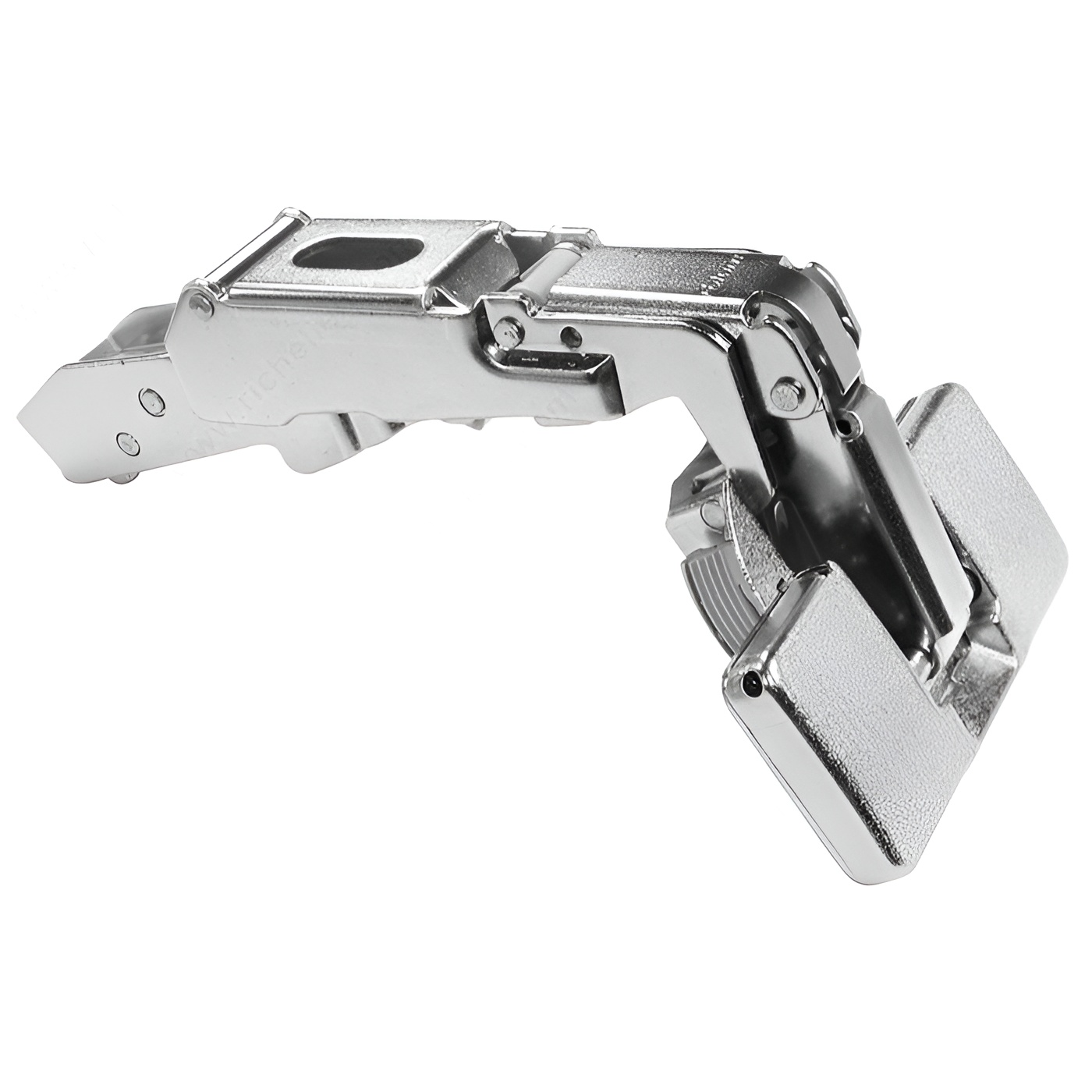

CLIP top Hinge 170
Brand: Blum
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing

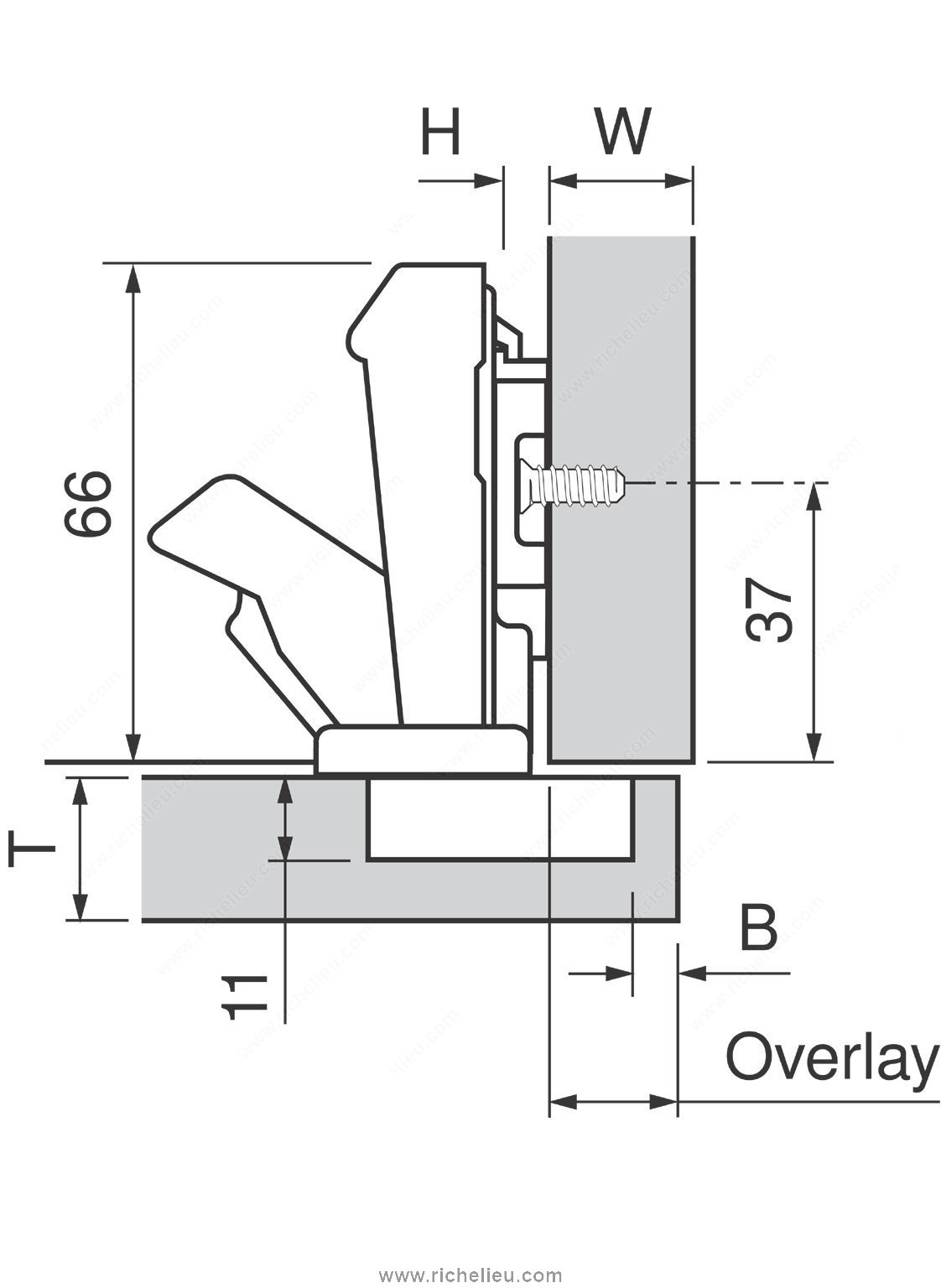

Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel

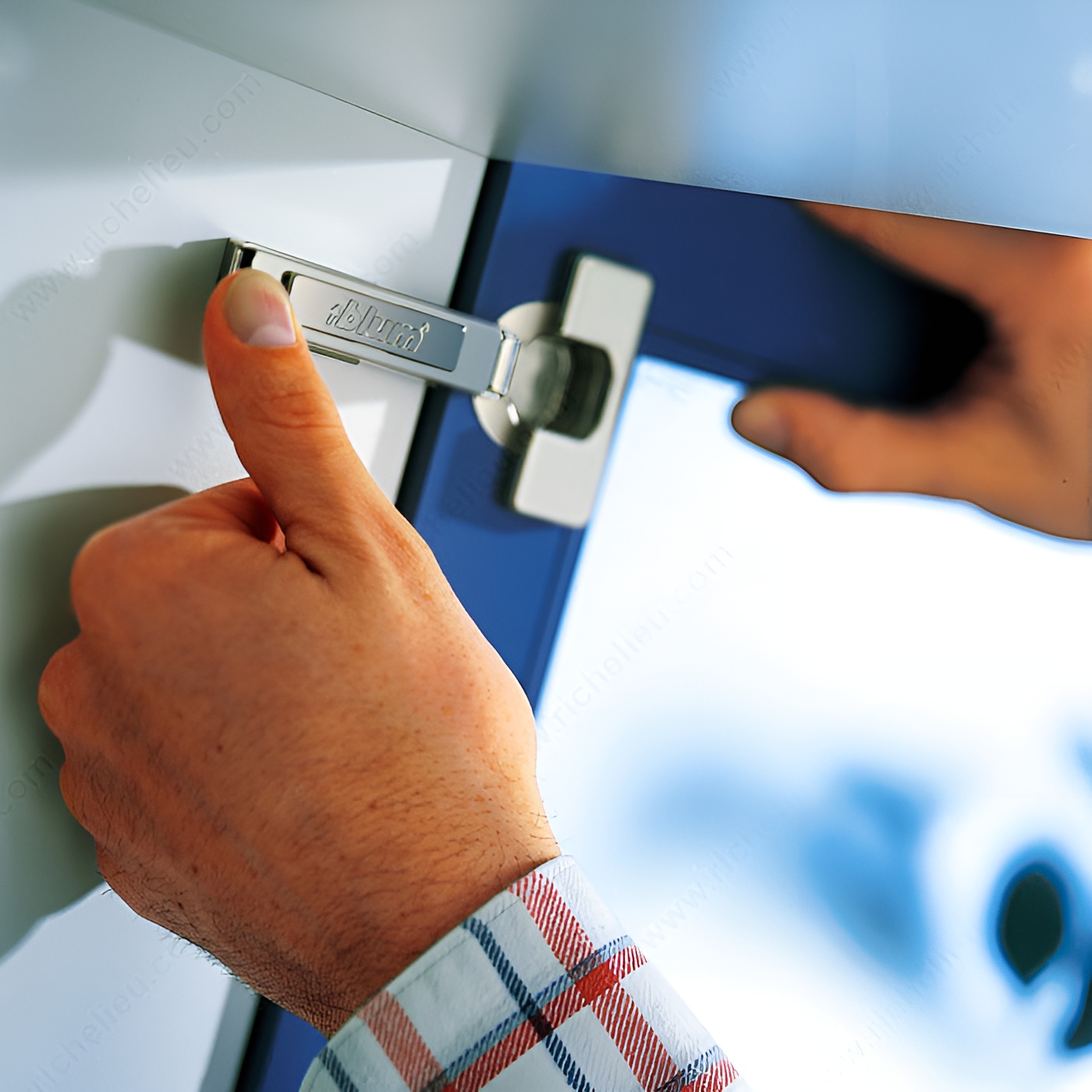

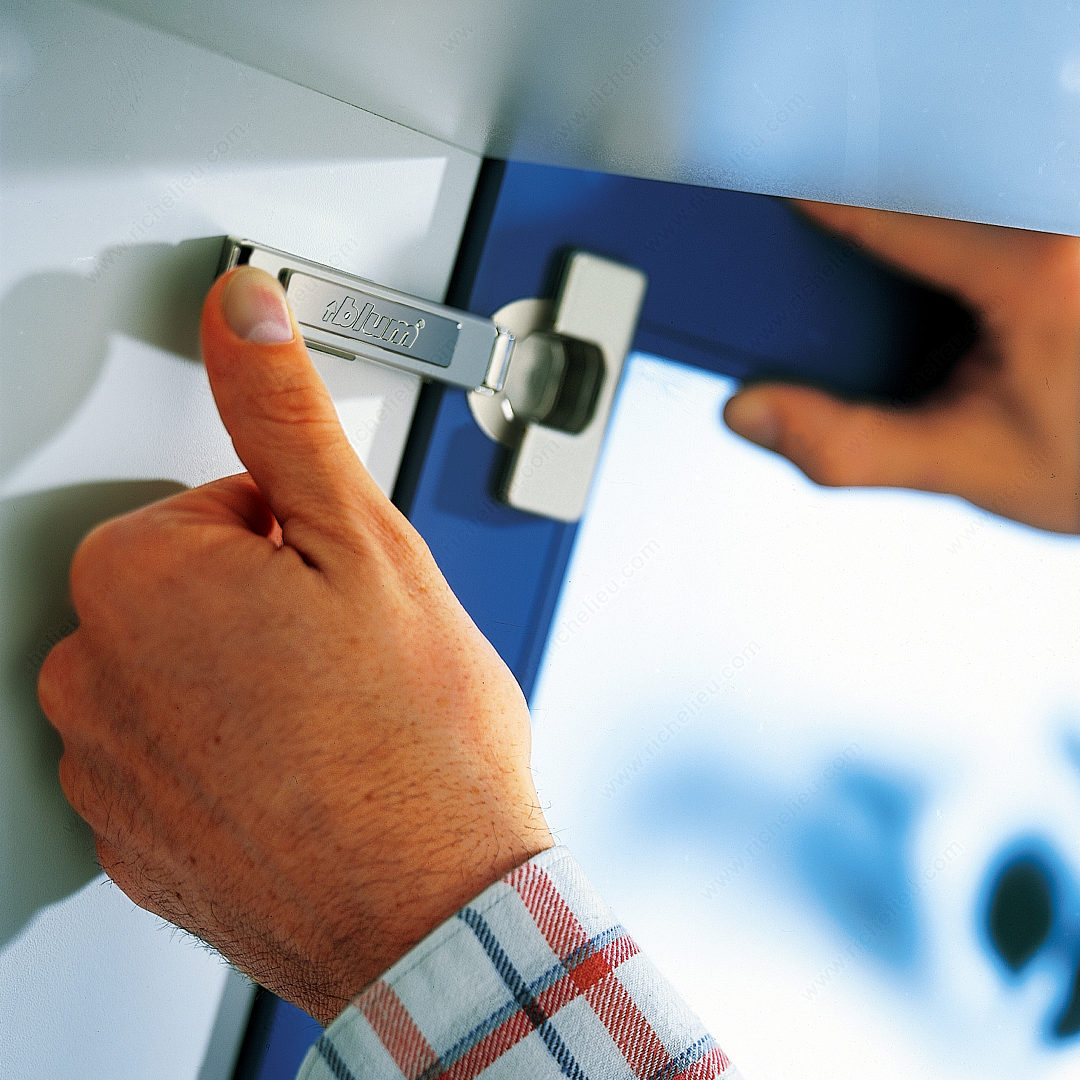

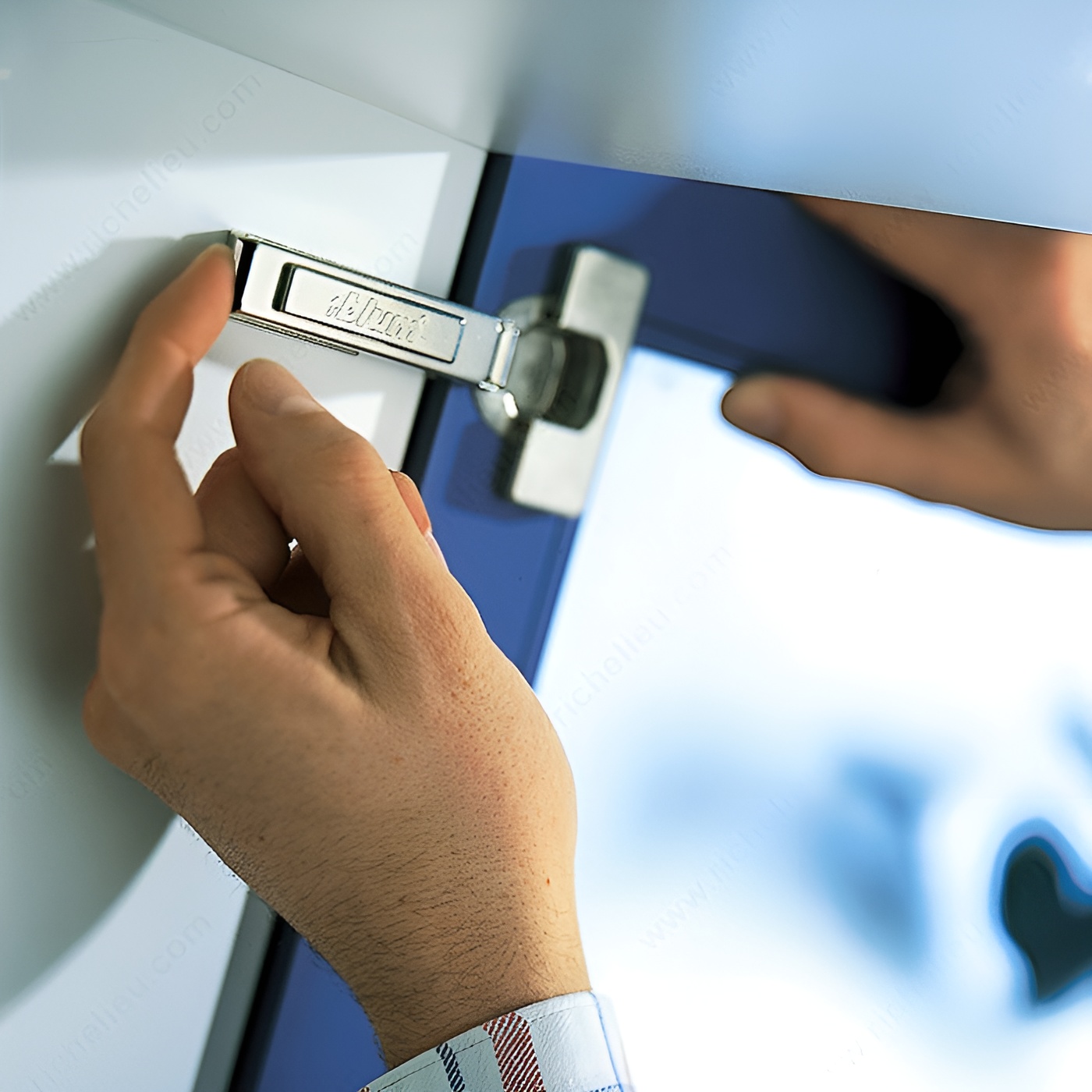

Fixing Type: Toolless
Hinge Opening Angle: +170°
Hinge Type: CLIP top
Material: Steel, Zamac
Mechanism: Spring Closing

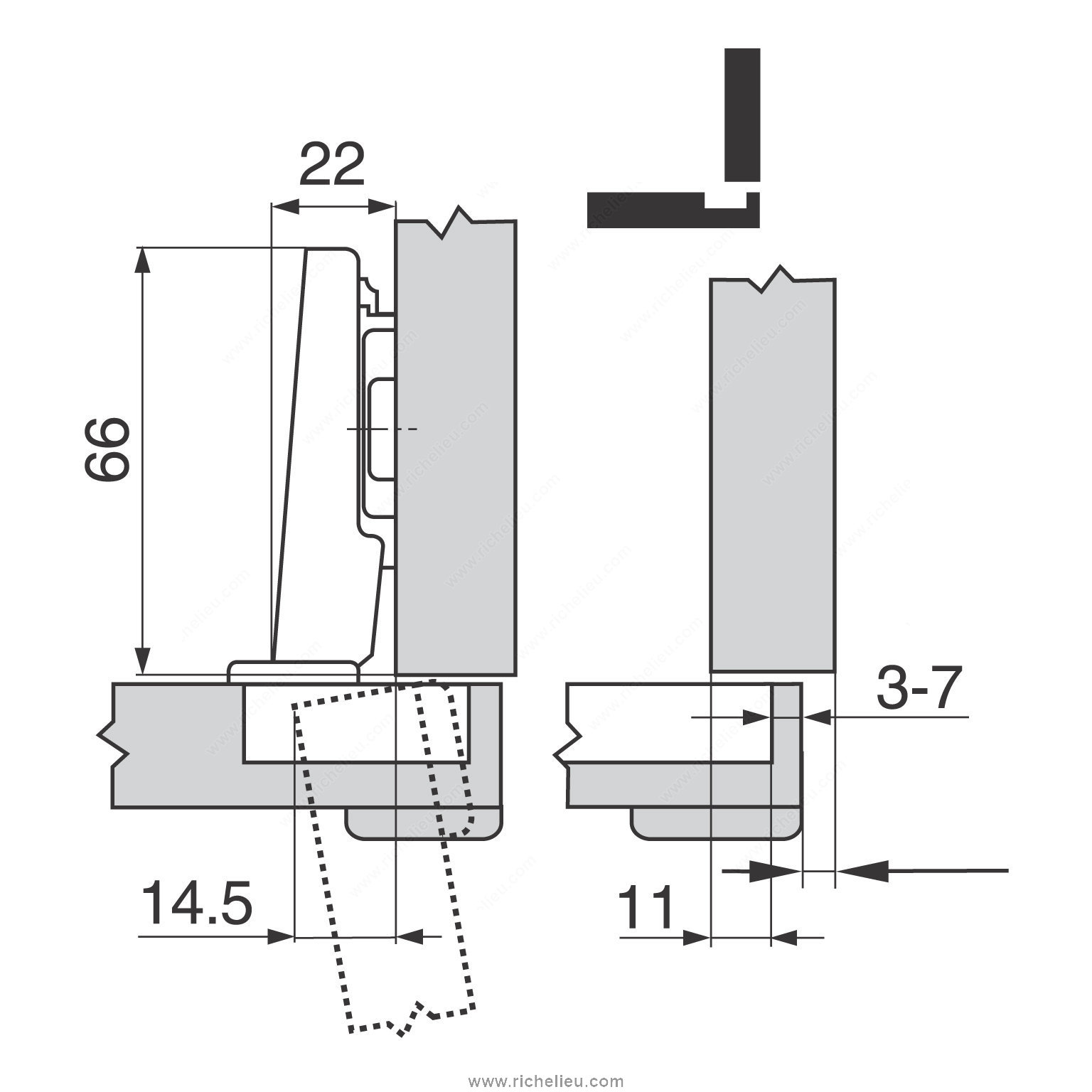

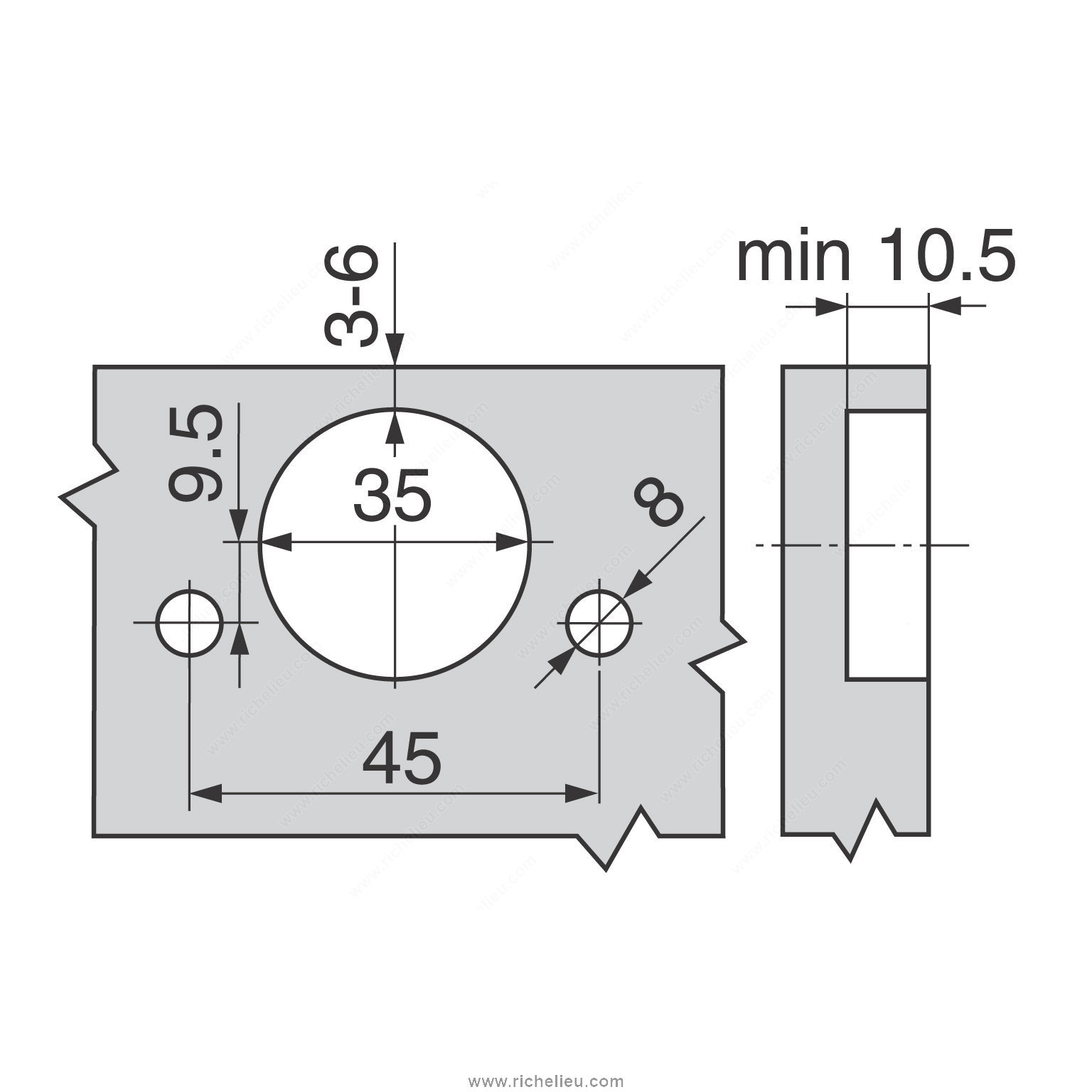

Milling Depth: 10.5 mm

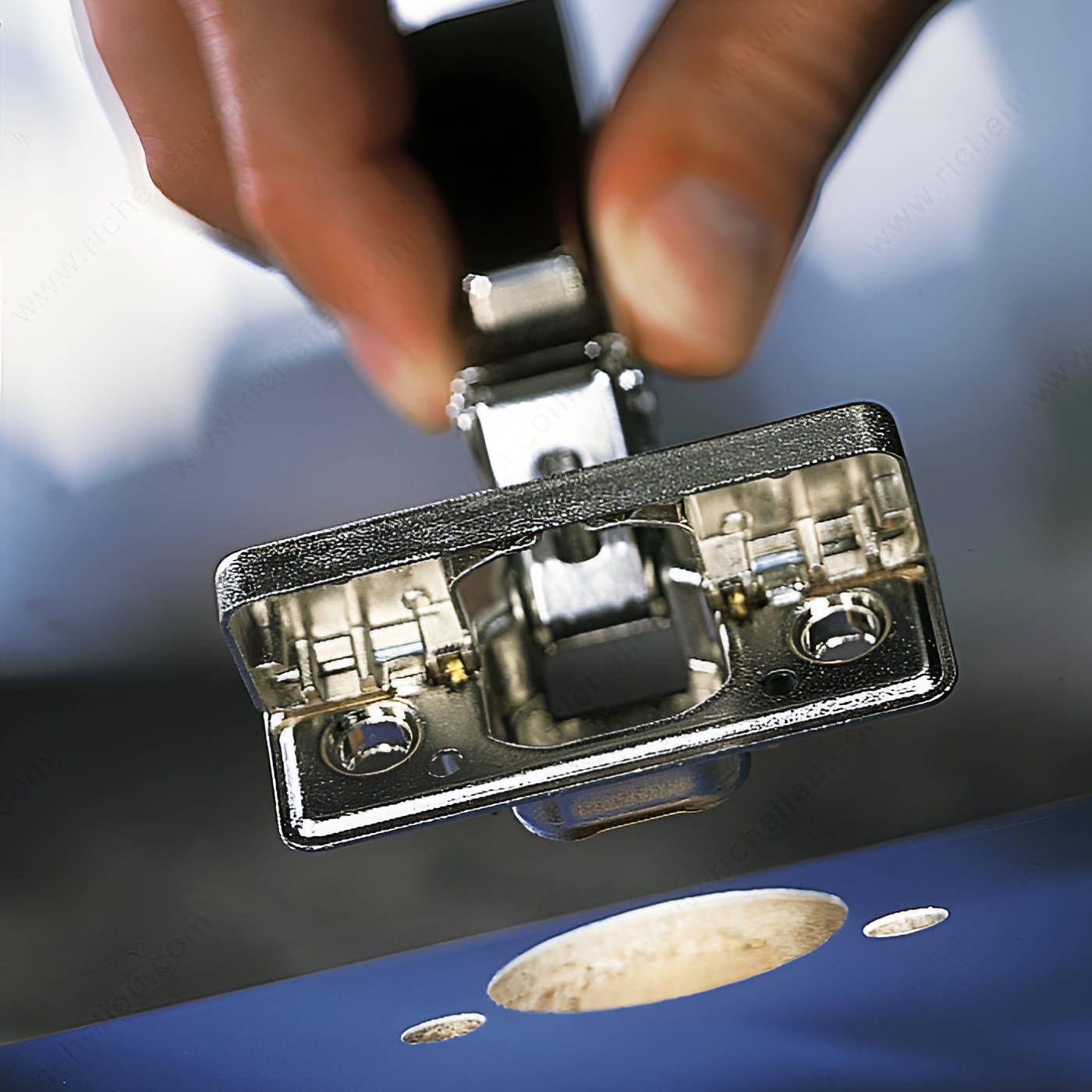

Milling Diameter: 35 mm
Packaging format: Per unit
Product #: 71T654180
Product number: 71T654180
Unit 1: case - 125
Use Type: Bi-Fold Door
