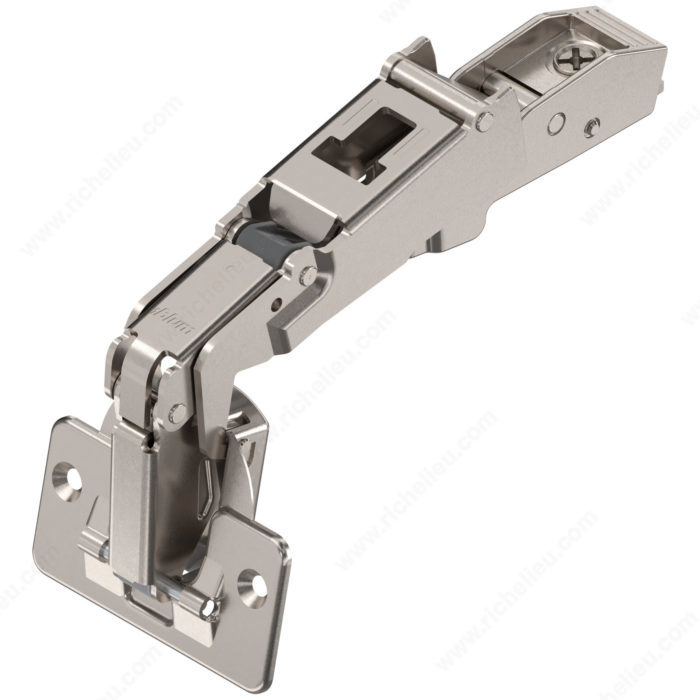

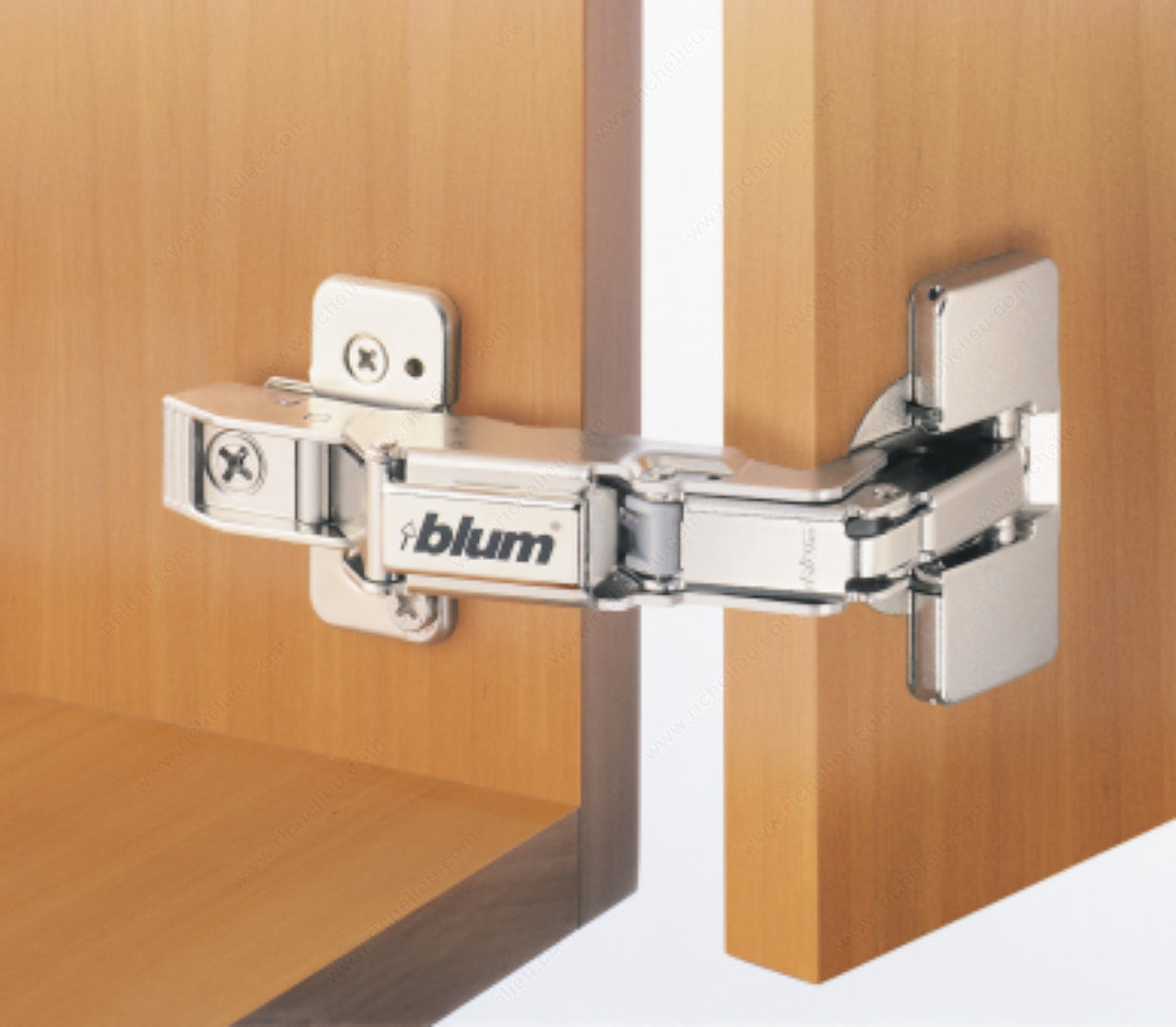

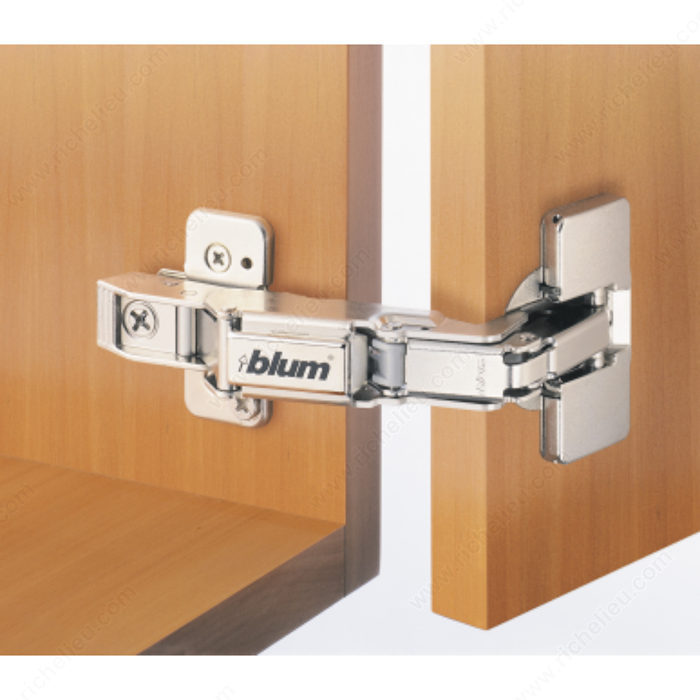

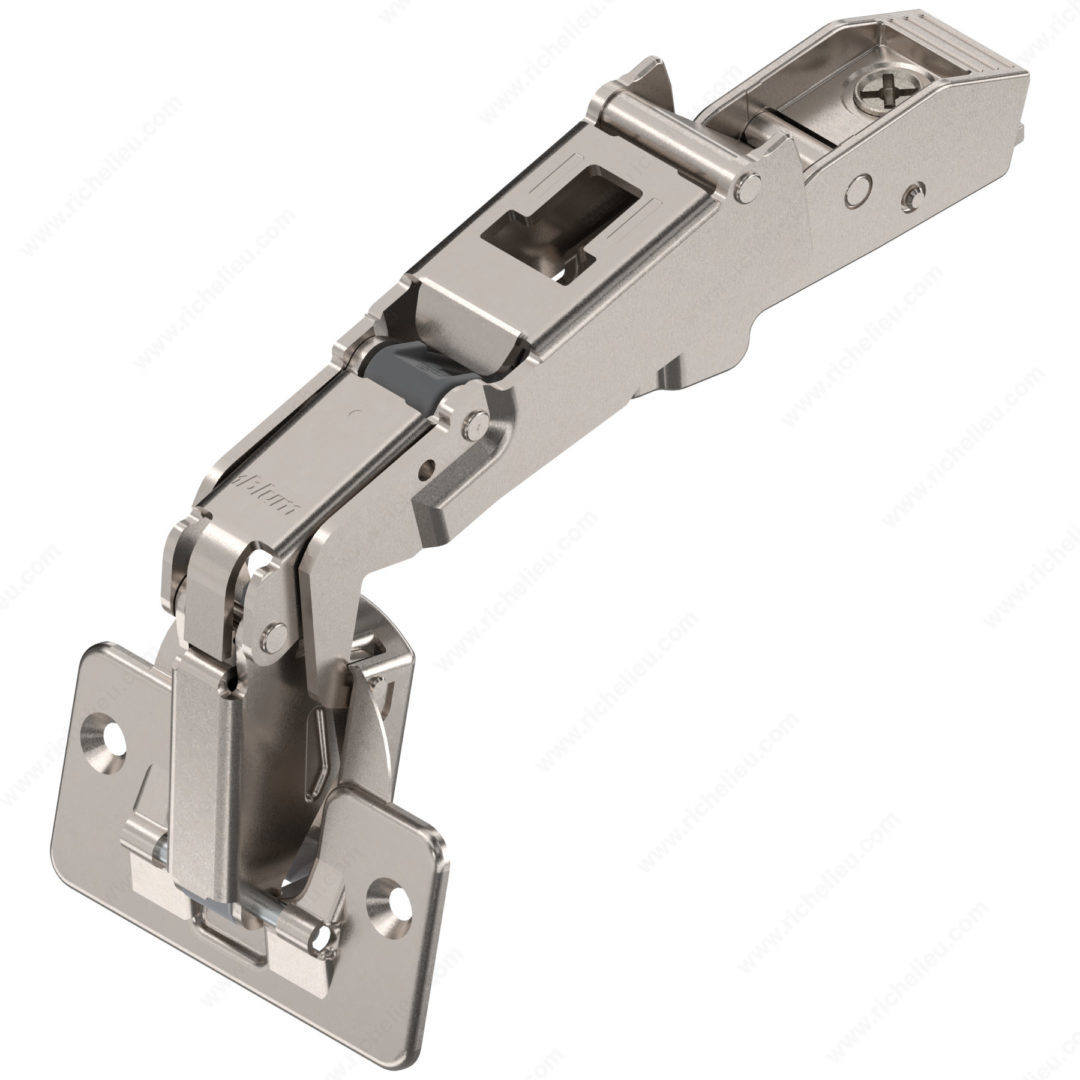

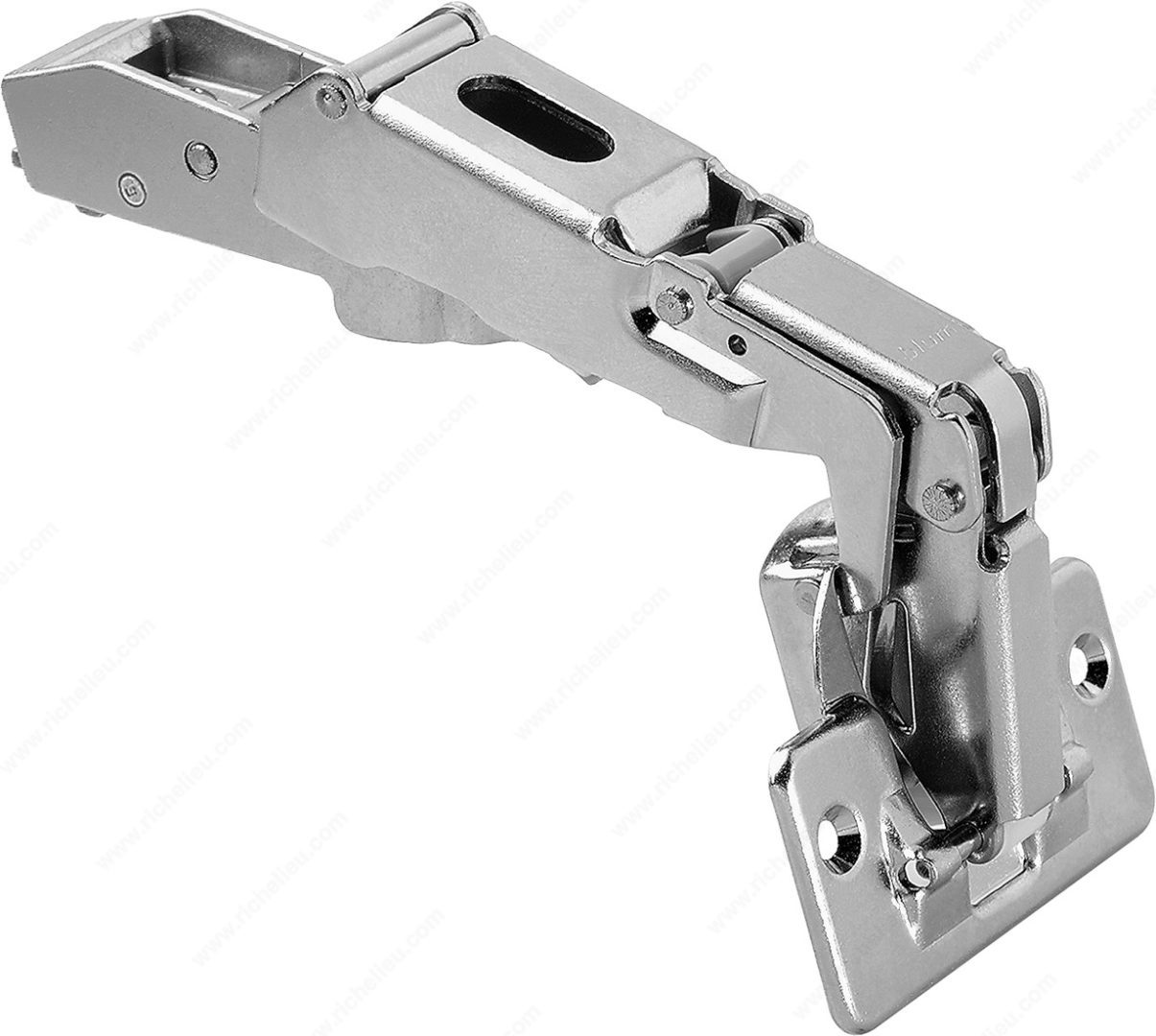

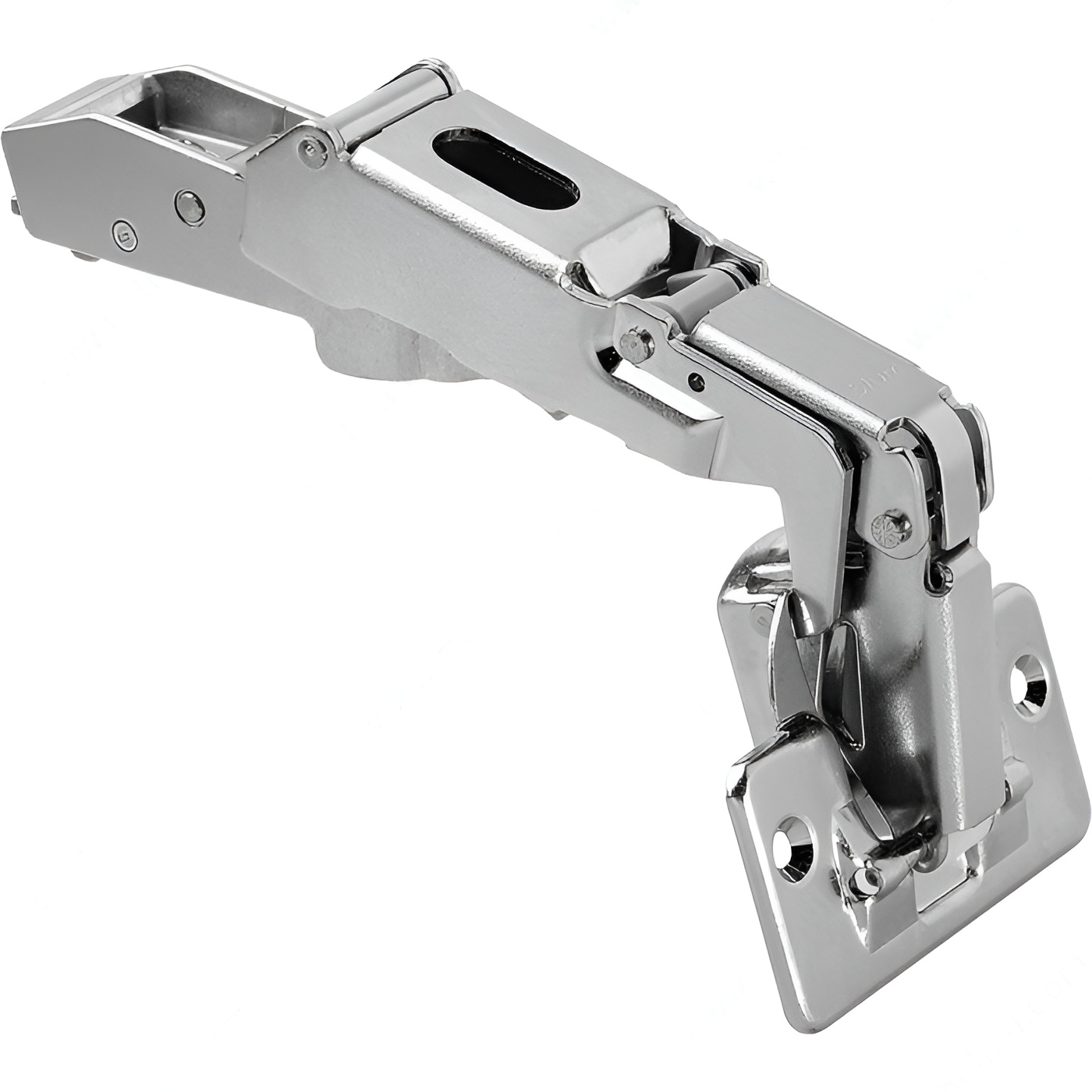

Richelieu 71T655180 CLIP top Hinge 170 offers an innovative solution for cabinet doors that demand both functionality and aesthetics. These concealed hinges are expertly designed to remain hidden when the door is closed, ensuring a clean, streamlined look for both frameless and face frame cabinets. The versatility of CLIP top hinges is enhanced by the wide range of available mounting plates, making them suitable for nearly any hinge application. Constructed from durable steel and Zamac, this hinge features a robust spring closing mechanism that allows for a smooth and reliable operation. With a hinge opening angle of +170°, it provides ample access to cabinet interiors, making it ideal for bi-fold doors. The installation requirements are straightforward, accommodating a minimum cabinet thickness and door thickness of 5/8 inches. This hinge is designed for screw-on fixing, ensuring a secure fit. For added convenience, the CLIP top hinge can be upgraded to include soft closing BLUMOTION, which enhances user experience by providing a gentle, noise-free closure. Packaged per unit for ease of use, the Richelieu 71T655180 CLIP top Hinge 170 is a flexible and dependable choice for any cabinetry project.
CLIP top Hinge 170
Brand: Blum
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +170°
Hinge Type: CLIP top
Material: Steel, Zamac
Mechanism: Spring Closing

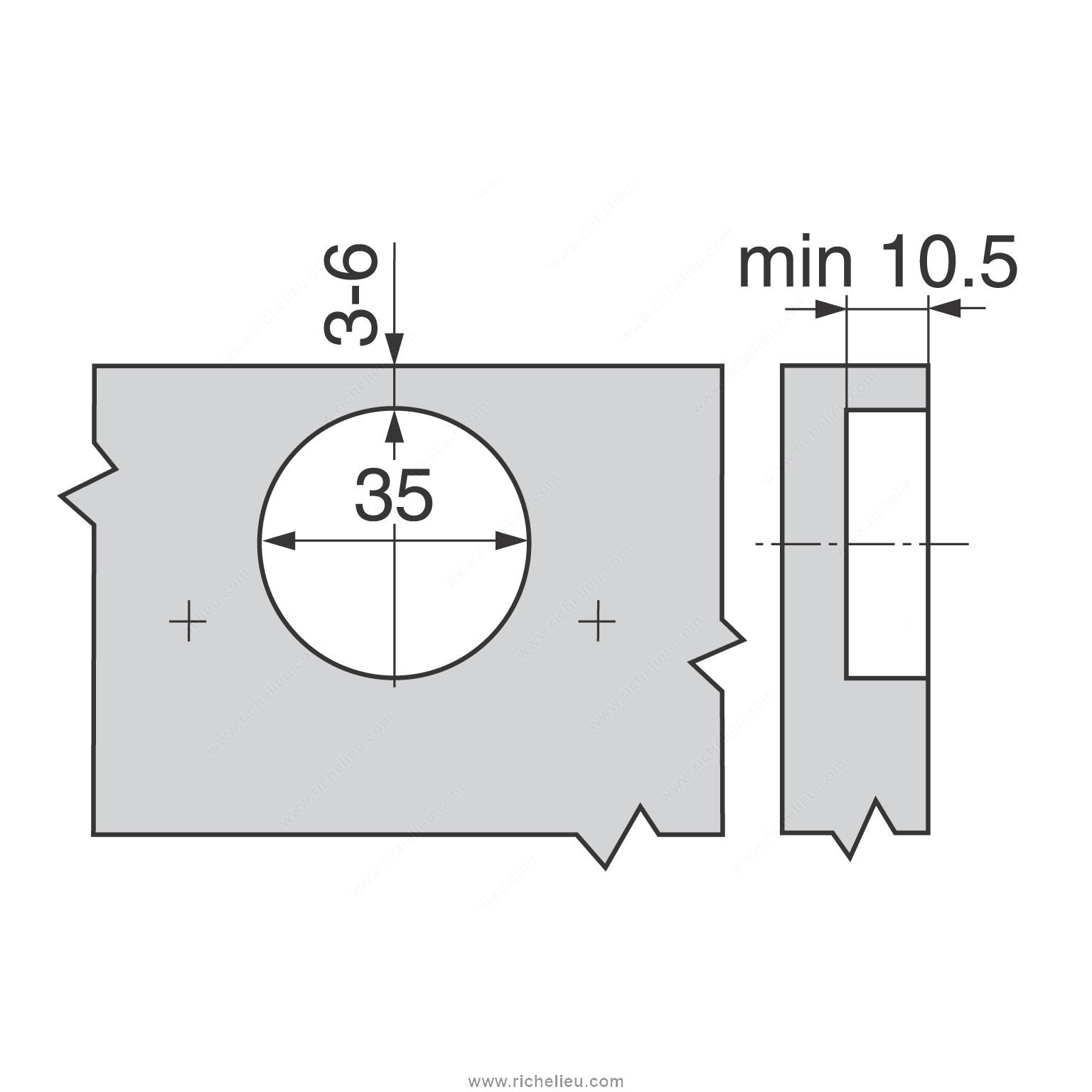

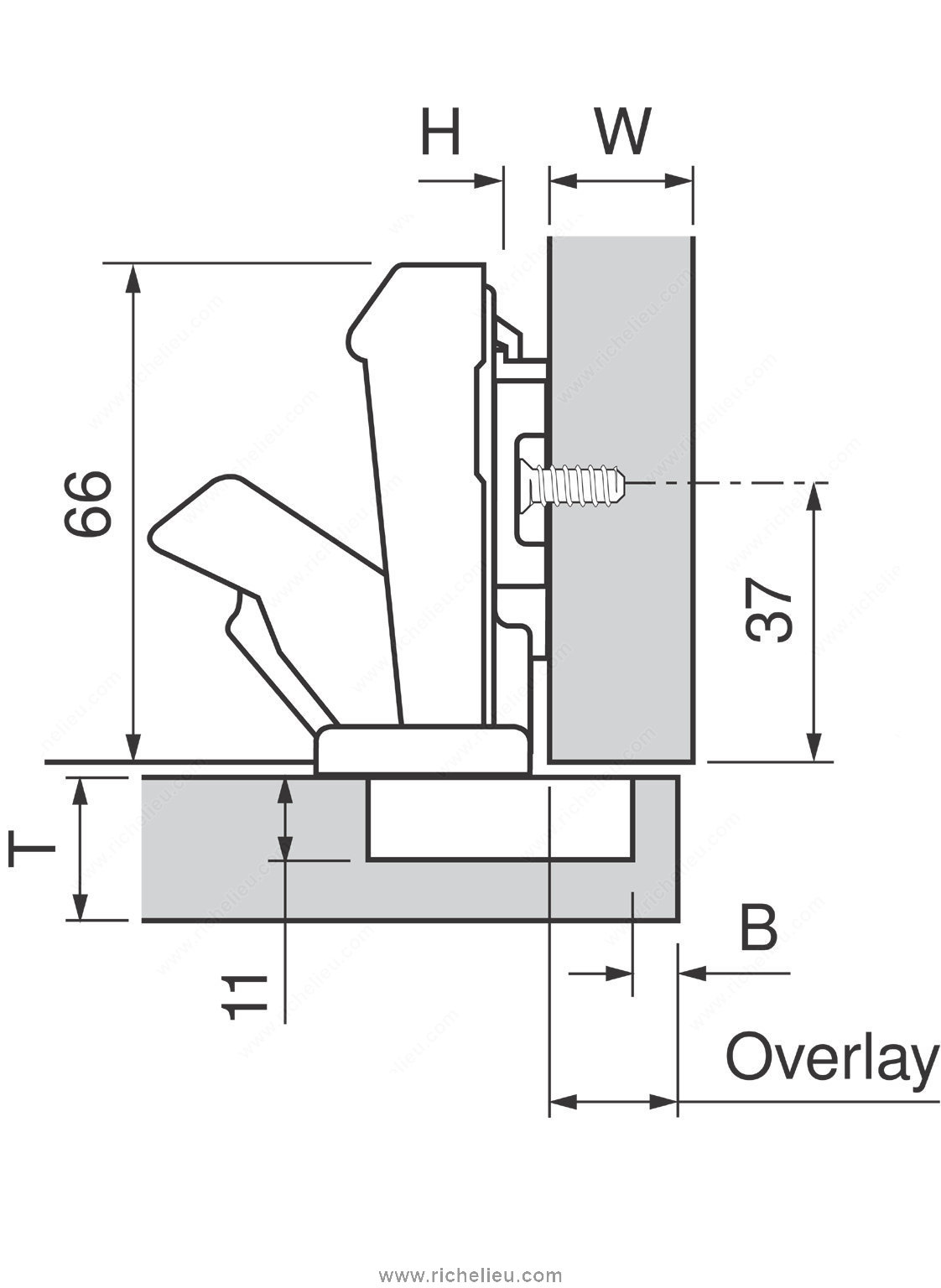

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Per unit
Product #: 71T655180
Product number: 71T655180
Unit 1: case - 125

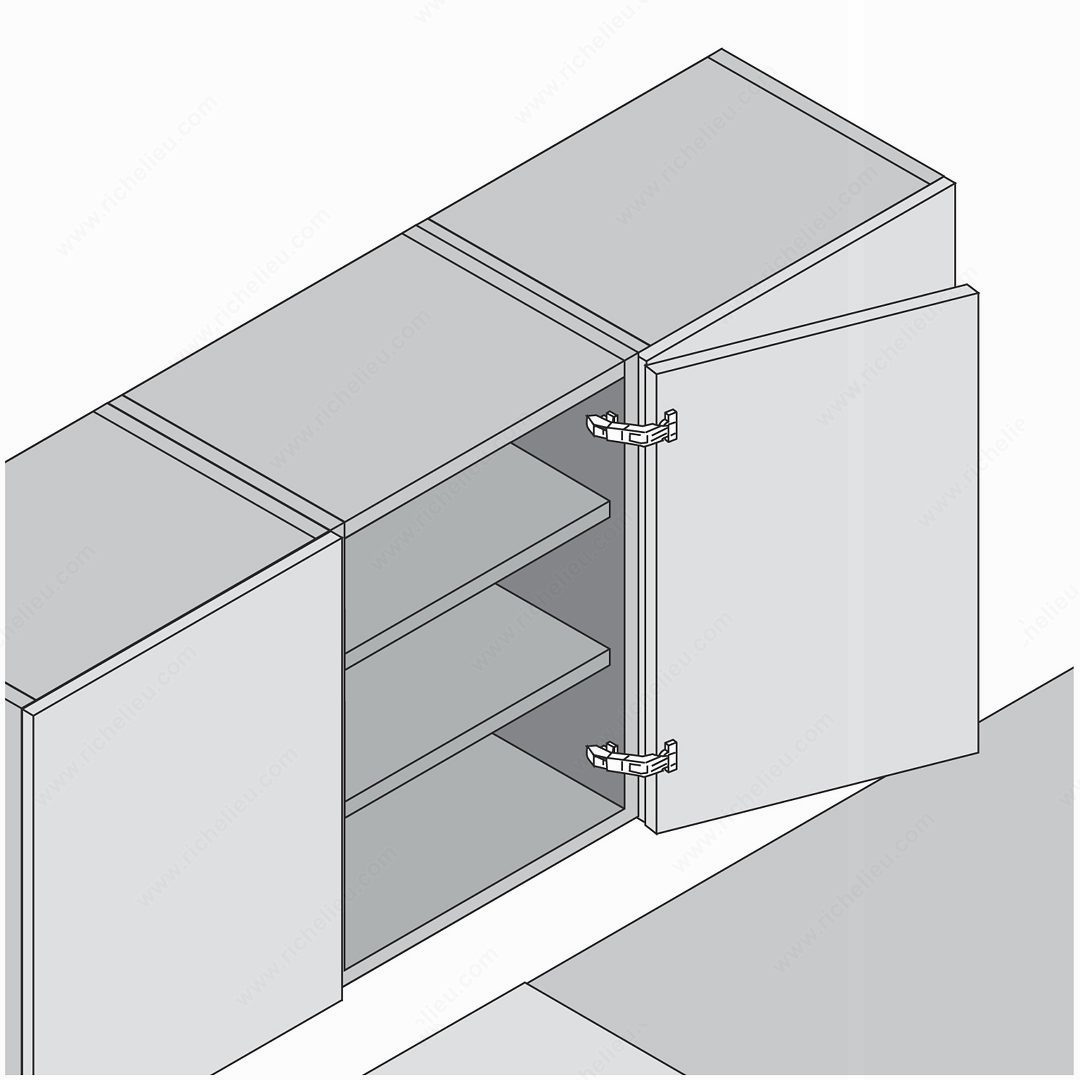

Use Type: Bi-Fold Door
