Richelieu 71T665180 CLIP top Hinge 170 offers a sophisticated and efficient solution for cabinet doors, combining functionality with a sleek design. These concealed hinges are specifically crafted for frameless cabinets, ensuring they remain hidden when the door is closed, contributing to a clean and modern aesthetic. The versatility of the CLIP top hinges is evident in their compatibility with various mounting plates, making them suitable for a wide range of hinge applications. With a remarkable hinge opening angle of +170°, these hinges enhance access to cabinet interiors, allowing for easy organization and retrieval of items. The spring closing mechanism ensures that doors close smoothly, while the option to upgrade with soft-closing BLUMOTION adds an extra layer of elegance and user comfort. Designed for cabinets with a minimum thickness of 5/8 in, the CLIP top hinge is constructed from durable steel and Zamac materials, providing long-lasting performance. The screw-on fixing type ensures secure installation, and with a milling depth of 13/32 in, it accommodates a seamless fit. Perfect for bi-fold doors and half overlay applications, the Richelieu 71T665180 is an essential choice for both building professionals and discerning homeowners looking to enhance their cabinetry with reliable hardware.

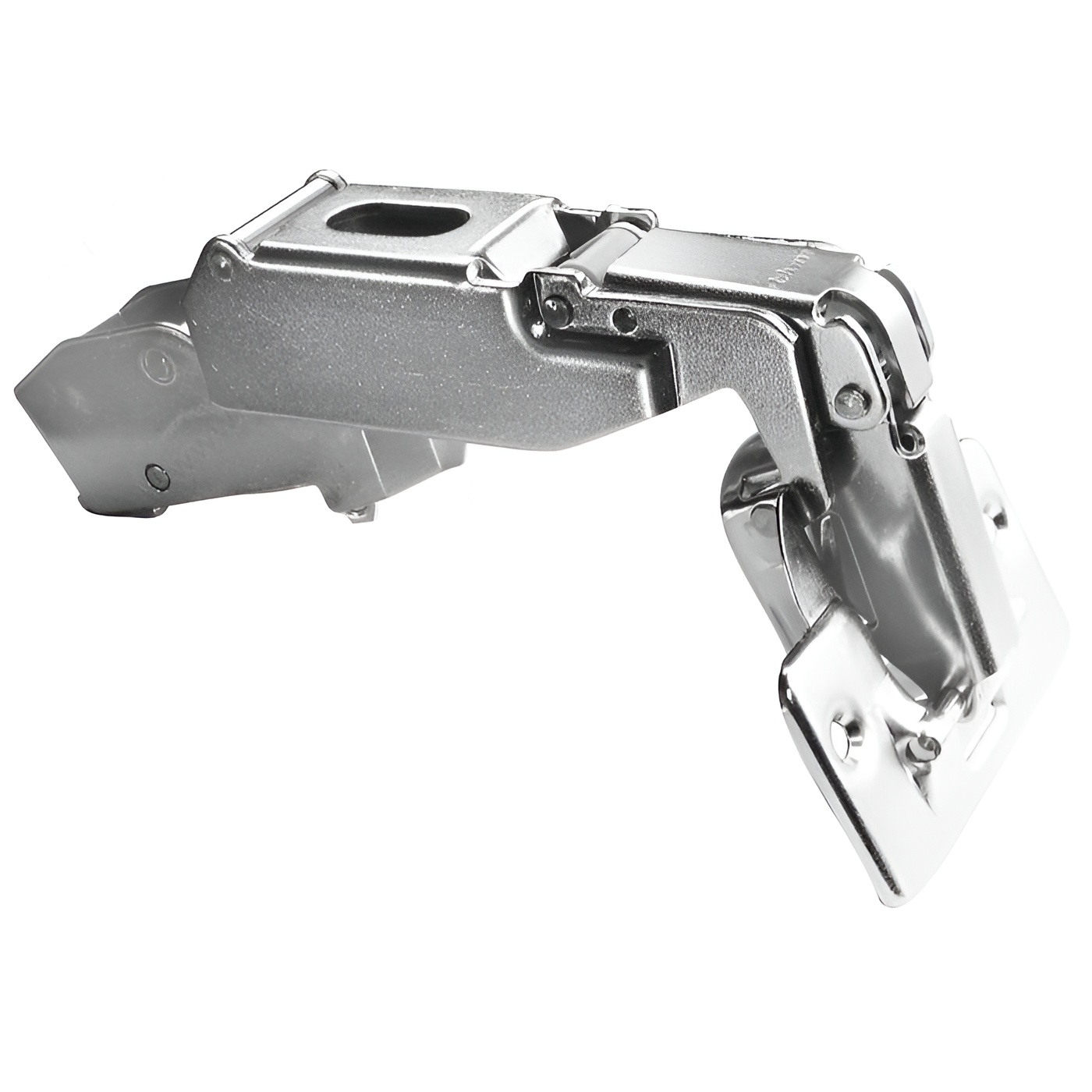

CLIP top Hinge 170
Brand: Blum
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +170°
Hinge Type: CLIP top
Material: Steel, Zamac
Mechanism: Spring Closing

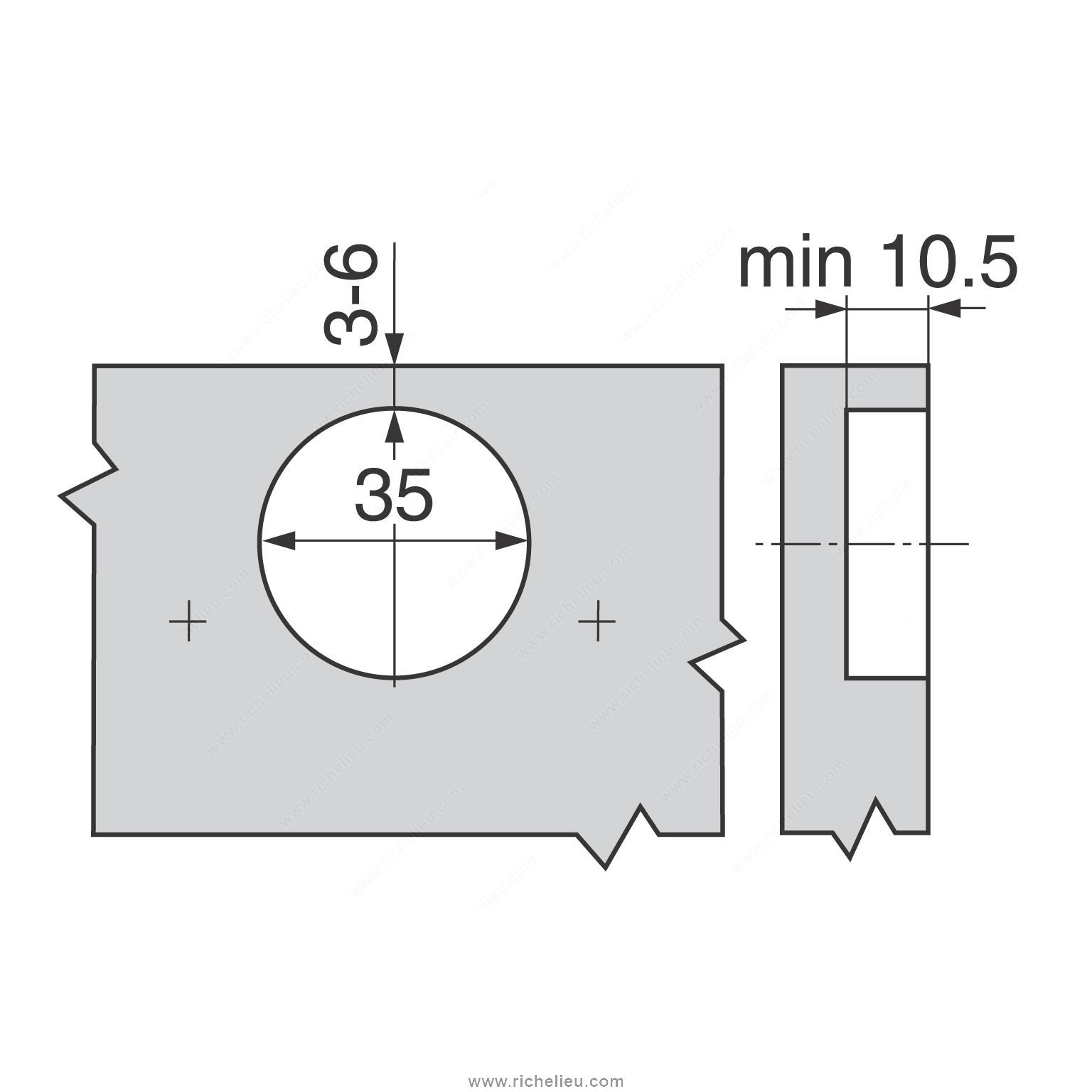

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Per unit
Product #: 71T665180
Product number: 71T665180
Unit 1: carton - 25
Unit 2: case - 125
Use Type: Bi-Fold Door
