Richelieu 71T668180 CLIP top Hinge 170 offers a seamless solution for cabinet door applications, providing a concealed hinge design that remains hidden when doors are closed. This feature enhances the aesthetic appeal of any cabinetry while ensuring functionality. Designed for both frameless and face frame cabinets, these Euro hinges are versatile and compatible with a variety of mounting plates, making them an ideal choice for numerous settings. The hinge supports a door thickness of a minimum of 5/8 inches and accommodates a half overlay door position, ensuring a perfect fit for your cabinetry needs. With a remarkable opening angle of +170°, users can access their cabinets easily without obstruction. The hinge is constructed from durable steel and Zamac materials, ensuring longevity and reliability in daily use. One of the standout features of the CLIP top hinge is its ability to be upgraded with soft closing BLUMOTION technology, offering enhanced convenience and quiet operation. The spring closing mechanism further aids in ensuring that doors close securely and smoothly. For ease of installation, the hinge utilizes a dowel fixing type and requires milling depth of 13/32 inches and diameter of 1 3/8 inches. Whether for new constructions or renovations, the Richelieu 71T668180 hinge is a flexible and dependable choice.

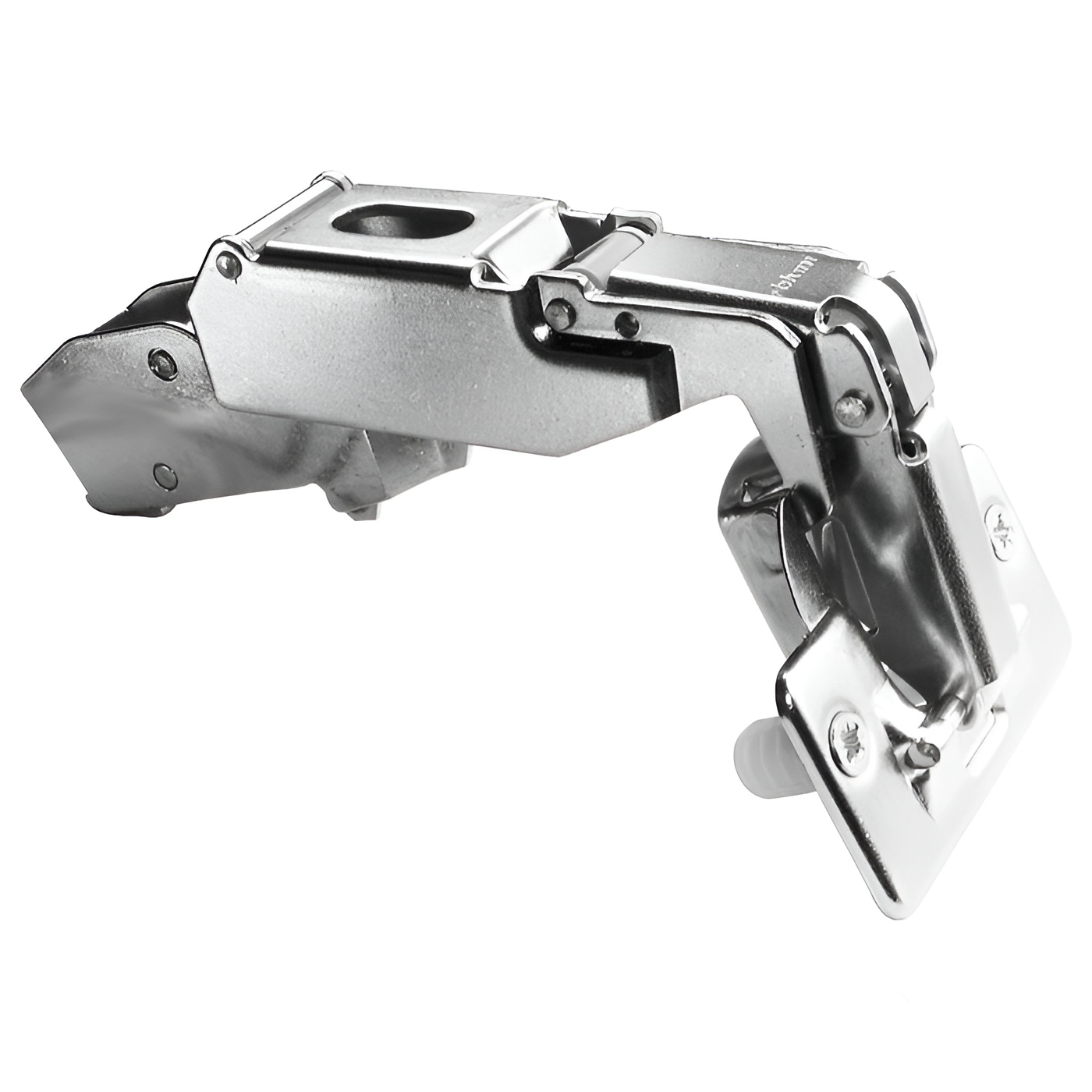

CLIP top Hinge 170
Brand: Blum
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +170°
Hinge Type: CLIP top
Material: Steel, Zamac
Mechanism: Spring Closing

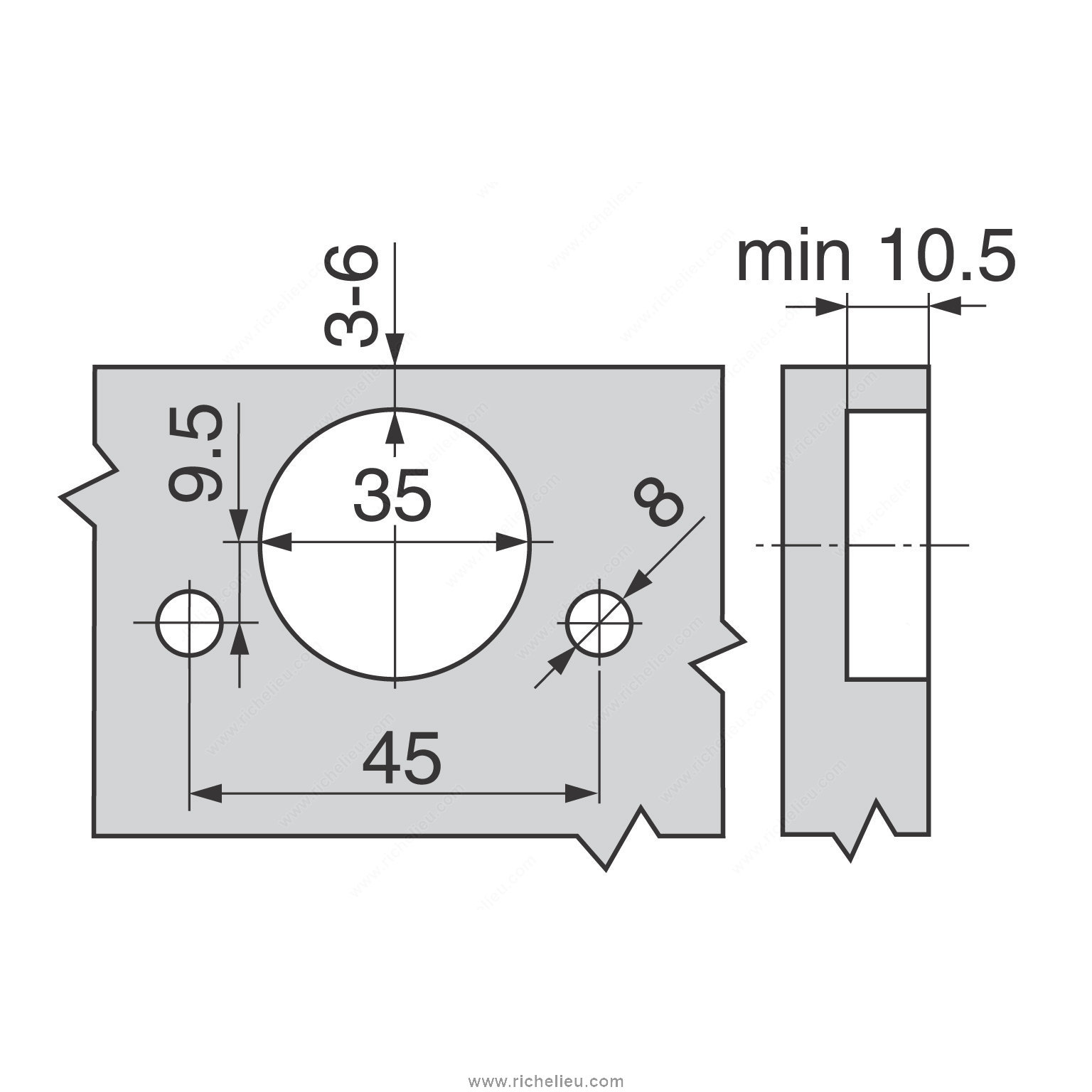

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Per unit
Product #: 71T668180
Product number: 71T668180
Unit 1: carton - 25
Unit 2: case - 125
Use Type: Bi-Fold Door
