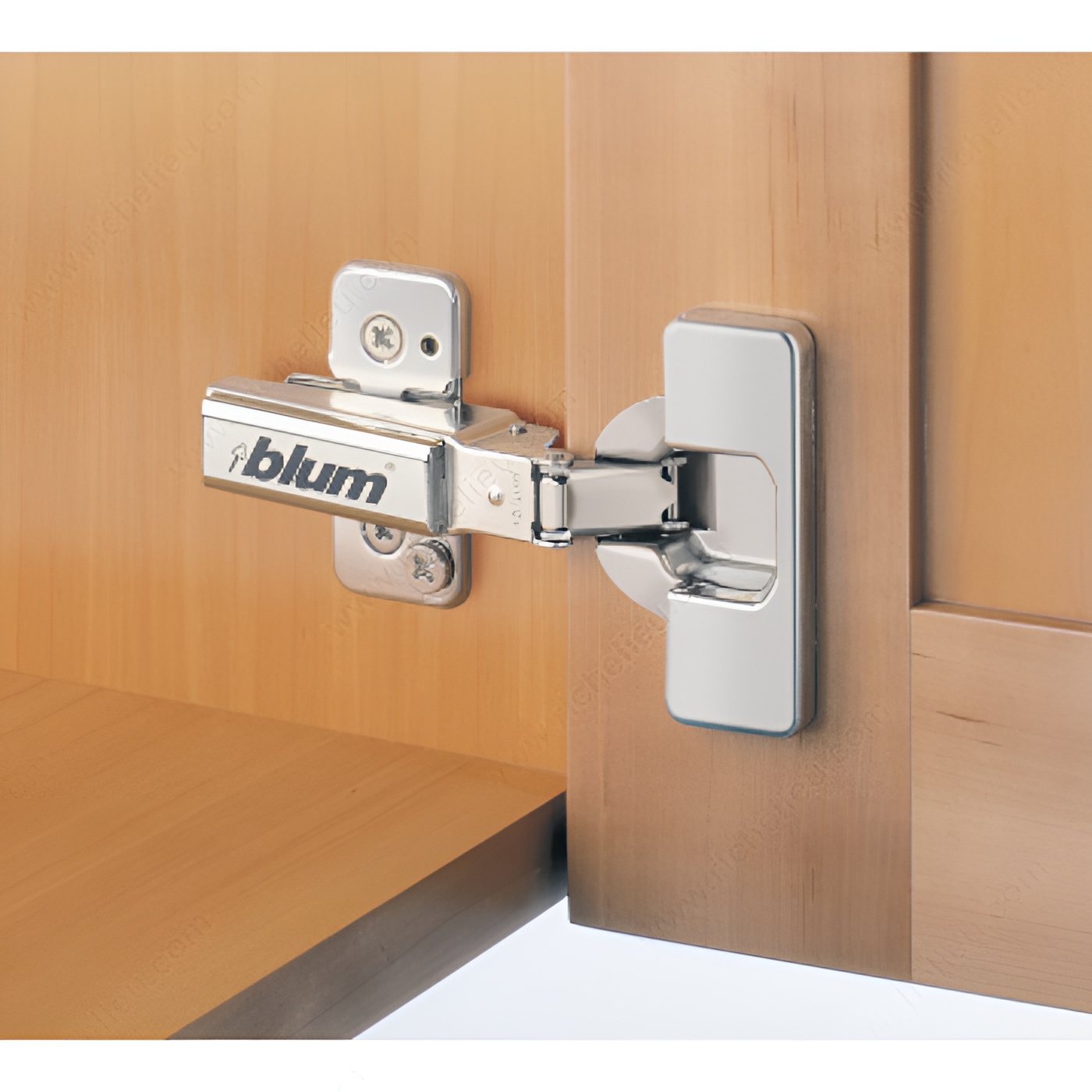

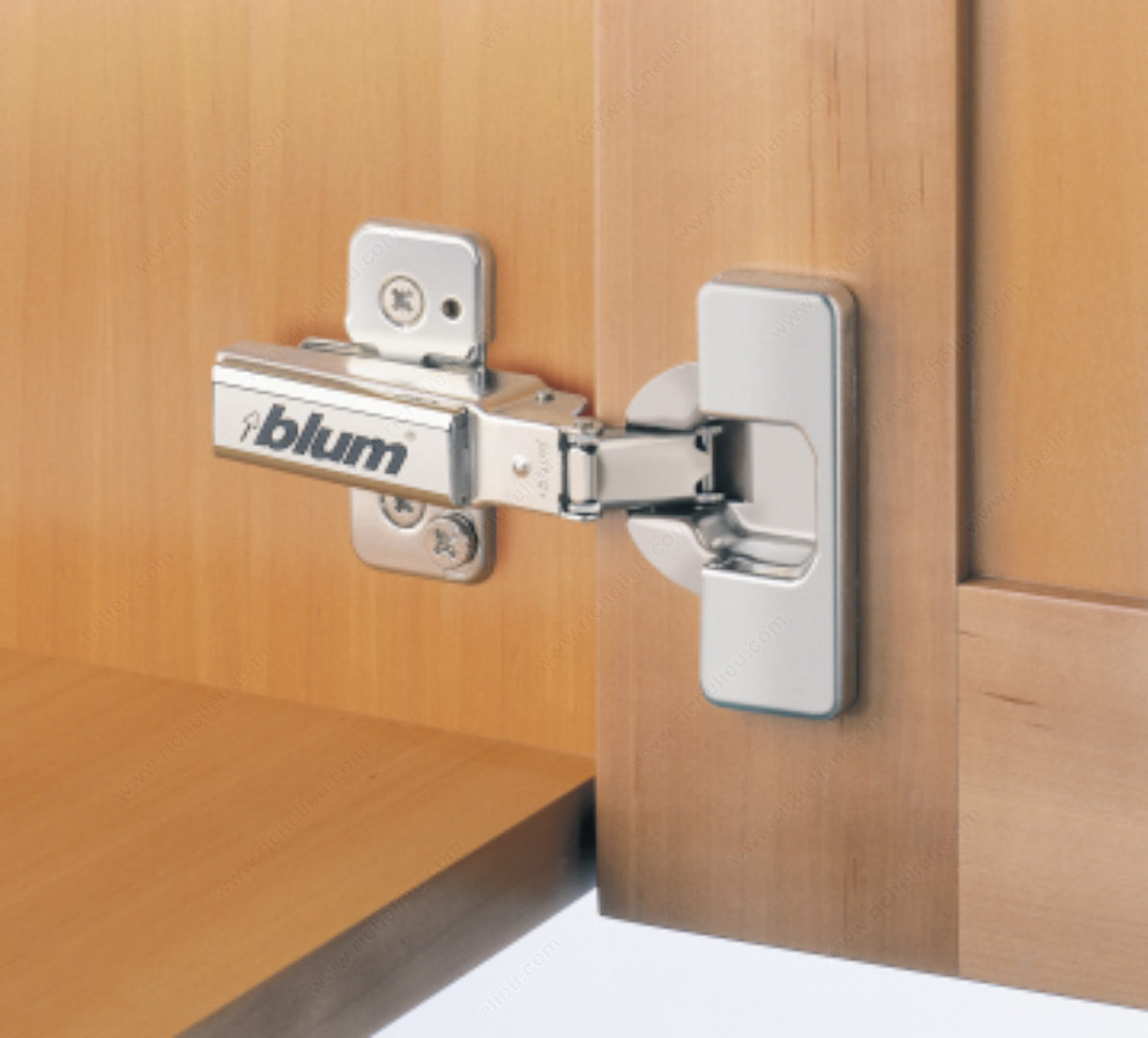

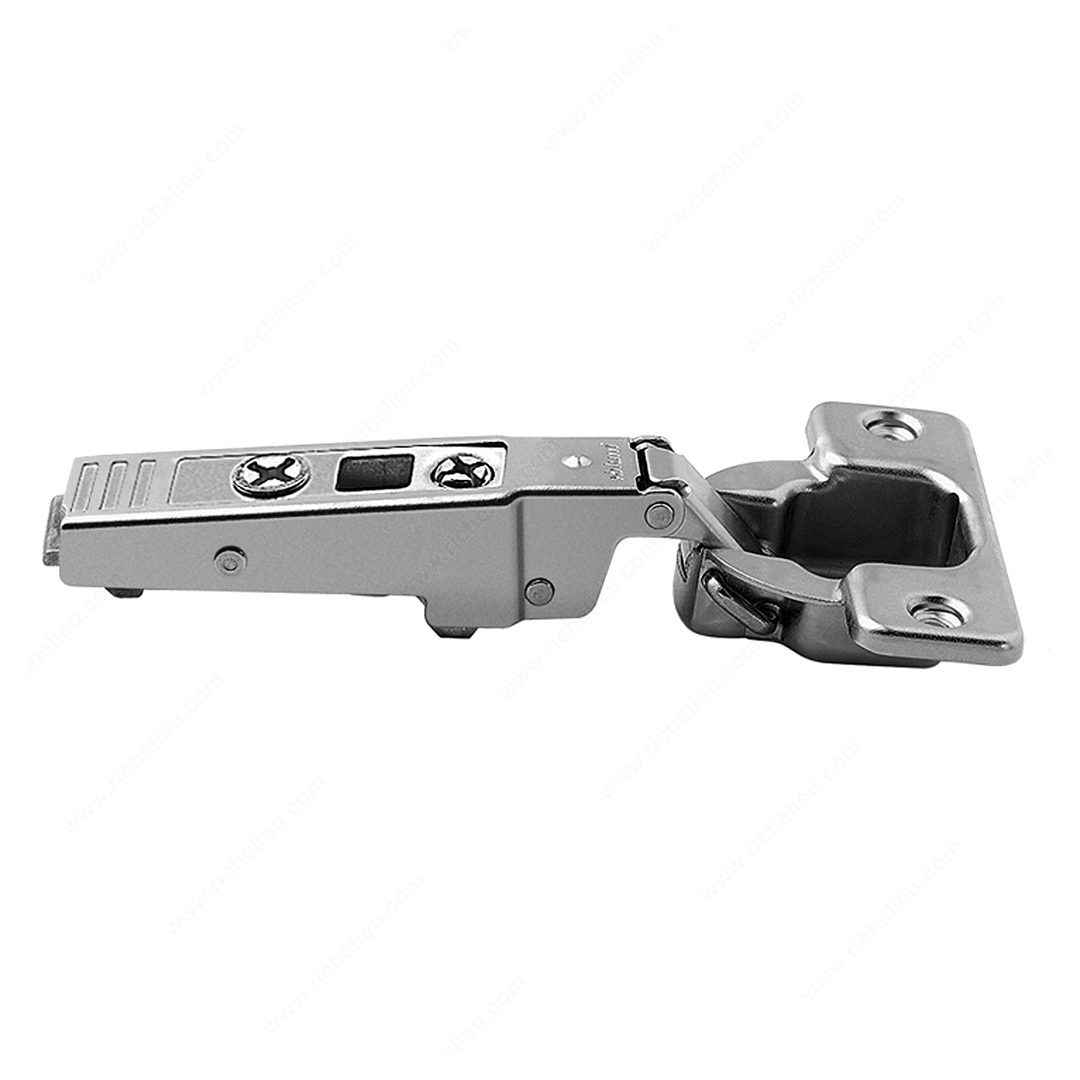

Richelieu 71T955180 CLIP top Hinge - 95 for Thick Doors offers a robust solution for frameless cabinetry, accommodating door thicknesses ranging from 5/8 to 1 1/4 inches. Designed specifically for full overlay applications, this hinge ensures a seamless and stylish look while providing exceptional functionality. With a hinge opening angle of +95°, it allows for maximum access to your cabinet interiors. Constructed for durability, the hinge features a screw-on fixing type, ensuring a secure attachment to your cabinetry. The spring closing mechanism enhances the user experience by providing a gentle, automatic closure, which is especially beneficial in high-traffic areas. The milling depth of 15/32 inches and milling diameter of 1 3/8 inches provide precise installation guidelines, making it easier for professionals and skilled DIYers alike. This product is designed for thick doors, making it ideal for those seeking quality and reliability in their cabinetry hardware. Additionally, the hinge can be shipped via UPS, ensuring a convenient delivery option. Upgrade your cabinetry with the Richelieu 71T955180 CLIP top Hinge and enjoy the perfect blend of aesthetics and performance.
CLIP top Hinge - 95 for Thick Doors
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing

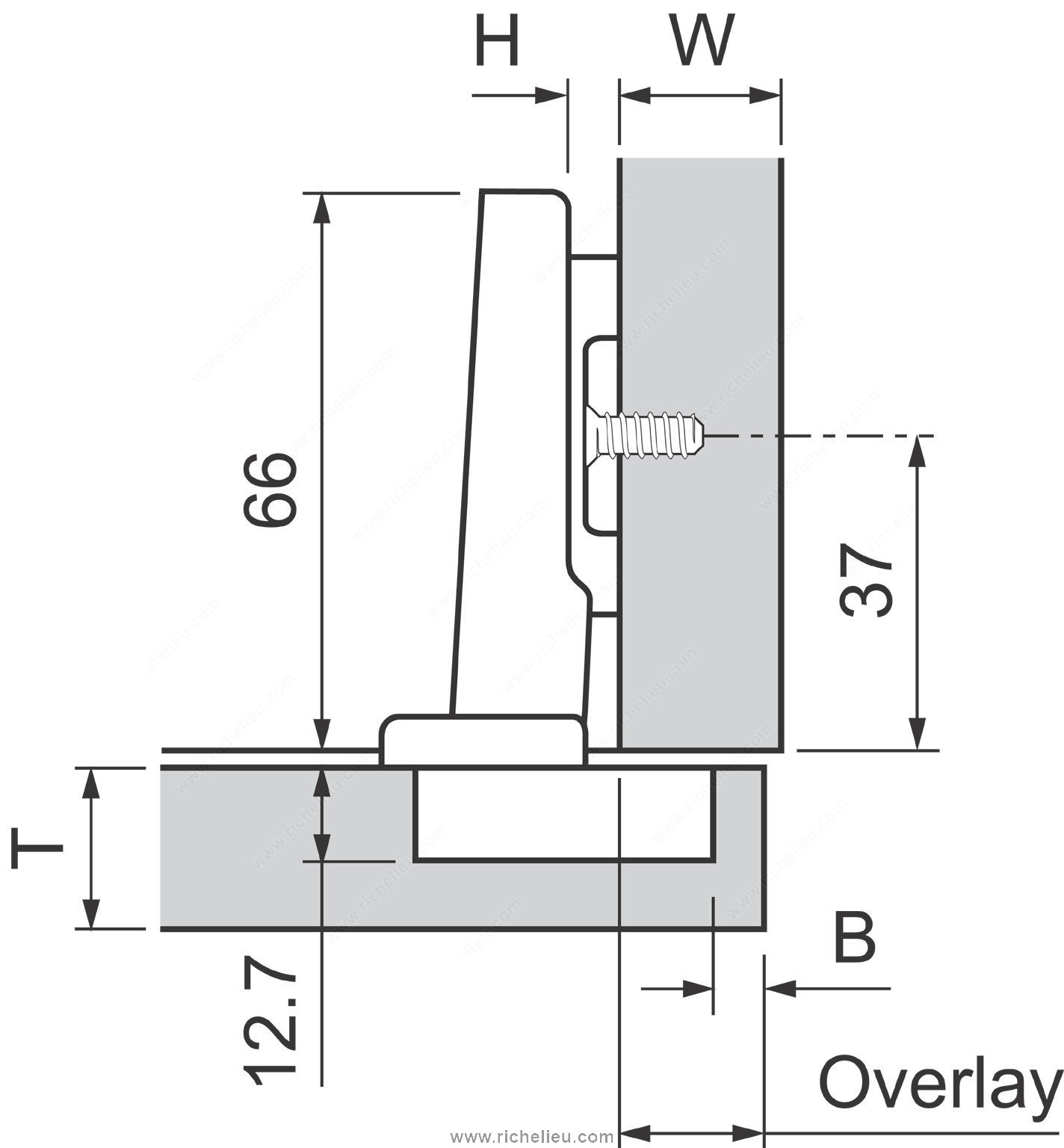

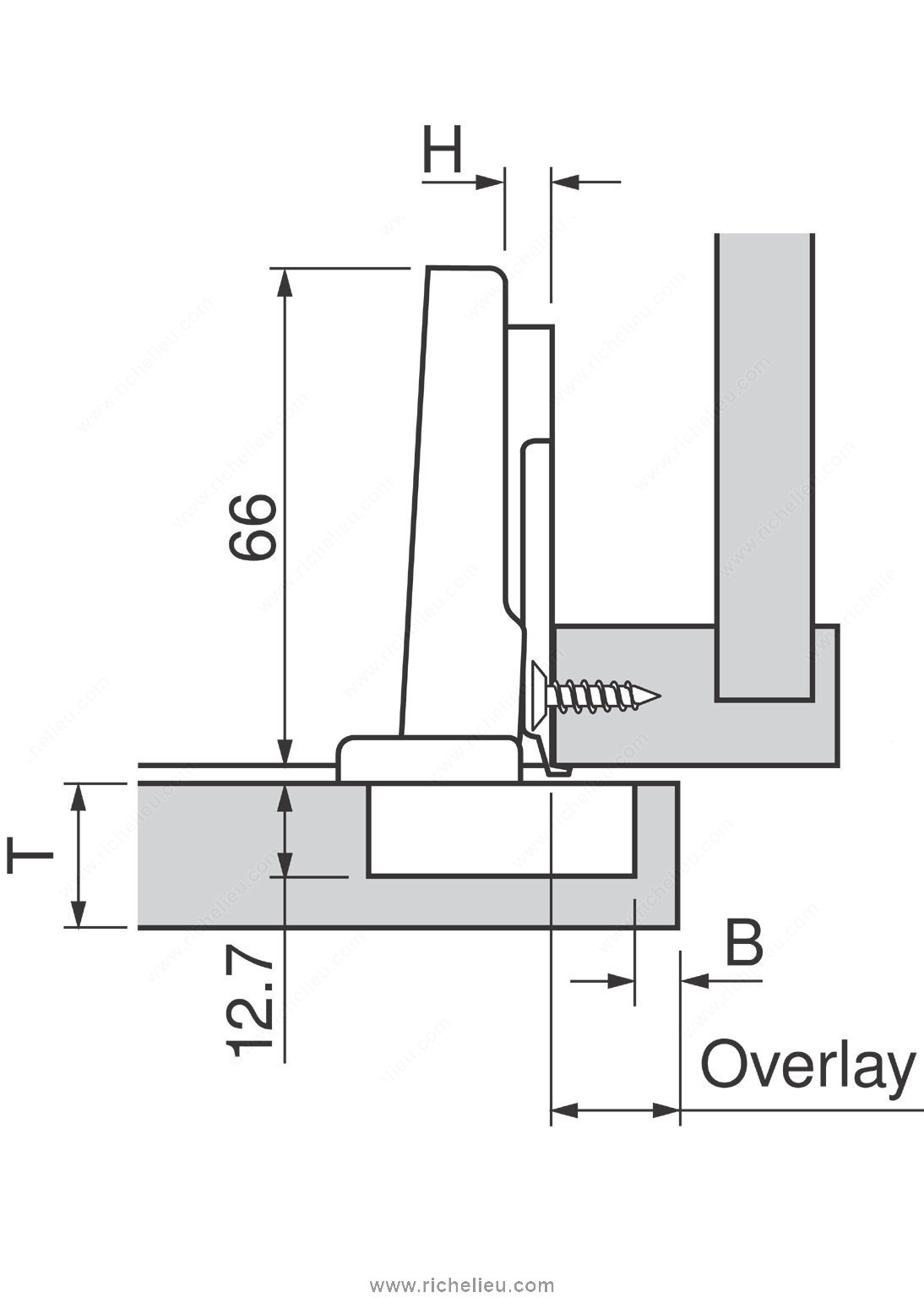

Door Position: Full Overlay
Door Thickness: 16 to 32 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +95°
Hinge Type: CLIP top
Mechanism: Spring Closing

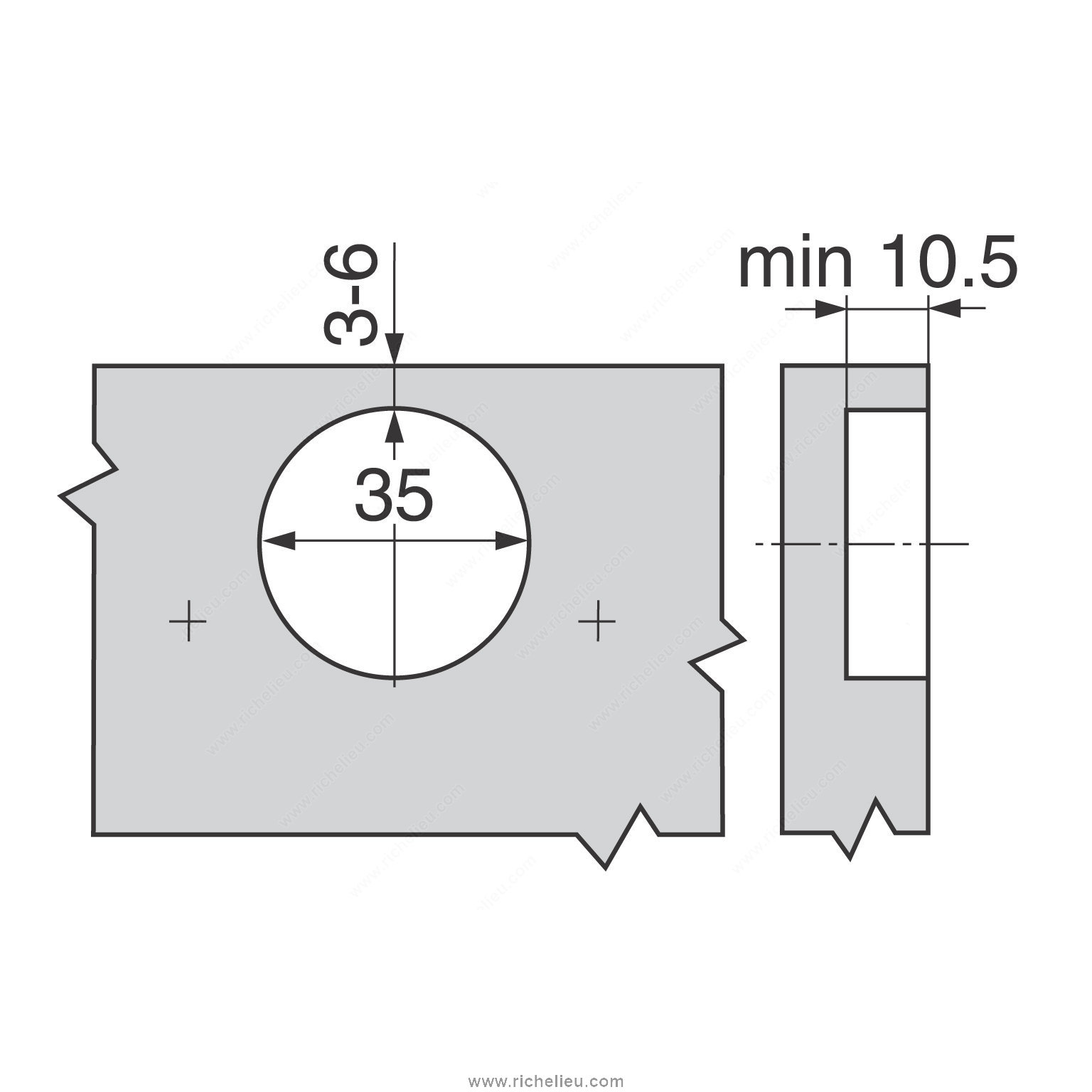

Milling Depth: 12.3 mm
Milling Diameter: 35 mm
Product #: 71T955180
Product number: 71T955180
Unit 1: case - 250
Use Type: Thick Door
