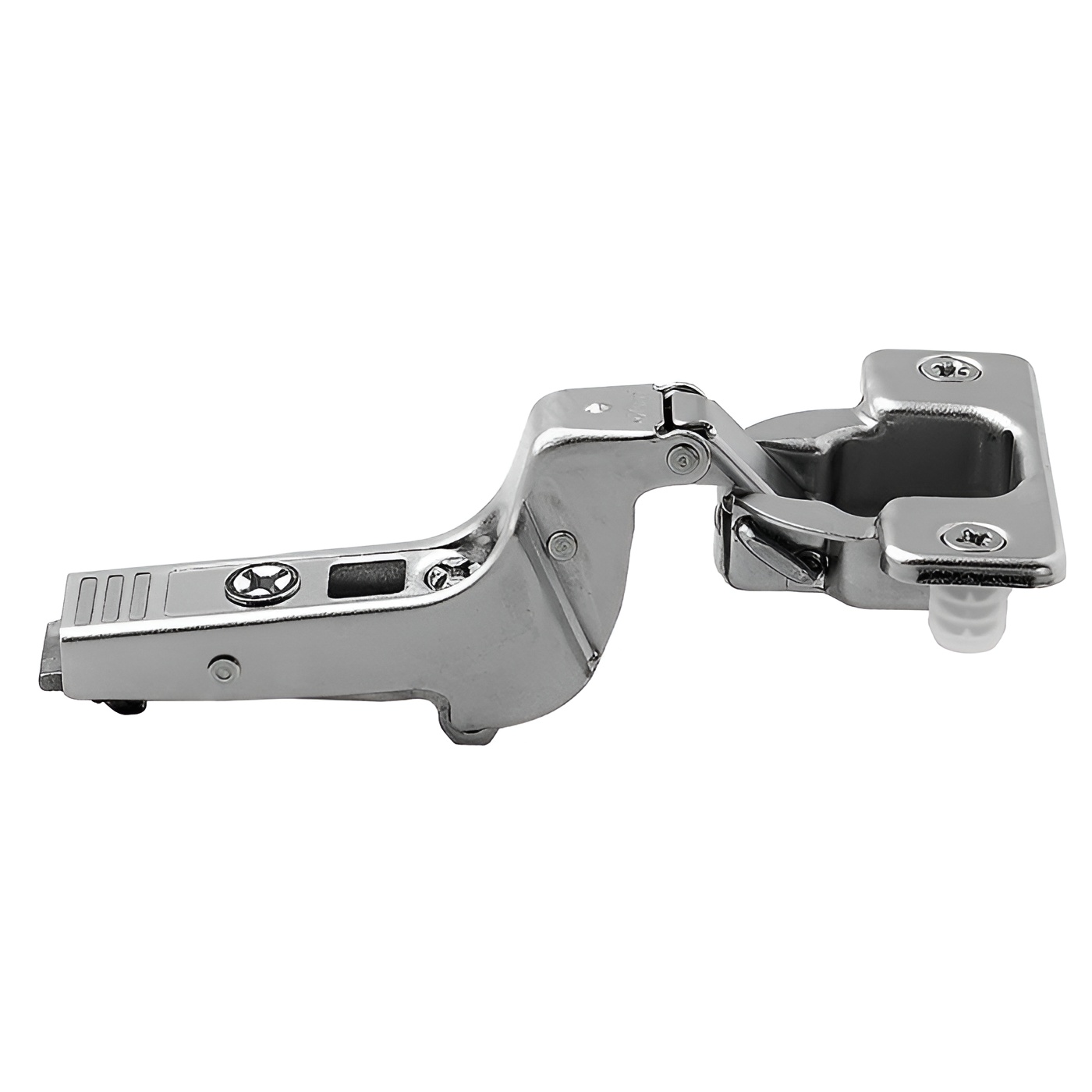

Richelieu 71T978180 CLIP top Hinge - 95 for Thick Doors is engineered to provide exceptional performance and durability for frameless cabinet applications. Designed specifically for thick doors, this hinge accommodates a door thickness range of 5/8 to 1 1/4 inches, ensuring a secure and stable fit. It features an inset door position, allowing for a seamless integration into your cabinetry. One of the standout attributes of this hinge is its impressive opening angle of +95°, which facilitates easy access to cabinet interiors. The spring-closing mechanism ensures that doors close smoothly and effortlessly, enhancing both functionality and user experience. The hinge is fixed using a dowel method, providing reliable support and stability. For optimal installation, the milling depth is set at 15/32 inches with a milling diameter of 1 3/8 inches, making it easy to prepare your cabinet doors for fitting. With a minimum cabinet thickness of 5/8 inches, this hinge is versatile enough to meet various design needs. Richelieu's commitment to quality and precision is evident in the 71T978180 model, making it an indispensable choice for building professionals and discerning homeowners who demand the best in cabinetry hardware.
CLIP top Hinge - 95 for Thick Doors
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing

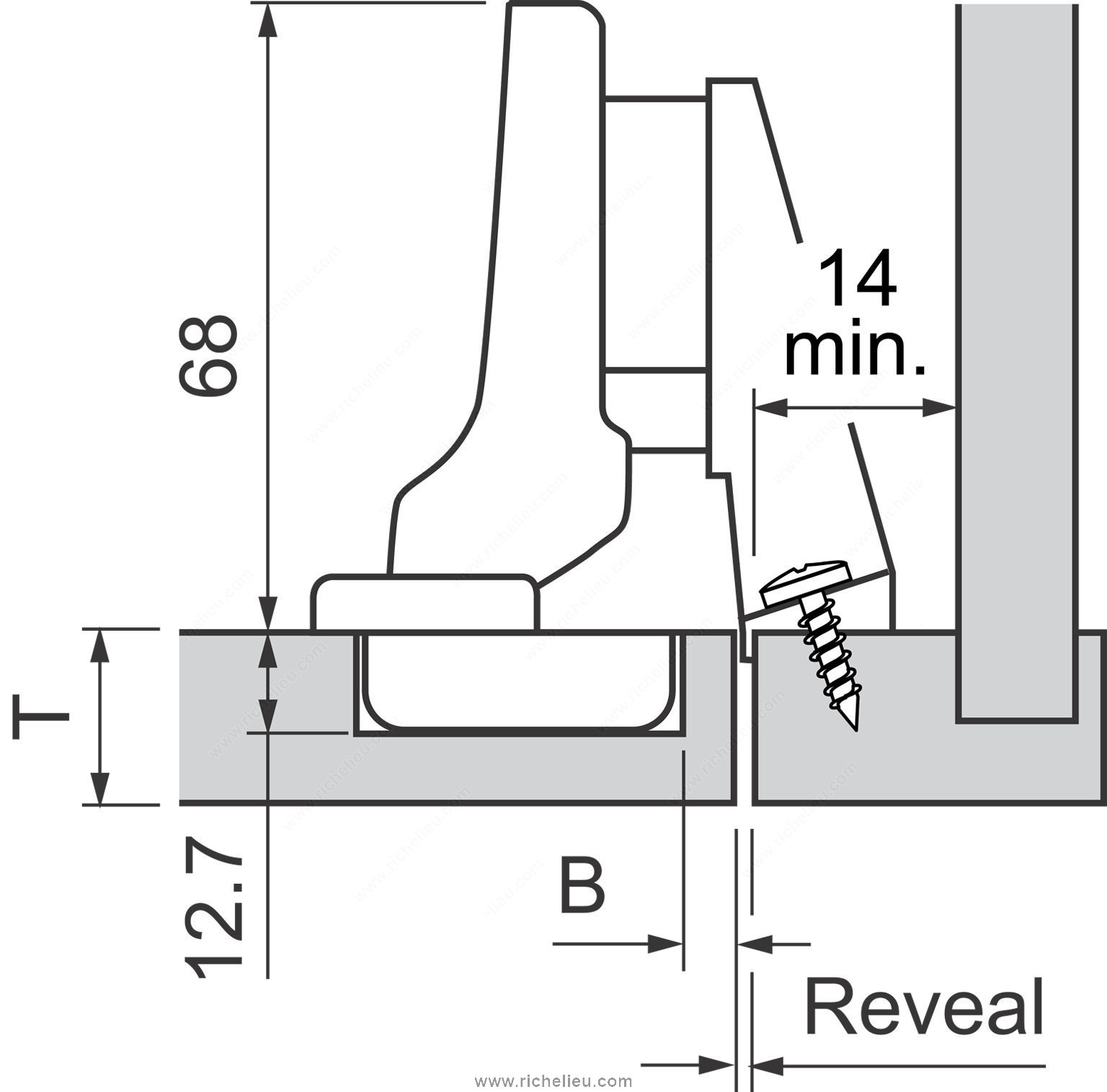

Door Position: Inset
Door Thickness: 16 to 32 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +95°
Hinge Type: CLIP top
Mechanism: Spring Closing

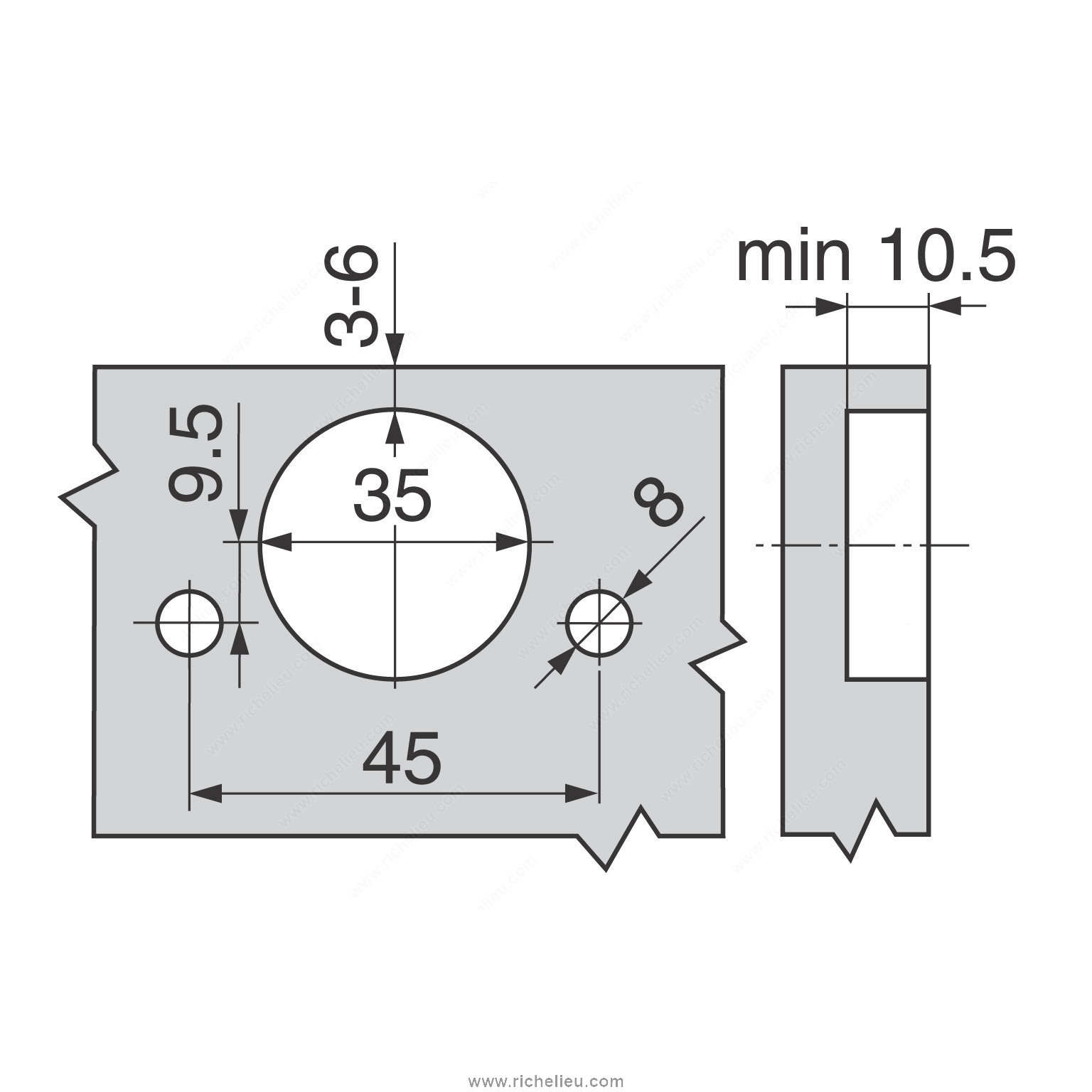

Milling Depth: 12.3 mm
Milling Diameter: 35 mm
Product #: 71T978180
Product number: 71T978180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Thick Door
