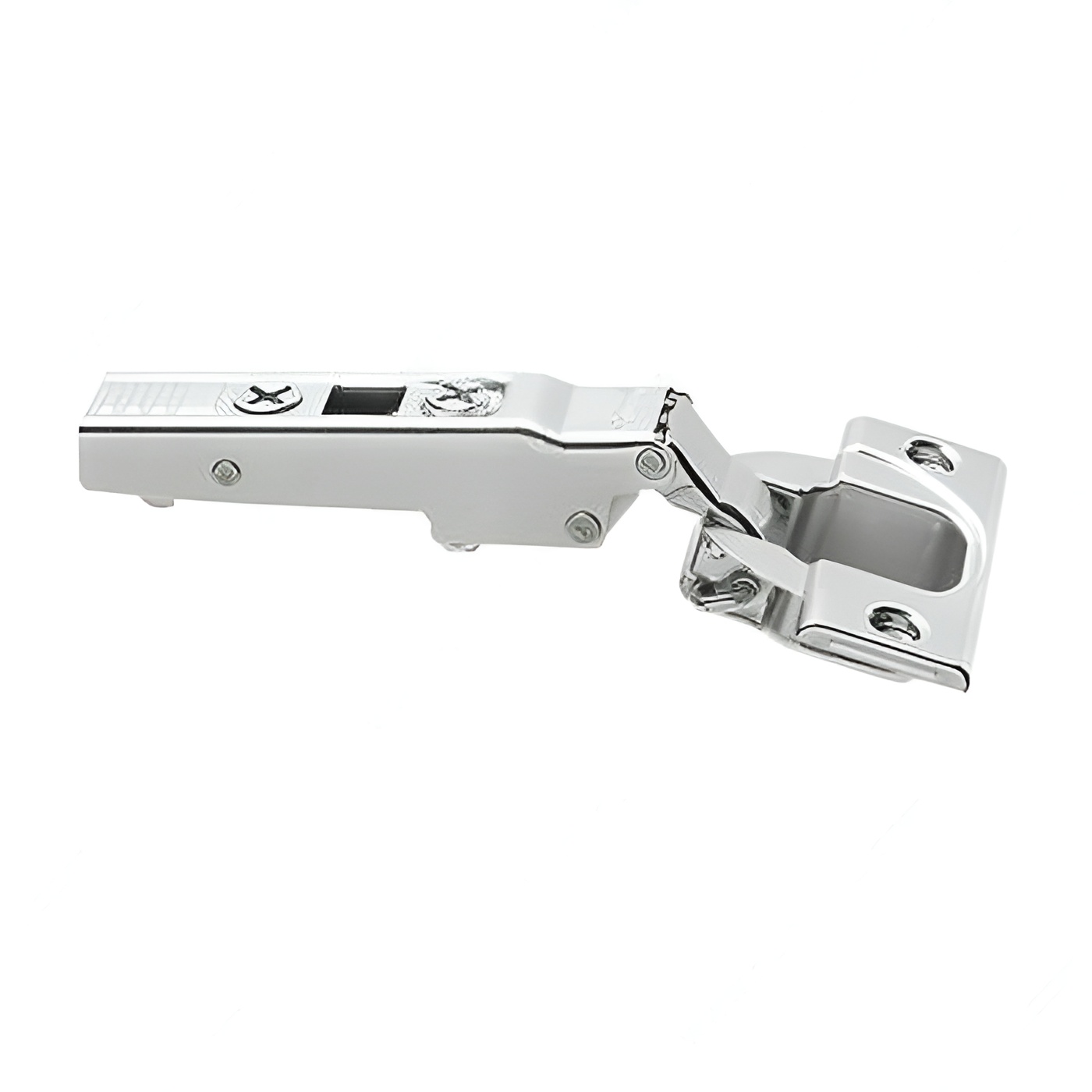

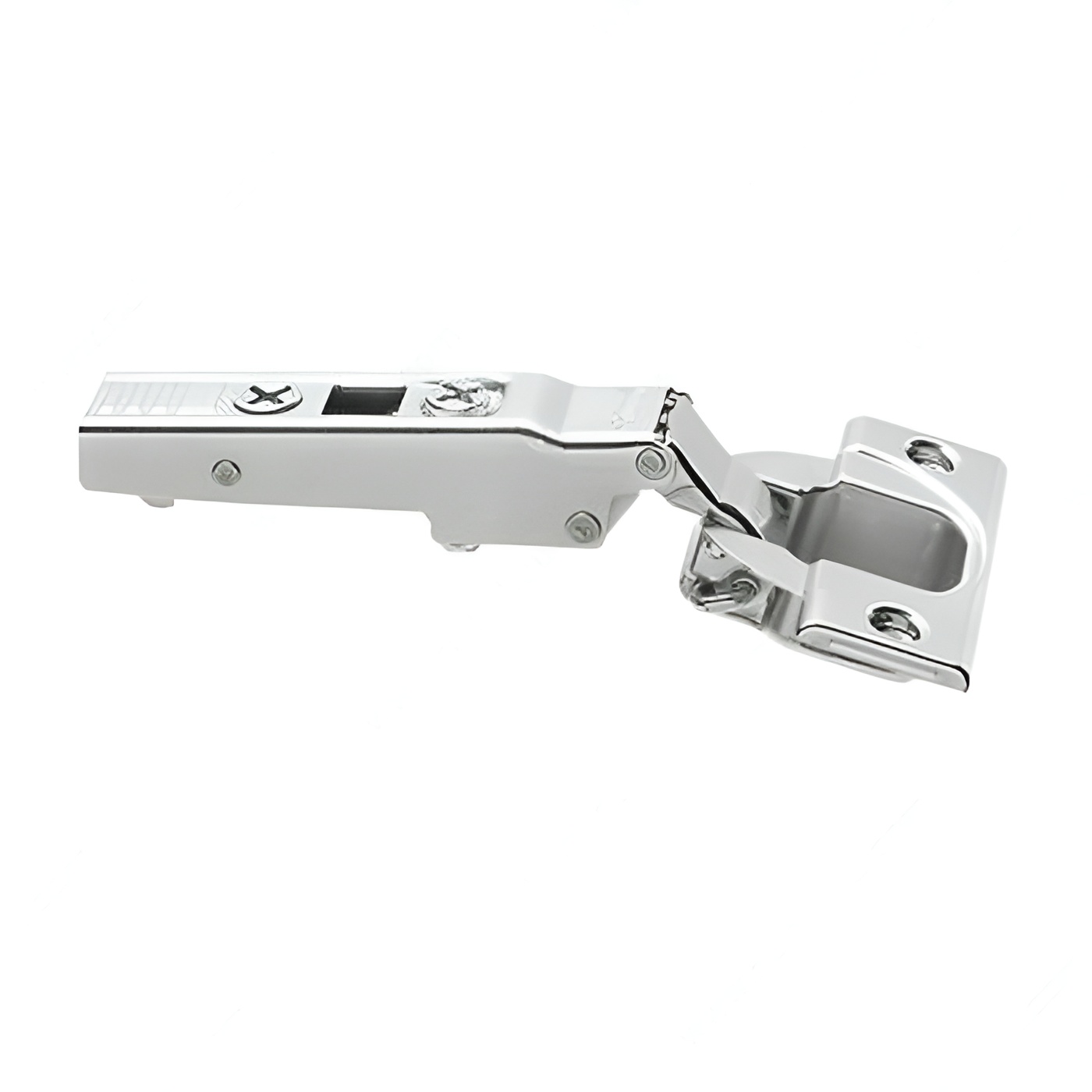

Richelieu 72T358180 CLIP top Hinge +110 offers an outstanding solution for your frameless cabinetry needs, providing both style and functionality. Designed specifically for full overlay doors, this hinge ensures a seamless look while maintaining robust performance. With a minimum cabinet thickness of 3/4 inch and door thickness of 5/8 inch, it fits snugly within standard configurations, making installation straightforward. Crafted with a sleek nickel finish, the hinge not only enhances the aesthetics of your cabinetry but also offers durability for long-lasting use. The innovative knock-in fixing type, paired with the insertion ram, guarantees a secure attachment, ensuring your doors operate smoothly. The hinge features a generous opening angle of +110°, allowing easy access to cabinet interiors, while the free swing mechanism provides flexibility and ease of use. With a milling diameter of 1 3/8 inches and a milling depth of 1/2 inch, installation is efficient and precise. Richelieu's commitment to quality is evident in this product, making it an ideal choice for building professionals and discerning homeowners alike. Elevate your cabinetry with the reliable performance and elegant design of the Richelieu 72T358180 CLIP top Hinge +110.
CLIP top Hinge +110
Cabinet Thickness: Min. 19 mm
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Knock-In with Insertion Ram Only
Hinge Opening Angle: +110°
Hinge Type: CLIP top
Mechanism: Free Swing
Milling Depth: 13 mm
Milling Diameter: 35 mm
Product #: 72T358180
Product number: 72T358180
Unit 1: case - 250
Use Type: Standard Door
