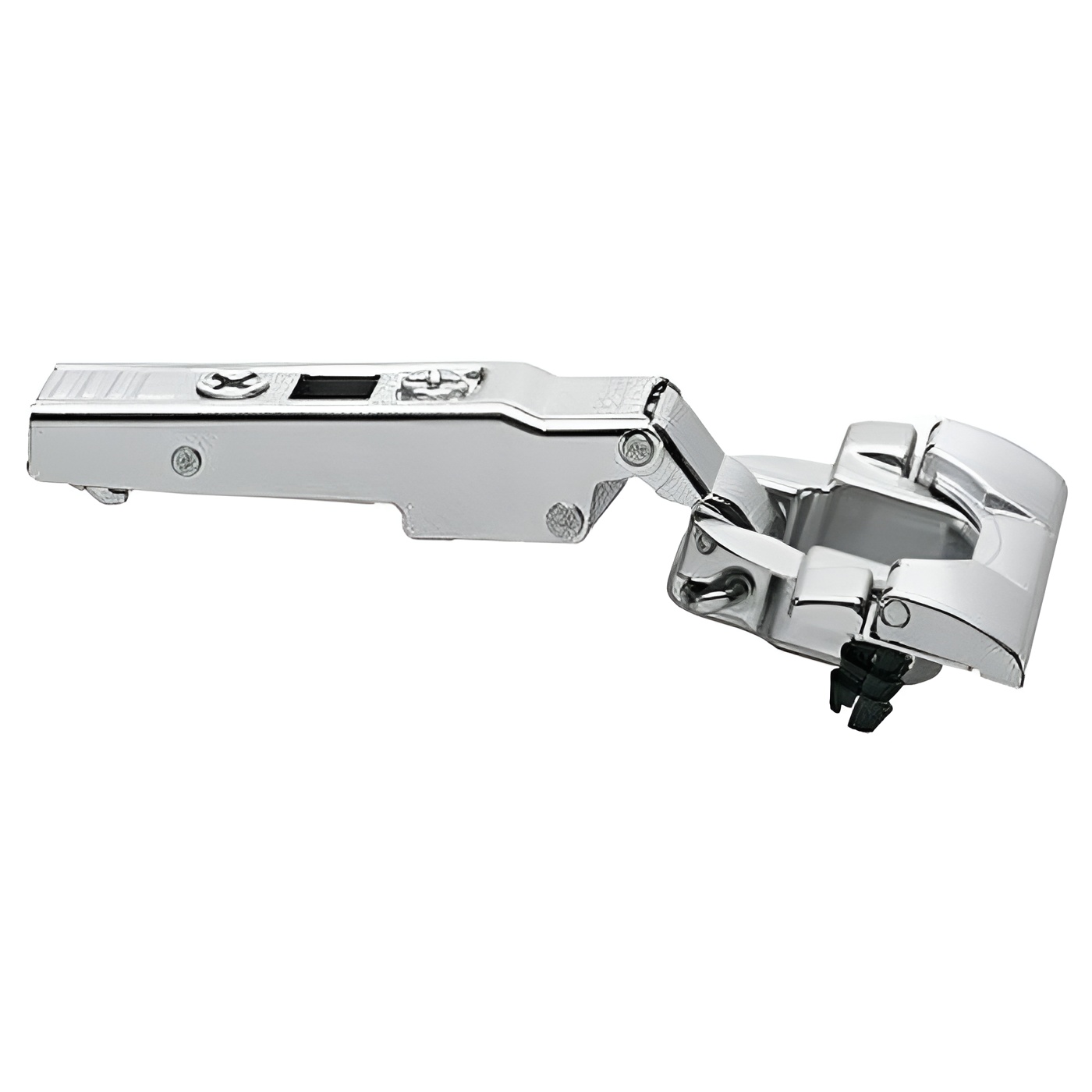

Richelieu 73T359180 CLIP top Hinge +110 offers a perfect blend of functionality and style for frameless cabinets. Designed to accommodate cabinet thickness as low as 3/4 inch, this hinge is ideal for modern kitchen designs where seamless aesthetics are essential. The full overlay door position ensures a sleek appearance while maximizing space. Crafted with a durable nickel finish, the hinge not only enhances the visual appeal of your cabinetry but also provides long-lasting performance. The Inserta fixing type simplifies installation, allowing for efficient setup without compromising strength. The hinge features a remarkable opening angle of +110°, facilitating easy access to cabinet interiors. With a minimum door thickness of 5/8 inch, the Richelieu CLIP top Hinge is equipped with a spring closing mechanism, ensuring that doors close securely and smoothly every time. The precise milling requirements, including a milling depth of 1/2 inch and milling diameter of 1 3/8 inch, provide clear guidelines for installation, making it suitable for standard door applications. Whether you're a building professional or a knowledgeable homeowner, the Richelieu 73T359180 hinge is a reliable choice that combines practicality with a stylish finish, enhancing the overall functionality of your cabinetry.
CLIP top Hinge +110
Cabinet Thickness: Min. 19 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +110°
Hinge Type: CLIP top
Mechanism: Spring Closing

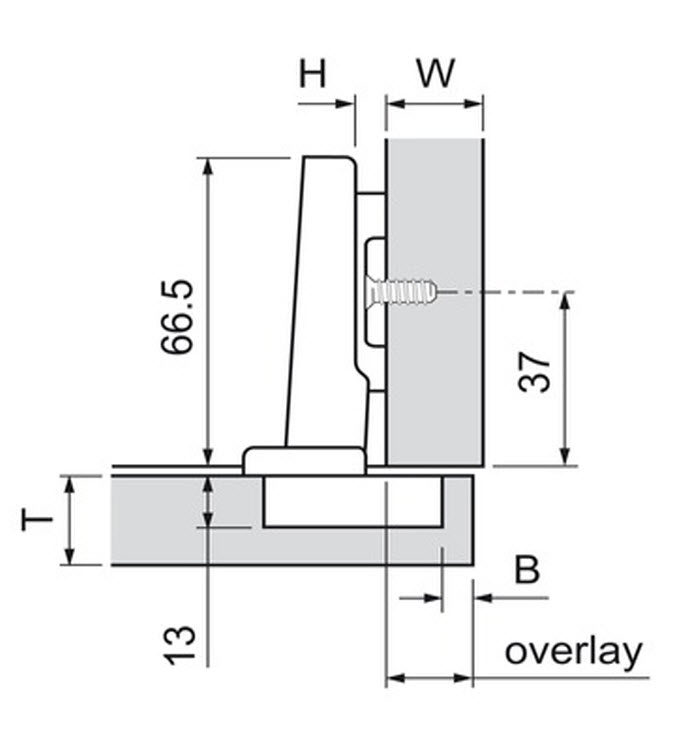

Milling Depth: 13 mm
Milling Diameter: 35 mm
Product #: 73T359180
Product number: 73T359180
Unit 1: case - 250
Use Type: Standard Door
