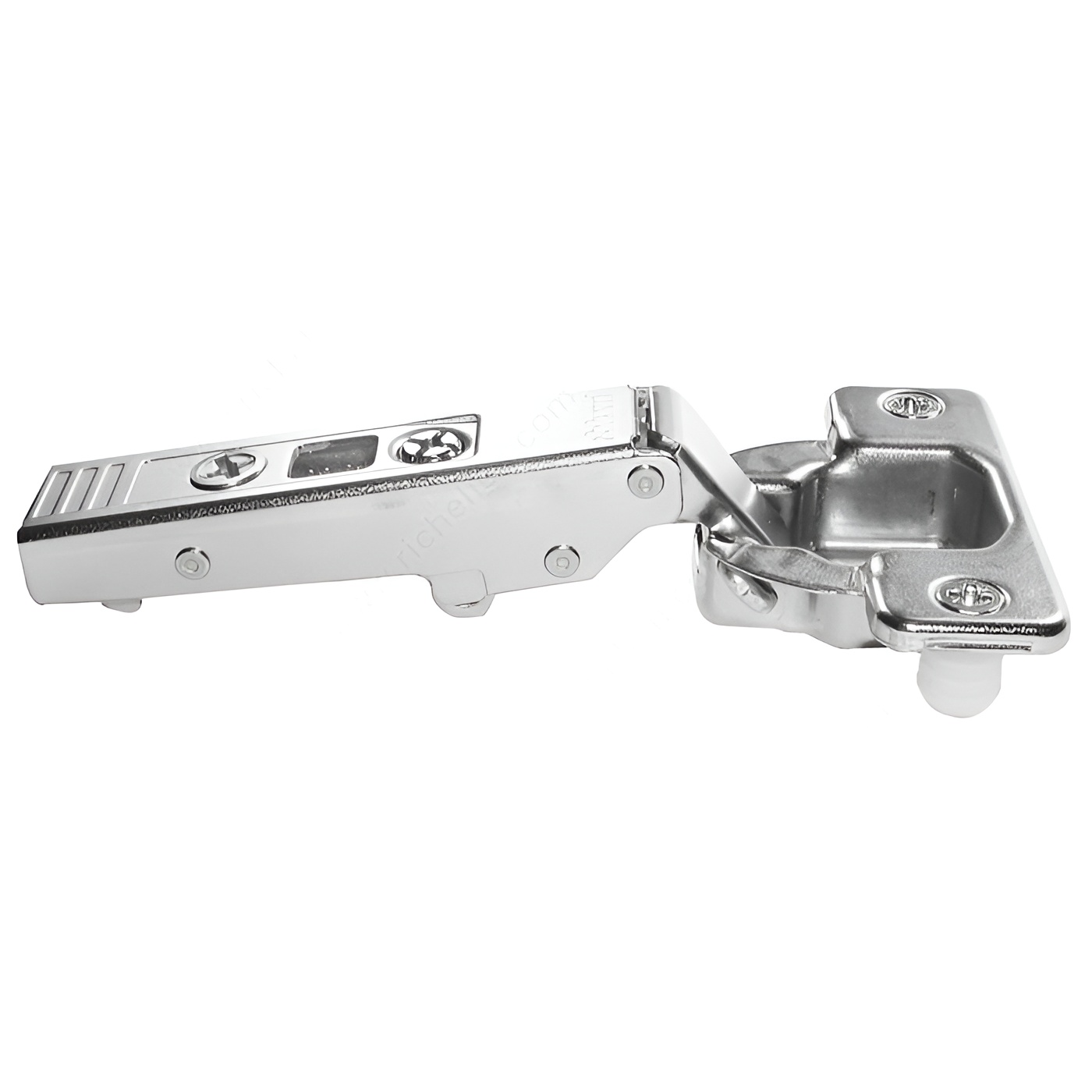

Richelieu 73T558E180 CLIP top Hinge - 120 is designed for frameless cabinets, providing a seamless and modern aesthetic. This hinge accommodates a minimum cabinet and door thickness of 5/8 inches, making it a versatile choice for various applications. With a remarkable hinge opening angle of +120°, this product allows for full overlay doors to swing open wide, enabling easy access to cabinet interiors. The spring closing mechanism ensures that doors close gently and securely, enhancing both functionality and user experience. Installation is straightforward, thanks to the expanding dowel fixing type, which guarantees a reliable and stable mount. The milling requirements include a depth of 13/32 inches and a diameter of 1 3/8 inches, ensuring a precise fit for optimal performance. Packaged individually, the Richelieu 73T558E180 is conveniently shipped via UPS, making it easy to incorporate into any project. Ideal for standard door use, this hinge exemplifies durability and efficiency, combining modern design with practical application. Whether you are a building professional or a knowledgeable homeowner, this hinge will elevate your cabinetry with its quality and ease of use.
CLIP top Hinge - 120
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Expanding Dowel
Hinge Opening Angle: +120°
Hinge Type: CLIP top
Mechanism: Spring Closing

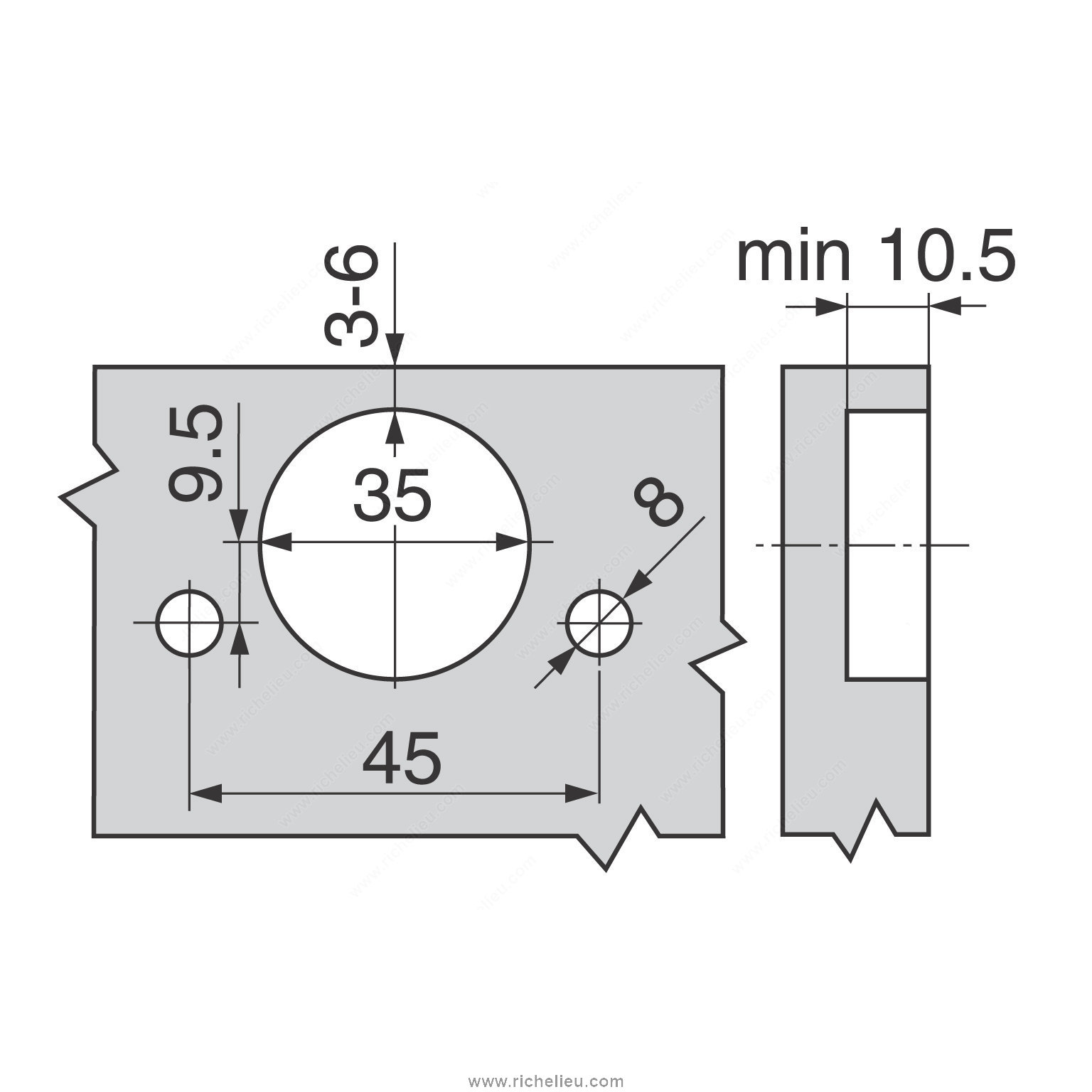

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Per unit
Product #: 73T558E180
Product number: 73T558E180
Unit 1: case - 250
Use Type: Standard Door
