Richelieu 7530800180 J95 Heavy-Duty Concealed HingeRichelieu 7530800180 J95 Heavy Duty Concealed Hinge is engineered to provide robust support for both wood and glass doors, making it an essential component for high-quality installations. This European hinge can accommodate wood doors weighing up to 88 lbs (40 kg) and glass doors up to 77 lbs (35 kg), ensuring durability and performance in demanding applications. For optimal use, the J95 hinge supports various door sizes depending on the thickness of the glass. When using 8 mm glass panels, maximum dimensions for a 2-hinge setup reach 800 mm (31.5 in) W x 1850 mm (72 in) H, while a 3-hinge configuration extends this to 2000 mm (78 in) H. For 10 mm glass panels, the specifications are slightly different, allowing for a maximum width of 700 mm (27.5 in) with a 2-hinge setup. This hinge features a nickel finish and offers a +95° opening angle, enhancing accessibility and convenience. The spring-closing mechanism adds ease of use, making it ideal for standard and glass door applications. To install, you will need 6 x M5 screws (or equivalent) per hinge, with mounting plates sold separately. Elevate your door functionality with the reliability and strength of Richelieu's J95 hinge.

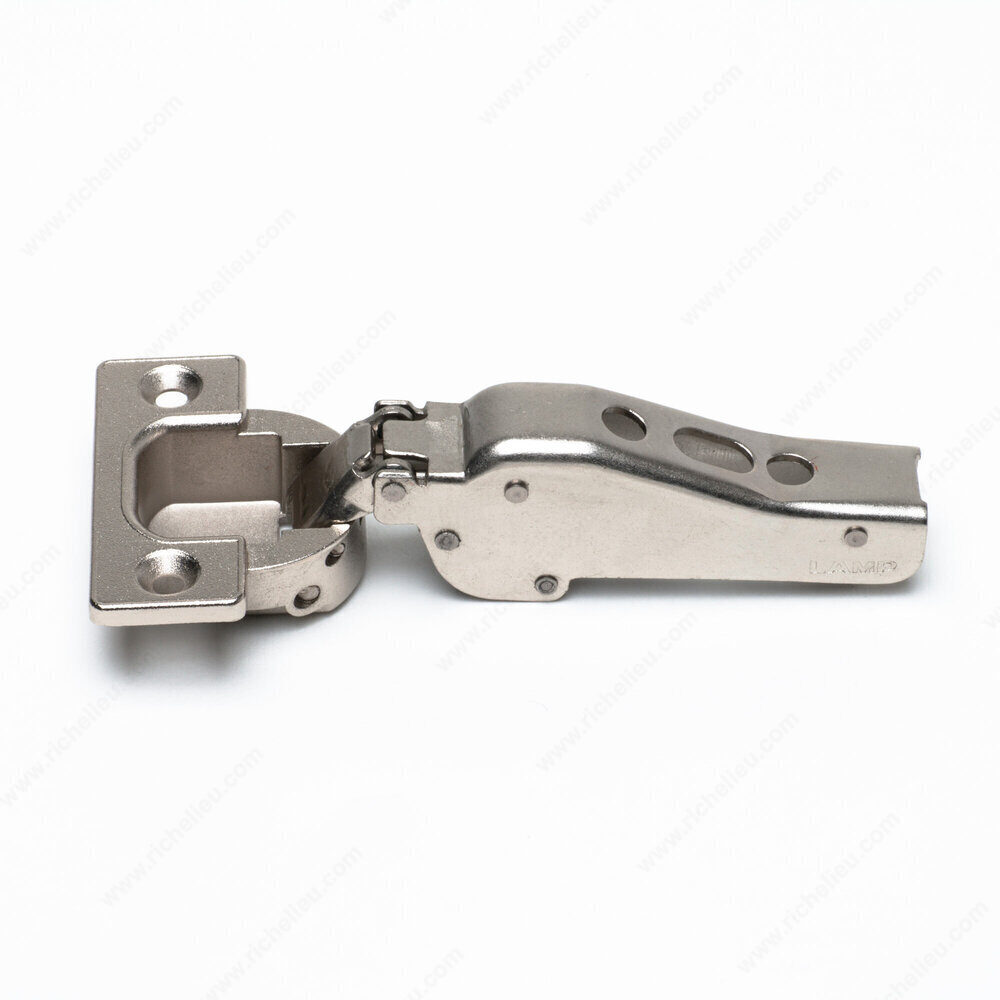

J95 Heavy Duty Concealed Hinge
The J95 heavy duty European hinge can suport wood doors up to 88 lbs (40 kg) or glass doors up to 77 lbs (35 kg).
Important information
25kg (2 hinge) door dimensions:
- For 8 mm glass panel, maximum door dimensions = 800 mm (31.5 in) W x 1850 mm (72 in) H
- For 10 mm glass panel, maximum door dimensions = 700 mm (27.5 in) W x 1850 mm (72 in) H
35kg (3 hinge) door dimensions:
- For 8 mm glass panel, maximum door dimensions = 800 mm (31.5 in) W x 2000 mm (78 in) H
- For 10 mm glass panel, maximum door dimensions = 800 mm (31.5 in) W x 2000 mm (78 in) H
*Requires 6 x M5 or equivalent (US #10) screws: 2 for each hinge and 4 for each mounting plate
** Mounting plate sold separately
Attributes
Brand: Sugatsune
Door Position: Half Overlay
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +95°
Load Capacity: 55.1 lb*
Mechanism: Spring Closing
Overlay: 5/8 in*
Product #: 7530800180
Production Time: In Stock
Thickness of Glass: 5/16 to 13/32 in*
Use Type: Standard Door, Glass
