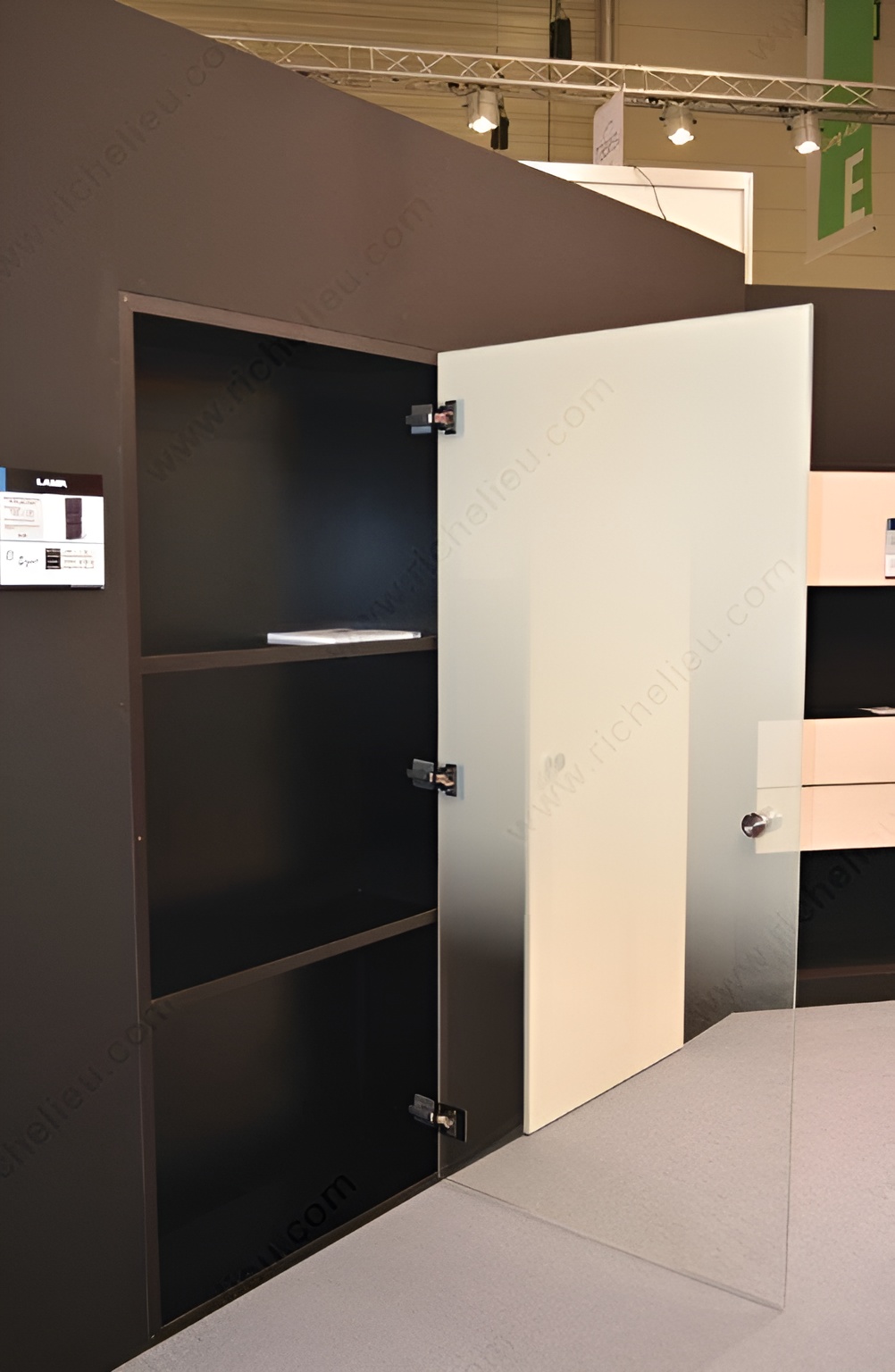

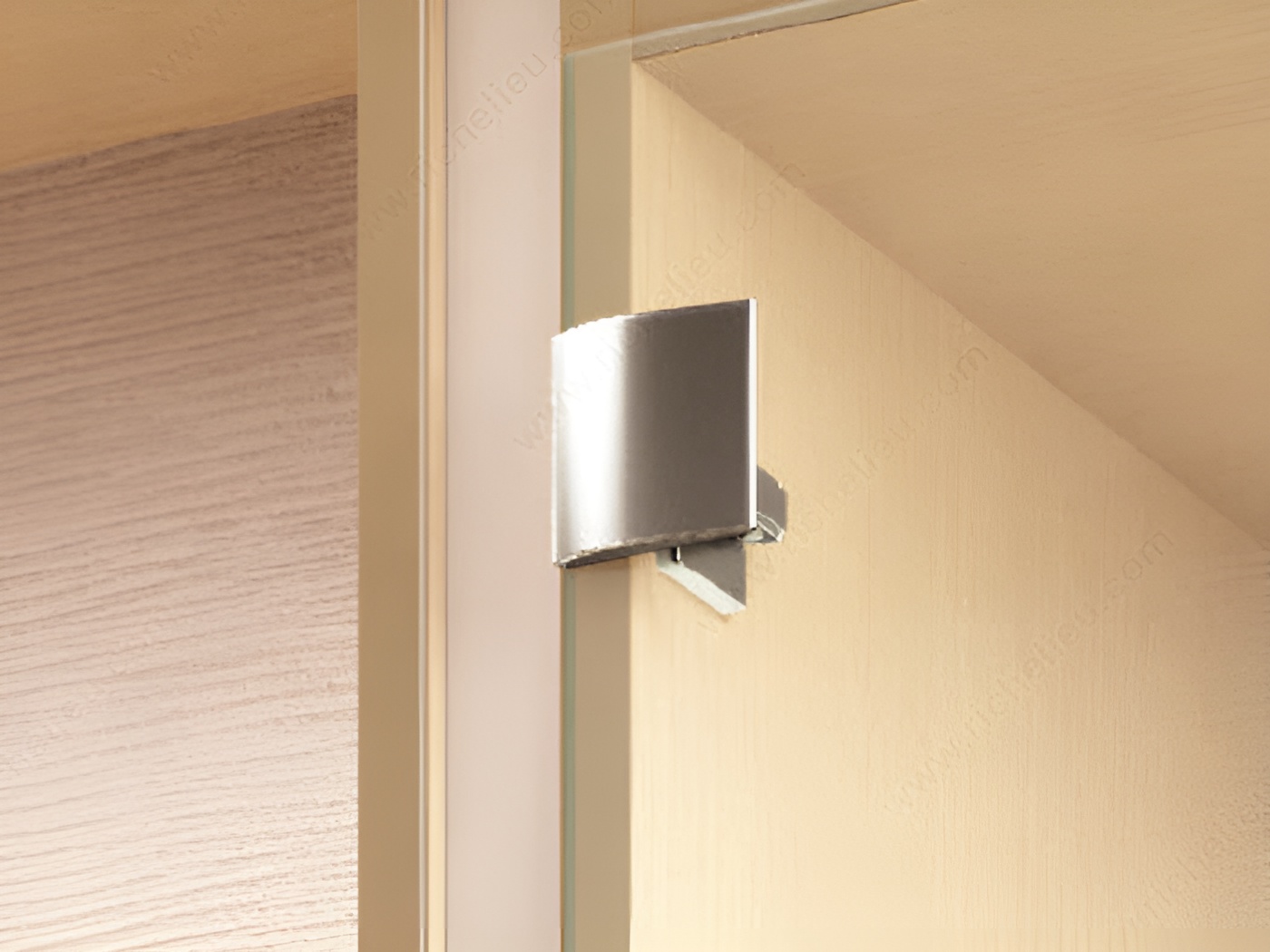

Richelieu 7530900180 J95 Heavy Duty Concealed Hinge offers a robust solution for both wood and glass doors. This European-style hinge is engineered to support wood doors weighing up to 88 lbs (40 kg) and glass doors up to 77 lbs (35 kg), making it an ideal choice for a variety of applications. With a sleek nickel finish, it not only delivers durability but also enhances the aesthetic of your installations. Designed for a 25 mm (1 in) overlay, the J95 hinge features a spring closing mechanism that ensures smooth operation and secure closure. The hinge opens to an impressive +95°, providing ample access without sacrificing stability. It is easily fixed in place with a screw-on installation, simplifying the fitting process. This hinge is compatible with glass thicknesses ranging from 5/16 to 13/32 inches, making it versatile for different design requirements. Additionally, it ships via UPS, ensuring a reliable delivery process. With its combination of strength, ease of installation, and elegant design, the Richelieu J95 Heavy Duty Concealed Hinge is perfect for both professional builders and discerning homeowners looking for high-quality hardware solutions.

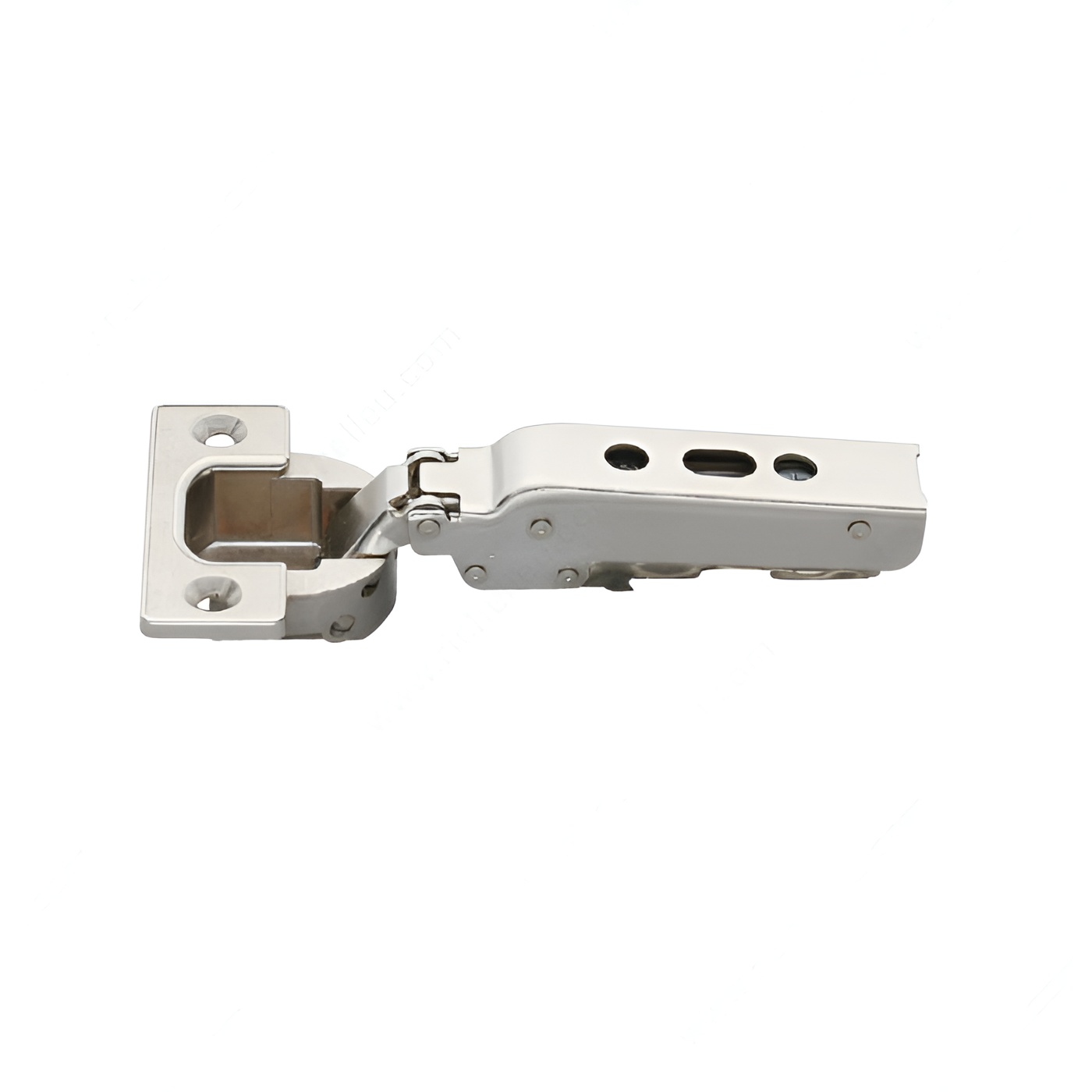

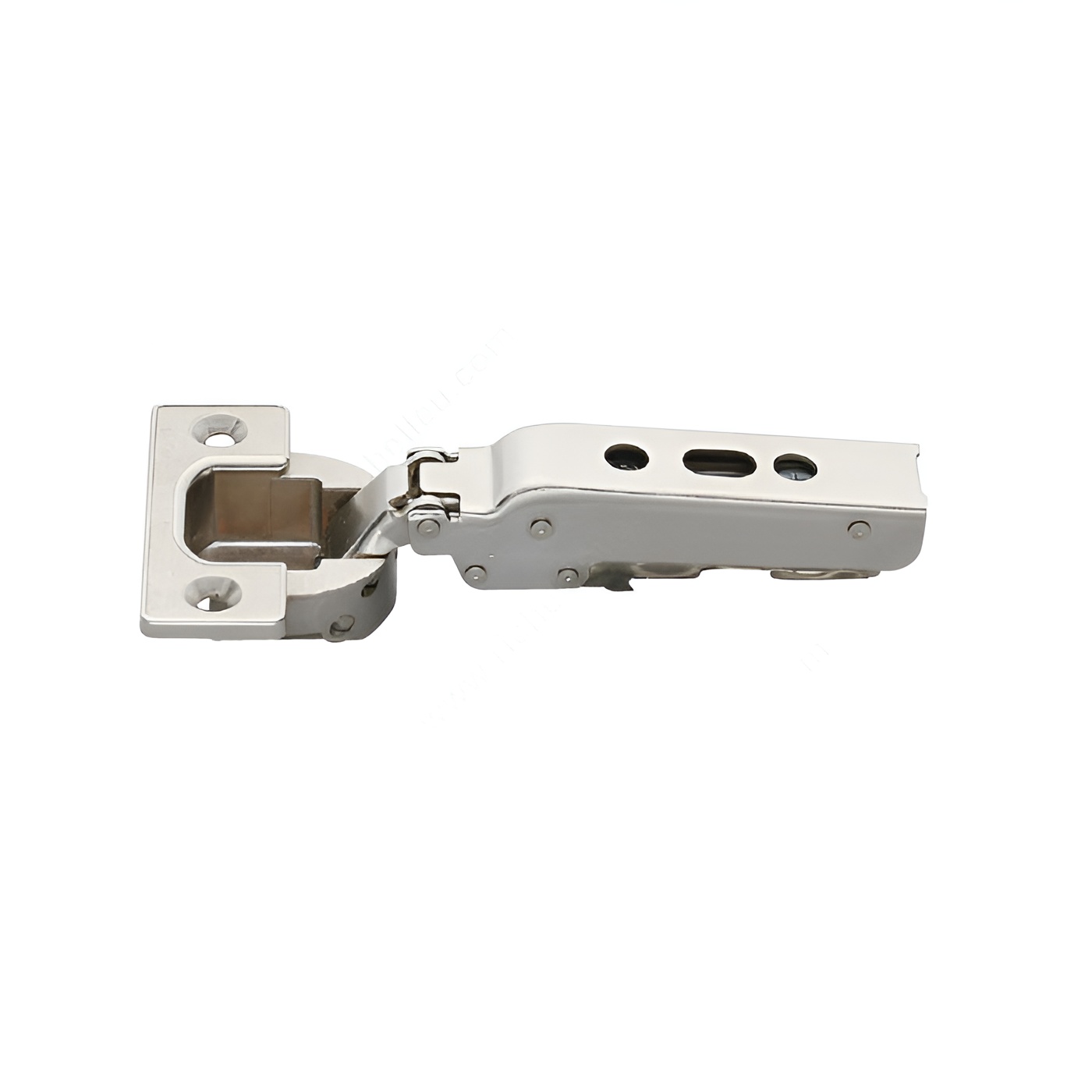

J95 Heavy Duty Concealed Hinge
Brand: Sugatsune/Lamp
Closing Mechanism: Spring Closing

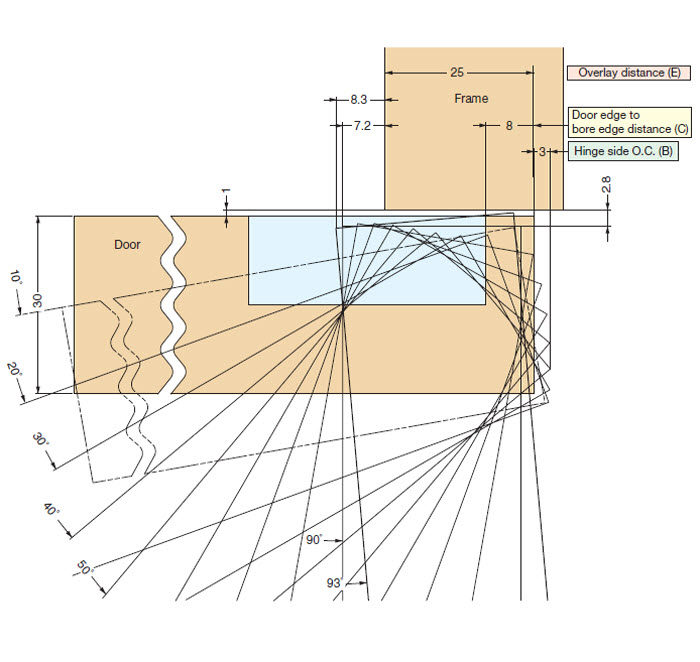

Door Position: 25 mm (1 in) Overlay
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +93º
Load Capacity: 25 kg
Mechanism: Spring Closing

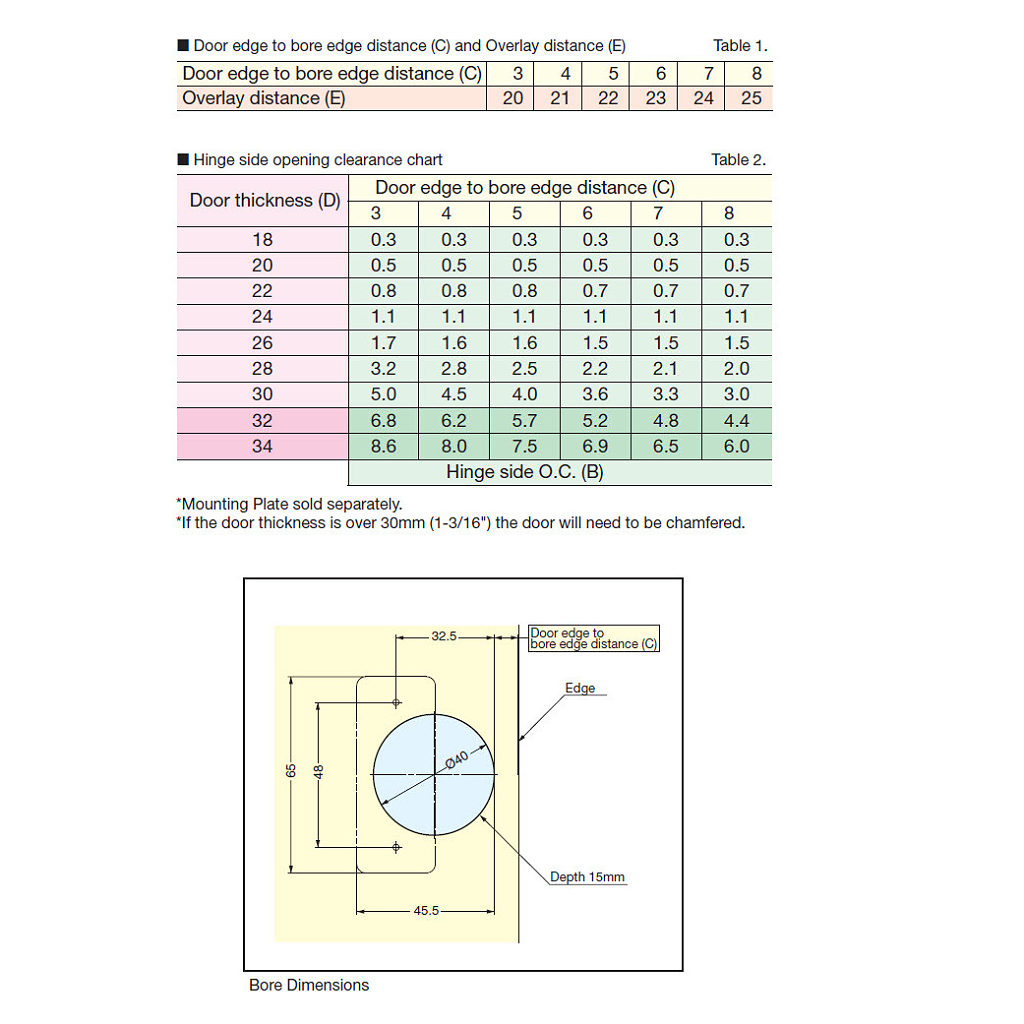

Overlay: 31/32 in*
Product #: 7530900180
Product number: 7530900180
Product №: 7530900180
Production Time: Stock

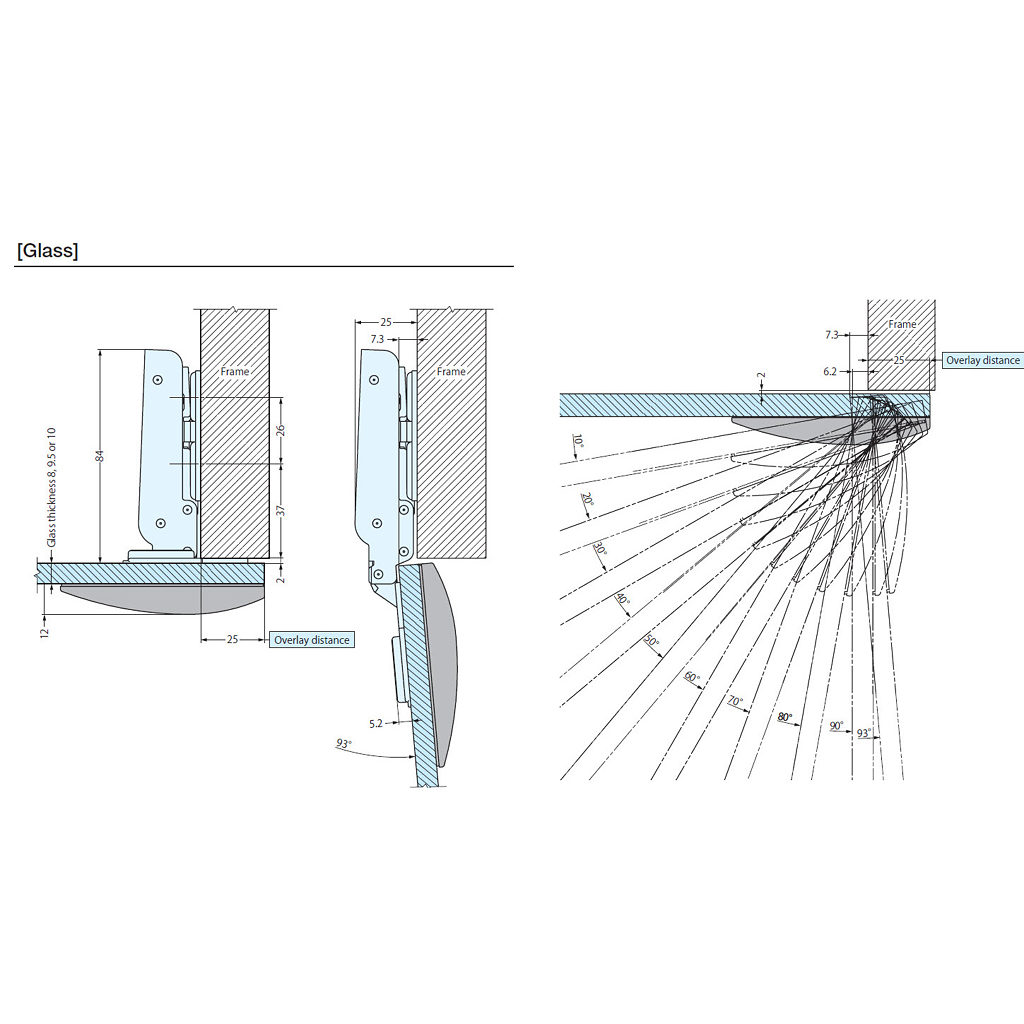

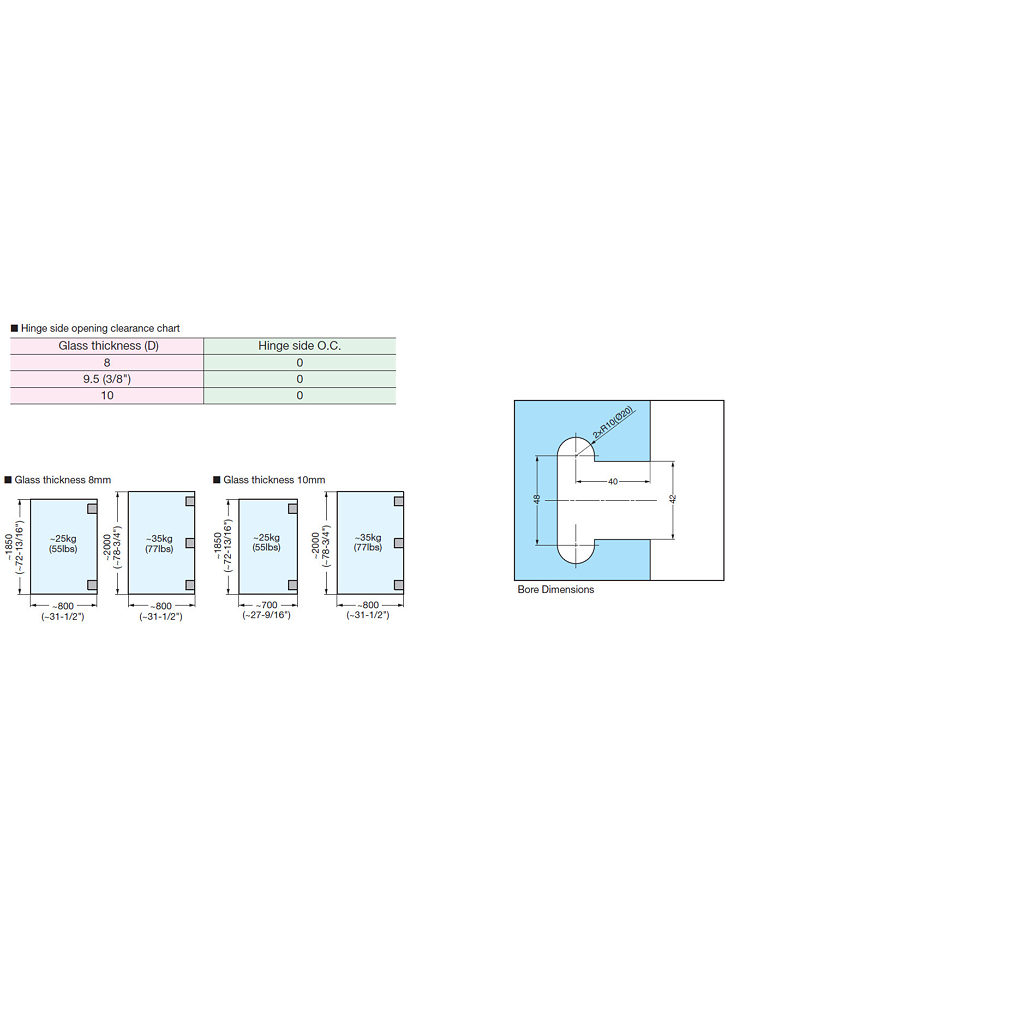

Thickness of Glass: 8 to 10 mm
Unit 1: carton - 10
Unit 2: case - 100
Use Type: Glass
