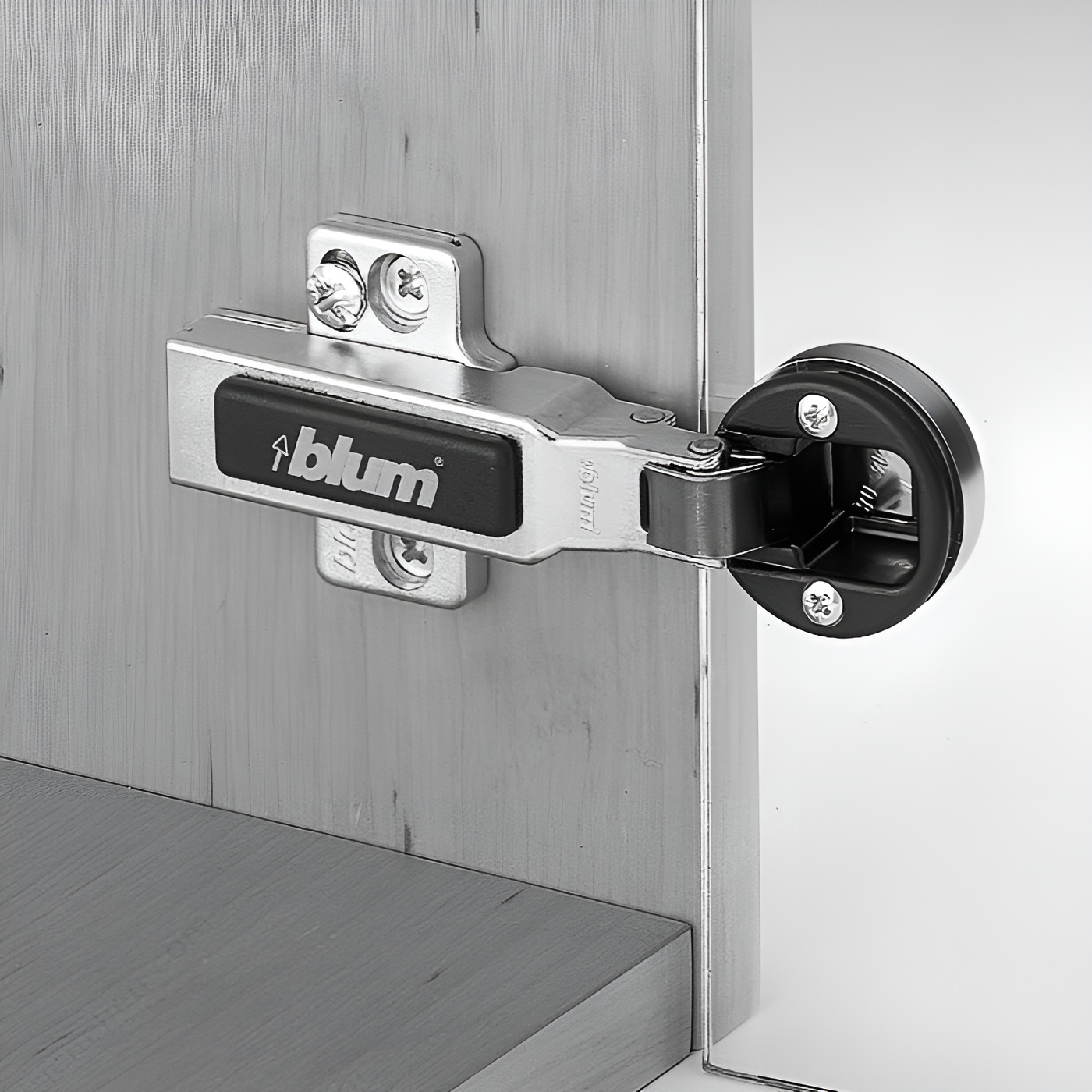

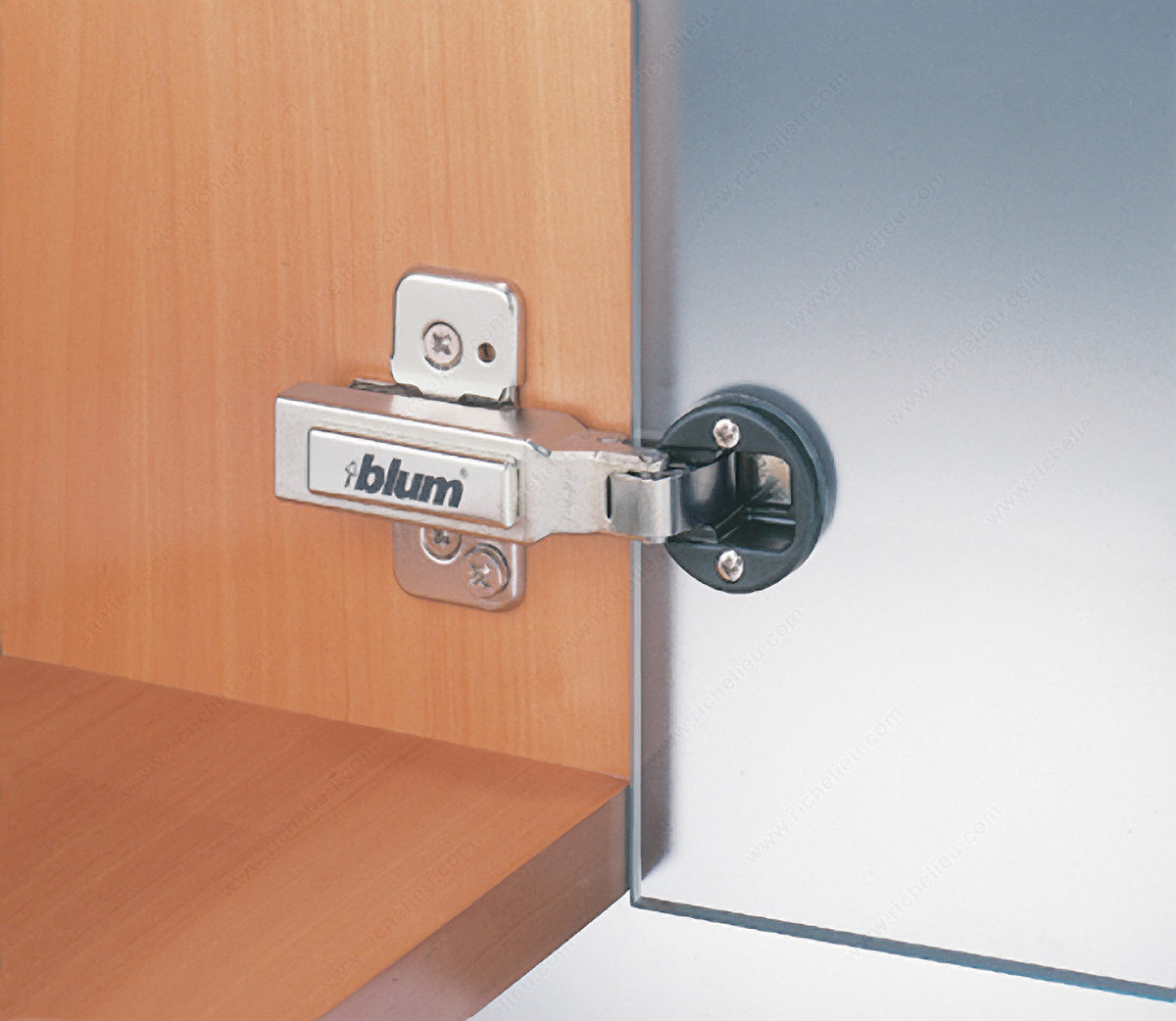

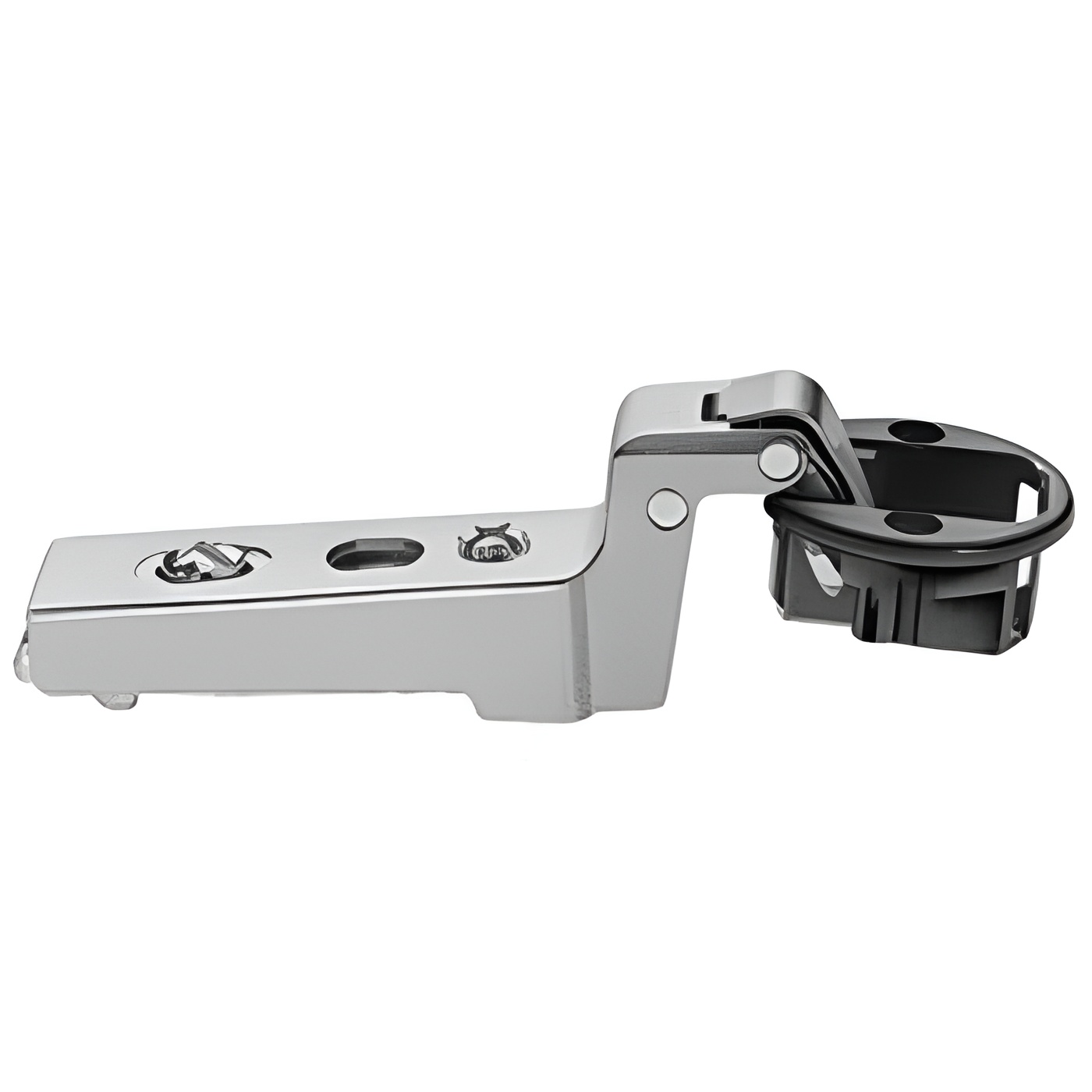

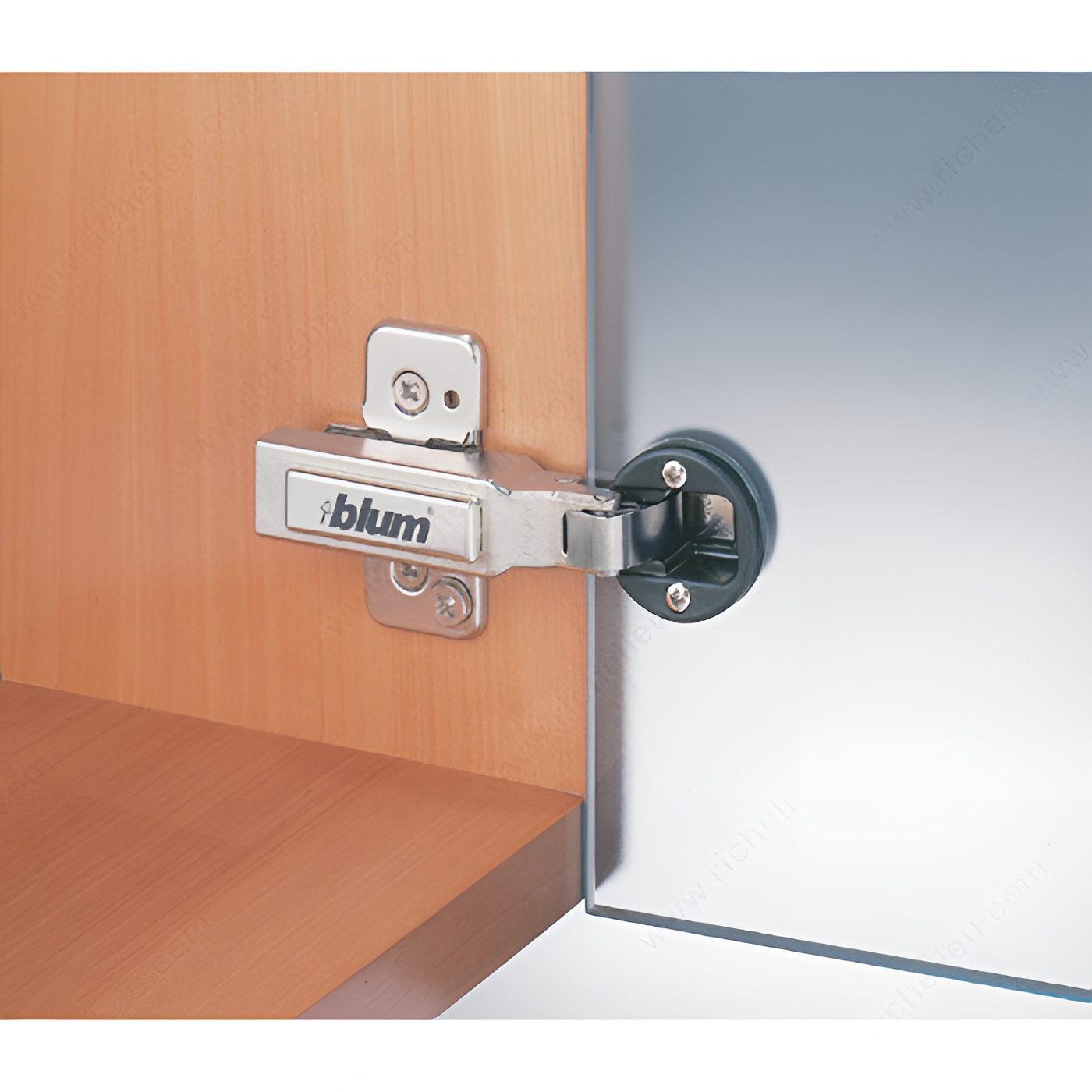

Richelieu 75M43090 94 Screw-On Glass Door Hinge - Self-Closing is designed for the modern professional seeking a reliable solution for glass door installations. This CLIP hinge features a generous 94° opening angle, making it ideal for inset doors on frameless cabinets. Crafted for versatility, the hinge is adjustable in three dimensions, ensuring a precise fit that meets your project specifications. Constructed with a durable screw-on plastic case, this self-closing hinge offers ease of installation and consistent performance. It is compatible with cabinet thicknesses starting from 5/8 inch, accommodating door thicknesses between 3/16 and 9/32 inches. The hinge operates with a spring closing mechanism, providing a smooth and secure closure every time. Available in a sleek black finish, the Richelieu 75M43090 is not only functional but also adds a contemporary touch to your design. The milling diameter of 1 1/32 inches further simplifies the installation process. Enhance your cabinetry with this dependable hinge that combines practicality and style, making it an excellent choice for builders and knowledgeable homeowners alike.
94 Screw-On Glass Door Hinge - Self-Closing
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Inset
Door Thickness: 4.5 to 7 mm
Finish: Nickel, Black
Fixing Type: Screw-On
Hinge Opening Angle: +94°
Hinge Type: CLIP
Mechanism: Spring Closing

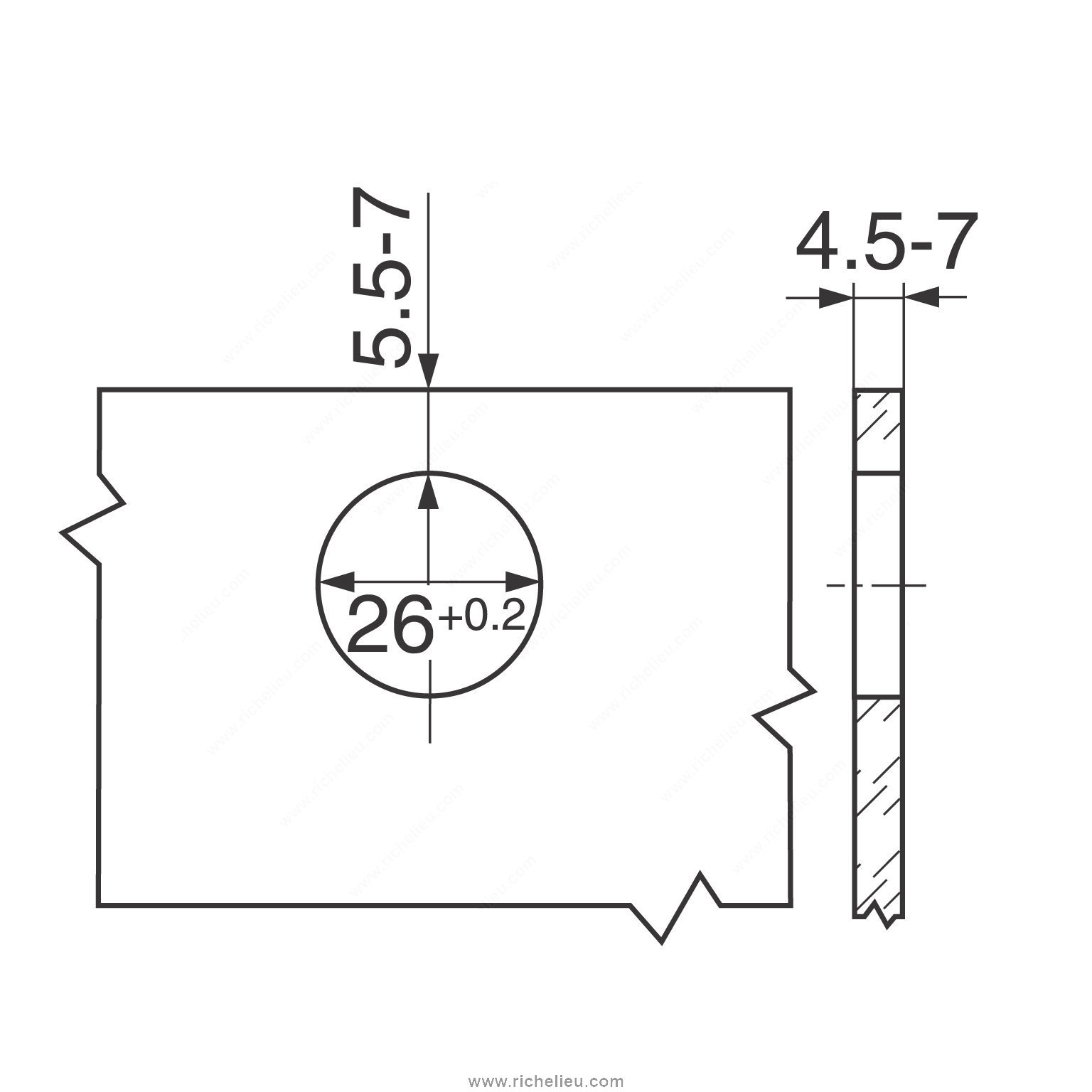

Milling Diameter: 26 mm
Product #: 75M43090
Product number: 75M43090
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Glass
