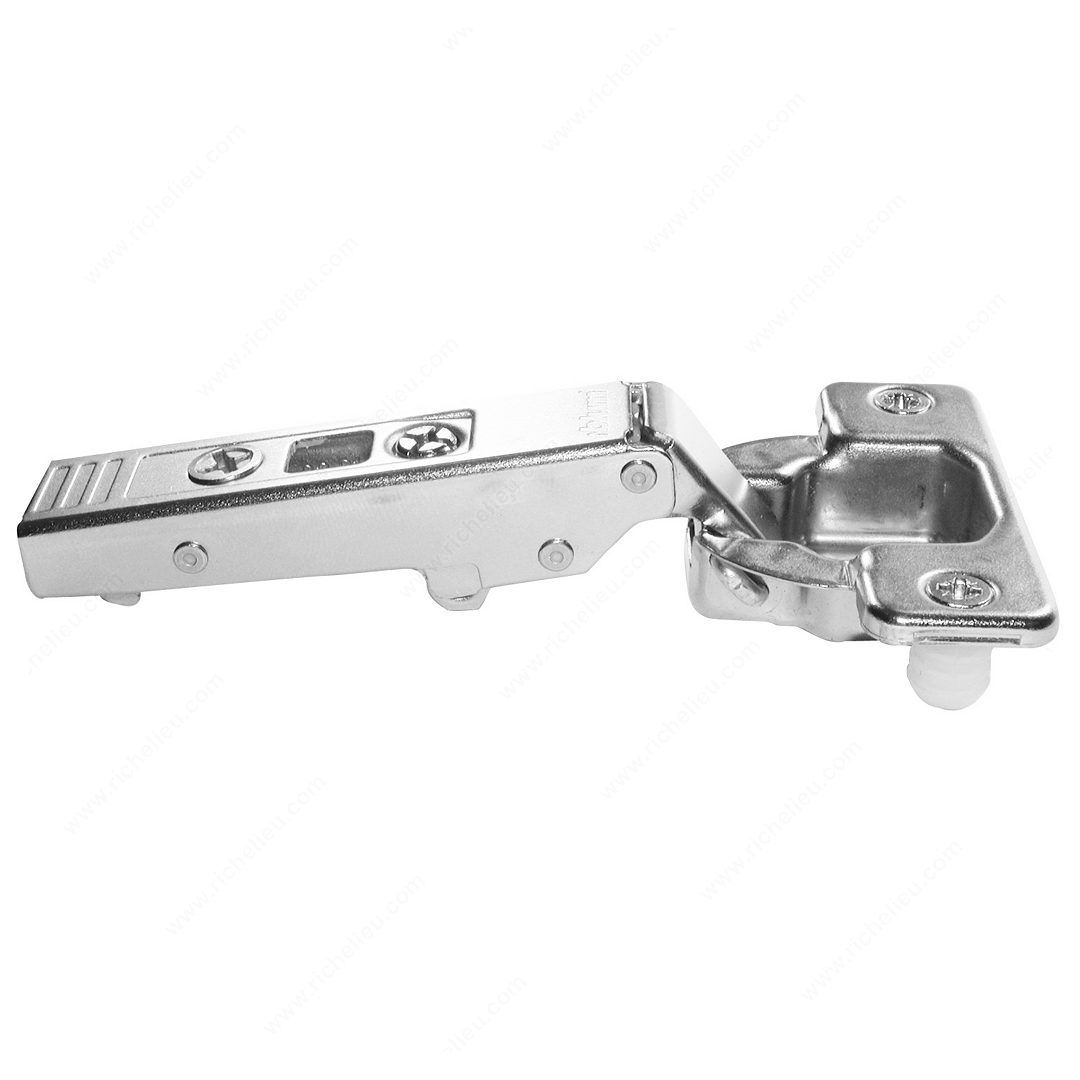

Richelieu 75T158180 107 CLIP top Hinge delivers exceptional functionality and precision for your cabinetry needs. Designed specifically for frameless cabinet applications, this hinge supports doors with a minimum thickness of 15 mm (19/32") while providing a full overlay design that ensures a seamless look. With an impressive opening angle of +107°, it allows for easy access, enhancing the usability of your cabinets. The 3D front adjustment feature ensures that installation and alignment are straightforward, accommodating any necessary adjustments with ease. The convenient spiral-tech depth adjustment allows for quick modifications without the need for additional tools, making the assembly and removal of doors to cabinets hassle-free. Designed for standard doors, this hinge employs a spring closing mechanism, ensuring that doors close securely and quietly. The milling depth of 7/16" and diameter of 1 3/8" provide precise fitment, while the dowel fixing type guarantees sturdy installation. Suitable for cabinet thicknesses starting at 5/8", the Richelieu 75T158180 hinge is a reliable choice for building professionals and discerning homeowners looking to enhance their cabinetry with quality hardware. Enjoy the blend of durability, ease of use, and modern design that this hinge offers.
107 CLIP top Hinge
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Min. 15 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +107°
Hinge Type: CLIP top
Mechanism: Spring Closing

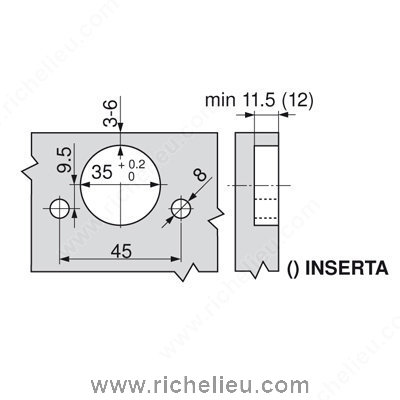

Milling Depth: 11.5 mm
Milling Diameter: 35 mm
Product #: 75T158180
Product number: 75T158180
Unit 1: case - 250
Use Type: Standard Door
