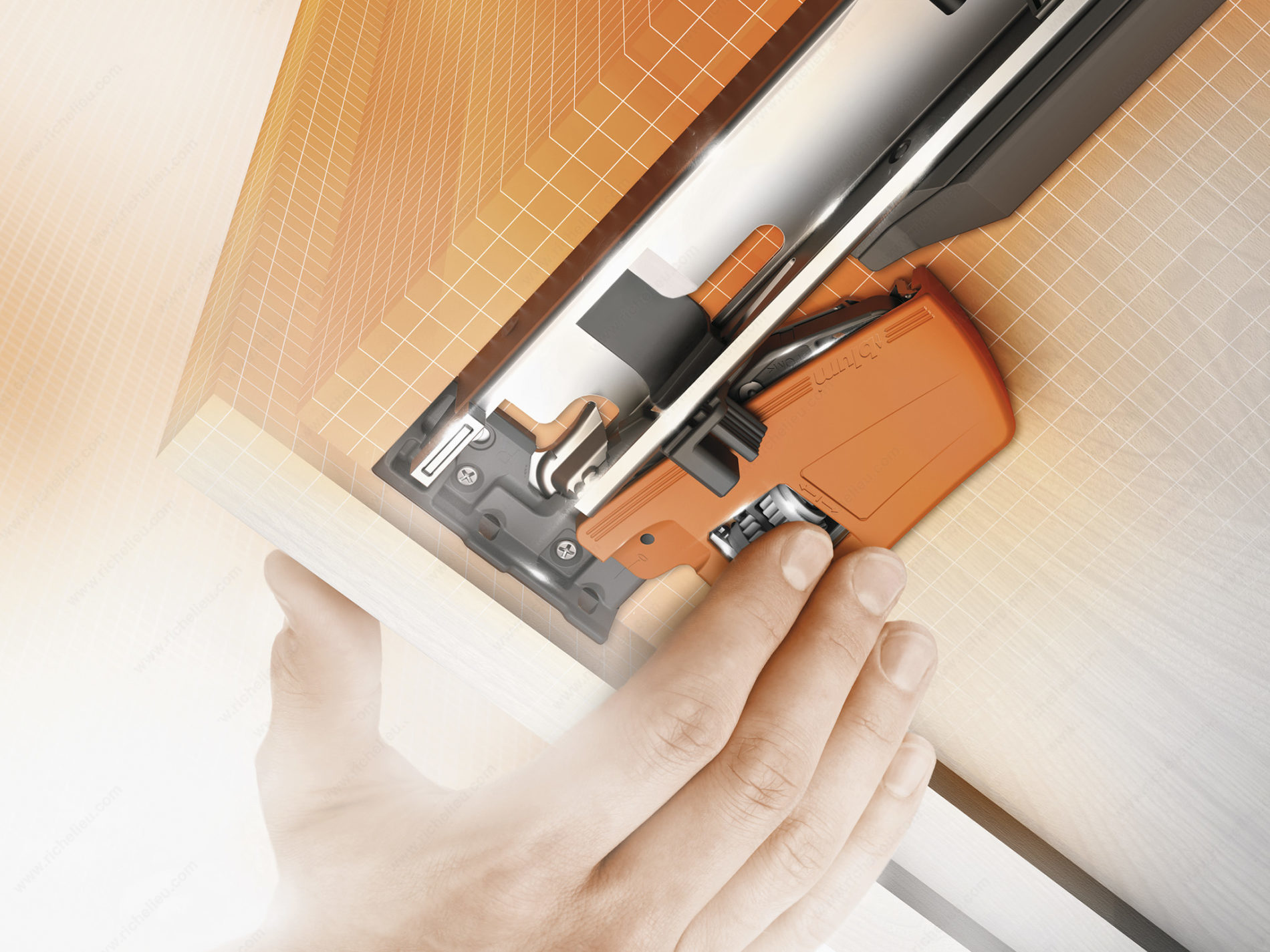

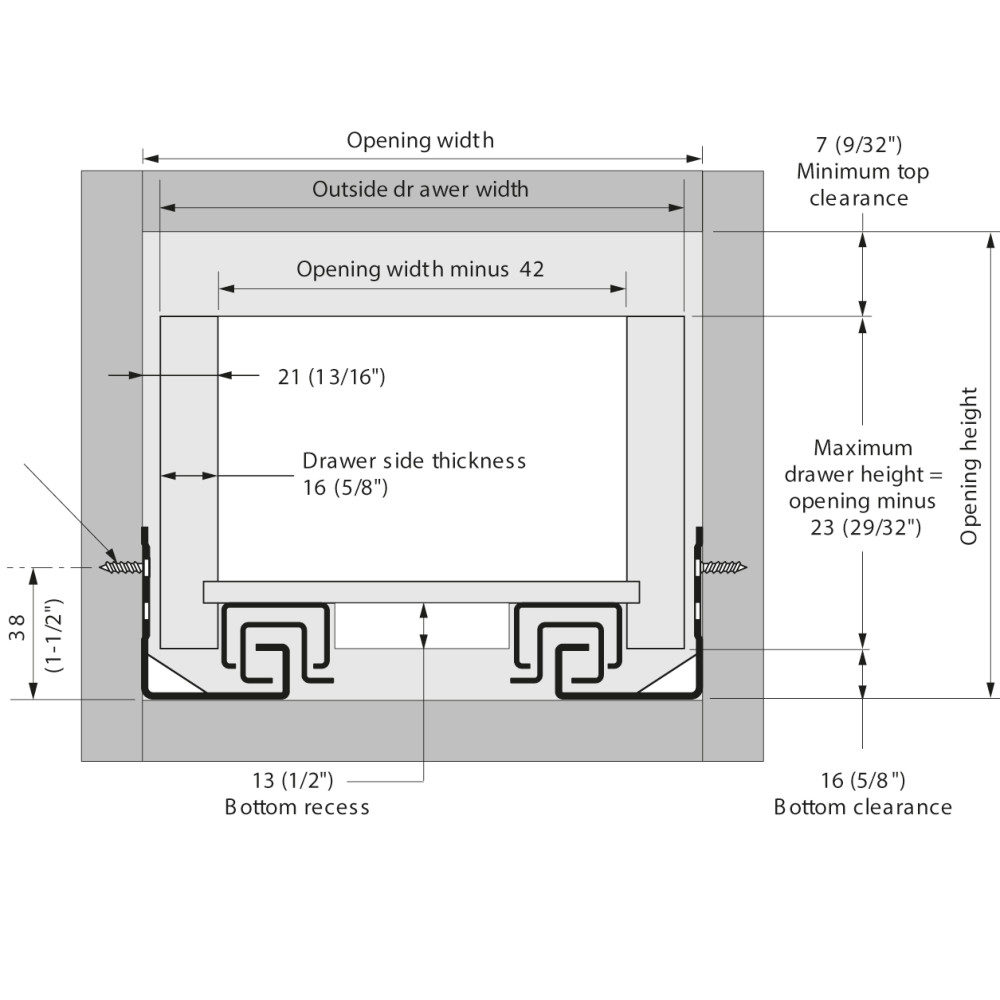

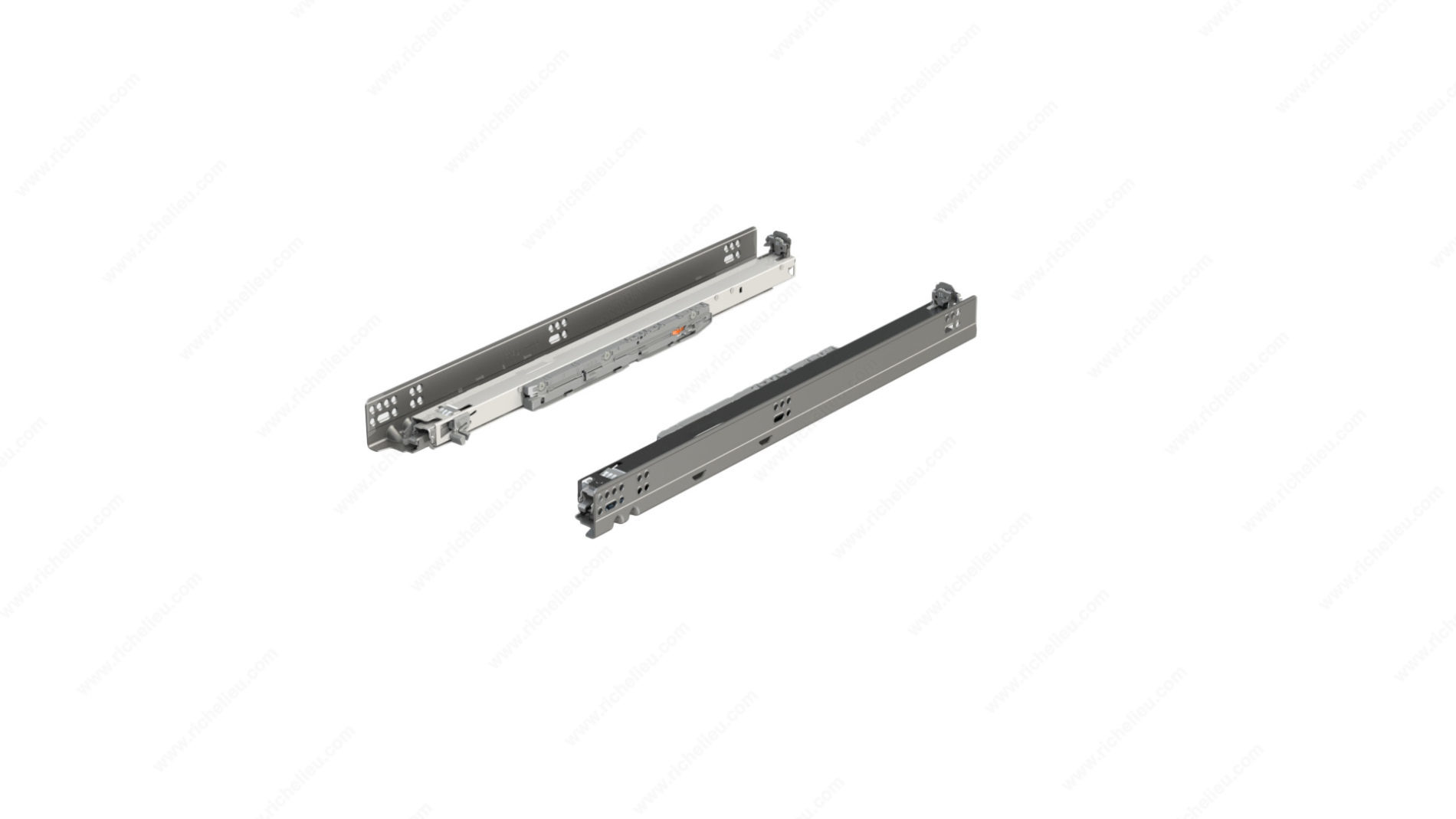

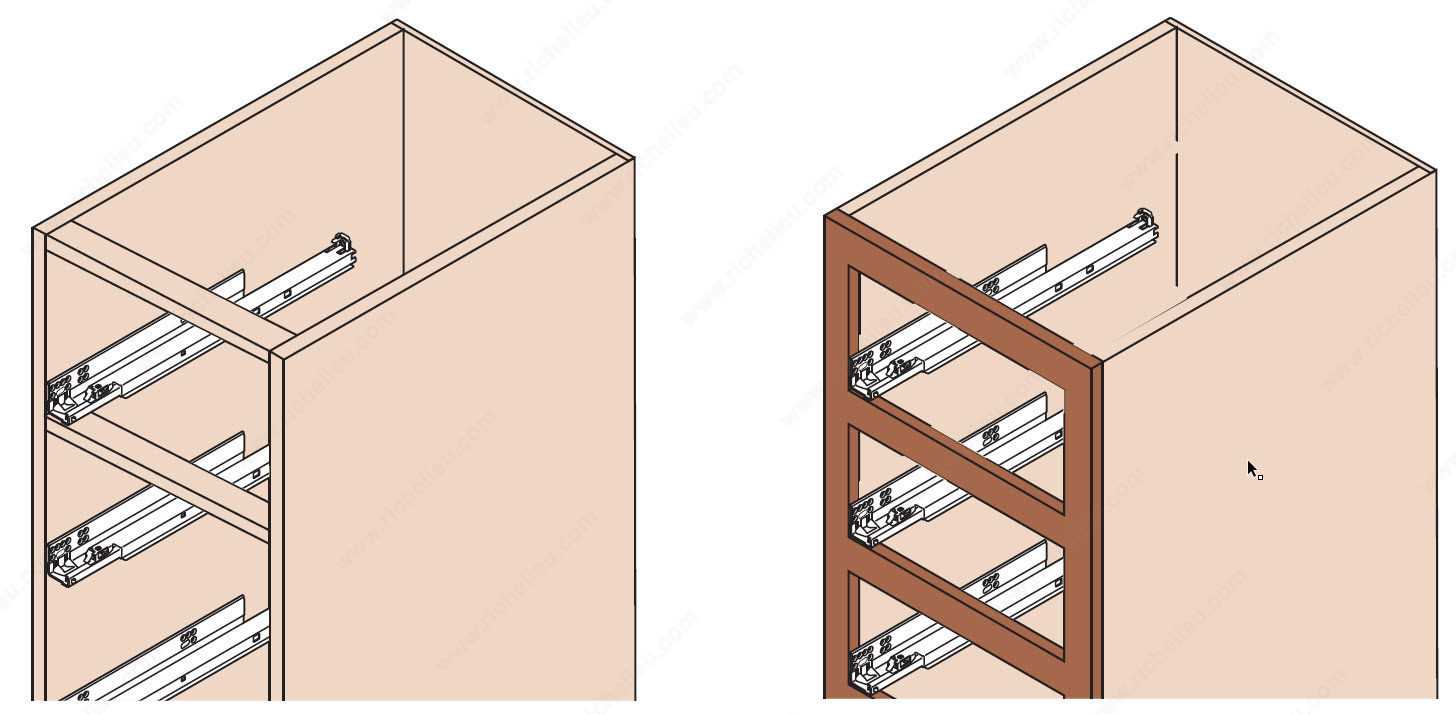

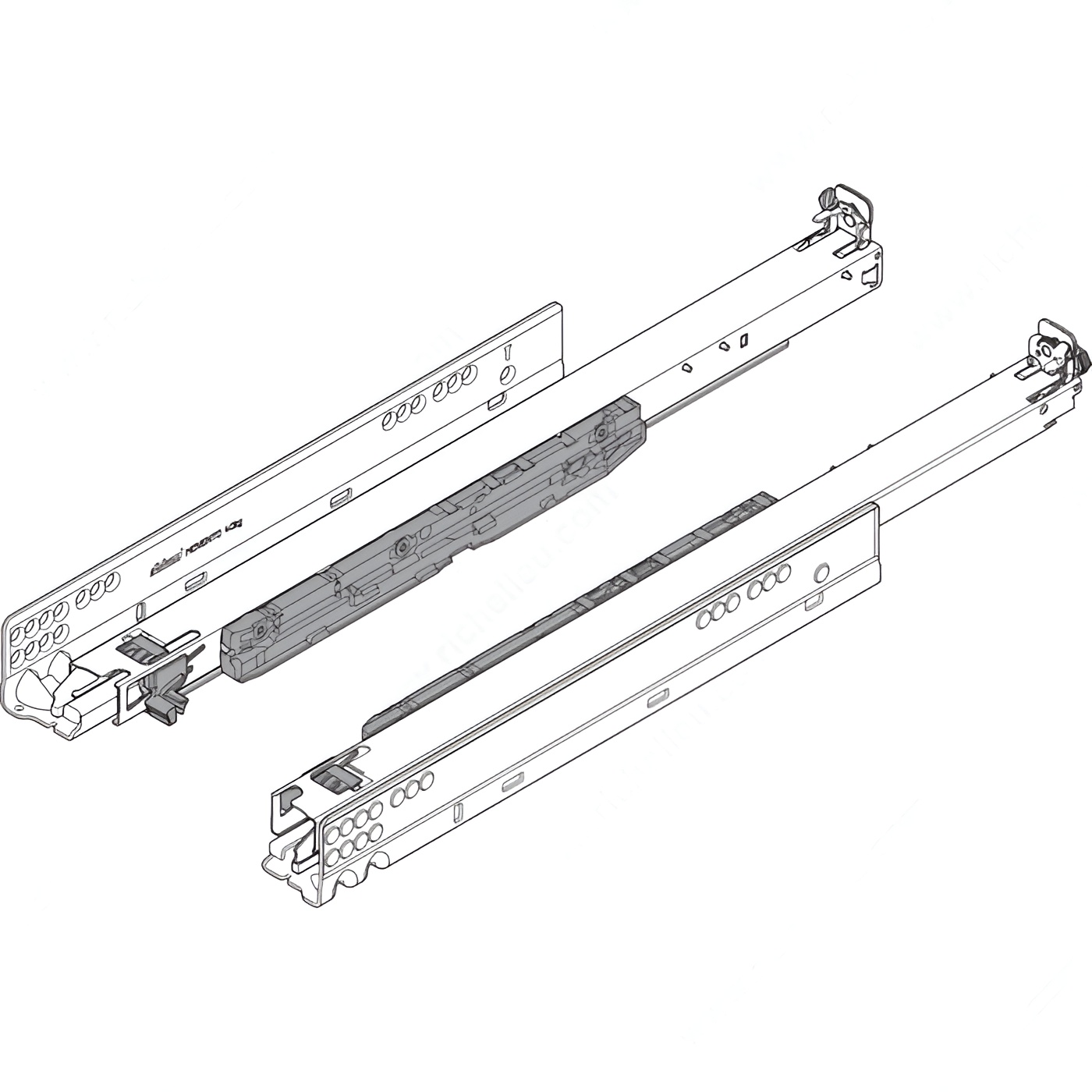

Richelieu 763H3050S MOVENTO 763H Full Extension Concealed Undermount Slide - Standard Duty is engineered for both framed and frameless cabinets, offering exceptional performance and reliability. This slide features full-extension concealed runners that provide a seamless look while maximizing accessibility to drawer contents. The smooth closing mechanism incorporates BLUMOTION technology, ensuring a gentle and quiet close every time. Designed for drawers with a thickness ranging from 1/2 inch (13 mm) to 5/8 inch (16 mm), the 763H3050S is compatible with innovative systems like TIP-ON BLUMOTION and SERVO-DRIVE, enhancing ease of use with push-to-open functionality. With a robust static load capacity of up to 125 lb (57 kg), this slide is perfect for standard drawer applications, accommodating both wood and melamine materials. Installation is straightforward, featuring elongated holes for depth adjustments and bottom mount holes for secure fitting. The four-dimensional adjustment capability ensures precise alignment, making it an ideal choice for professionals seeking efficiency and quality. Crafted from durable steel with a zinc finish, the Richelieu MOVENTO slide combines strength with aesthetic appeal, making it a reliable addition to any cabinetry project.

MOVENTO 763H Full Extension Concealed Undermount Slide - Standard Duty

Resources

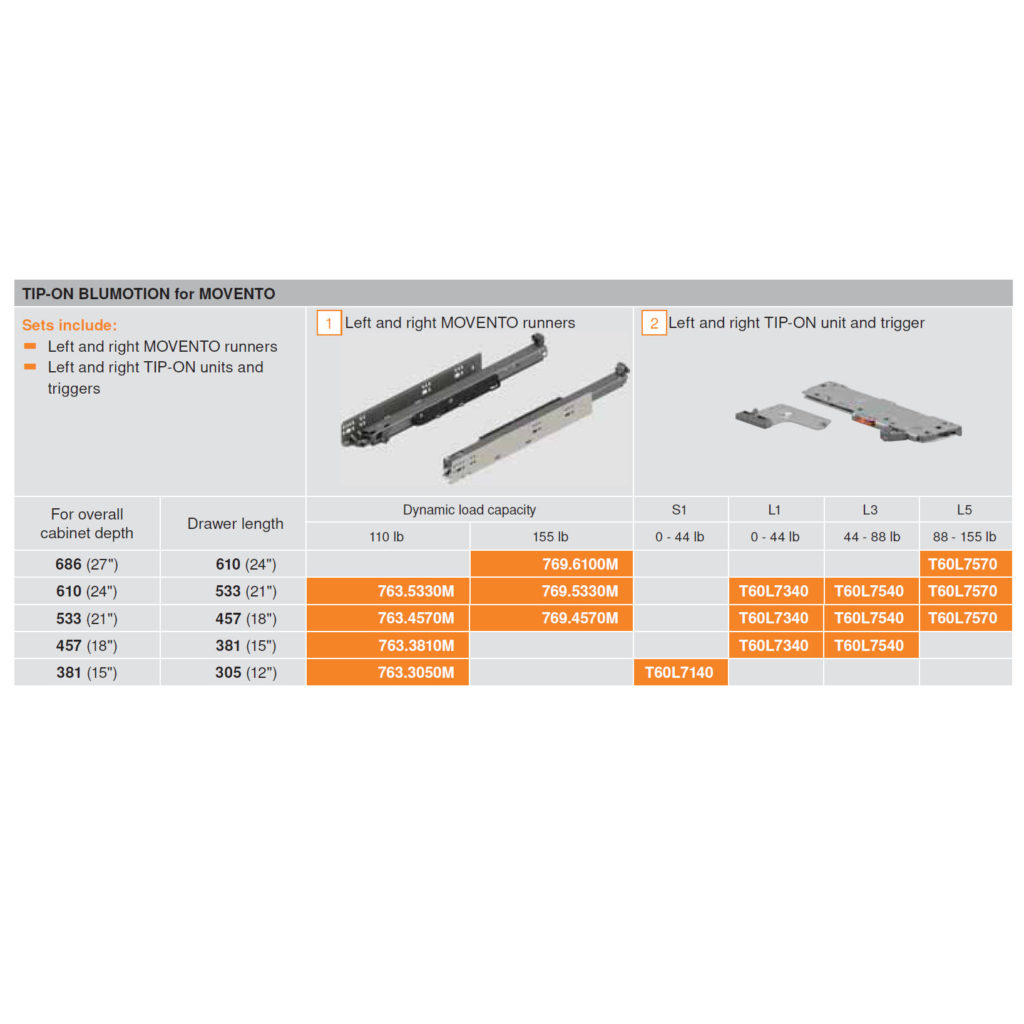

• CHART for TIP-ON BLUMOTION for MOVENTO
• Instructions
• Instructions
• MOVENTO adjustments and removal

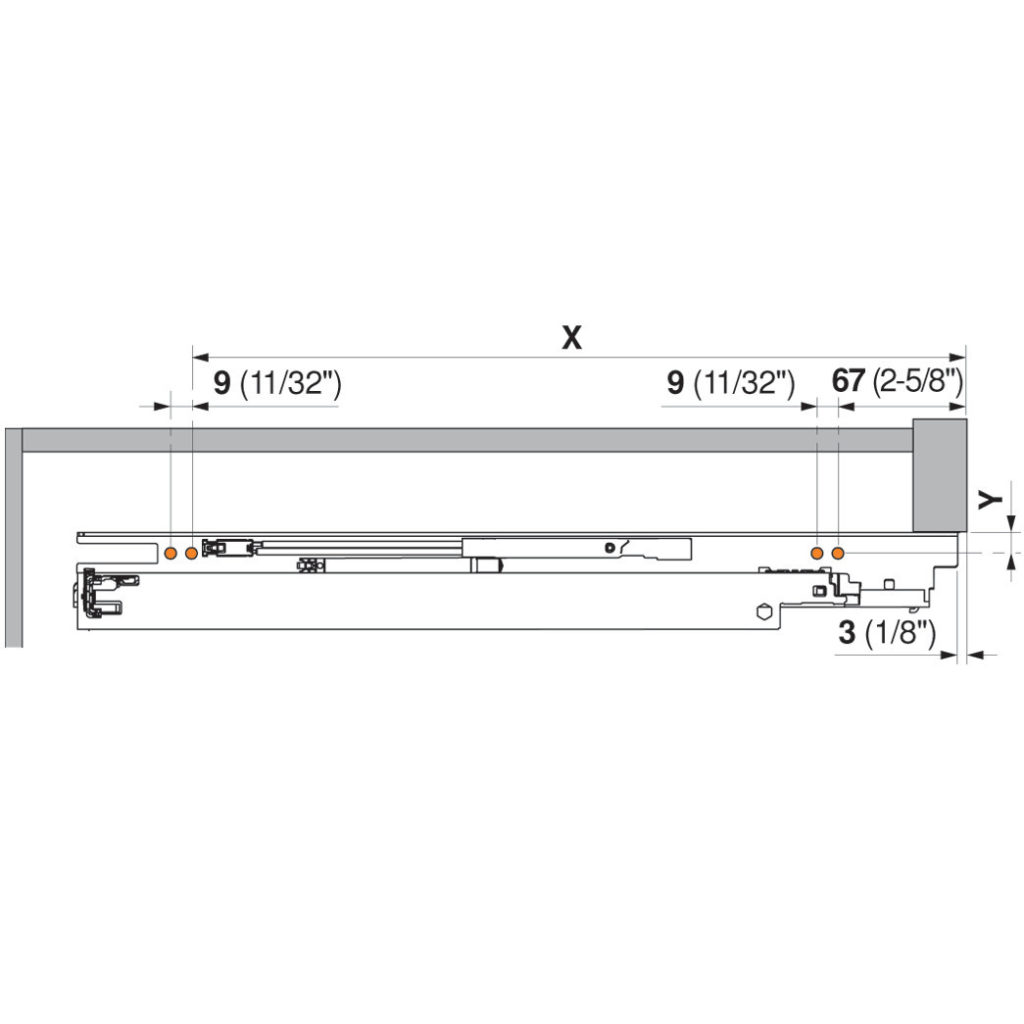

• MOVENTO installation
• TIP-ON BLUMOTION for MOVENTO - Manufacturer tips

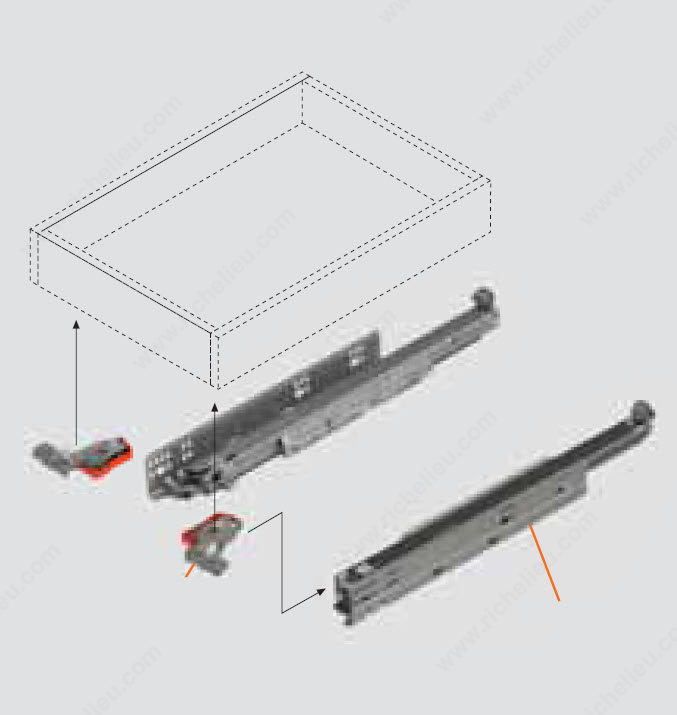

• TIP-ON for MOVENTO - Drawer preparation and installation differences
