Richelieu 79A9595180 20 Angled INSERTA CLIP top Hinge - Self-Closing is designed for frameless cabinets, providing an essential solution for modern cabinetry needs. This 20° angled hinge features a remarkable 95° opening angle, allowing for optimal access to cabinet interiors while maintaining a sleek appearance. Crafted from durable steel, the self-closing mechanism ensures that doors close securely, enhancing the longevity of your cabinetry. This hinge is engineered for full overlay doors, accommodating a minimum door thickness of 3/4 inches, making it ideal for a range of applications. The innovative INSERTA fixing type provides straightforward installation, while the 3-dimensional adjustment allows for precise alignment with the corresponding mounting plate, ensuring a perfect fit every time. With a milling depth of 1/2 inch and a milling diameter of 1 3/8 inches, you can achieve the necessary specifications for seamless integration into your cabinetry. The spring closing mechanism adds an extra layer of convenience, ensuring doors close softly and quietly. Richelieu's commitment to quality and functionality shines through in this hinge, making it an excellent choice for both building professionals and knowledgeable homeowners looking to enhance their cabinetry.

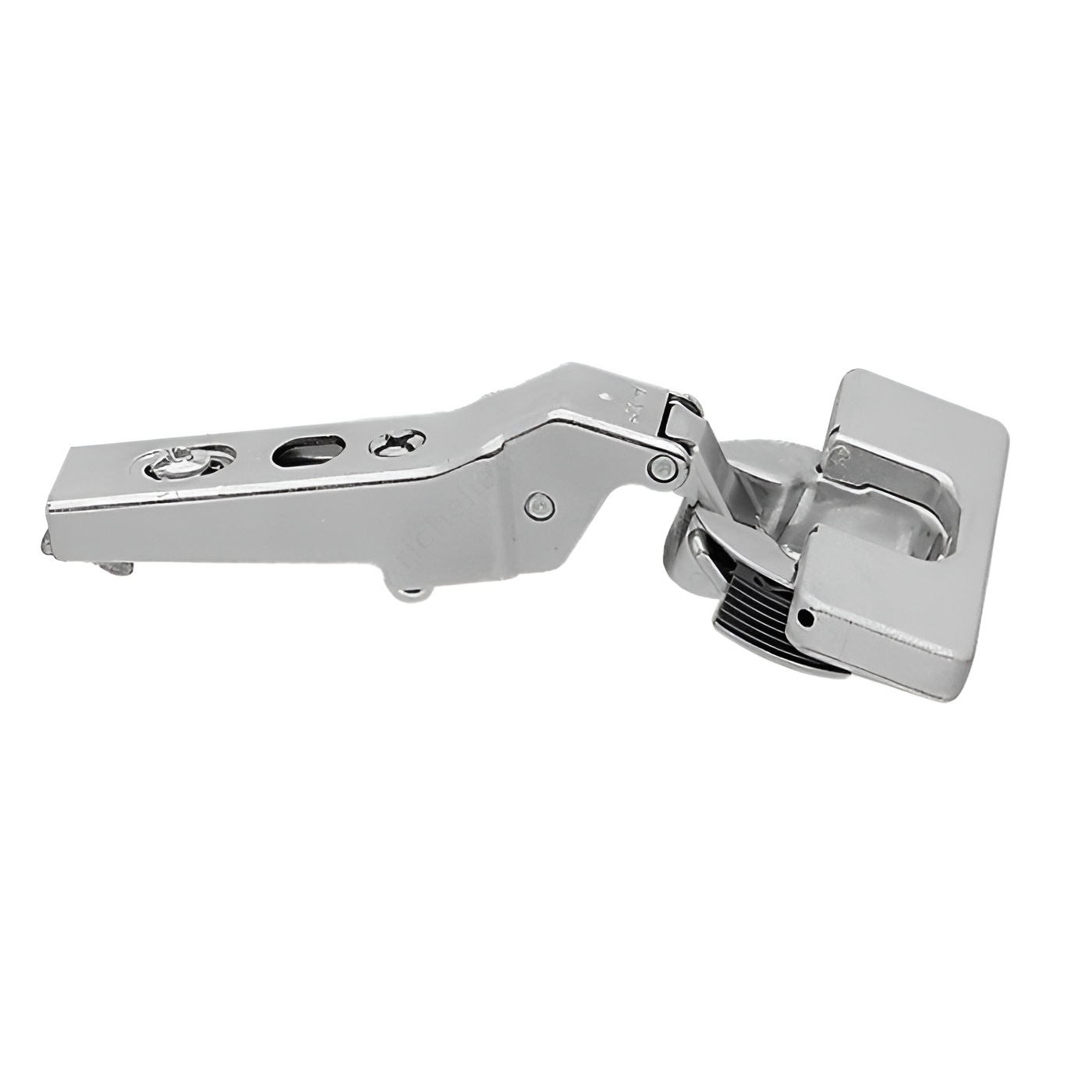

20 Angled INSERTA CLIP top Hinge - Self-Closing
Cabinet Angle: +20°
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Min. 19 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +95°
Hinge Type: CLIP top
Mechanism: Spring Closing

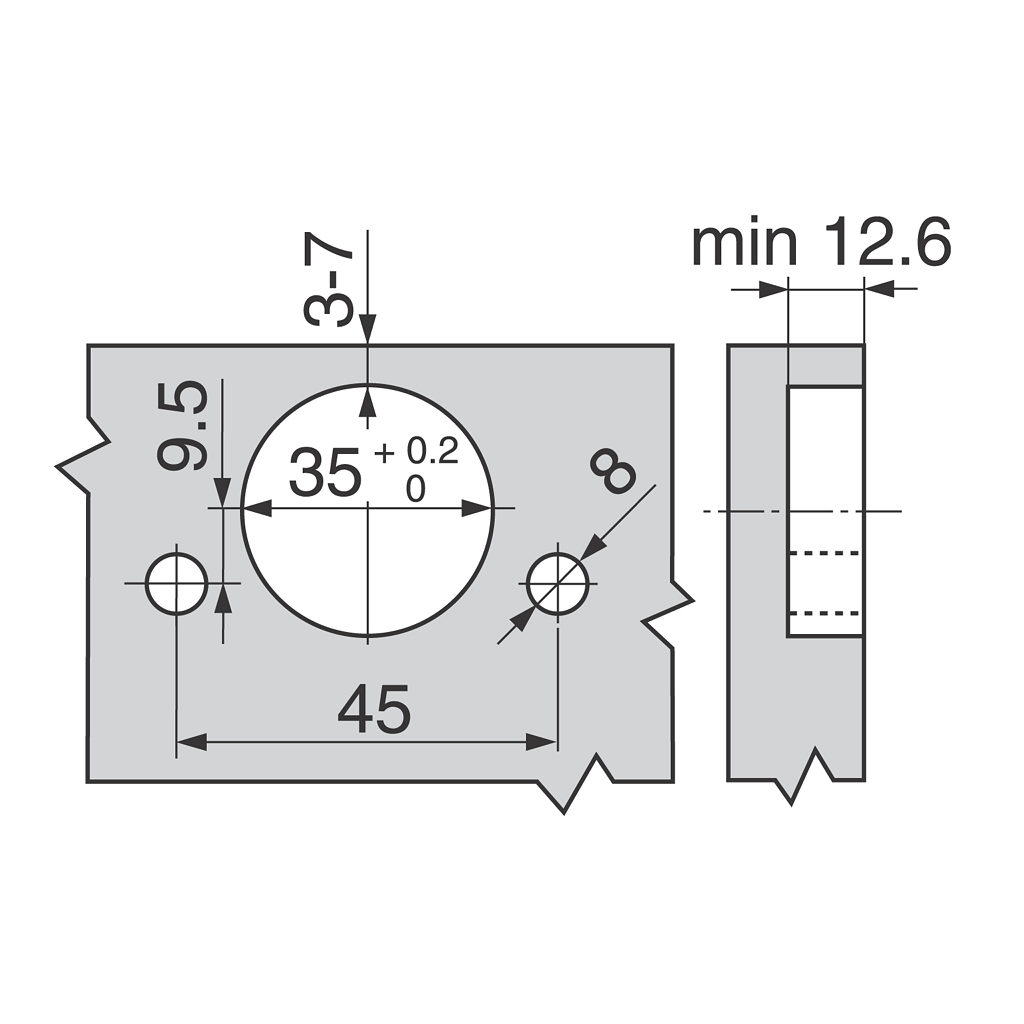

Milling Depth: 13 mm
Milling Diameter: 35 mm
Product #: 79A9595180
Product number: 79A9595180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Angle Cabinet
