Richelieu 79B3598180 45 Angle II CLIP top BLUMOTION INSERTA Hinge is engineered for precision and durability, offering a seamless solution for angled cabinet doors. This innovative hinge features integrated BLUMOTION technology, ensuring that your furniture doors close silently and effortlessly, enhancing both functionality and user experience. Designed to withstand 200,000 cycles of opening and closing, this hinge is built to last, providing exceptional quality of motion throughout its lifetime. It accommodates cabinet angles of +45° and +50°, making it ideal for frameless cabinets with a minimum thickness of 3/4 inch. The hinge is suitable for both angled overlay and inset angle door positions, offering versatility for various design preferences. The CLIP top BLUMOTION hinge opens to a generous +110°, and its spring closing mechanism guarantees a soft, controlled closure every time. With a nickel finish, this hinge not only performs admirably but also adds a modern touch to your cabinetry. Installation is straightforward, thanks to the Inserta fixing type, and the required milling depth and diameter are 1/2 inch and 1 3/8 inches, respectively. Elevate your cabinetry with the reliability and sophistication of the Richelieu 79B3598180 hinge-where quality meets design.

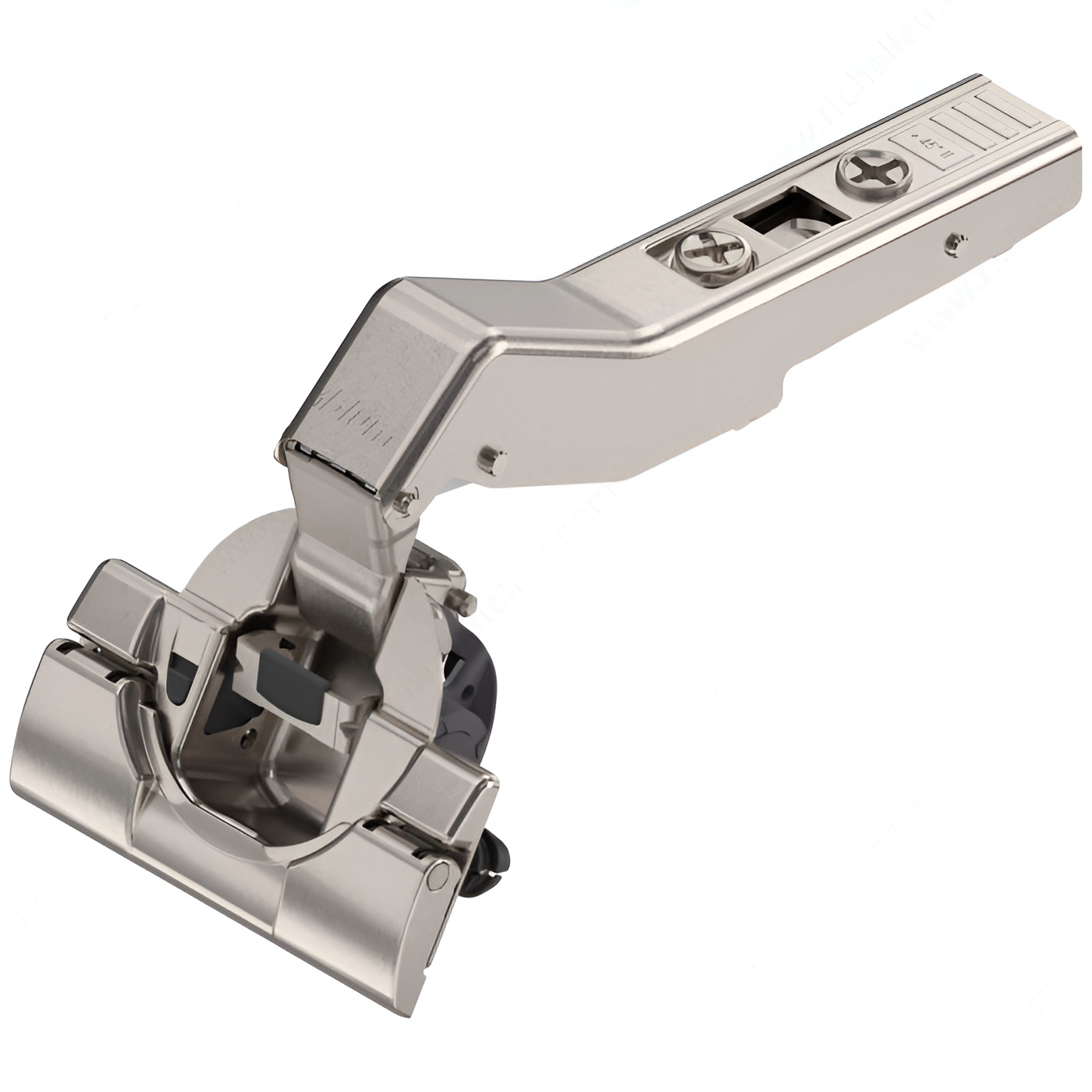

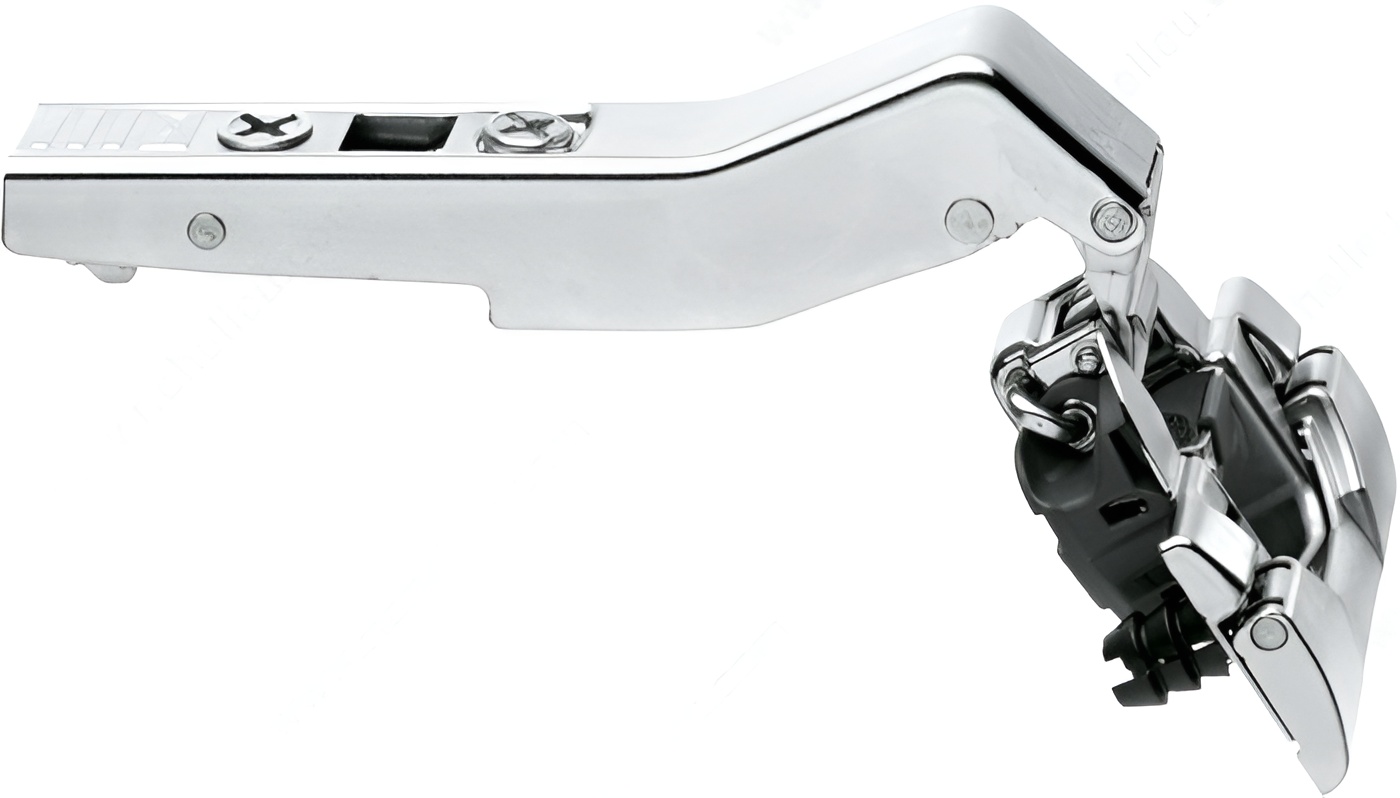

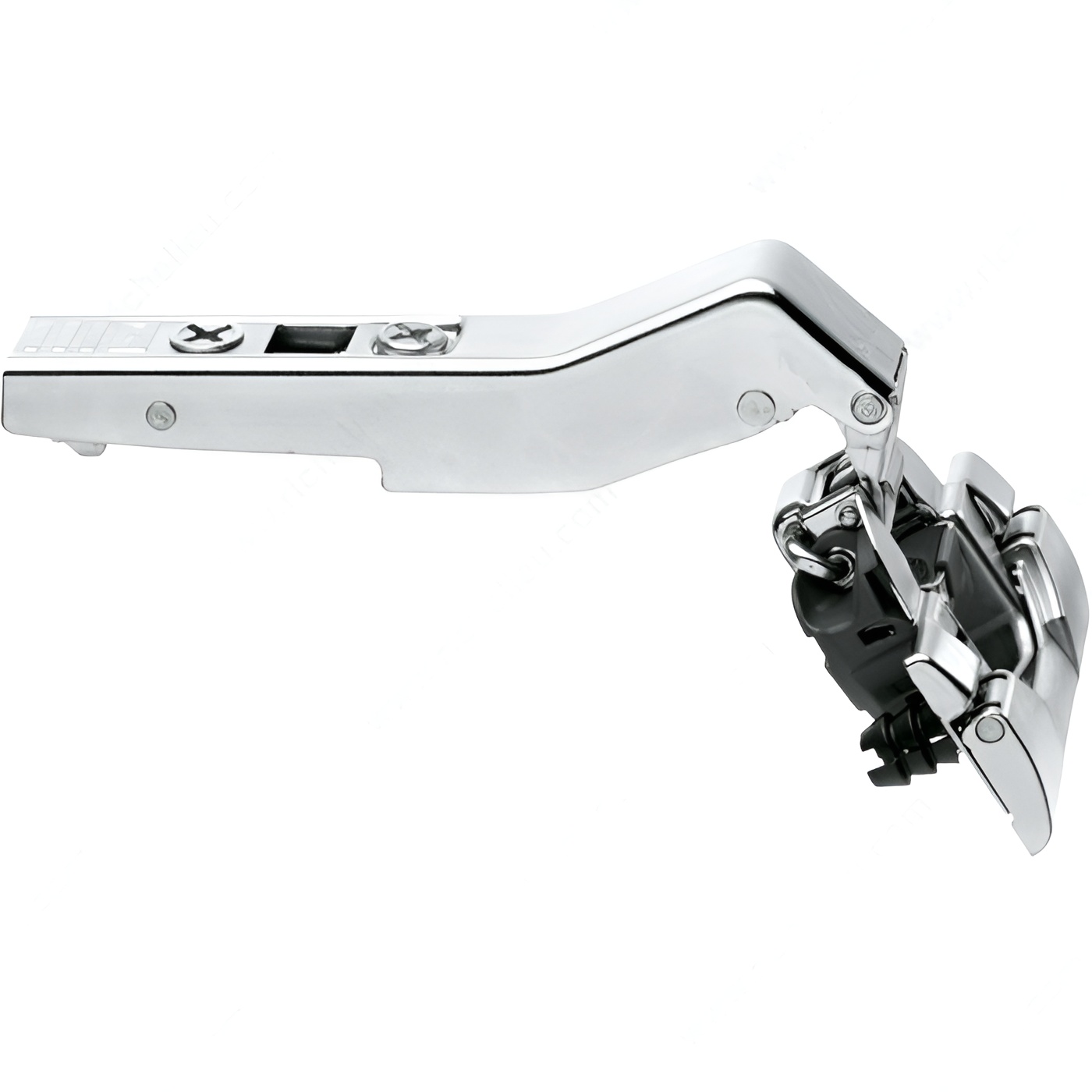

45 Angle II CLIP top BLUMOTION INSERTA Hinge
Cabinet Angle: +45°, +50°
Cabinet Thickness: Min. 19 mm
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing

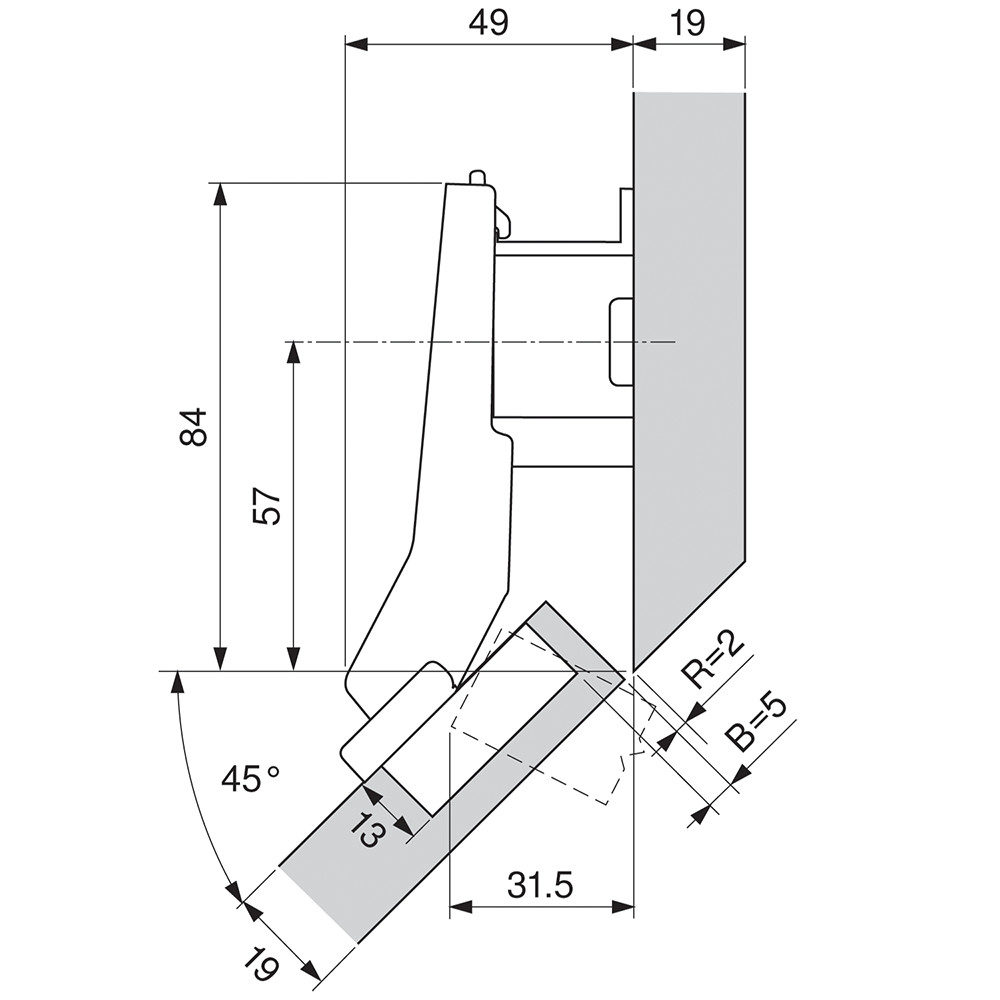

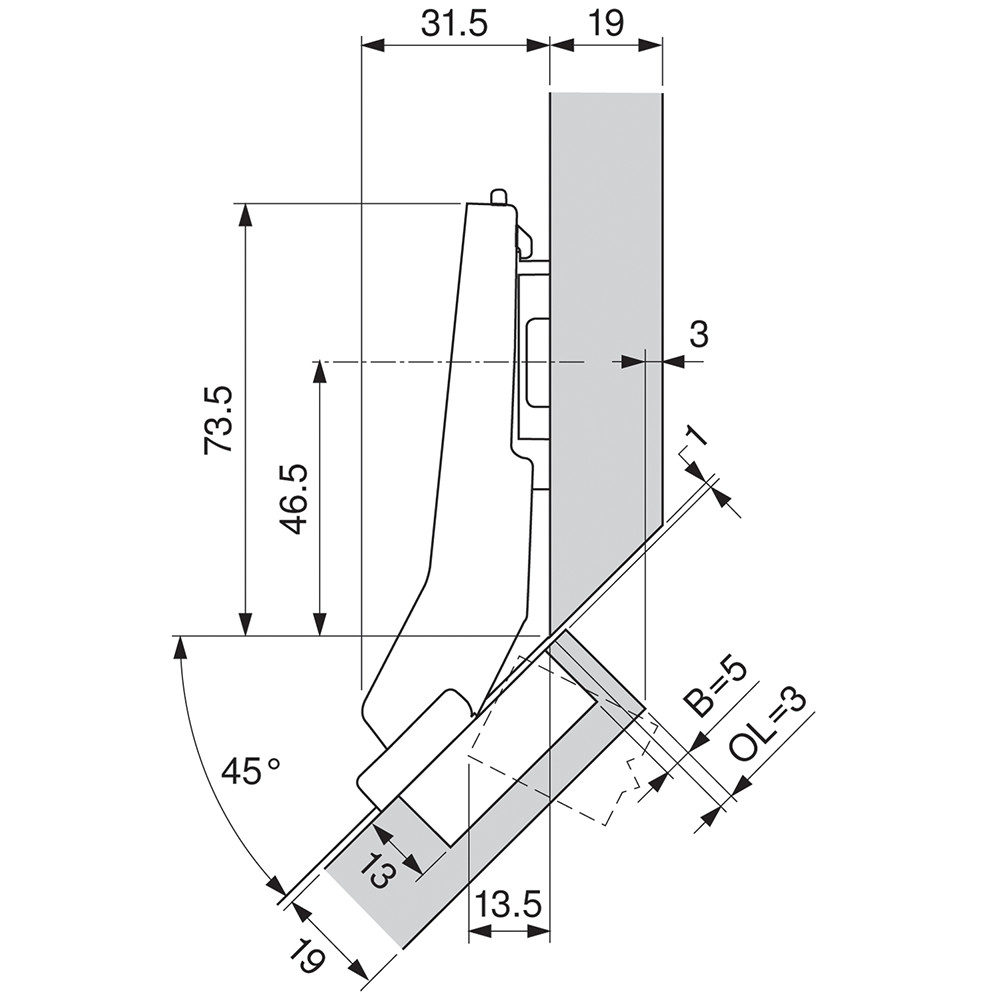

Door Position: Angled Overlay, Inset Angle
Door Thickness: Min. 19 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +110°
Hinge Type: CLIP top BLUMOTION
Mechanism: Spring Closing, Soft-Closing
Milling Depth: 13 mm
Milling Diameter: 35 mm
Product #: 79B3598180
Product number: 79B3598180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Angle Cabinet
