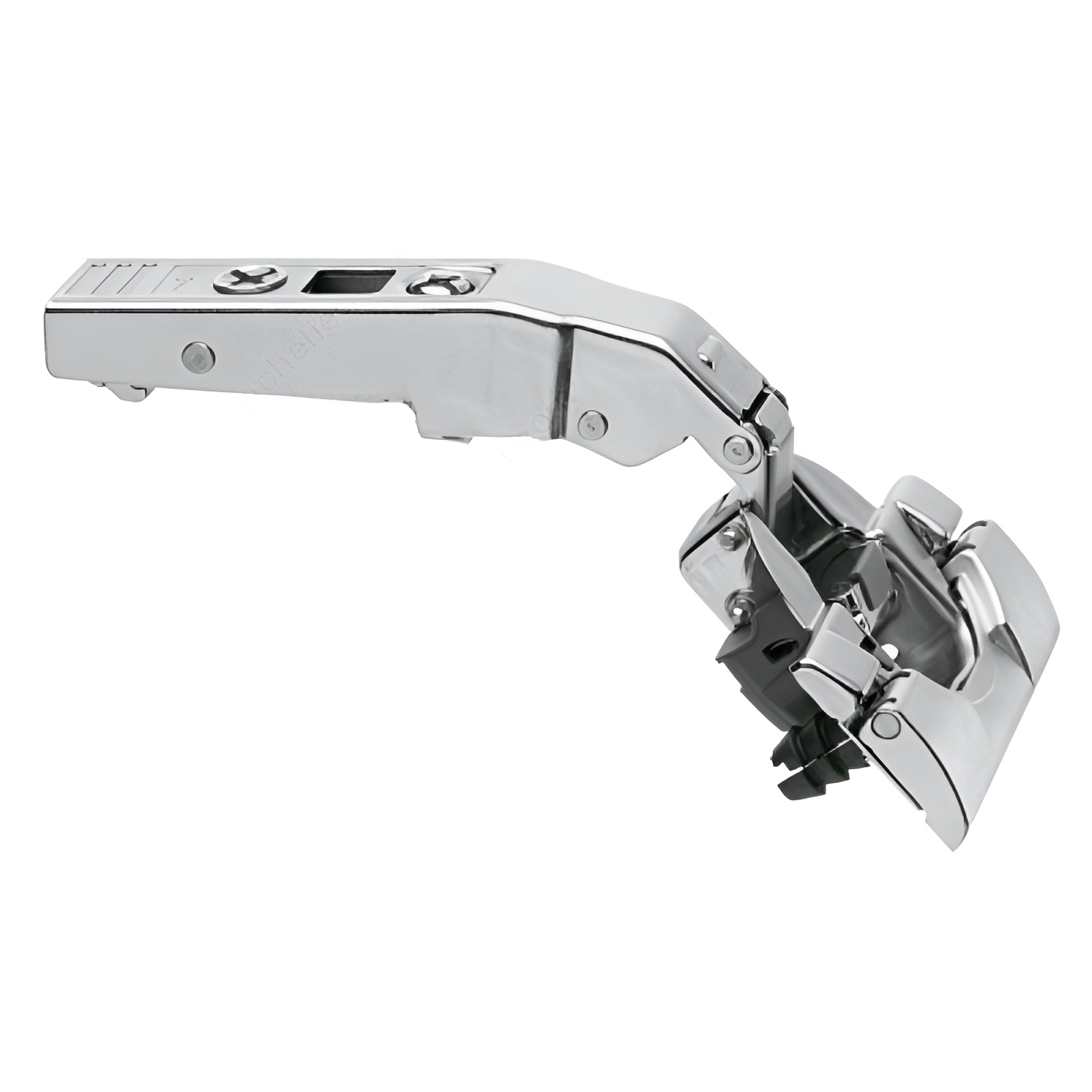

Richelieu 79B9498180 45 Angle Clip Top BLUMOTION Hinge IIIRichelieu 79B9498180 45 Angle CLIP top BLUMOTION Hinge III combines precise engineering with innovative design, delivering a seamless solution for your angled cabinetry. This hinge features integrated BLUMOTION technology, ensuring that your furniture doors close silently and effortlessly, even in tight spaces. Designed to endure up to 200,000 open-and-close cycles, it promises durability and a smooth, high-quality motion that lasts the lifetime of your furniture. The hinge accommodates a cabinet thickness of 5/8 to 3/4 inches and is ideal for frameless cabinets. With a hinge opening angle of +95°, it supports various door positions, including angled max overlay, angled overlay, mitered angle, and angled half overlay. Its milling depth is 1/2 inch, with a milling diameter of 1 3/8 inches, making installation straightforward for building professionals and skilled homeowners alike. Finished in sleek nickel, the Richelieu 79B9498180 hinge not only enhances functionality but also adds a modern aesthetic to your cabinetry. The inserta fixing type further simplifies the installation process, making this hinge a smart choice for any angle cabinet application. Elevate your cabinetry with this technical masterpiece that fuses form and function seamlessly.
45 Angle CLIP top BLUMOTION Hinge III
Precise movement, like clockwork. Integrated BLUMOTION is a technical masterpiece that fits into the smallest of spaces and provides your furniture doors with silent, effortless closing.
CLIP top BLUMOTION is designed to open and close 200,000 times, with a compelling quality of motion, to last the lifetime of the furniture.
Important information
- Do not use a hammer to insert the hinge into the drill hole.
- CLIP top BLUMOTION hinges should be operated within the temperature range of 18 °C and 28 °C to ensure optimal functioning.
Attributes
Cabinet Angle: +45°, +40°, +50°
Cabinet Thickness: 16 to 19 mm
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Door Position: Angled Max. Overlay, Angled Overlay, Angled Mitered, Angled Half Overlay
Door Thickness: Min. 19 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +95°
Hinge Type: CLIP top BLUMOTION
Mechanism: Spring Closing, Soft-Closing
Milling Depth: 13 mm
Milling Diameter: 35 mm
Product #: 79B9498180
Product number: 79B9498180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Angle Cabinet
