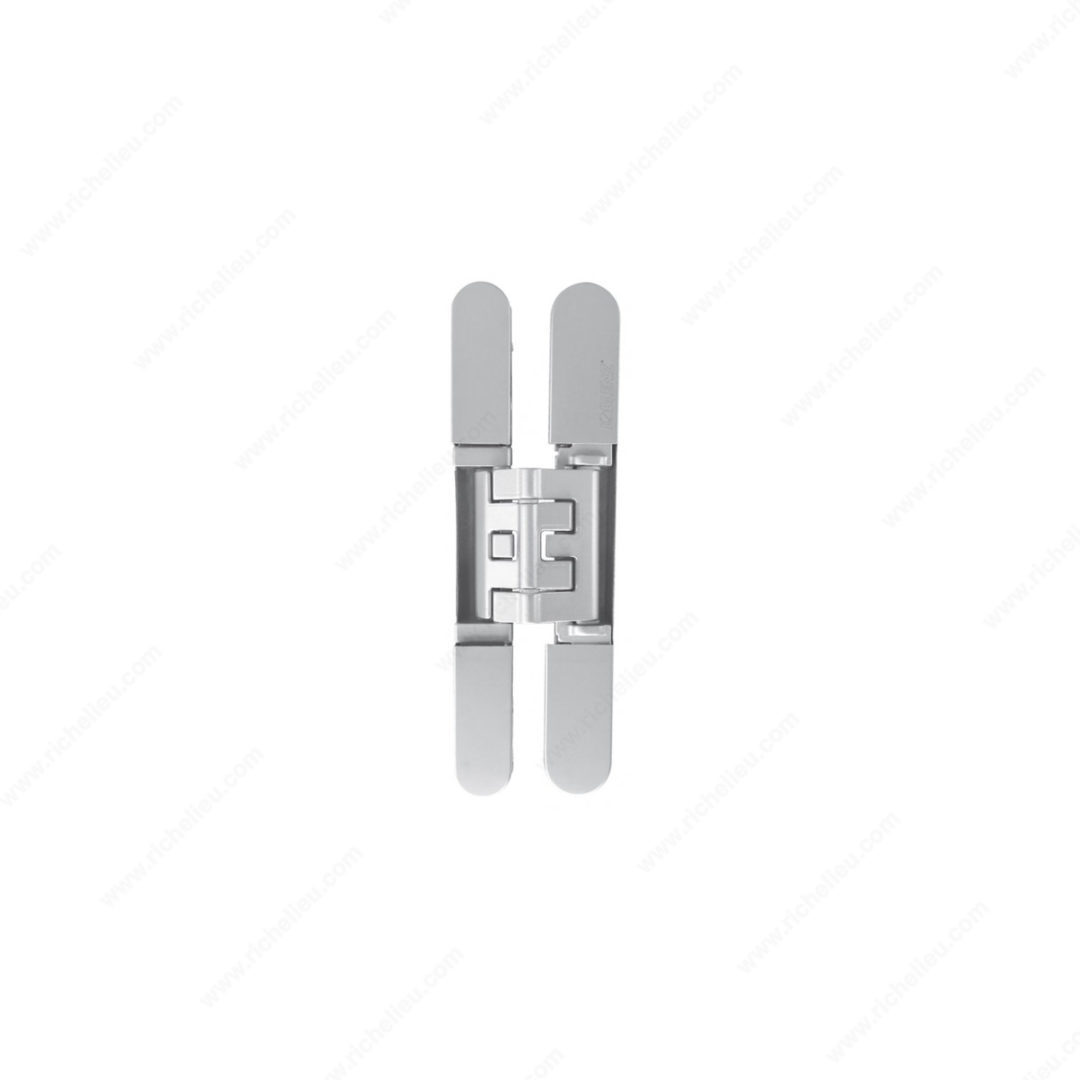

Richelieu 802460SN Krona Koblenz 5-Fulcrum Concealed Hinges offer a sophisticated solution for wood door applications, combining strength with a sleek design. Crafted from durable steel and finished in elegant satin nickel, these hinges not only enhance the aesthetic of your spaces but also ensure lasting performance. With a maximum capacity of 132 lbs for both two or three hinges, they are well-suited for heavier doors. The 3-axis adjustability allows for precise alignment, making installation straightforward and hassle-free. The hinge opening angle of +180° provides ample clearance for easy access, while the reversible handedness accommodates various installation requirements. Designed for doors with a minimum thickness of 31/32 inches, these hinges meet stringent safety standards, including UL and ULC certifications, and offer a fire-resistant rating of up to 30 minutes. Measuring 1 19/32 inches in height and 1 1/16 inches in width, the Richelieu Krona Koblenz hinges come in pairs, ensuring you have everything you need for your project. Whether you’re a building professional or a knowledgeable homeowner, these concealed hinges are the perfect choice for achieving a seamless and functional finish in your wood door installations.
Krona Koblenz 5-Fulcrum Concealed Hinges
Finish: Satin Nickel
Fire Resistant: 30 minutes
Handedness: Reversible
Height: 40.5 mm
Hinge Opening Angle: +180°
Length: 120 mm
Material: Steel
Maximum Capacity (2 Hinges): 60 kg
Maximum Capacity (3 Hinges): 60 kg
Minimum Door Thickness: 25 mm
Packaging format: Pair
Product #: 802460SN
Product number: 802460SN
Product №: 802460SN
Standards and Certifications: UL / UL10C / ULC
Type of Hinge: Wood Door Only
Unit: Pair
Unit 1: case - 10
Unit 2: case - 10
Width: 27 mm
