Richelieu 806200SC Krona Koblenz 5-Fulcrum Concealed Hinges deliver exceptional performance and versatility for your woodworking projects. Designed with a 3-axis adjustable mechanism, these hinges provide precise alignment and effortless door movement, accommodating a hinge opening angle of +180°. Made from durable zinc alloy (Zamak) with a sleek satin chrome finish, they not only enhance the aesthetic appeal of your doors but also ensure long-lasting durability. These hinges are reversible, allowing for easy installation on various door configurations, and they support a maximum capacity of 99.2 lb with two hinges or 132 lb with three, making them suitable for a range of wood doors. With a minimum door thickness requirement of 1 1/4 inches, they are ideal for standard applications. Fire resistance is a key feature, boasting a rating of up to 30 minutes, which ensures safety in critical situations. The product meets UL / UL10C / ULC standards, reinforcing its reliability. Each hinge is packaged per unit, making it easy to order exactly what you need. Elevate your door hardware with the Richelieu 806200SC Krona Koblenz hinges, offering both functionality and style for the discerning builder or homeowner.

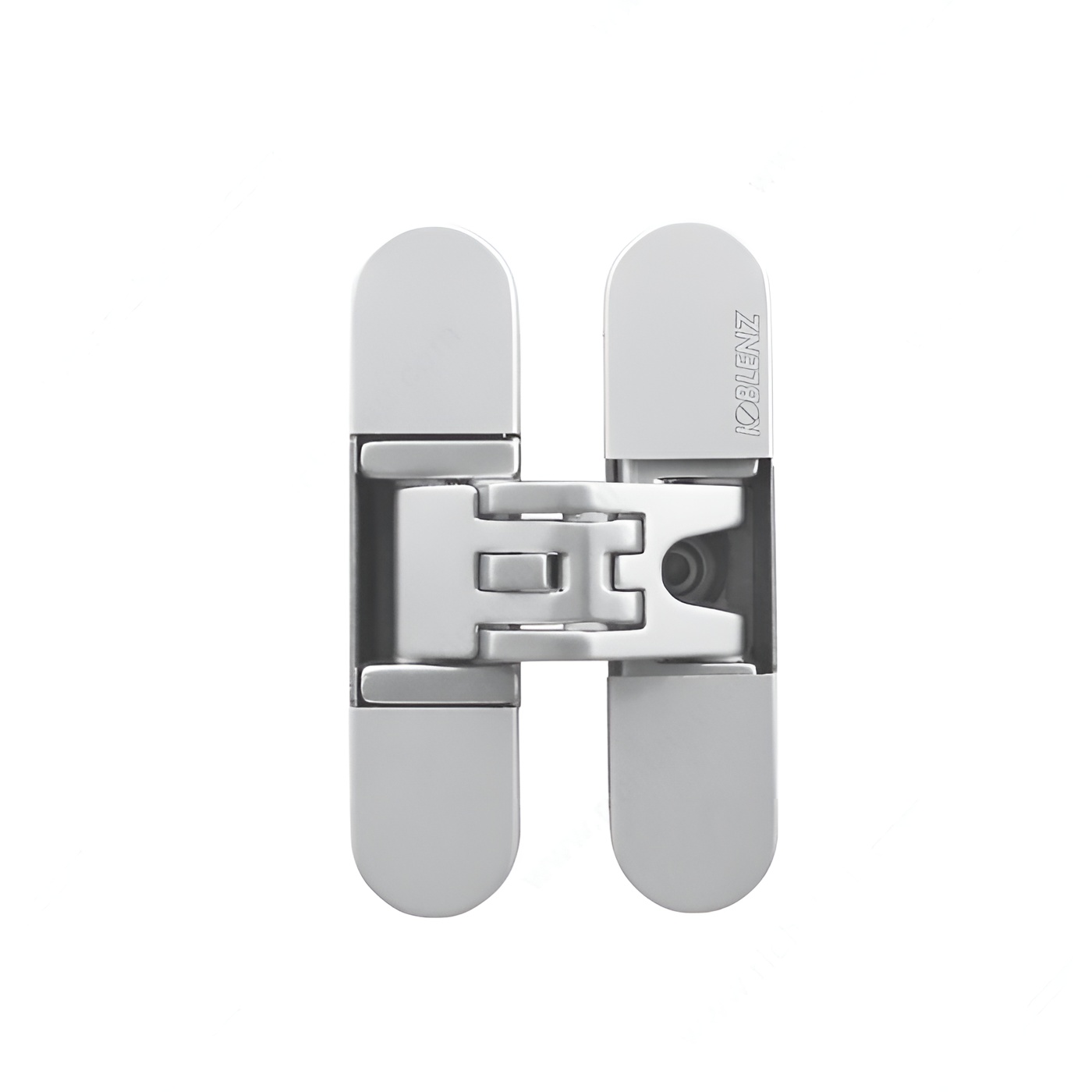

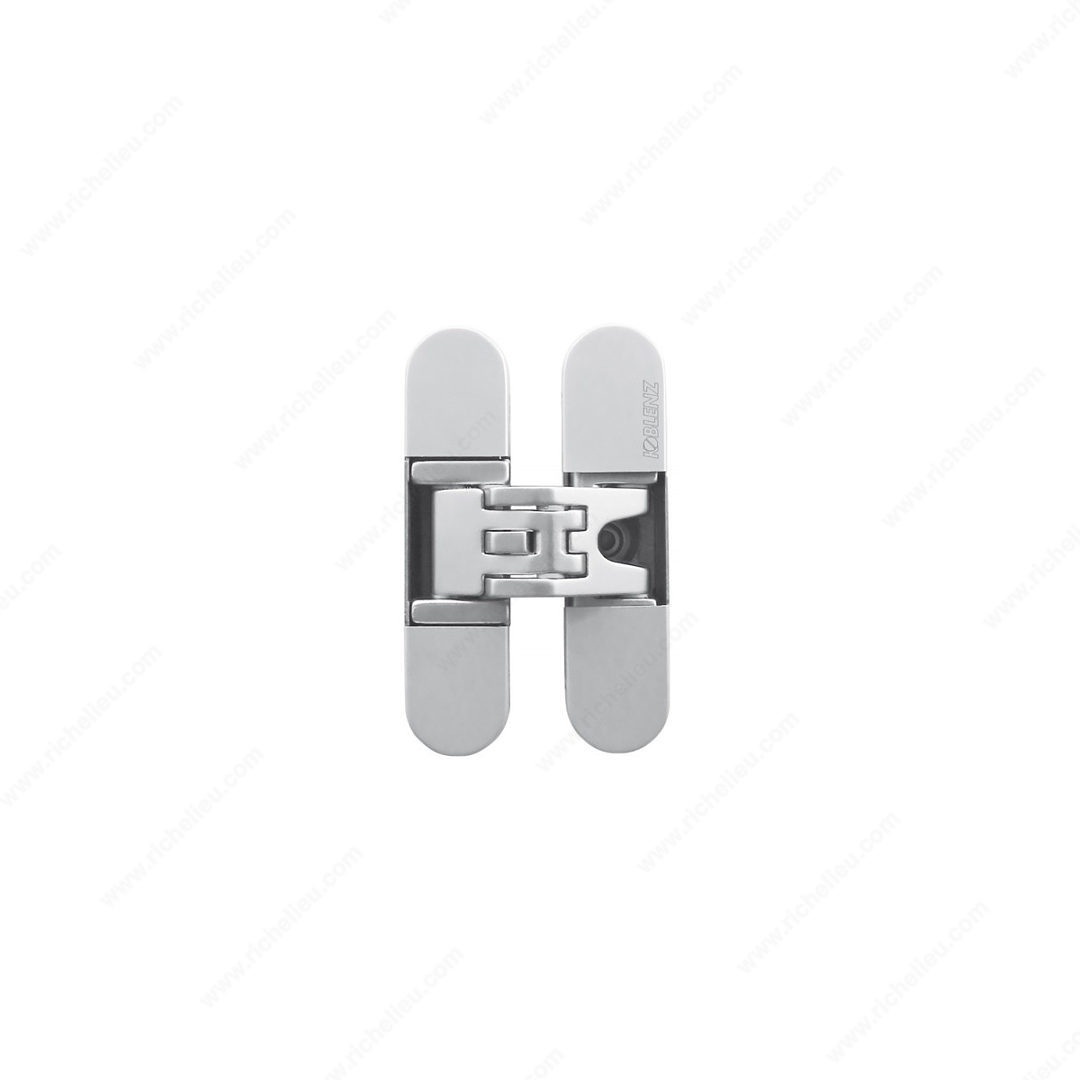

Krona Koblenz 5-Fulcrum Concealed Hinges
Finish: Satin Chrome
Fire Resistant: 30 minutes
Handedness: Reversible
Height: 40.5 mm
Hinge Opening Angle: +180º
Length: 120 mm
Material: Zinc Alloy (Zamak)
Maximum Capacity (2 Hinges): 45 kg
Maximum Capacity (3 Hinges): 60 kg
Minimum Door Thickness: 32 mm
Packaging format: Per unit
Product #: 806200SC
Product number: 806200SC
Product №: 806200SC
Standards and Certifications: UL / UL10C / ULC
Type of Hinge: Wood Door Only
Unit 1: carton - 3
Unit 2: case - 27
Width: 27 mm
