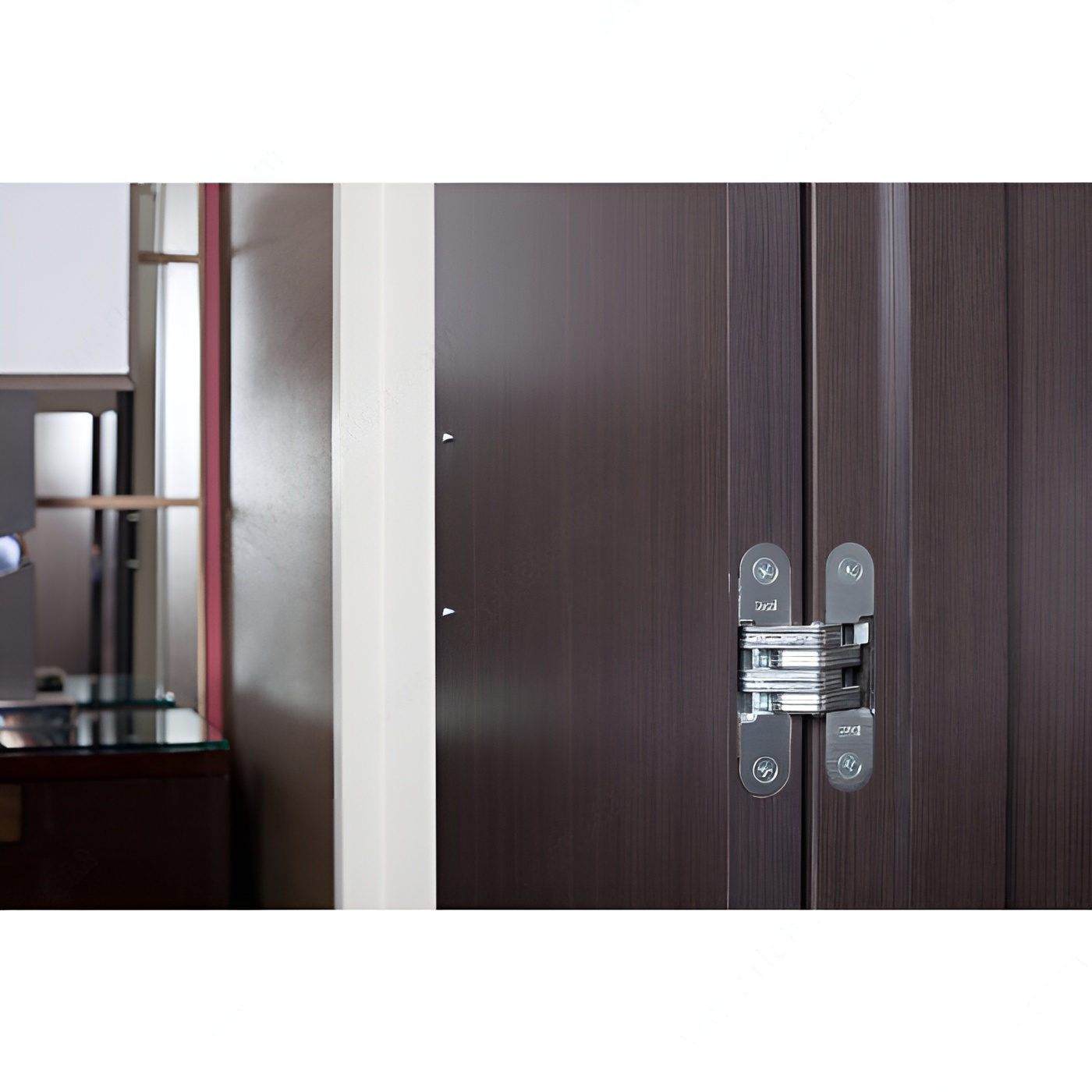

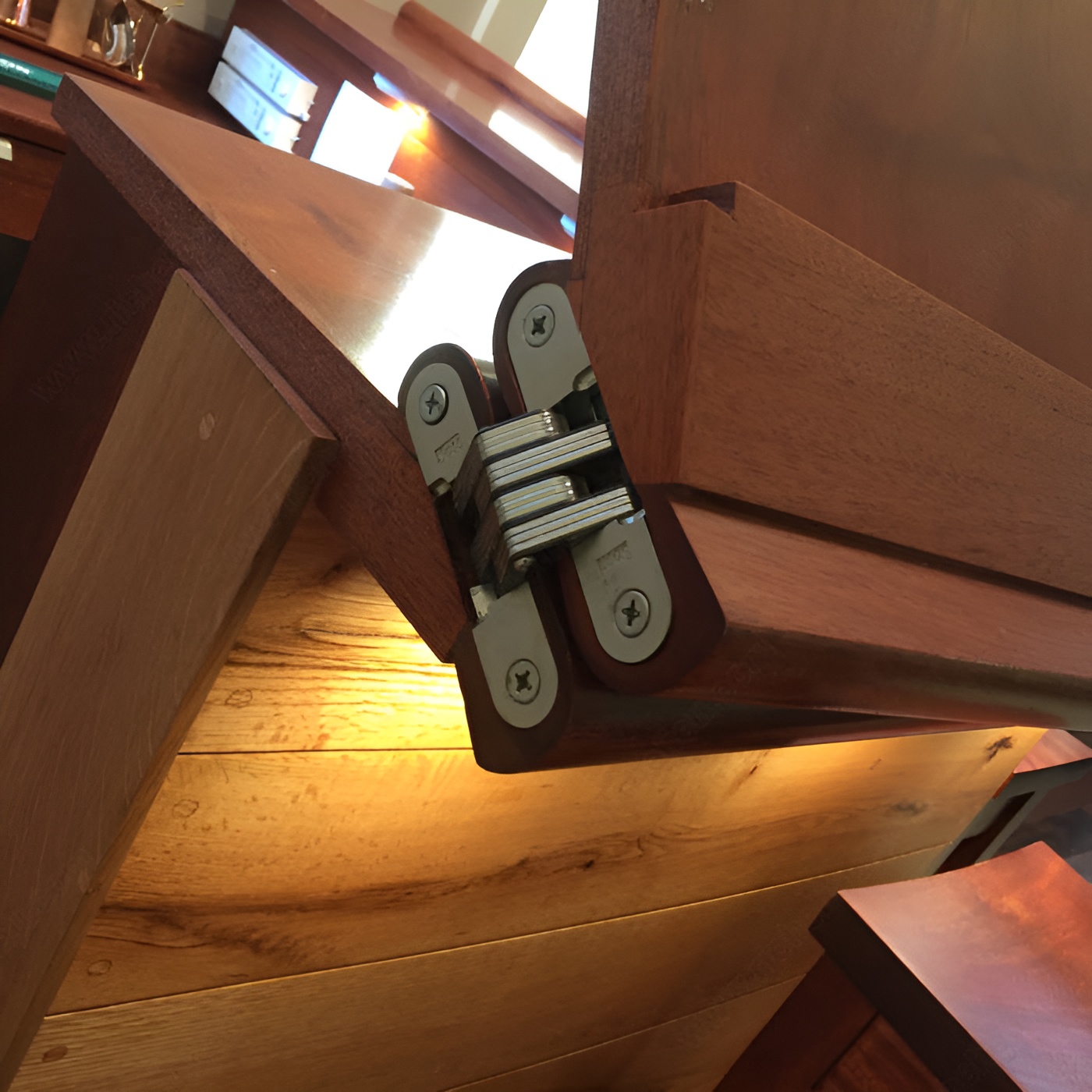

Richelieu 808000SC Krona Koblenz 7-Fulcrum Concealed Hinges offer a perfect blend of functionality and durability for wood door applications. Designed for seamless integration, these hinges feature a 180° hinge opening angle, allowing for maximum accessibility. The hinges are reversible, making them versatile enough to suit various installation requirements. Crafted from high-quality stainless steel with a sleek satin chrome finish, they not only enhance the aesthetic appeal of any space but also ensure long-lasting performance. With a maximum capacity of 132 lbs when using two hinges, they are robust enough to support heavier doors while maintaining stability. The installation process is straightforward, utilizing a mortise mounting type with included screws. The minimum door thickness required is 1 1/2 inches, with a door/jamb gap of 1/8 inch and a precise leaf gap of 11/16 inch, ensuring a snug fit. Additionally, these hinges are fire resistant for up to 30 minutes, conforming to UL/UL10C/ULC standards for safety. Whether you're a building professional or a knowledgeable homeowner, the Richelieu 808000SC hinges provide an excellent solution for enhancing the functionality of your wood doors while ensuring style and safety.
Krona Koblenz 7-Fulcrum Concealed Hinges
Brand: Krona Koblenz
Cabinet Angle: 180°
Center to Center (mm): 105 mm
Door/ Jamb Gap: 3 mm
Door/ Jamb Inset: 4 mm
Door/ Jamb Inset (mm): 3 mm
Drilling Depth (mm): 29 mm
Finish: Satin Chrome
Fire Resistant: 30 minutes
Fixing Type: Screw-On
Handedness: Reversible
Height: 29 mm
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 120 mm
Leaf Gap: 17.6 mm
Leaf Mortise Depth: 29 mm
Length: 120 mm
Material: Stainless Steel
Maximum Capacity (2 Hinges): 60 kg
Minimum Door Thickness: 38 mm
Mounting Type: Mortise
Packaging format: Box
Product #: 808000SC
Product number: 808000SC
Product №: 808000SC
Screw/ Nail: Included
Standards and Certifications: UL / UL10C / ULC
Type of Hinge: Wood Door Only
Unit 1: carton - 2
Unit 2: case - 20
Width: 79.6 mm
