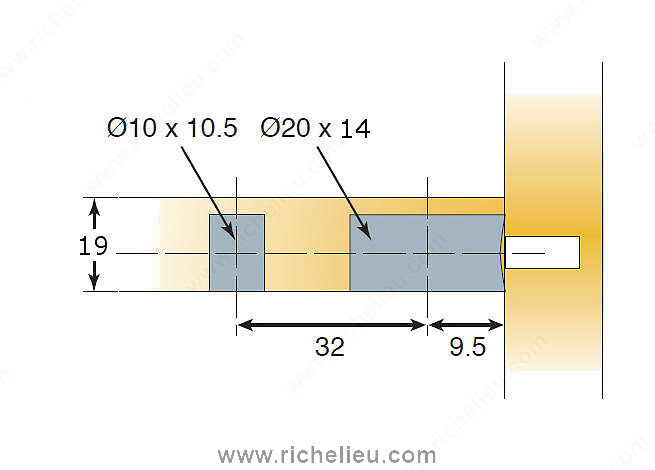

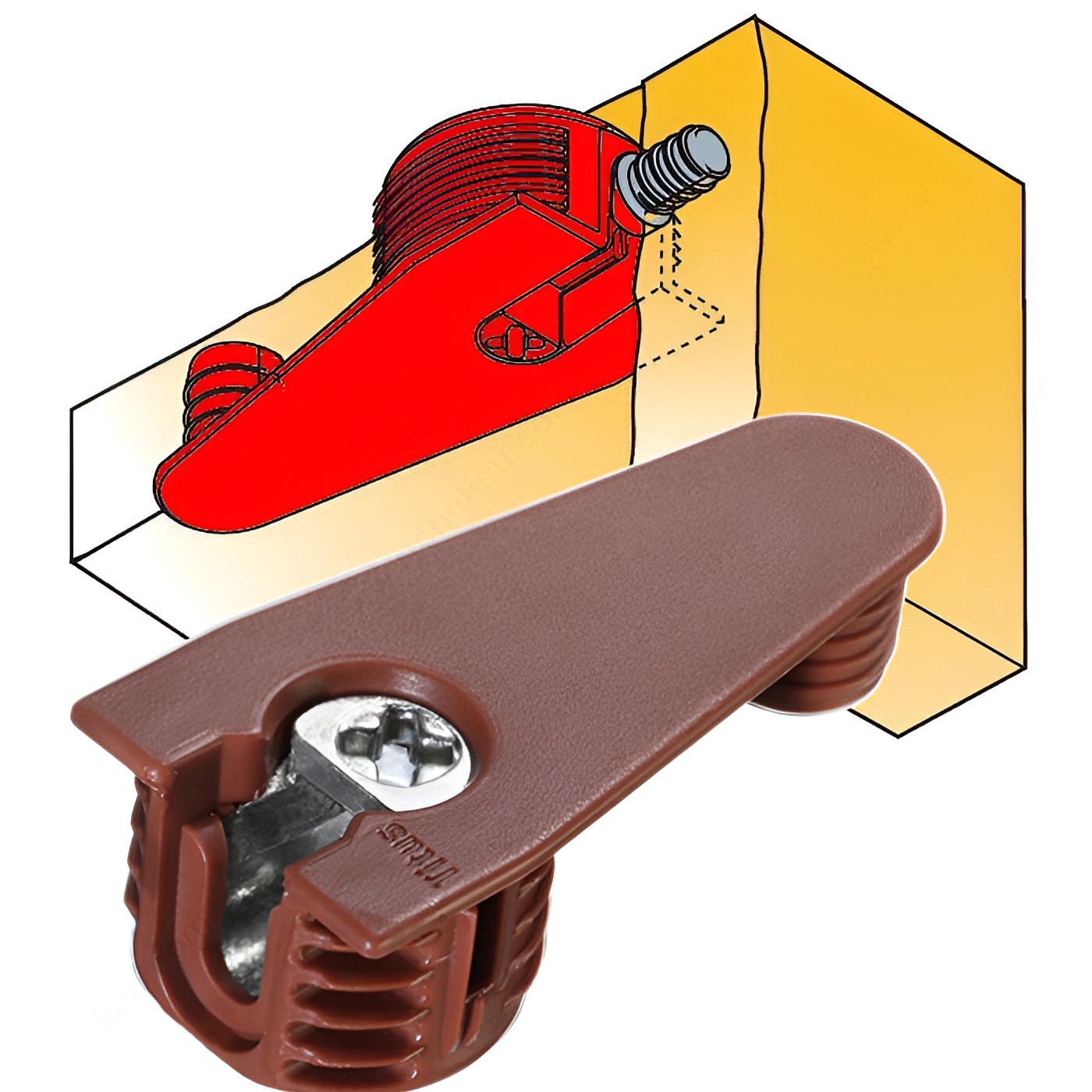

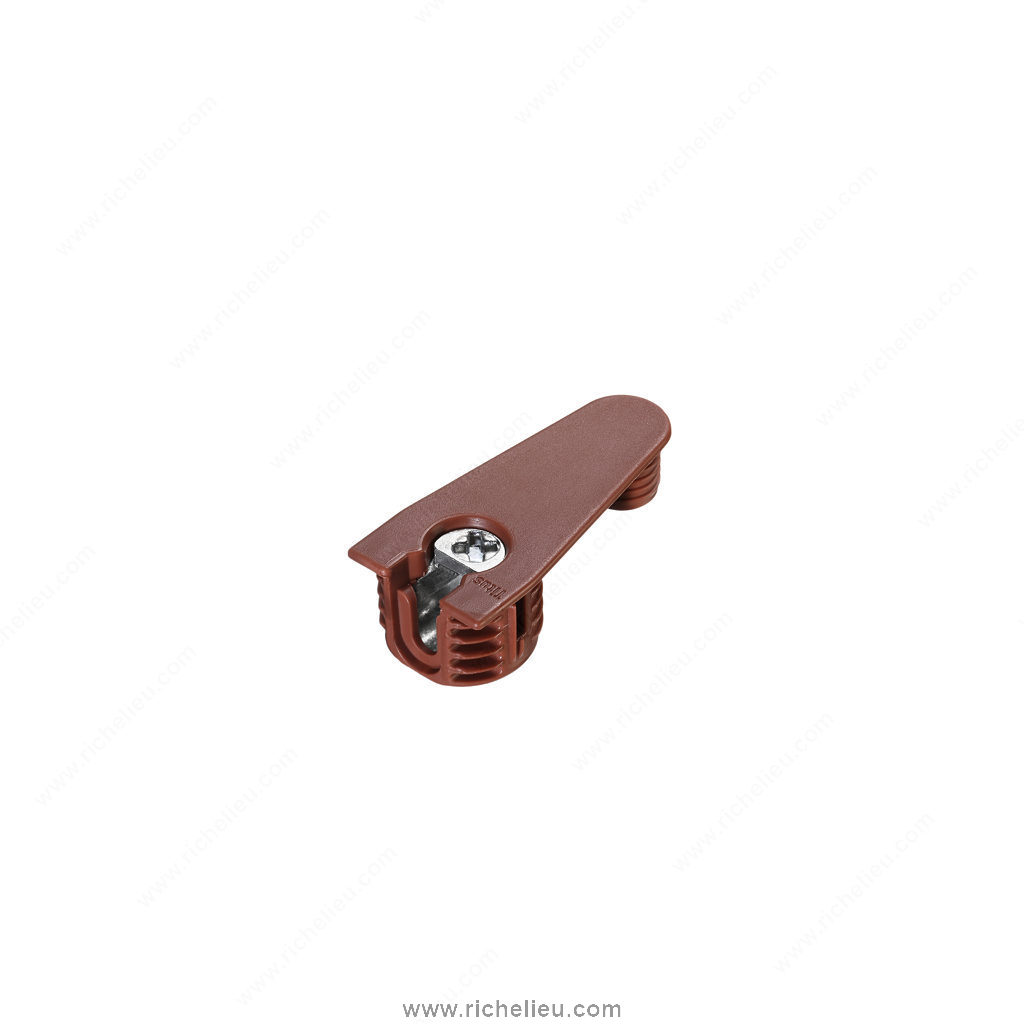

Richelieu 8644108 Quickfit-Expando Housing Outrigger - Top assembly only is designed to enhance the strength and durability of your installations. Featuring a robust 10 mm diameter reinforcement dowel positioned 32 mm from the bracket, this outrigger ensures reliable support for your applications. Ideal for use with the Quickfit-Expando Housing, it is crafted from high-quality plastic with a warm cherry finish, seamlessly integrating with various design aesthetics. This product accommodates a drilling depth of 9/16 inches and a drilling diameter of 25/32 inches, making it versatile for different project requirements. The outrigger's drop-on insertion type simplifies the installation process, allowing for efficient assembly and adjustment. Additionally, the inclusion of a flange further enhances stability and functionality. Designed for panels with a thickness of 3/4 inches, the Richelieu 8644108 is part of the Titus System 6, making it compatible with a range of functional hardware applications. With 1250 units available per case, this product is an excellent choice for contractors and builders looking to streamline their supply needs. Ship via UPS for convenience, ensuring you have the necessary components at your fingertips for your next project.
Outrigger
Application: Quickfit-Expando Housing
Brand: Titus
Drilling Depth: 14 mm
Drilling Diameter: 20 mm
Drive Type: Phillips
Finish: Warm Cherry
Flange: With Flange
Insertion Type: Drop-On
Material: Plastic
Packaging format: Per unit
Panel Thickness: 19 mm
Product #: 8644108
Product number: 8644108
Product №: 8644108
Quantities per case available: 1250 units
Titus System Number: System 6
Type: Knock-In
Unit 1: case - 1250
