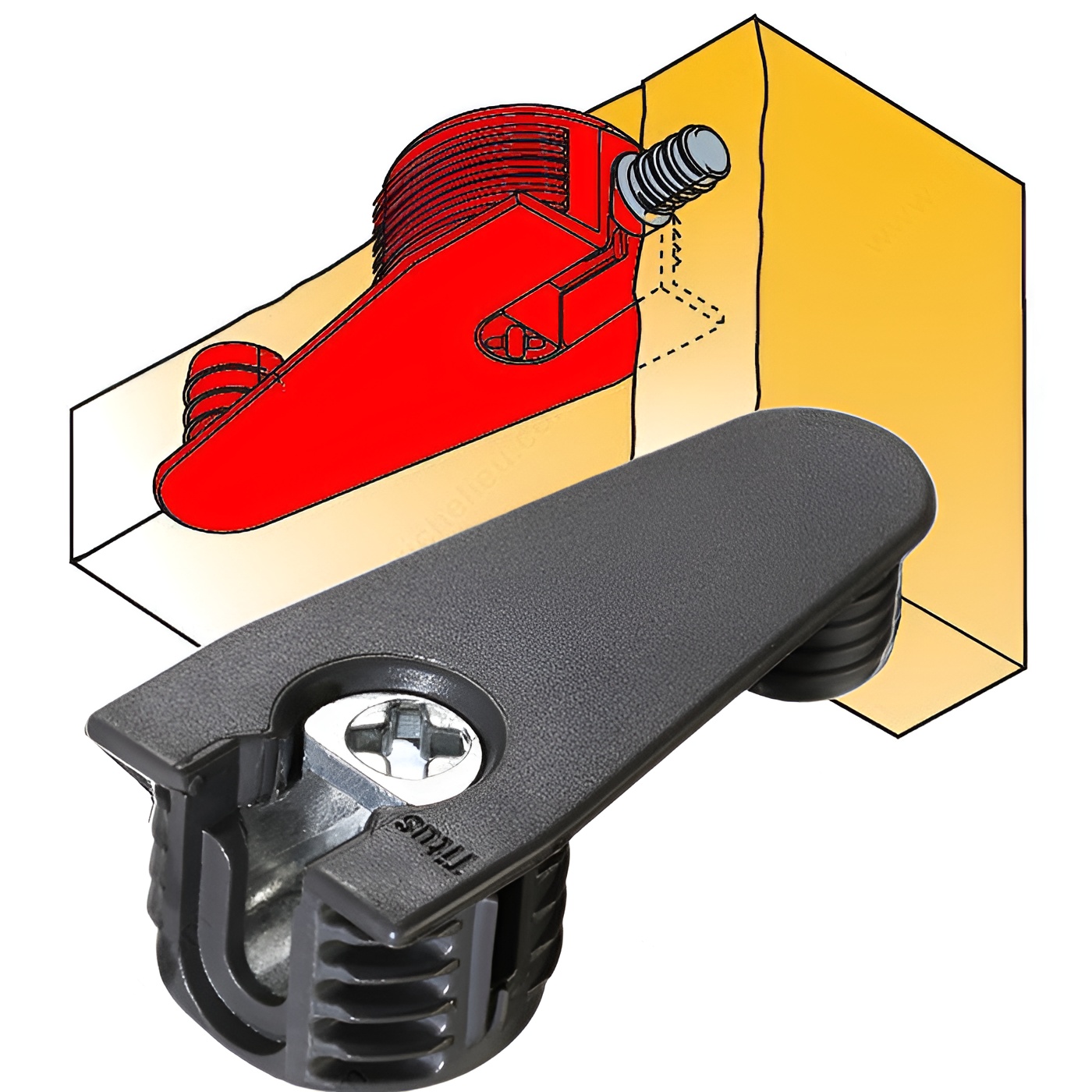

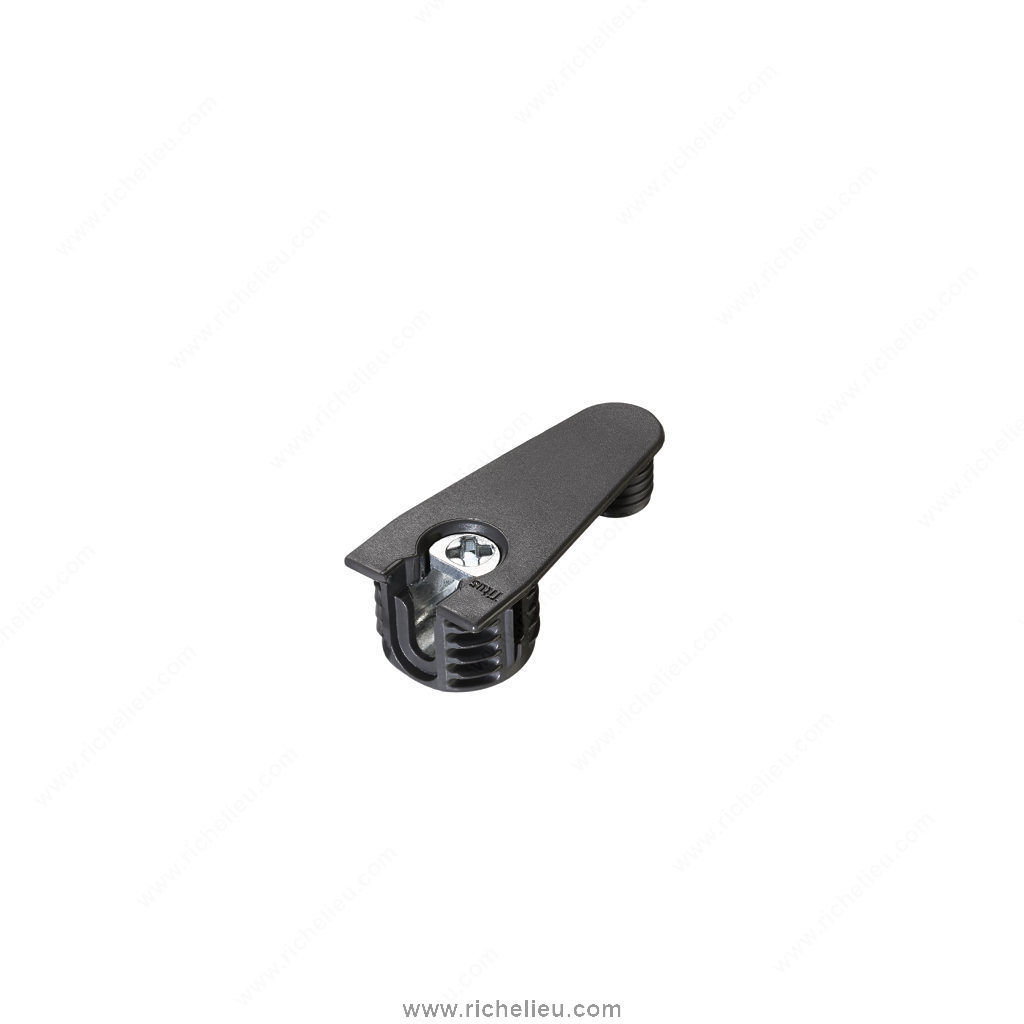

Richelieu 86441135 Quickfit-Expando Housing Outrigger - Top assembly only delivers enhanced structural integrity, making it an essential component for any robust assembly project. Designed specifically for the Quickfit-Expando Housing, this product features a 10 mm diameter reinforcement dowel positioned 32 mm from the bracket, ensuring optimal strength and stability. Crafted from durable plastic with a sophisticated bronze finish, this outriggers’ aesthetic complements a variety of applications while providing reliable performance. The insertion type is drop-on, allowing for quick and easy installation, which is particularly beneficial for professionals looking to streamline their workflow. The drilling depth of 9/16 in and drilling diameter of 25/32 in ensure precise fitment, accommodating panel thicknesses of 3/4 in. This product is compatible with the Titus System Number 6, making it versatile for diverse project needs. With a case quantity of 1250 units, the Richelieu 86441135 is a cost-effective choice for large-scale applications. Additionally, it ships conveniently via UPS, facilitating prompt delivery. Elevate your construction or renovation project with the reliability and strength of Richelieu’s Quickfit-Expando Housing Outrigger.
Outrigger
Application: Quickfit-Expando Housing
Brand: Titus

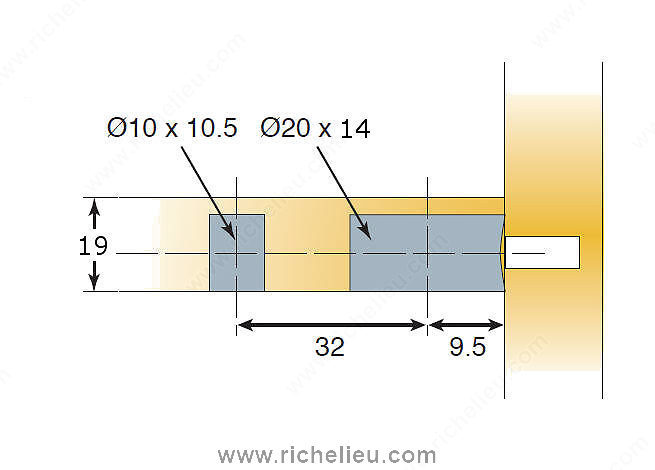

Drilling Depth: 14 mm
Drilling Diameter: 20 mm
Drive Type: Phillips
Finish: Bronze
Flange: With Flange
Insertion Type: Drop-On
Material: Plastic
Packaging format: Per unit
Panel Thickness: 19 mm
Product #: 86441135
Product number: 86441135
Product №: 86441135
Quantities per case available: 1250 units
Titus System Number: System 6
Type: Knock-In
Unit 1: case - 1250
