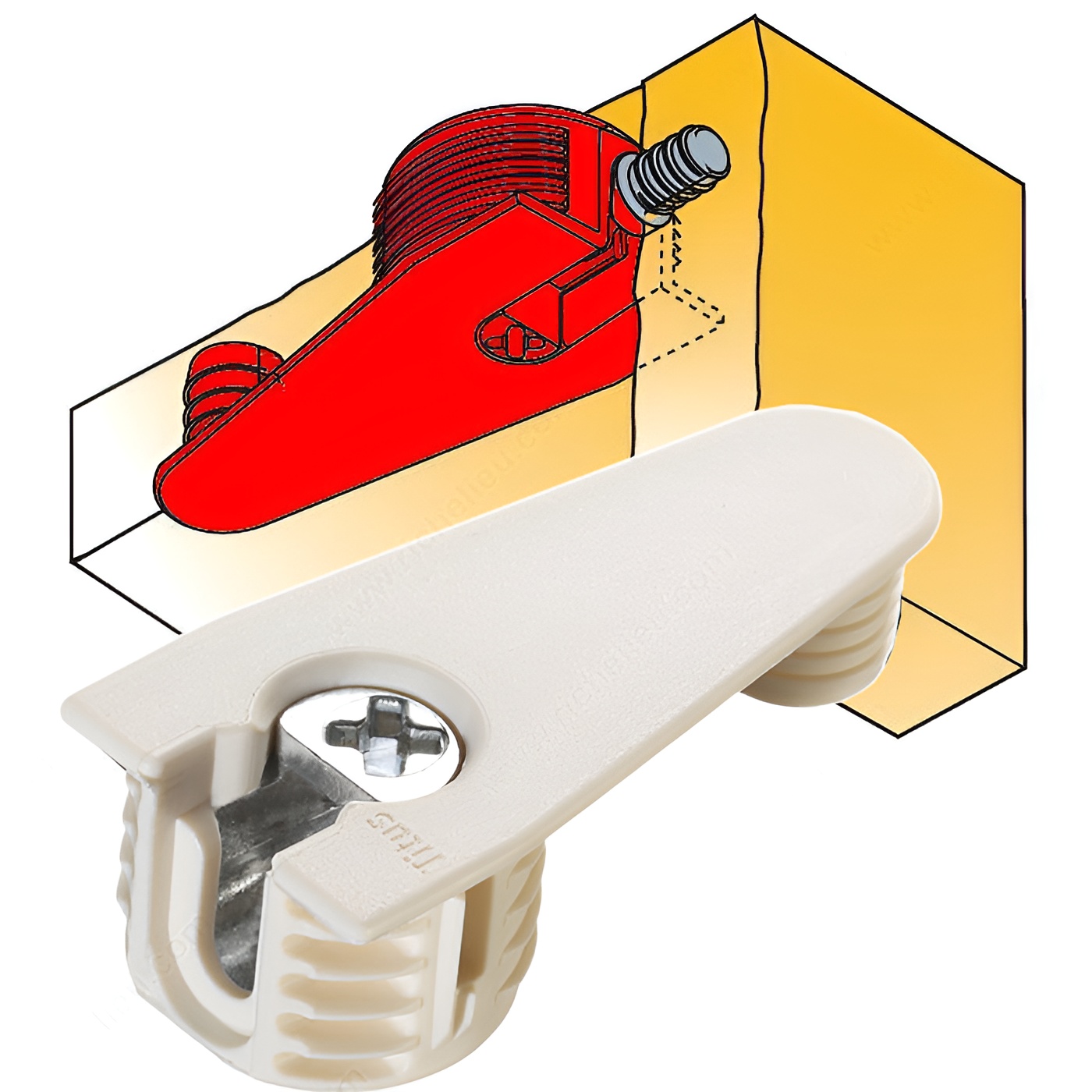

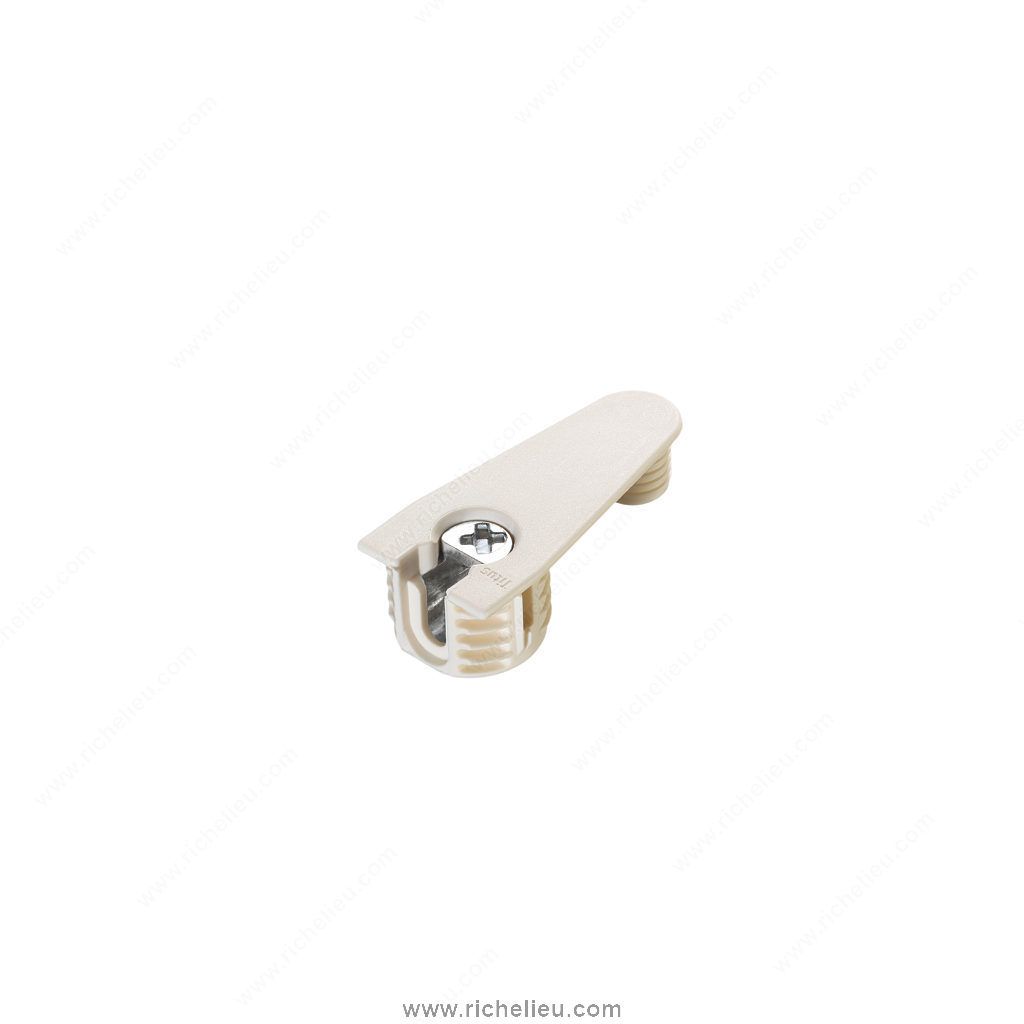

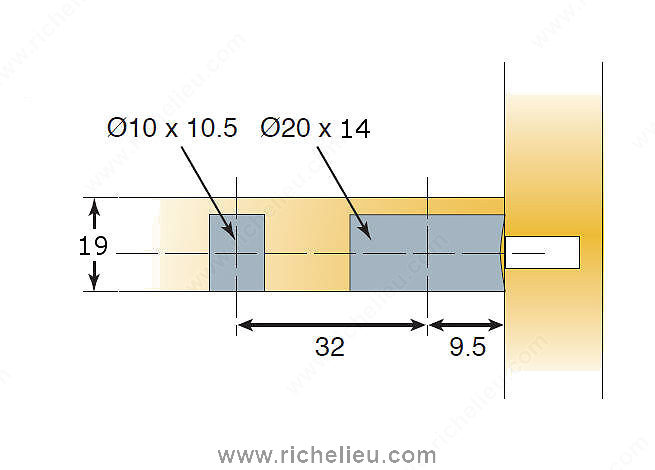

Richelieu 86441301 Quickfit-Expando Housing Outrigger - Top assembly only offers a robust solution for your furniture assembly needs. Designed for enhanced strength, this outrigger features a 10 mm diameter reinforcement dowel positioned 32 mm from the bracket, ensuring stability and durability in your projects. Crafted from high-quality plastic, the outrigger is finished in an elegant Antique White, making it suitable for a variety of interior designs. Its drop-on insertion type simplifies installation, while the flange adds an extra layer of support. With a drilling depth of 9/16 inches and a drilling diameter of 25/32 inches, the outrigger accommodates a panel thickness of 3/4 inches, making it versatile for different applications. This product is part of the Titus System 6, ensuring compatibility and reliability within the system. The Richelieu 86441301 can be shipped via UPS, facilitating convenient delivery options for your projects. Available in quantities of 1250 units per case, this outrigger is an ideal choice for both building professionals and knowledgeable homeowners looking to enhance their furniture assembly with dependable components. Trust Richelieu to provide the strength and elegance your projects deserve.
Outrigger
Application: Quickfit-Expando Housing
Brand: Titus
Drilling Depth: 14 mm
Drilling Diameter: 20 mm
Drive Type: Phillips
Finish: Antique White
Flange: With Flange
Insertion Type: Drop-On
Material: Plastic
Packaging format: Per unit
Panel Thickness: 19 mm
Product #: 86441301
Product number: 86441301
Product №: 86441301
Quantities per case available: 1250 units
Titus System Number: System 6
Type: Knock-In
Unit 1: case - 1250
