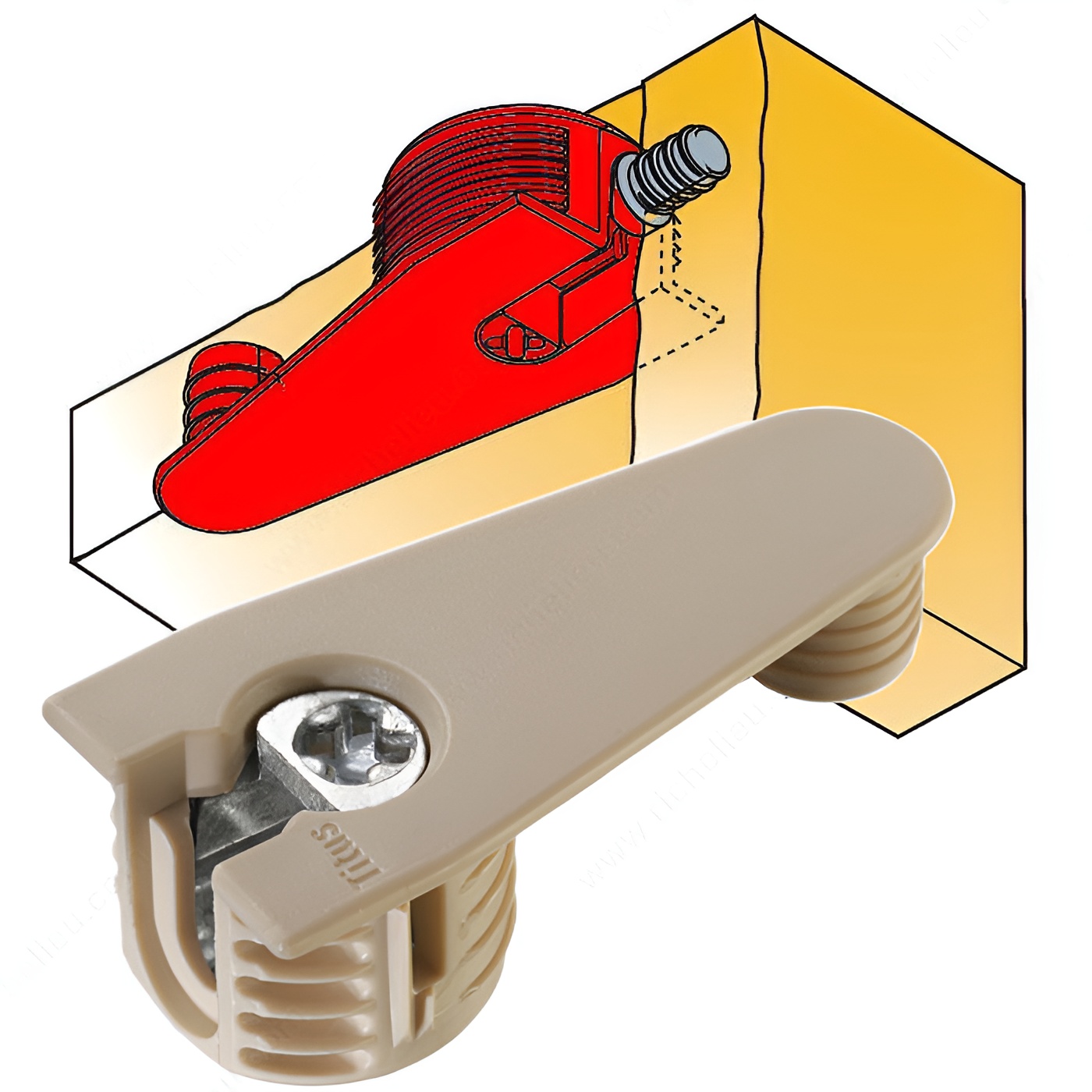

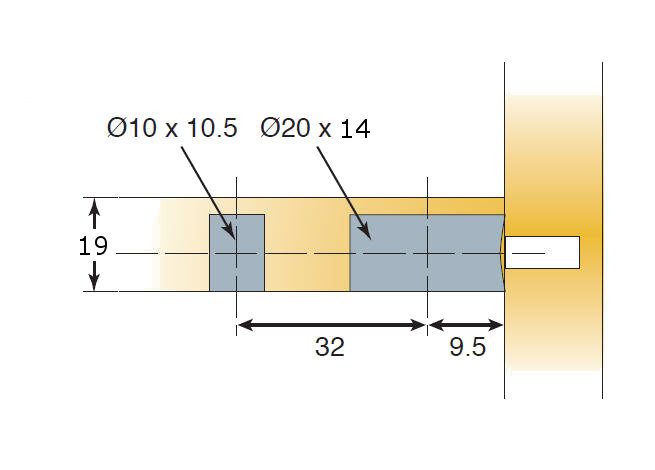

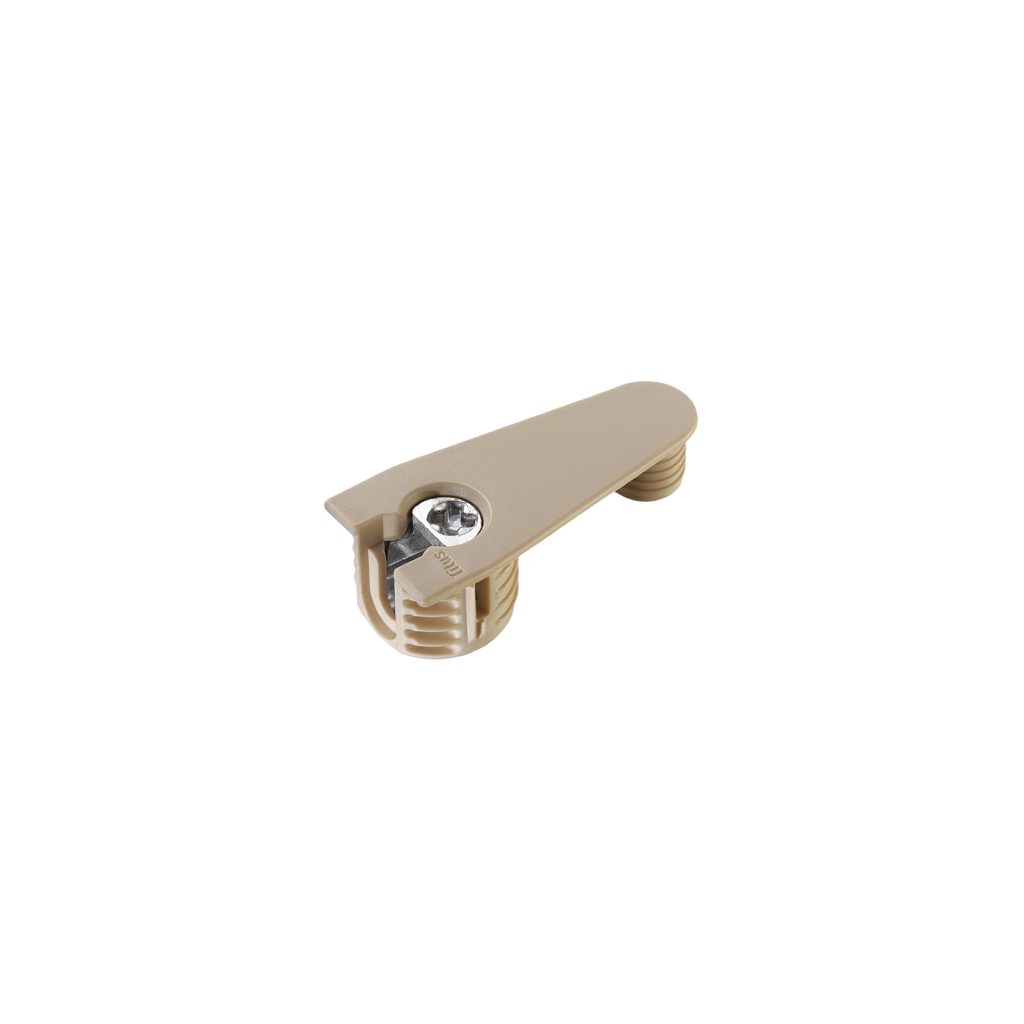

Richelieu 8644140 Quickfit-Expando Housing Outrigger - Top assembly only is designed for enhanced strength and durability in various applications. This specific component features a 10 mm diameter reinforcement dowel strategically placed 32 mm from the bracket, providing additional support to your assembly. Constructed from quality plastic and finished in an elegant almond tone, this outrigger is not only functional but also visually appealing. Engineered for the Quickfit-Expando Housing system, its drop-on insertion type simplifies installation, making it an excellent choice for professionals who value efficiency. The drilling depth of 9/16 inch and drilling diameter of 25/32 inch ensure compatibility with standard panel thicknesses of 3/4 inch, allowing for seamless integration into existing structures. Each case contains 1250 units, making it a practical choice for large projects. The product is part of the Titus System 6, known for its reliability and performance in the field. Additionally, the outrigger can be conveniently shipped via UPS, ensuring timely delivery for your building needs. With the Richelieu 8644140, you are choosing a component that marries strength with simplicity, perfect for enhancing the functionality of your projects while maintaining a professional finish.
Outrigger
Application: Quickfit-Expando Housing
Brand: Titus
Drilling Depth: 14 mm
Drilling Diameter: 20 mm
Drive Type: Phillips
Finish: Almond
Flange: With Flange
Insertion Type: Drop-On
Material: Plastic
Packaging format: Per unit
Panel Thickness: 19 mm
Product #: 8644140
Product number: 8644140
Product №: 8644140
Quantities per case available: 1250 units
Titus System Number: System 6
Type: Knock-In
Unit 1: case - 1250
