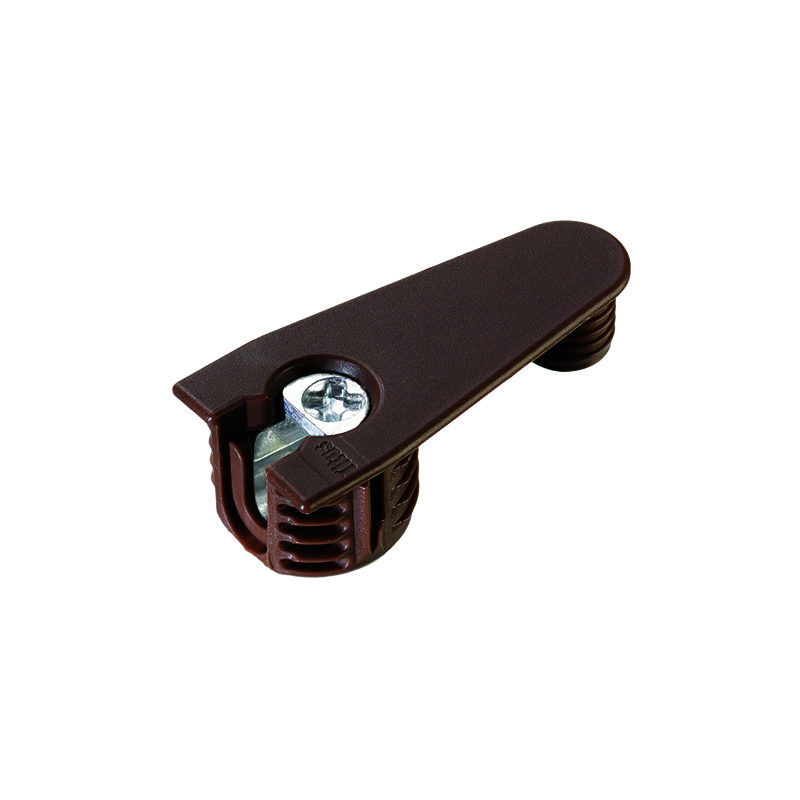

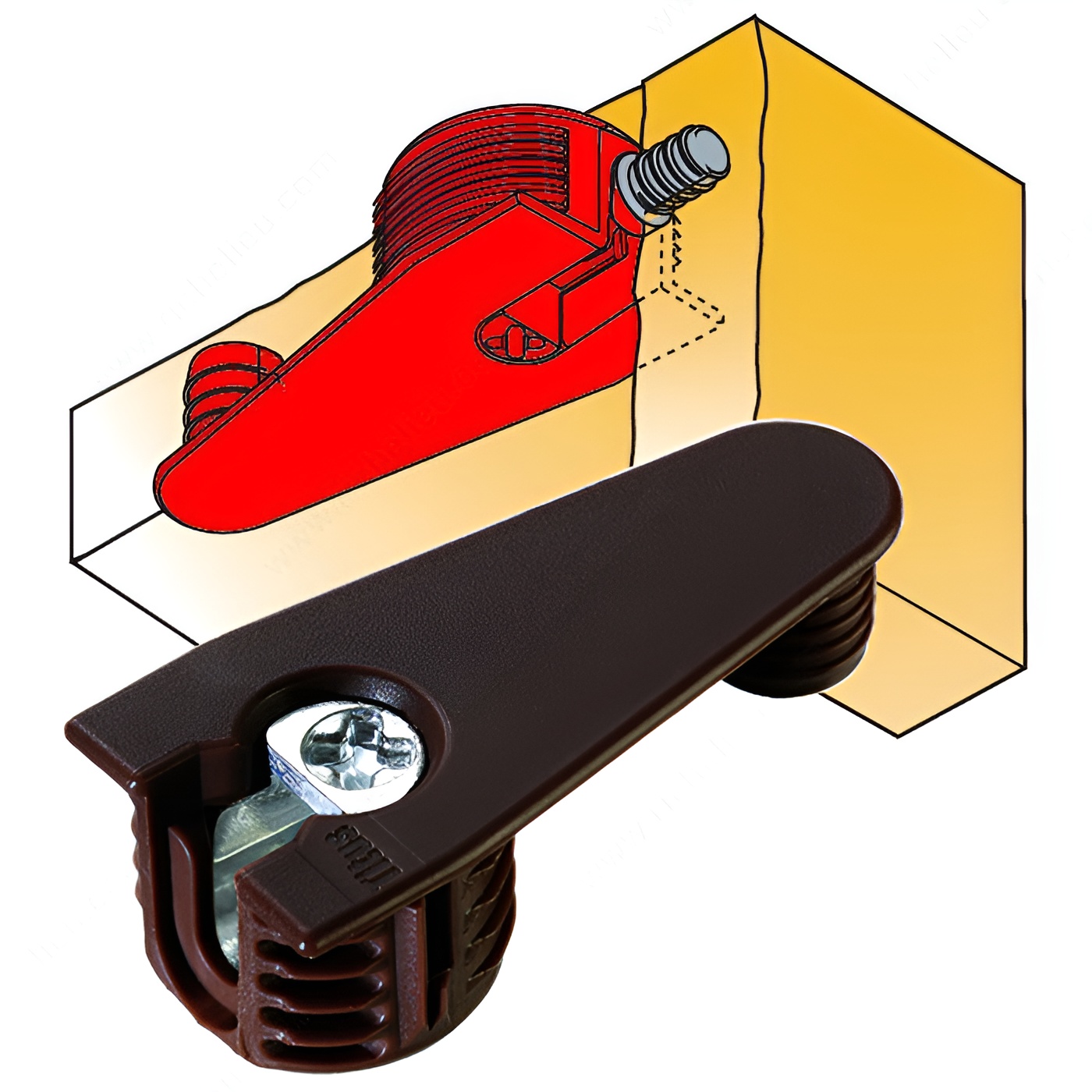

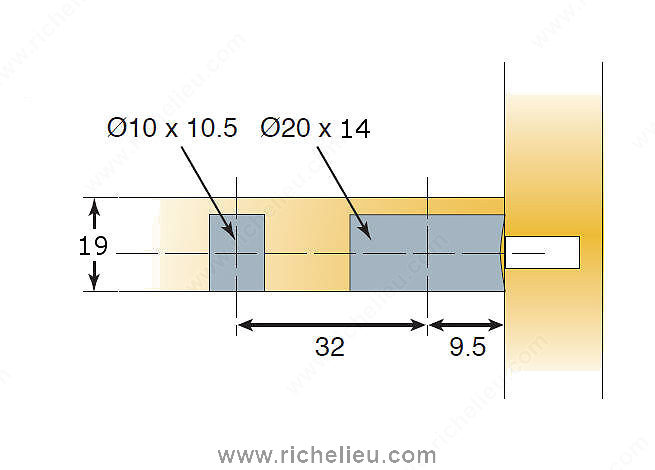

Richelieu 86441609 Quickfit-Expando Housing Outrigger - Top assembly only is designed to provide enhanced strength and stability for your cabinetry needs. This top assembly features a robust 10 mm diameter reinforcement dowel positioned 32 mm from the bracket, ensuring a secure fit and durability in various applications. Crafted from high-quality plastic, this outrigger is finished in an attractive dark brown, complementing numerous interior designs. The Quickfit-Expando Housing is engineered for ease of installation, with a drop-on insertion type that simplifies the assembly process. It requires a drilling depth of 9/16 in and a drilling diameter of 25/32 in, allowing for precise application in panels with a thickness of 3/4 in. The Phillips drive type further enhances usability, making it a versatile choice for professionals and experienced DIYers alike. With a case quantity of 1,250 units, this product is ideal for large-scale projects or ongoing installations. The Richelieu 86441609 is compatible with the Titus System 6, making it a reliable component for a variety of cabinetry systems. Elevate your woodworking projects with this functional and stylish outrigger, ensuring both strength and aesthetic appeal in your designs.
Outrigger
Application: Quickfit-Expando Housing
Brand: Titus
Drilling Depth: 14 mm
Drilling Diameter: 25/32 in*
Drive Type: Phillips
Finish: Dark Brown
Flange: With Flange
Insertion Type: Drop-On
Material: Plastic
Packaging format: Per unit
Panel Thickness: 19 mm
Product #: 86441609
Product №: 86441609
Quantities per case available: 1250 units
Titus System Number: System 6
Type: Knock-In
Unit 1: case - 1250
