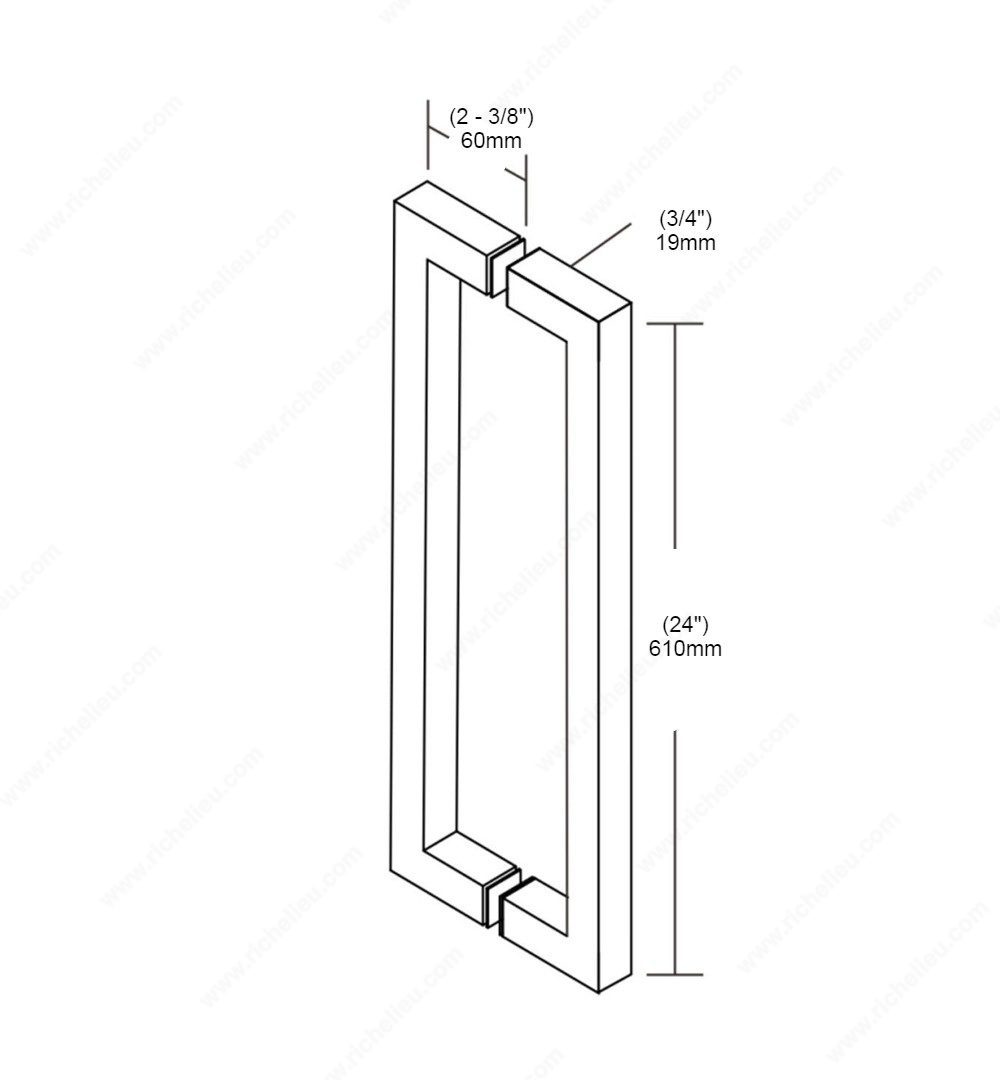

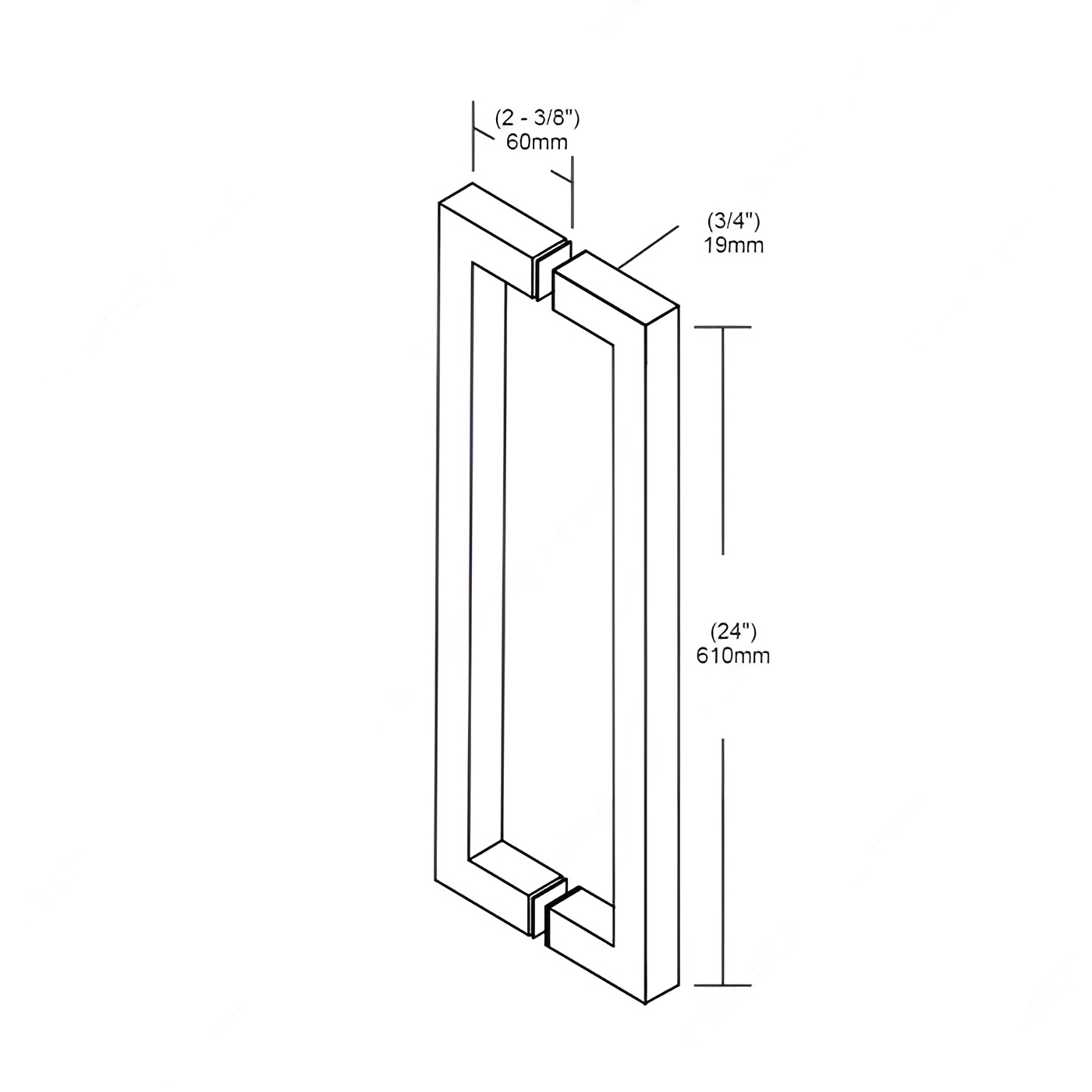

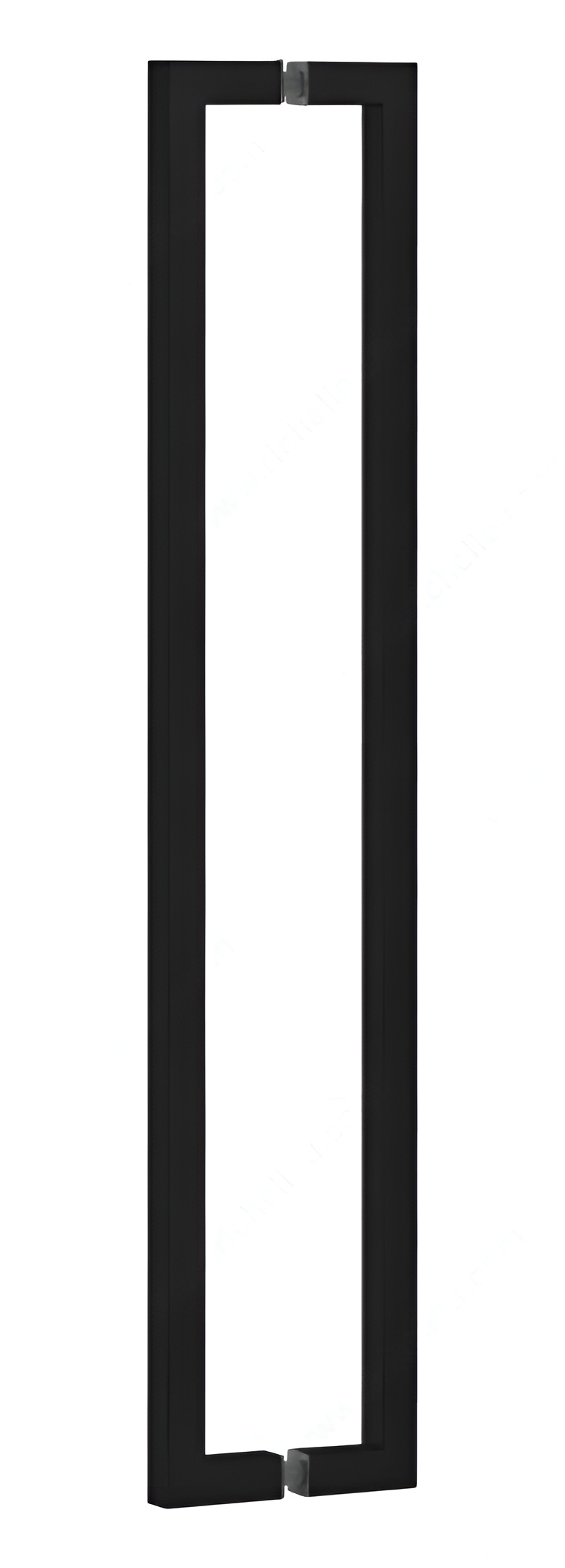

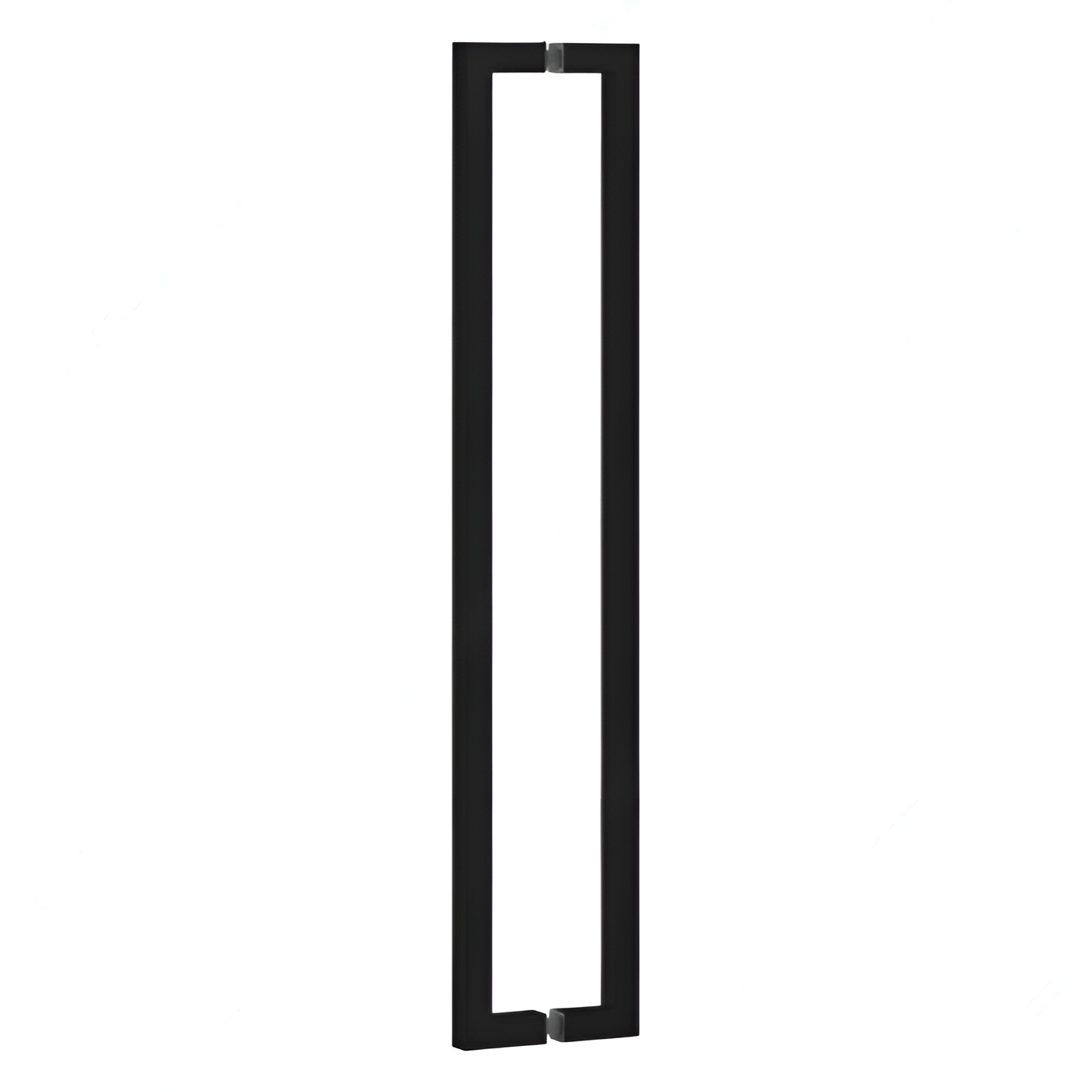

Richelieu 87D2S24900 3/4" Square Tubular Pull Handles for Back-to-Back MountingRichelieu 87D2S24900 3/4" (19 mm) Square Tubular Pull Handles for Back-to-Back Mounting are the perfect solution for modern glass door applications. Designed to accommodate glass thicknesses ranging from 6 to 12 mm, these stylish matte black handles effortlessly blend into various decor styles, making them an ideal choice for both residential and commercial environments. Whether for shower enclosures, changing rooms, or wine cellars, their versatility shines through. These handles are easy to install, requiring only two drilled holes of 12 mm each in the door, streamlining the installation process for professionals and DIY enthusiasts alike. The handle’s dimensions, including a height of 24 3/4 inches and a projection of 2 3/8 inches, ensure a comfortable grip while adding a sleek aesthetic to any space. Crafted from durable Stainless Steel 304, these handles promise longevity and resistance to wear, making them a reliable choice. They come packaged as a set, complete with M6 screws for installation. With a center-to-center drilling spacing of 24 inches, the Richelieu 87D2S24900 handles are a sophisticated addition to your glazing supplies, enhancing functionality without compromising style.
3/4" (19 mm) Square Tubular Pull Handles for Back-to-Back Mounting
This modern back-to-back square handle is designed for 6 to 12 mm thick glass doors. With its simple yet stylish design, this handle will integrate effortlessly into all types of decors. Can be used on both hinged or sliding glass doors and is ideal for use in both residential and commercial applications such as shower enclosures, changing rooms, and wine cellars. Easy to install, only requiring 2 x 12 mm drilled holes in the door.
Important information
Picture for visual reference only: actual product may vary from that shown in photo.
Be sure to order hardware before beginning fabrication or installation work.
Always use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes or modify information without prior notice.
All technical drawings and documents contain examples for the assembly of different suppliers' hardware.
The customer cannot make any claims based on the use of these documents.
No responsibility is assumed for design details relating to a construction or project. At all times, execution and installation must be undertaken by qualified persons.
Never exceed the maximum weight or the maximum dimensions recommended by the manufacturer.
Always be sure to install the product correctly using the appropriate fixation for your material.
Attributes
Brand: Riveo
Center to Center Drilling ( Spacing): 24 in
Color/ Finish: Matte Black
Door Type: Glass
Function: Towel Bar / Pull Handle
Glass Thickness: 6 to 12 mm
Height: 24 3/4 in
Manufacturing Material: Stainless Steel: 304
Material: Stainless Steel: 304
Milling Diameter: 12 mm
Packaging format: Set
Product #: 87D2S24900
Product number: 87D2S24900
Product №: 87D2S24900
Projection: 60 mm
Screw/ Nail: Included, M6
Thickness: 3/4 in
Type: Square
Unit: Set
Unit 1: case - 10
Unit 2: case - 10
Usage: Shower Door, Sliding Door, Hinge Door
Width: 3/4 in
