Richelieu 87GCM003B140 Ceiling/Wall Mount Glass Clamp - Sleeve OverRichelieu 87GCM003B140 Ceiling or Wall Mount "Sleeve Over" Glass Clamp is an essential component for any glass installation, providing reliable support while accommodating shear forces placed on the panel. Designed for easy installation, this clamp requires no glass fabrication, making it a convenient choice for various applications, including fixed screens, corner showers, neo-angle showers, and doors and panels. Crafted from solid brass and finished in bright polished chrome, this clamp not only ensures durability but also enhances the aesthetic appeal of your project. It accommodates glass thicknesses ranging from 5/16 to 15/32 inches, making it versatile for different glass types. With dimensions of 1 31/32 inches in length, 1 1/2 inches in width, and a height of 15/16 inches, it fits seamlessly into your design. Secured with a nylon-tipped Allen screw, the clamp guarantees a secure hold while prioritizing safety; tempered glass is recommended for installations. Please ensure that installation is performed by qualified personnel, adhering to manufacturer guidelines and load recommendations. For maintenance, simply clean with a soft cloth and non-abrasive, ammonia-free soap. Choose the Richelieu glass clamp for a perfect blend of functionality and style in your next project.

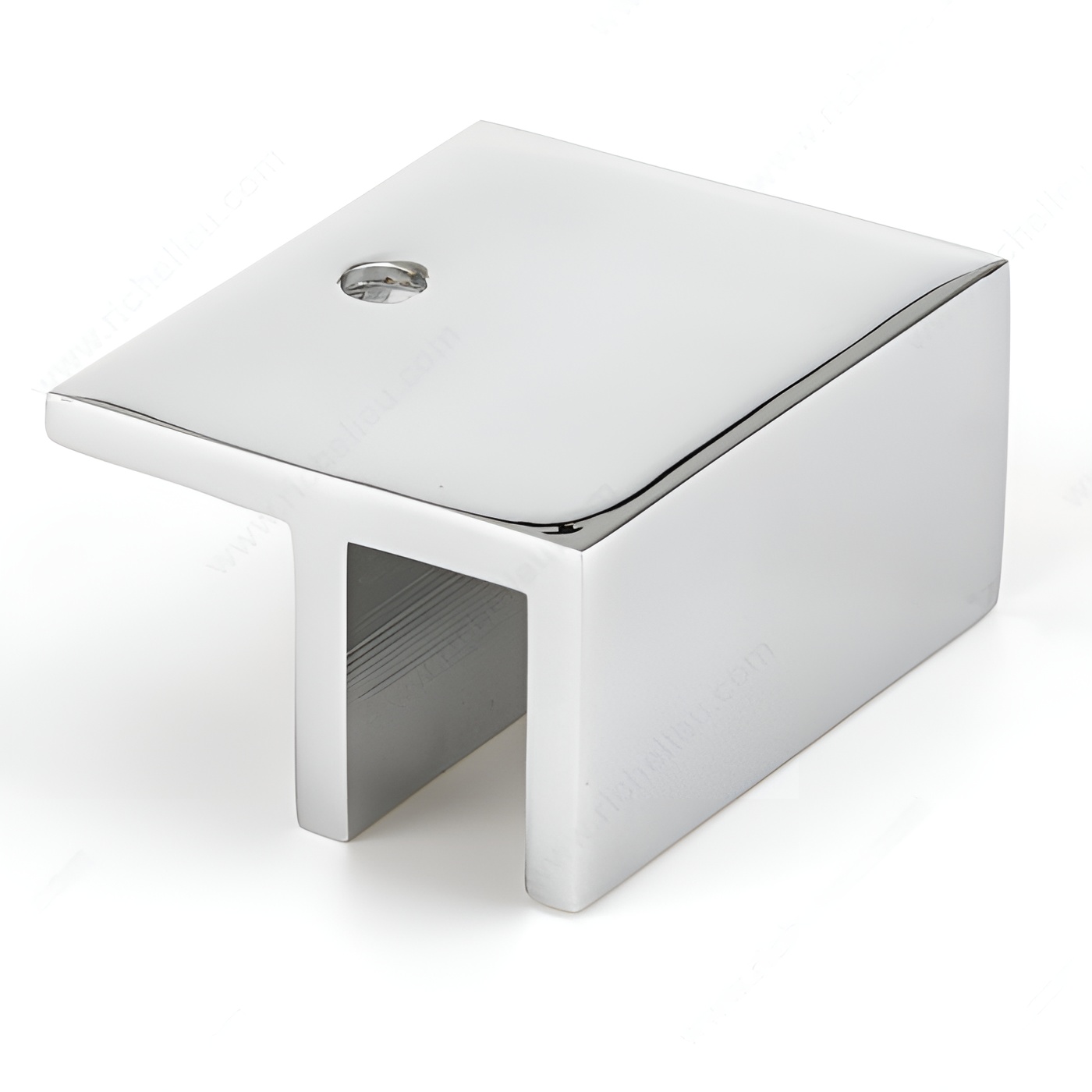

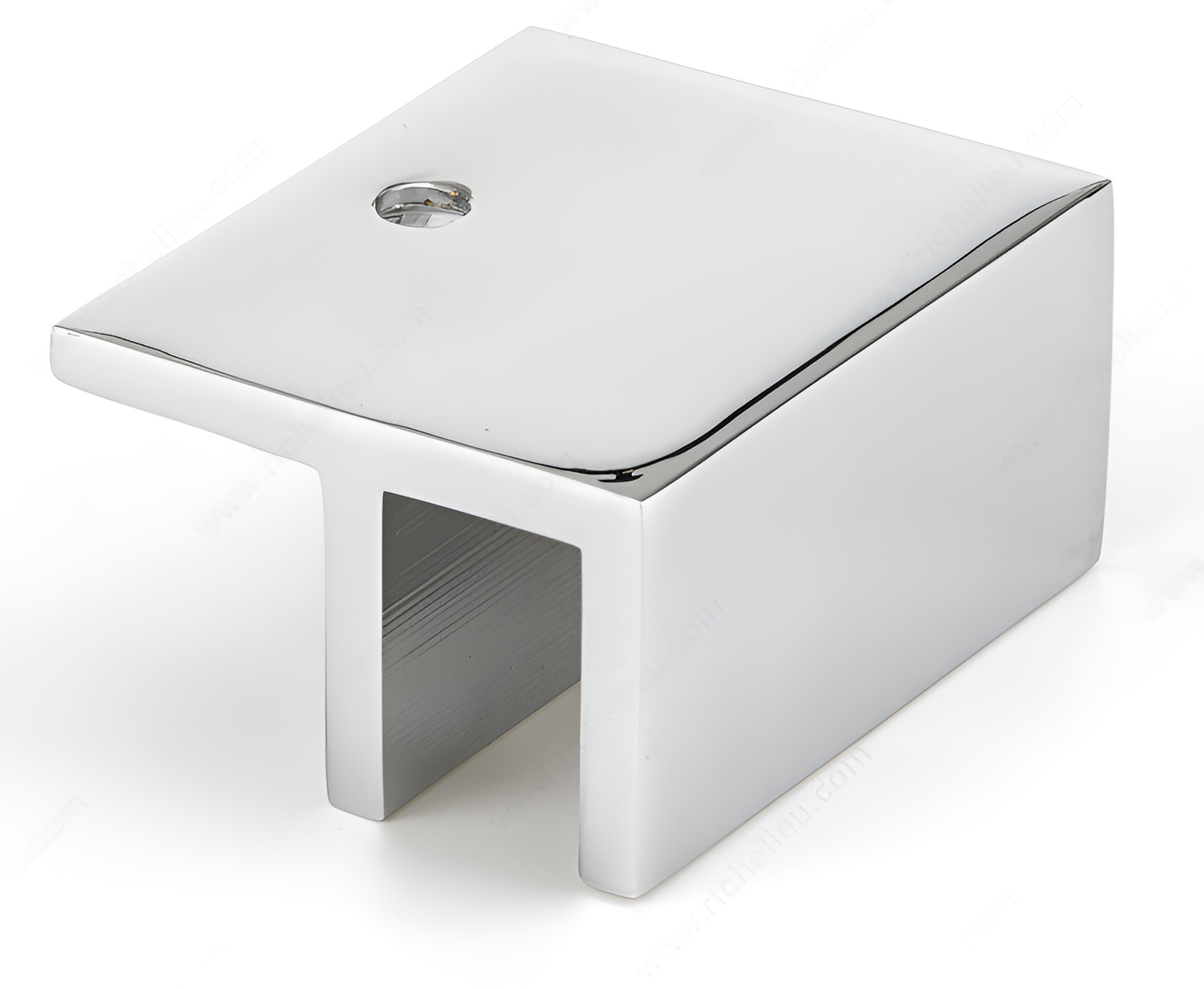

Ceiling or Wall Mount "Sleeve Over" Glass Clamp
Ceiling Mount Clamp assists with shear forces placed on panel. No glass fabrication required. Not to be used in place of headers or support bars. Secured in place with nylon tipped Allen screw.
Important information
For safety purposes, use tempered glass.

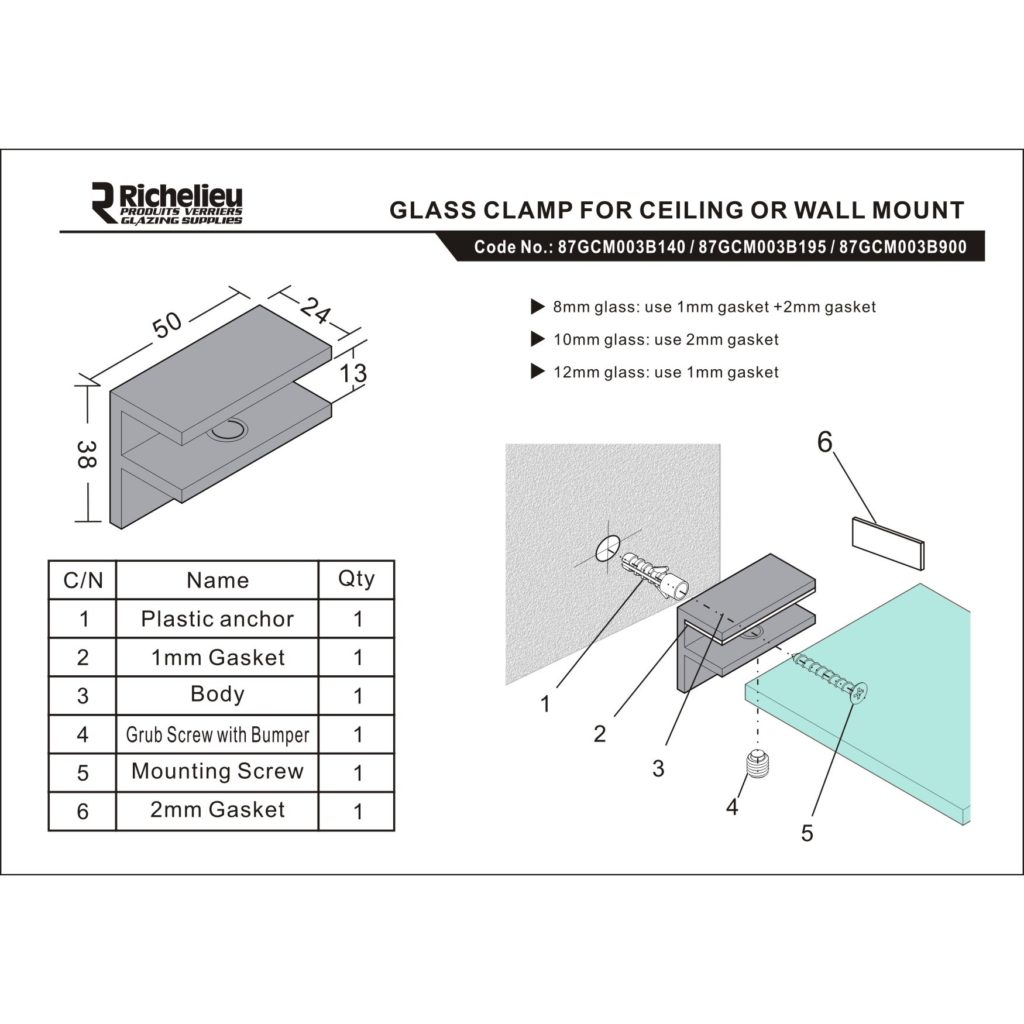

This illustration is provided for visual reference only. Actual product may vary. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always follow the instructions inside the package.
Drawings and technical documents contain examples of hardware from different manufacturers. The customer may not in any case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project.
Installation must always be done by qualified personnel. Make sure that the product is properly installed using suitable fixtures on the support material. Never exceed the maximum load or size recommended by the manufacturer.
Never use a spray lubricant on this product. Maintenance: clean with a soft cloth and soap that is ammonia-free and nonabrasive.
Attributes
Application: Fixed Screen, Corner Shower, Neo-Angle Shower, Door and Panel
Brand: Riveo
Color: Gray and Chrome
Finish: Glossy Polished
Glass Thickness: 8 to 12 mm
Height: 24 mm
Length: 50 mm
Manufacturing Material: Solid Brass
Material: Solid Brass
Product #: 87GCM003B140
Product number: 87GCM003B140
Product №: 87GCM003B140
Style: Square
Unit 1: case - 100
Width: 38 mm
