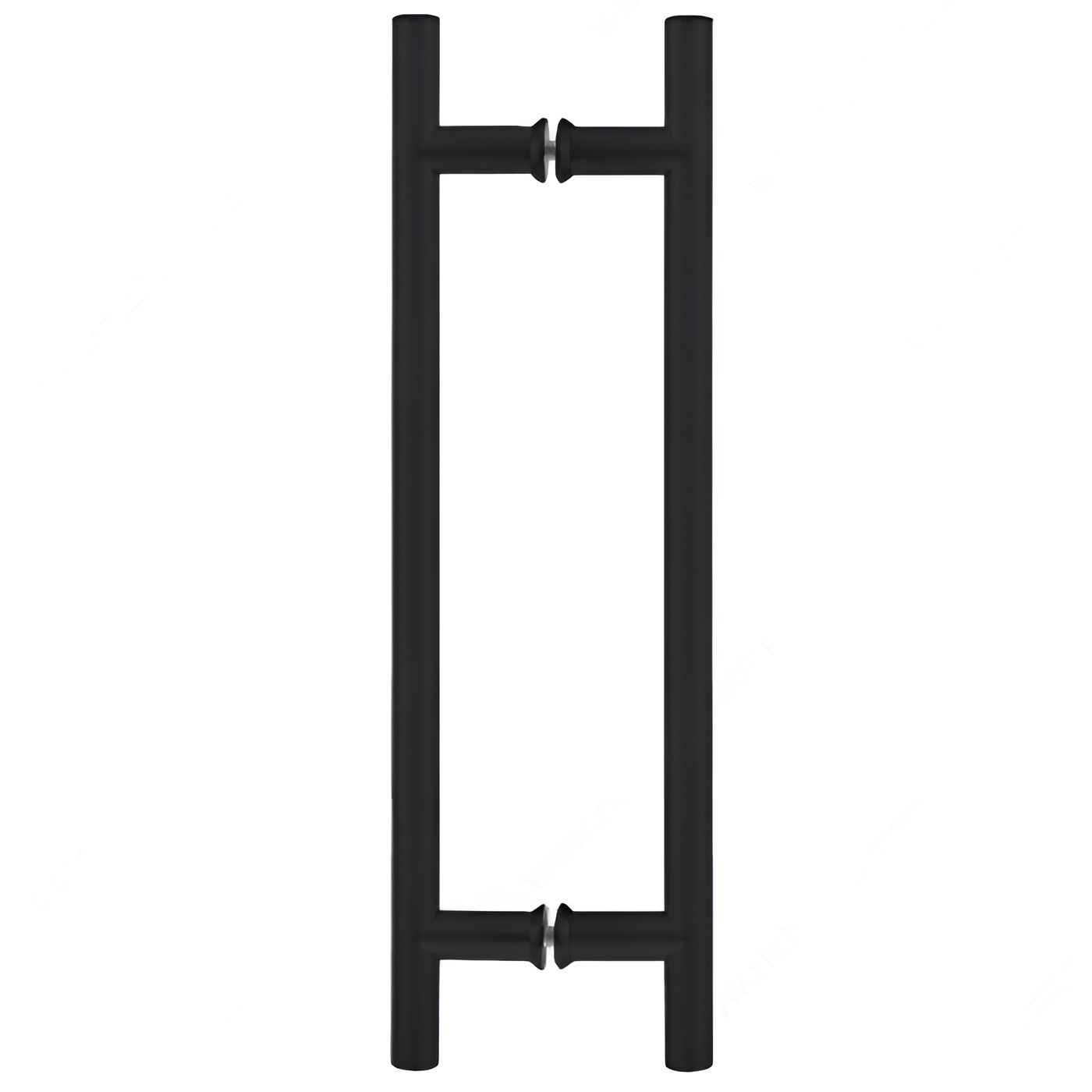

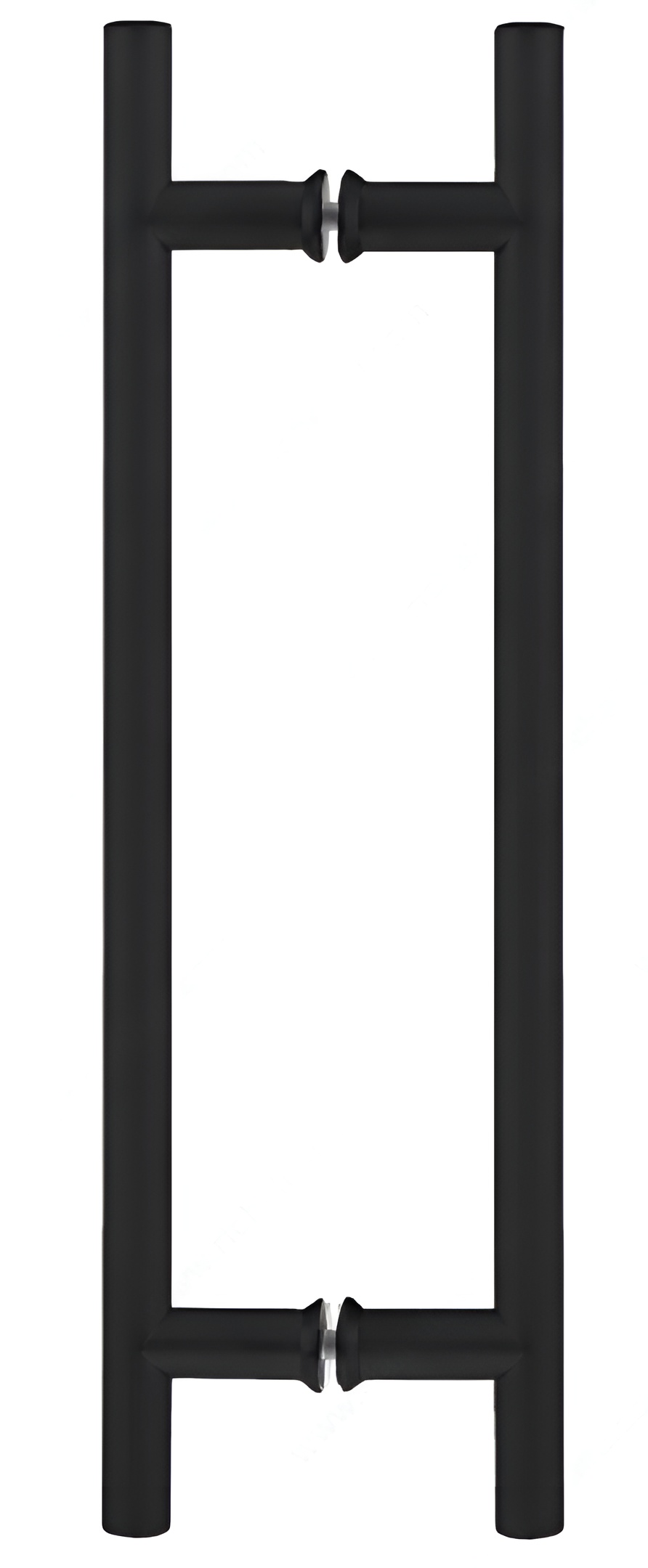

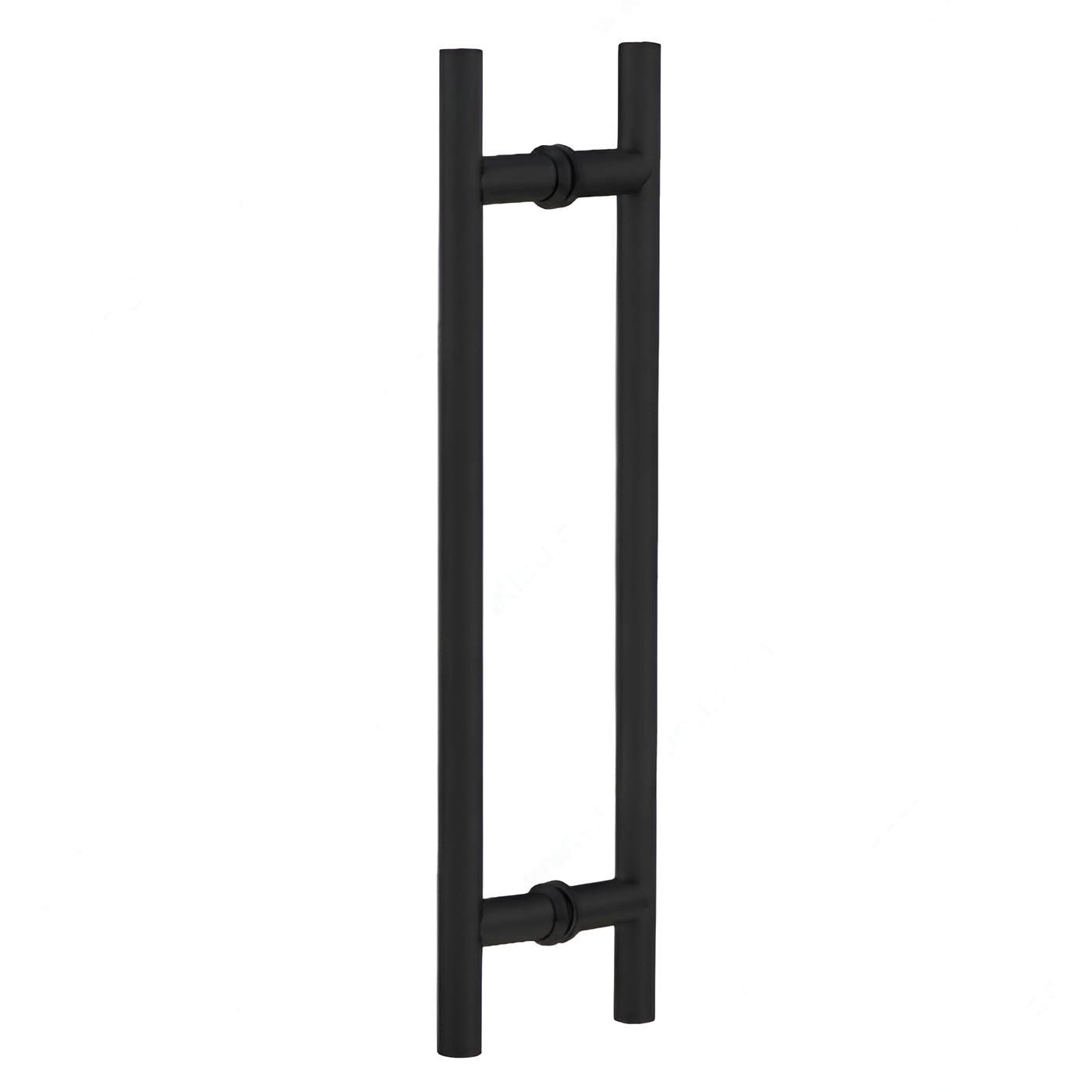

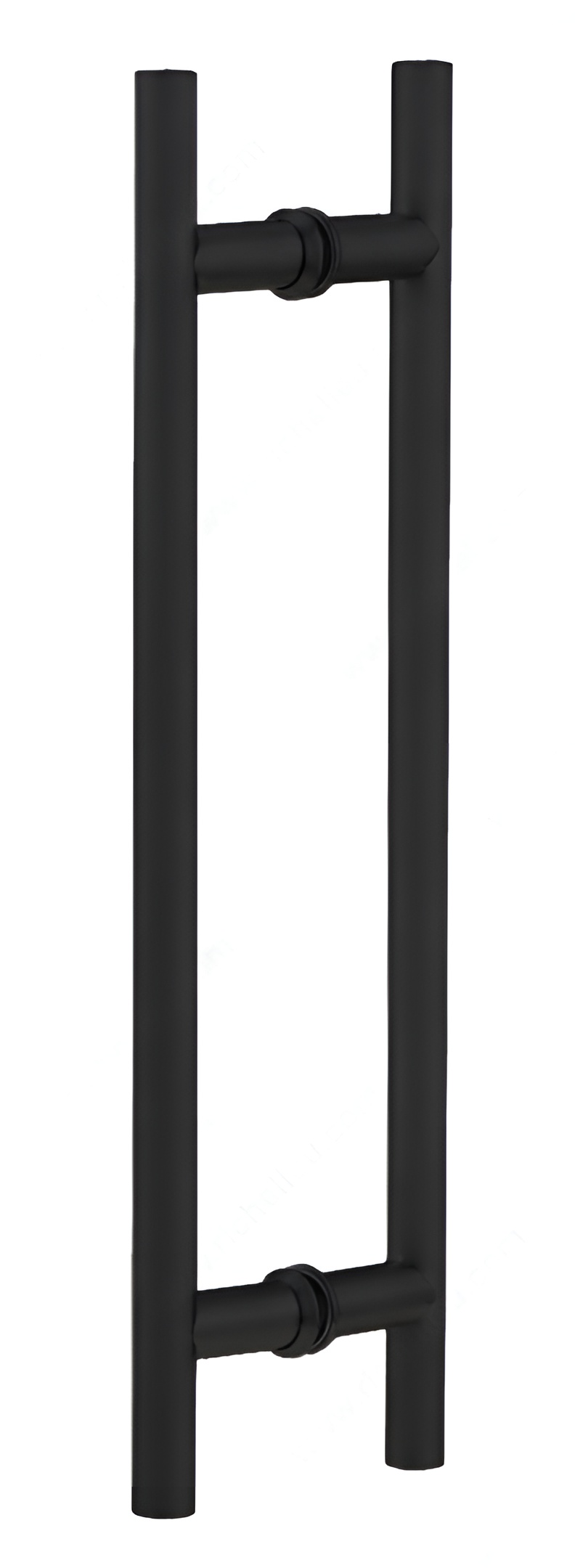

Richelieu 87H2R1001912900 3/4" Back-to-Back Ladder Handle - 19 mm DiameterRichelieu 87H2R1001912900 3/4" (19 mm) Diameter Back-to-Back Ladder Handle is the perfect solution for enhancing the functionality and aesthetic appeal of glass doors. This elegantly designed handle boasts a modern, minimalist style that seamlessly integrates into various décors, making it an ideal choice for residential and commercial applications alike. Crafted from durable Stainless Steel 316, this handle is not only stylish but also engineered to withstand the rigors of everyday use. With a height of 16 inches and a projection of 2 3/8 inches, it provides a comfortable grip while maintaining a sleek profile. Installation is straightforward-simply drill two 12 mm holes in your door, insert the handle from both sides, and secure it with the included M6 screws using an Allen wrench. Designed for versatility, this back-to-back pull handle is suitable for hinged, sliding, and shower doors, accommodating door thicknesses ranging from 1 3/8 to 1 31/932 inches and glass thicknesses between 5/16 and 15/32 inches. Finished in a sophisticated matte black, the Richelieu 87H2R1001912900 combines form and function, making it an essential addition to any architectural project.
3/4" (19 mm) Diameter Back-to-Back Ladder Handle
This classic back-to-back ladder-style handle is designed for glass doors. With its modern and simple design, this handle easily fits into any décor. Easy to install, drill two 12mm holes in the door, then insert both sides of the handle and tighten with the Allen wrench. The handle is perfect for hinged, sliding, and shower doors.
Important information
This illustration is provided for visual reference only. Actual product may vary. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always follow the instructions inside the package.
Drawings and technical documents contain examples of hardware from different manufacturers. The customer may not in any case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project.
Installation must always be done by qualified personnel. Make sure that the product is properly installed using suitable fixtures on the support material. Never exceed the maximum load or size recommended by the manufacturer. Never use a spray lubricant on this product. Clean with a soft cloth and soap that is ammonia-free and nonabrasive. Always use a dry cloth to remove debris, dust and residues (sawdust and/or aluminum dust) from rails before installing hangers.
Attributes
Brand: Riveo

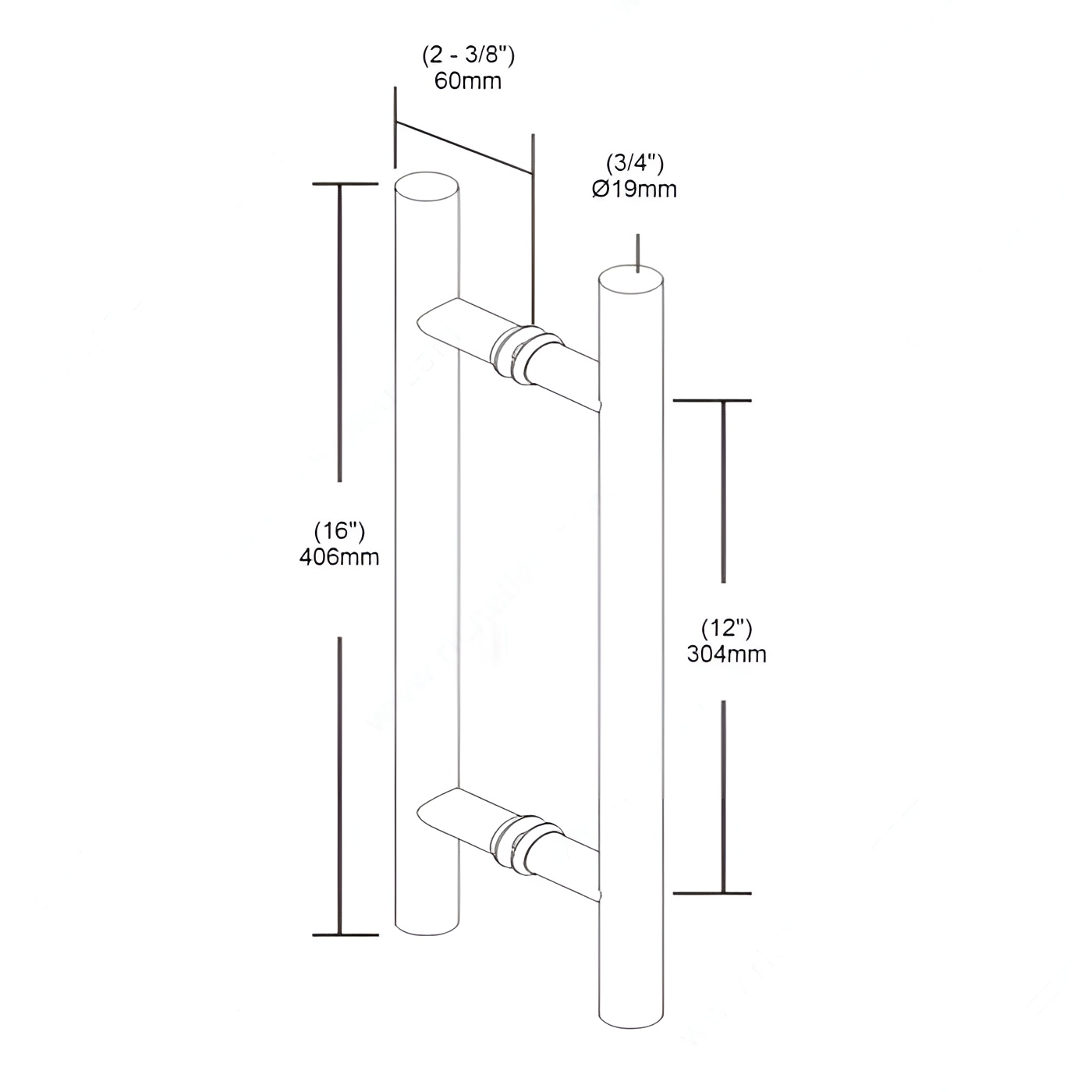

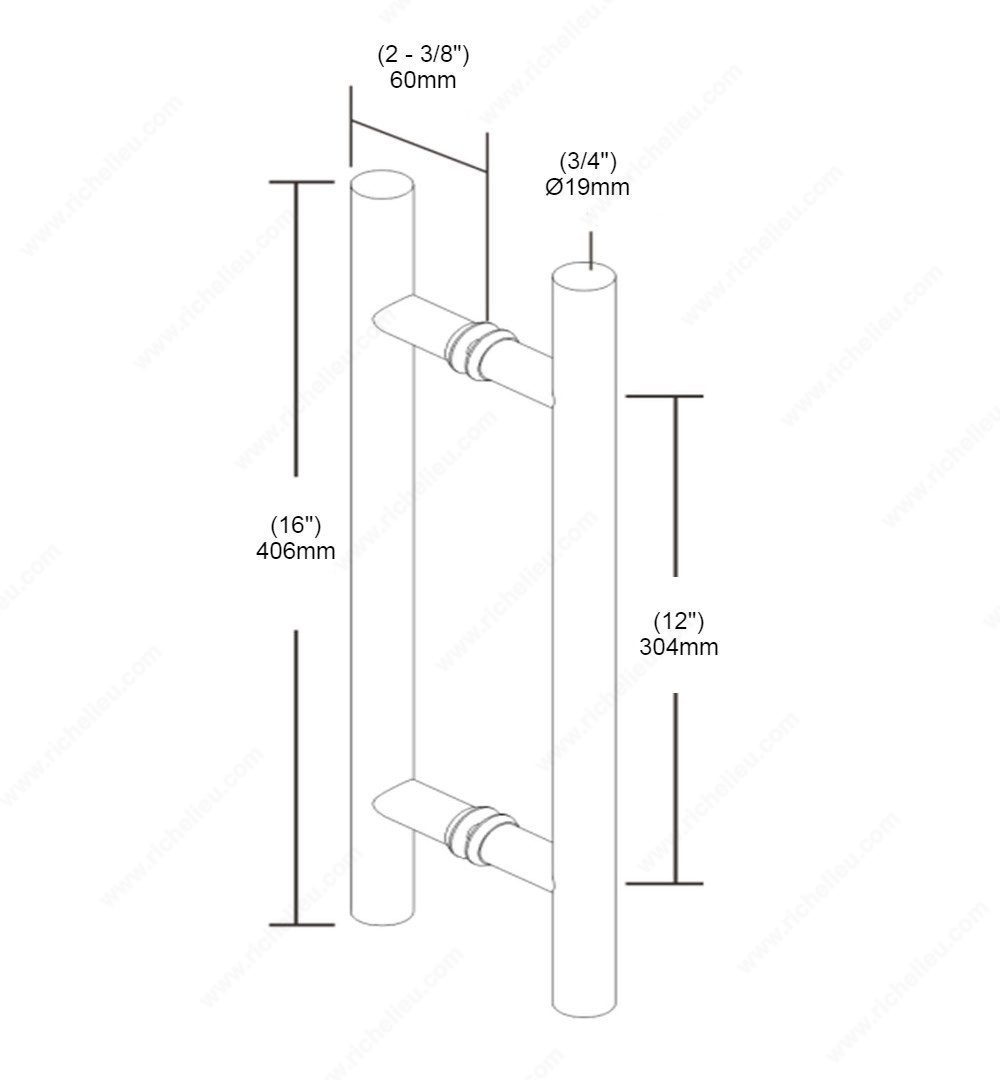

Center to Center Drilling ( Spacing): 12 in
Color/ Finish: Matte Black
Diameter: 19 mm
Door Thickness: 35 to 50 mm
Door Type: Glass / Wood / Architectural
Function: Pull Handle
Glass Thickness: 8 to 12 mm
Height: 16 in
Manufacturing Material: Stainless Steel: 316
Material: Stainless Steel: 316
Milling Diameter: 12 mm
Packaging format: Set
Product #: 87H2R1001912900
Product number: 87H2R1001912900
Product №: 87H2R1001912900
Projection: 60 mm
Screw/ Nail: Included, M6
Type: Round
Unit: Set
Unit 1: case - 20
Unit 2: case - 20
Usage: Sliding Door / Hinge Door
Washers Diameter: 25 mm
