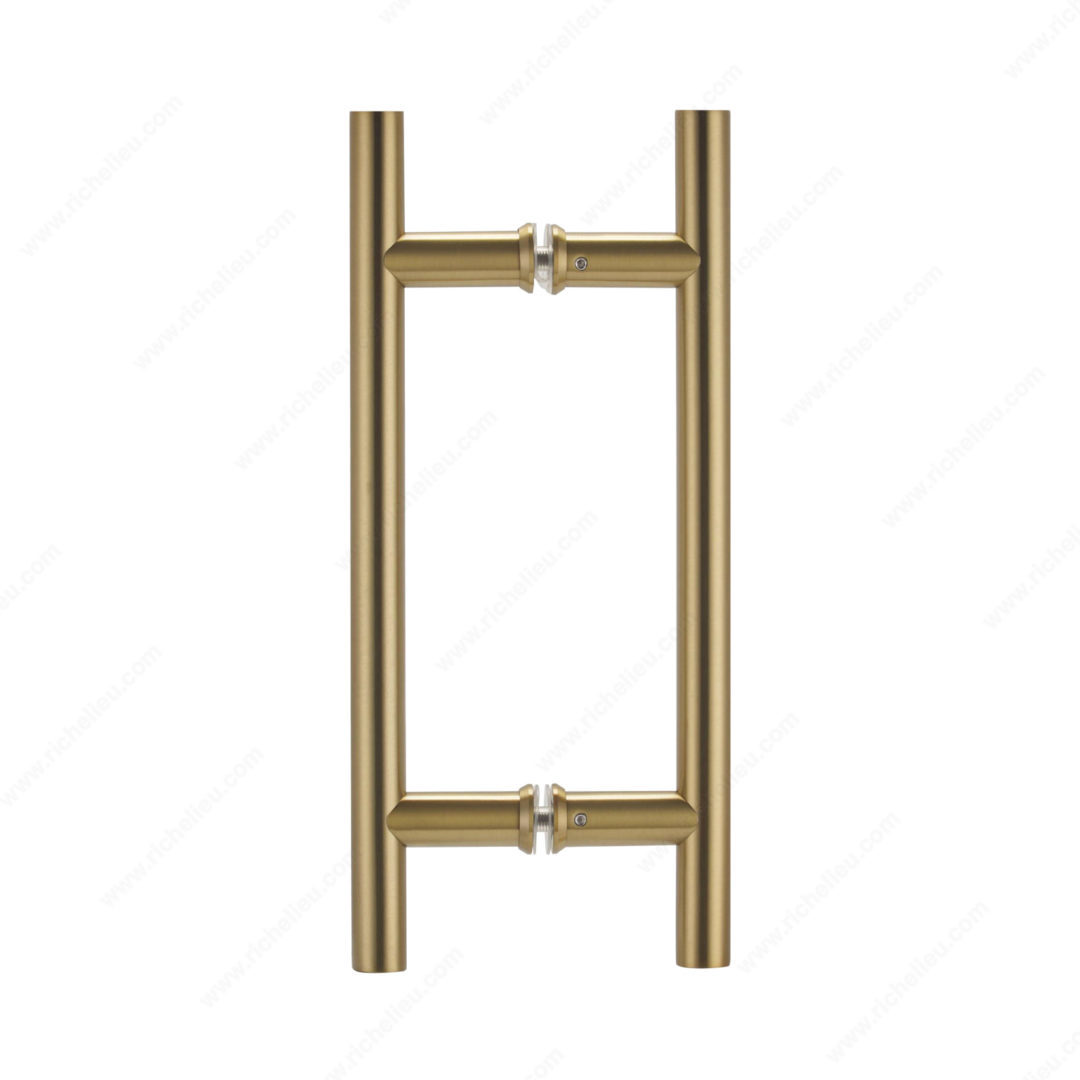

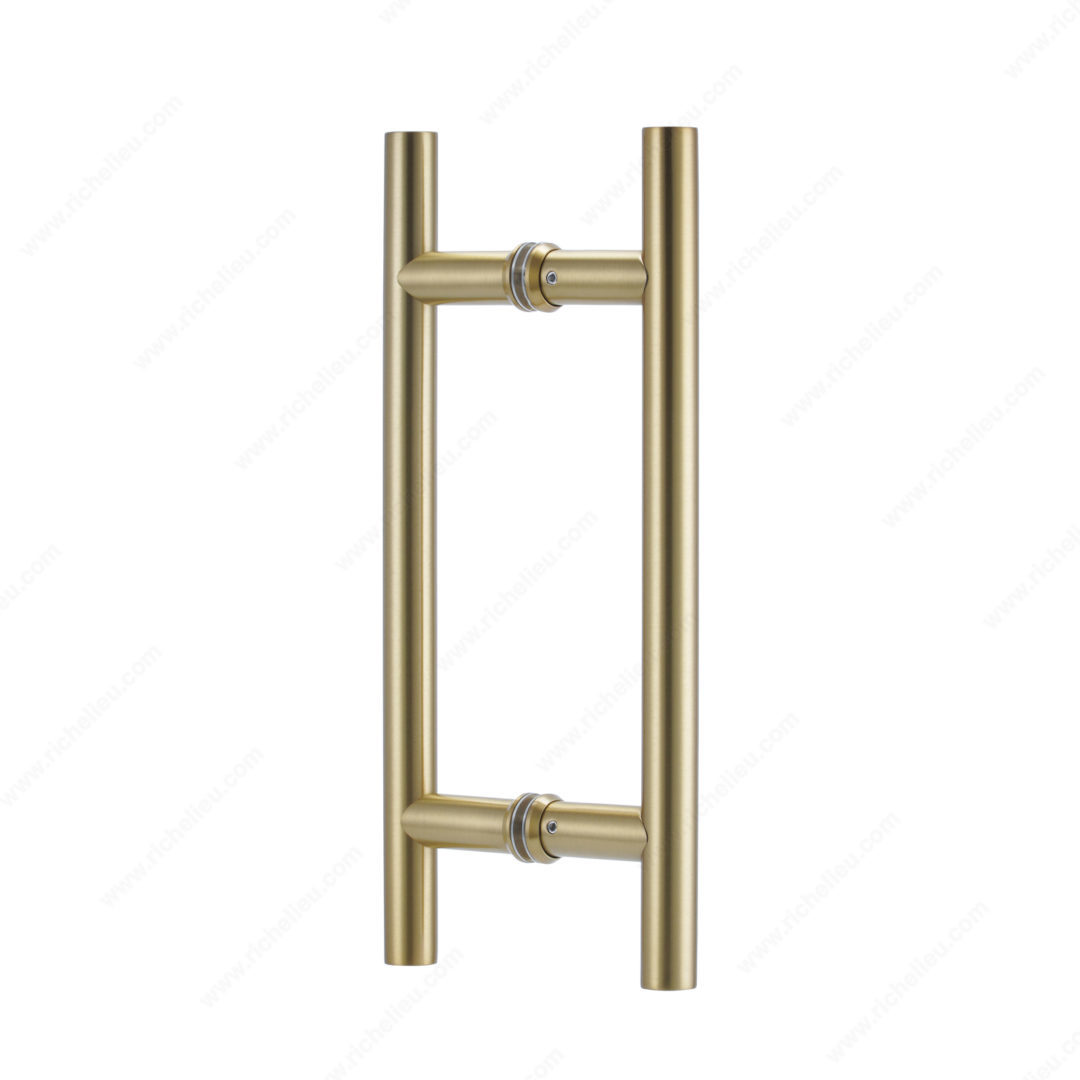

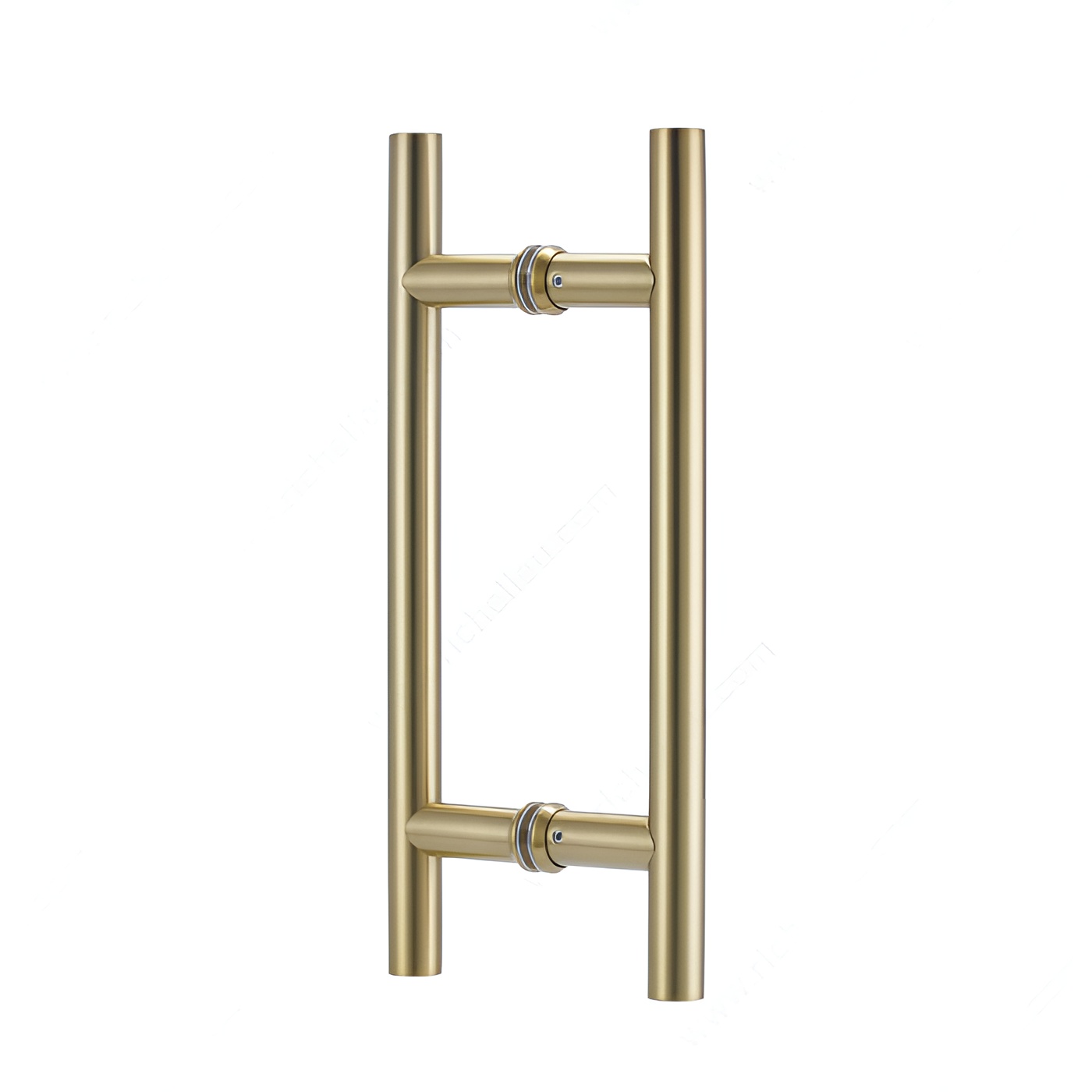

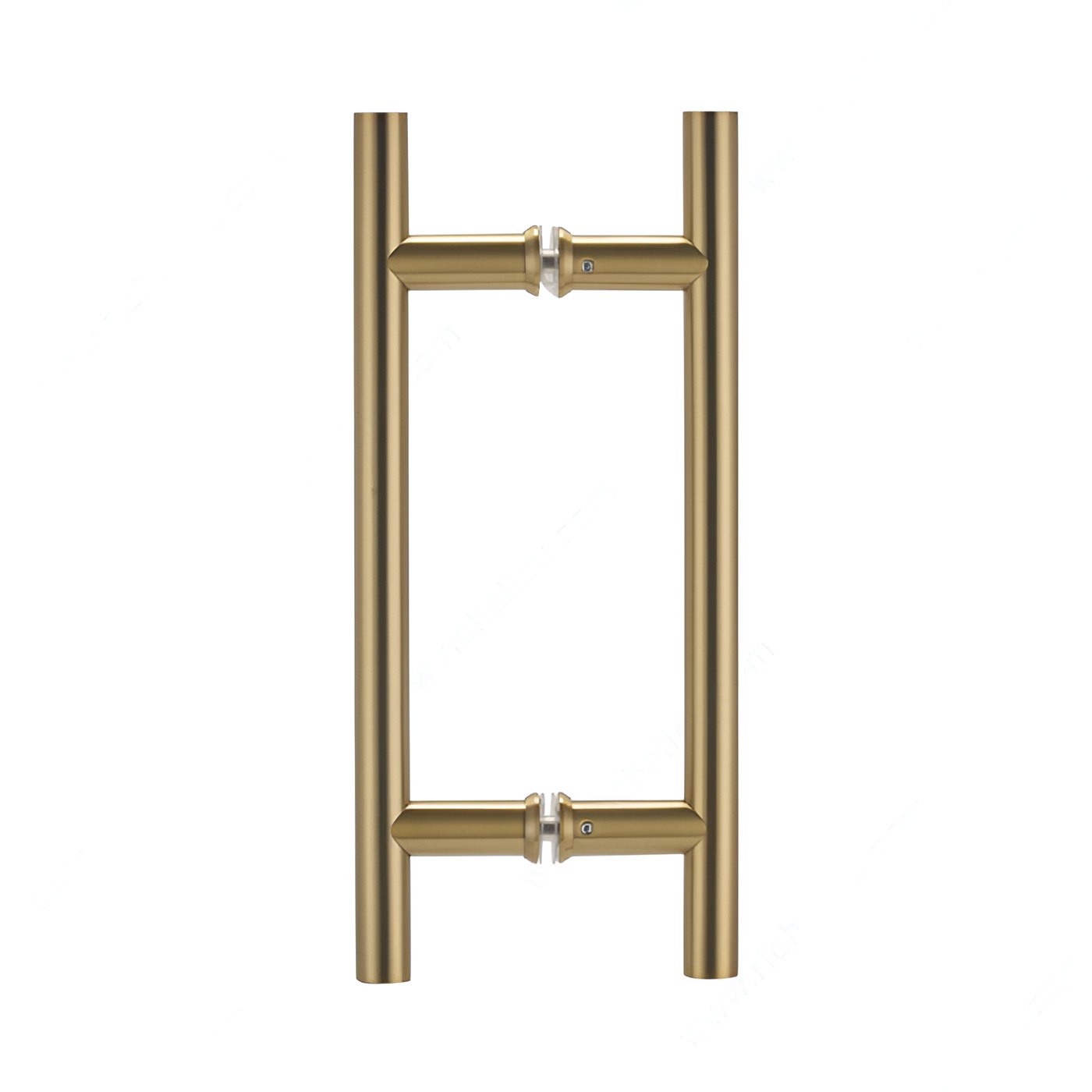

Richelieu 87H2R198160 3/4" Back-to-Back Ladder Handle - 19 mm DiameterRichelieu 87H2R198160 3/4" (19 mm) Diameter Back-to-Back Ladder Handle is an elegant solution for glass doors, combining functionality with a modern aesthetic. This ladder-style handle, finished in a sophisticated satin brass, effortlessly enhances the look of any space, making it ideal for both residential and commercial applications. Designed for versatility, this handle accommodates hinged, sliding, and shower doors, with a robust stainless steel 316 construction that ensures durability and longevity. Installation is straightforward-simply drill two 12mm holes in the door, insert the handle, and secure it with the provided Allen wrench. The handle features a comfortable 12-inch height and a 2 3/8-inch projection, providing ample grip while maintaining a sleek profile. Optimally designed for glass door thicknesses ranging from 1/4 to 15/32 inches and compatible with door thicknesses of 1 3/8 to 1 31/92 inches, it comes complete with M6 screws for secure mounting. The 8-inch center-to-center drilling spacing allows for easy alignment, ensuring a clean and professional installation. Richelieu’s commitment to quality is evident in this handle, making it a reliable choice for discerning builders and homeowners alike.
3/4" (19 mm) Diameter Back-to-Back Ladder Handle
This classic back-to-back ladder-style handle is designed for glass doors. With its modern and simple design, this handle easily fits into any décor. Easy to install, drill two 12mm holes in the door, then insert both sides of the handle and tighten with the Allen wrench. The handle is perfect for hinged, sliding, and shower doors.
Important information
This illustration is provided for visual reference only. Actual product may vary. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always follow the instructions inside the package.
Drawings and technical documents contain examples of hardware from different manufacturers. The customer may not in any case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project.
Installation must always be done by qualified personnel. Make sure that the product is properly installed using suitable fixtures on the support material. Never exceed the maximum load or size recommended by the manufacturer. Never use a spray lubricant on this product. Clean with a soft cloth and soap that is ammonia-free and nonabrasive. Always use a dry cloth to remove debris, dust and residues (sawdust and/or aluminum dust) from rails before installing hangers.
Attributes

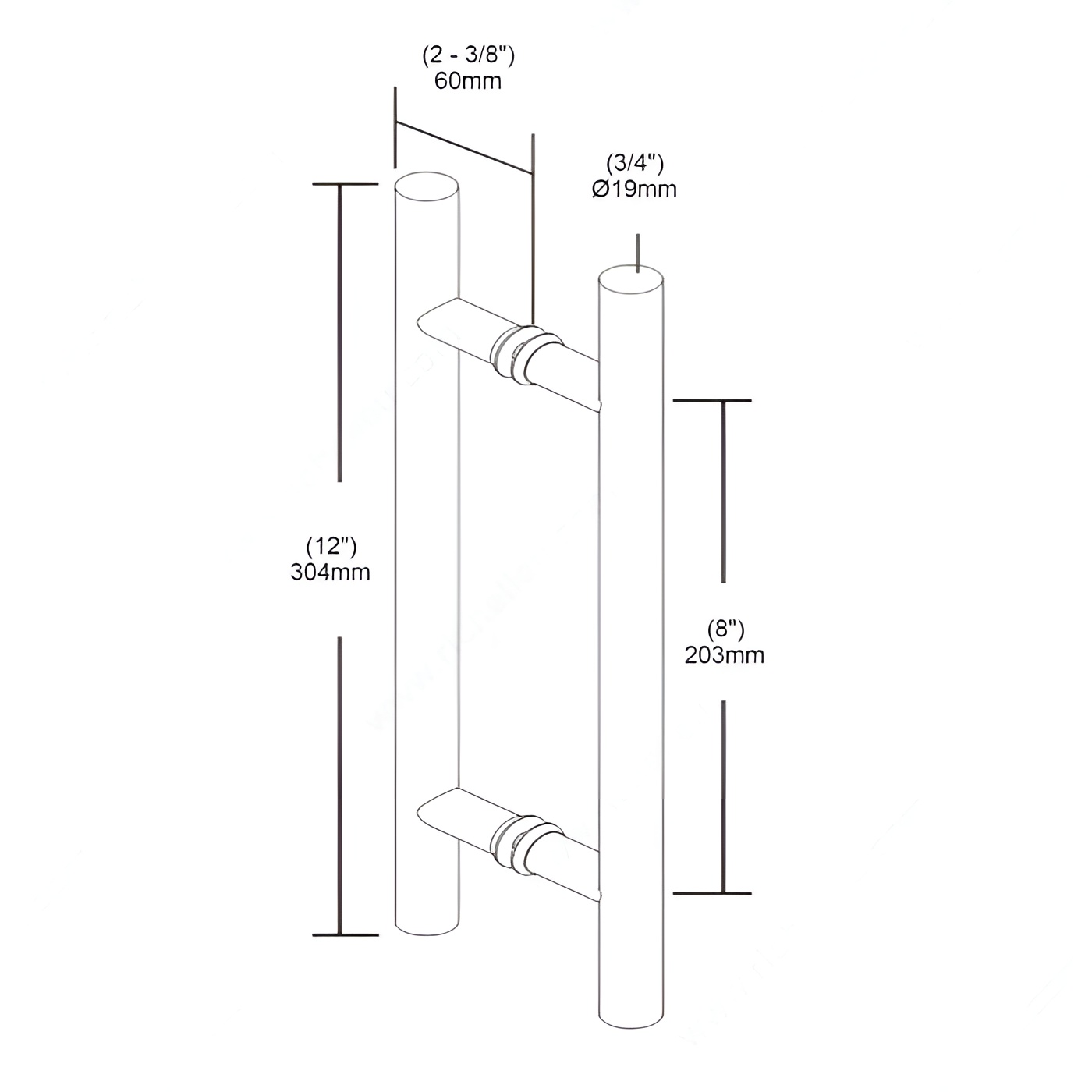

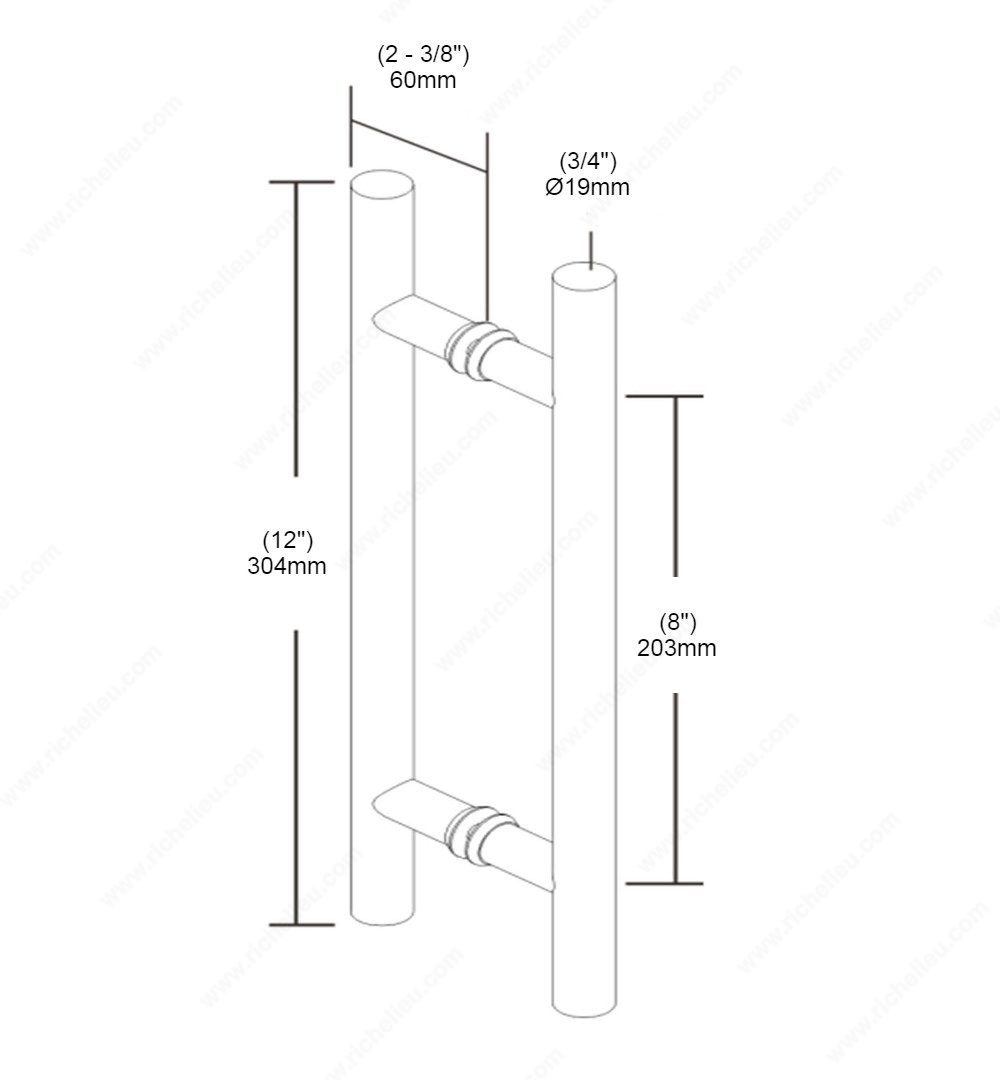

Center to Center Drilling ( Spacing): 8 in
Color/ Finish: Satin Brass
Diameter: 19 in
Door Thickness: 1 3/8 to 1 31/32 in*
Door Type: Glass
Function: Back-to-Back Pull Handle
Glass Thickness: 1/4 to 15/32 in*
Height: 12 in
Material: Stainless Steel: 316
Milling Diameter: 12 in
Packaging format: Per unit
Product #: 87H2R198160
Product №: 87H2R198160
Projection: 60 in
Screw/ Nail: Included, M6
Type: Round
Unit 1: case - 20
Usage: Shower Door, Sliding Door, Hinge Door
Washers Diameter: 31/32 in*
