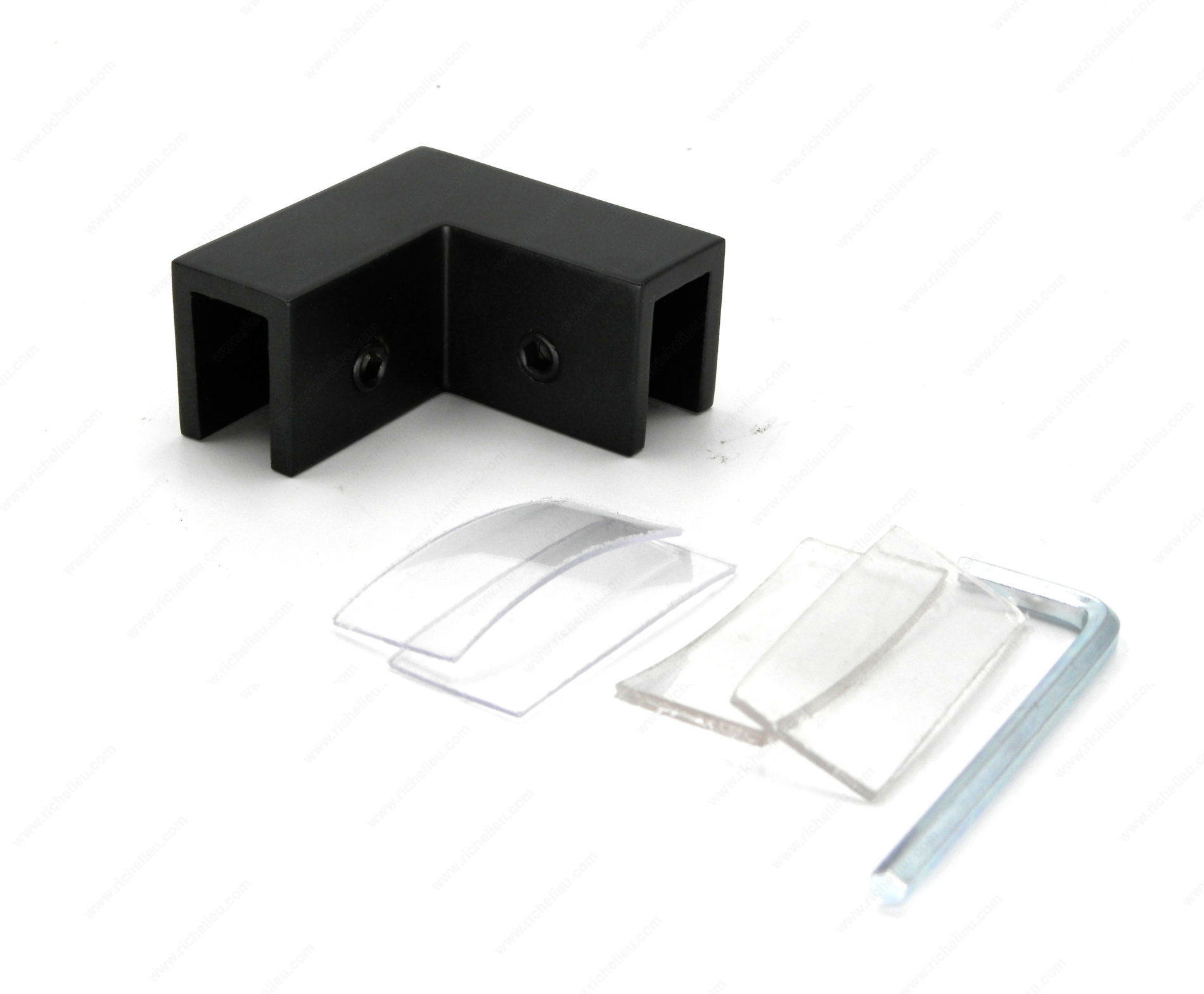

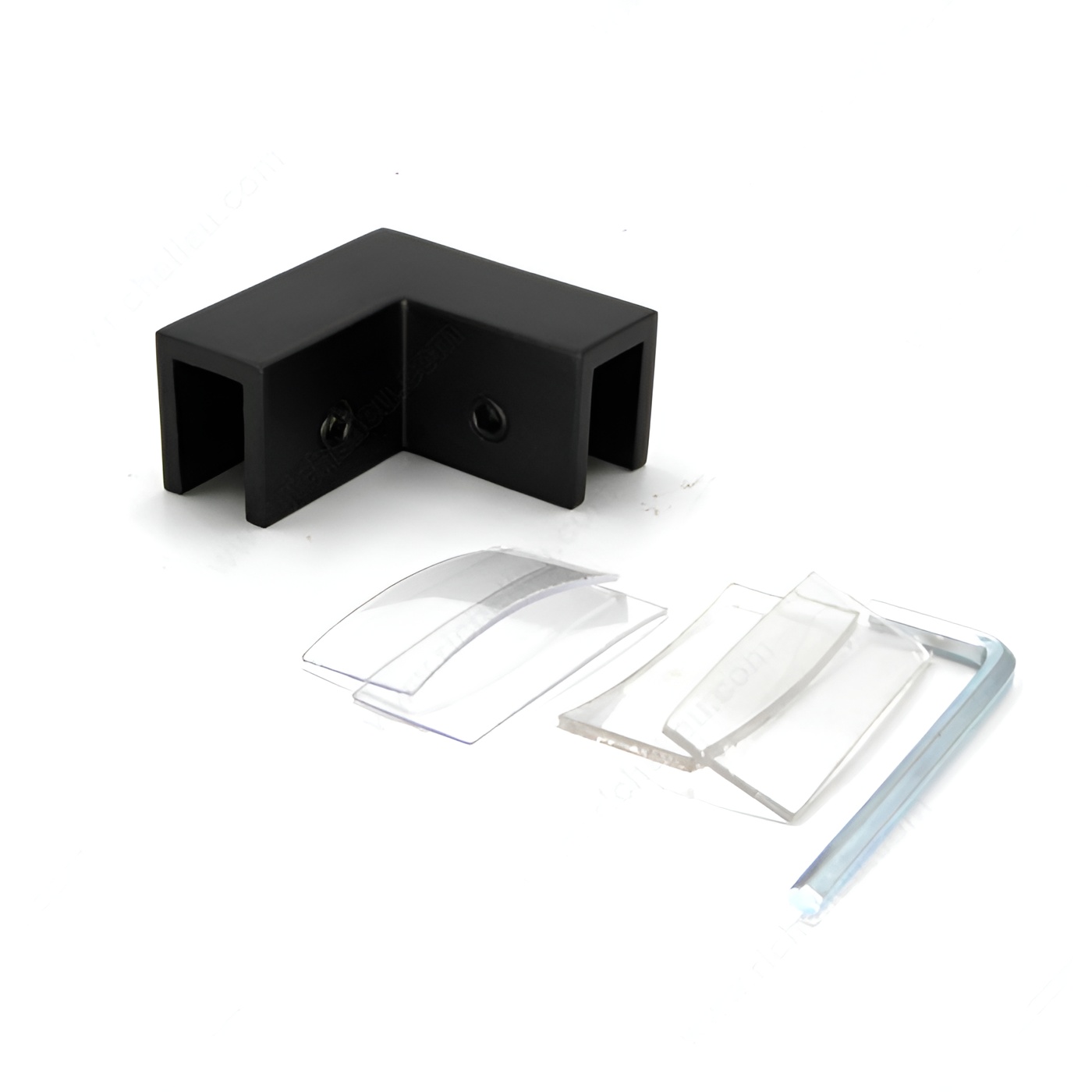

Richelieu 87SFM003900 90" Sleeve Over Glass Clamp

Richelieu 87SFM003900 90" Sleeve Over Glass Clamp

Richelieu 87SFM003900 90" Sleeve Over Glass Clamp is designed to enhance the structural integrity of glass panels while providing a sleek, modern aesthetic. These 90° sleeve over glass clamps effectively reduce shear forces, ensuring stability without the need for additional headers or support bars. Crafted from high-quality solid brass, they exhibit both durability and style, complemented by a sophisticated matte black finish. Installation is straightforward, utilizing nylon-tipped, hexagonal-engaging screws that eliminate the need for glass drilling, making setup hassle-free. The clamps accommodate glass thicknesses ranging from 5/16 to 15/32 inches and measure 1 inch in height, with a width of 25/32 inches and a length of 2 1/16 inches. For optimal safety, it is crucial to use tempered glass and adhere to the manufacturer’s guidelines regarding load limits and installation techniques. Maintenance is simple-just clean with a soft cloth and non-abrasive soap or ammonia. Ideal for corner shower applications, the Richelieu 87SFM003900 combines functionality with elegance, making it a preferred choice for building professionals and discerning homeowners alike. Always ensure proper installation by qualified personnel for the best results.

90 "Sleeve Over" Glass Clamp

90° sleeve over glass clamps helps reduce shear forces on panels. These clamps are not designed to replace headers or support bars. Easy to install with nylon-tipped, hexagonal-engaging screws. No glass drilling is required, let alone special maintenance, as the clamps are made of quality solid brass.

Important information

For safety purposes, use tempered glass.
The use of power tools during installation may damage the hinges and decorative hardware.
The glass must be shaped according to the section plane provided in the box.
Always set the product in a suitable material.
Never exceed the load or maximum size recommended by the manufacturer.
Never use a spray lubricant on this product.
Maintenance: clean with a soft cloth and non-abrasive soap or ammonia.
This illustration is provided for visual reference only. Actual product may differ from the illustration. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always use the instructions inside the package.

Drawings and technical documents contain examples of hardware from different manufacturers. The customer may in no case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project. Installation must be done by qualified personnell. Always make sure that the product is properly installed using suitable fixings to the support material. Never exceed the load or maximum size recommended by the manufacturer. Never use a spray lubricant on this product.
