Richelieu 87SFM005L900 Wall Mount Glass Clamp - Sleeve Over Design

Richelieu 87SFM005L900 Wall Mount Glass Clamp - Sleeve Over Design

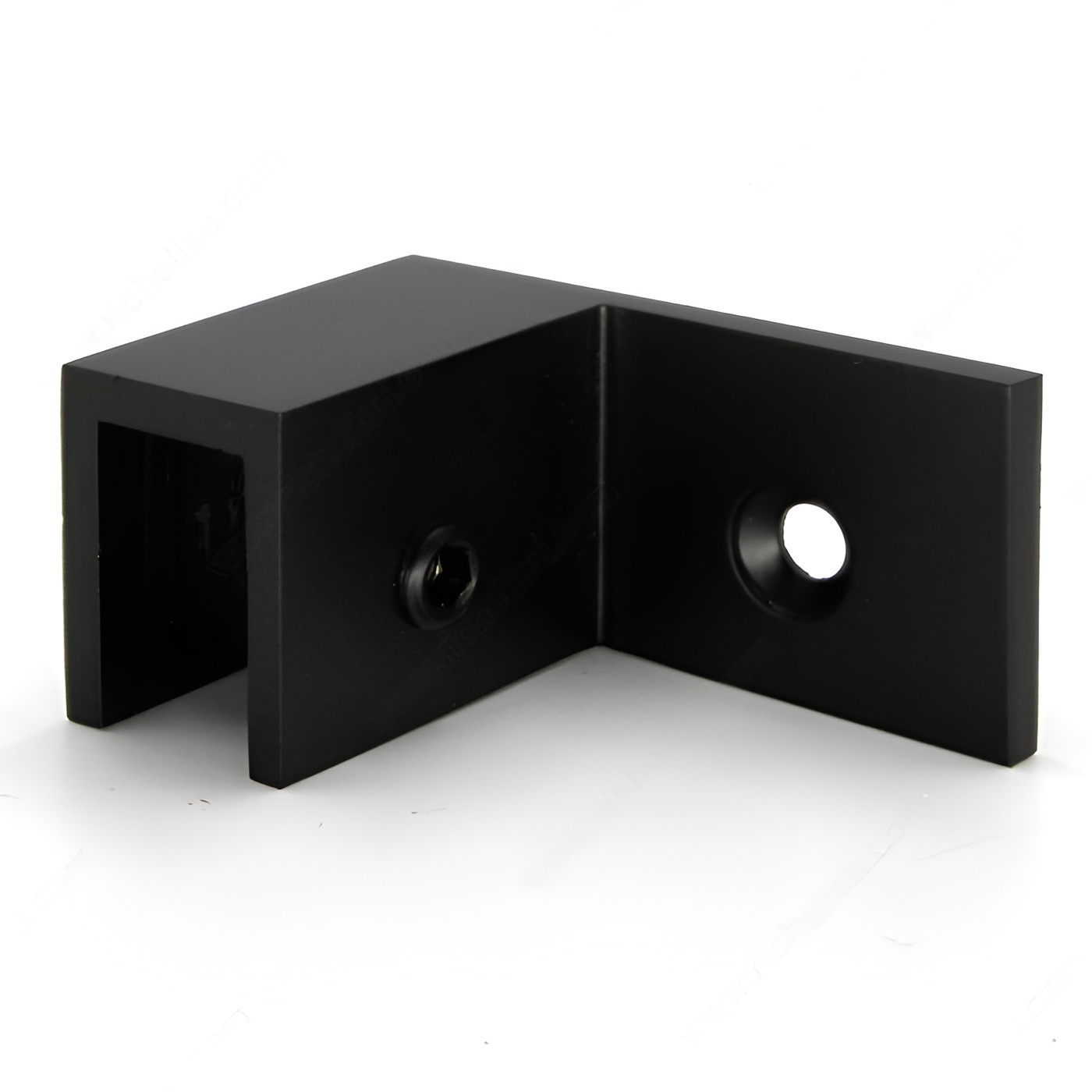

Richelieu 87SFM005L900 Wall Mount "Sleeve Over" Glass Clamp is expertly designed to enhance the stability of glass panels while effectively reducing shear forces. Crafted from high-quality solid brass, this clamp not only offers durability but also a sleek matte black finish that complements any modern design aesthetic. It is specifically tailored for applications such as fixed screens, corner showers, neo-angle showers, and doors and panels. Installation is straightforward, thanks to the nylon-tipped, hexagonal-engaging screws that ensure secure attachment without the need for drilling into the glass. The clamp accommodates glass thicknesses ranging from 5/16 to 15/32 inches, making it versatile for various projects. Safety is paramount, so it's essential to use tempered glass and adhere to the manufacturer’s load and size recommendations. Routine maintenance is simple; just clean with a soft cloth and a non-abrasive soap or ammonia. Please note that this left-handed clamp has dimensions of 1 inch in height, 1 3/8 inches in length, and 2 1/16 inches in width. Always follow the provided installation instructions and use suitable materials for mounting to ensure optimal performance and safety.

Wall Mount "Sleeve Over" Glass Clamp

Wall-mounted clamps help reduce shear forces on glass panels. These clamps are not designed to replace headers or support bars. Easy to install with nylon-tipped, hexagonal-engaging screws. No drilling of glass is required, let alone special maintenance, as the clamps are made of quality solid brass.

Important information

For safety purposes, use tempered glass.

Always set the product in a suitable material.
Never exceed the load or maximum size recommended by the manufacturer.
Never use a spray lubricant on this product.
Maintenance: clean with a soft cloth and non-abrasive soap or ammonia.
This illustration is provided for visual reference only. Actual product may differ from the illustration. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always use the instructions inside the package.

Drawings and technical documents contain examples of hardware from different manufacturers. The customer may in no case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project. Installation must be done by qualified personnell. Always make sure that the product is properly installed using suitable fixings to the support material. Never exceed the load or maximum size recommended by the manufacturer. Never use a spray lubricant on this product.

Resources

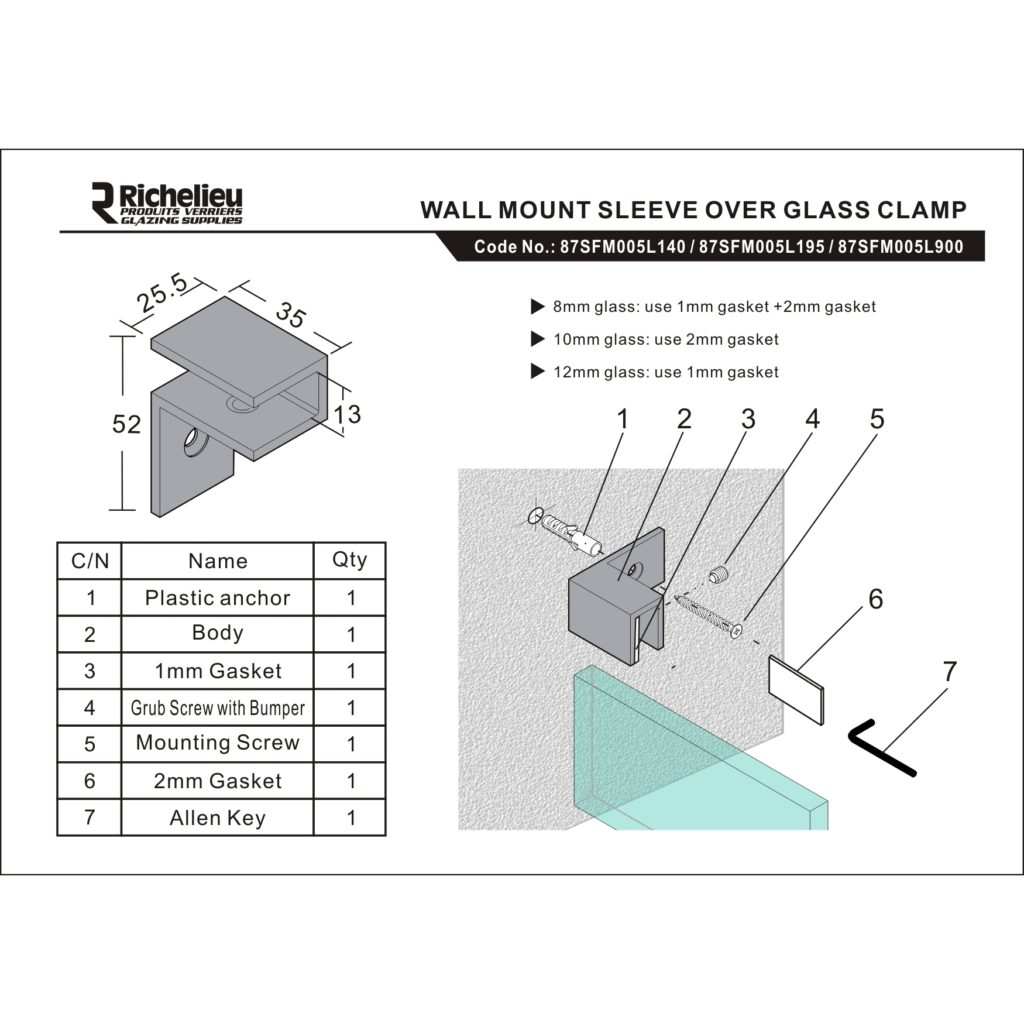

• Line art
• Line art
