Richelieu 87SFM005R140 Wall Mount Glass Clamp - Sleeve Over Design

Richelieu 87SFM005R140 Wall Mount "Sleeve Over" Glass Clamp delivers robust support for your glass installations while minimizing shear forces. Crafted from high-quality solid brass, this clamp combines durability with a sleek chrome finish, making it an ideal choice for modern environments. Designed for fixed screens, corner showers, neo-angle showers, and doors, it accommodates glass thicknesses between 5/16 to 15/32 inches, ensuring a secure fit. Installation is straightforward thanks to the included nylon-tipped, hexagonal-engaging screws, which eliminate the need for drilling into the glass. This user-friendly feature allows for a quick setup without compromising the integrity of the glass. The clamp's dimensions-1 inch in height, 1 3/8 inches in length, and 2 1/16 inches in width-make it a versatile option for various applications. For safety, it’s crucial to use tempered glass and adhere to the manufacturer's load specifications. Cleaning is simple; just use a soft cloth with non-abrasive soap or ammonia. Always follow installation instructions and use suitable fixings to ensure a secure attachment. With Richelieu, you can trust you're using a product designed for reliability and style in any architectural project.

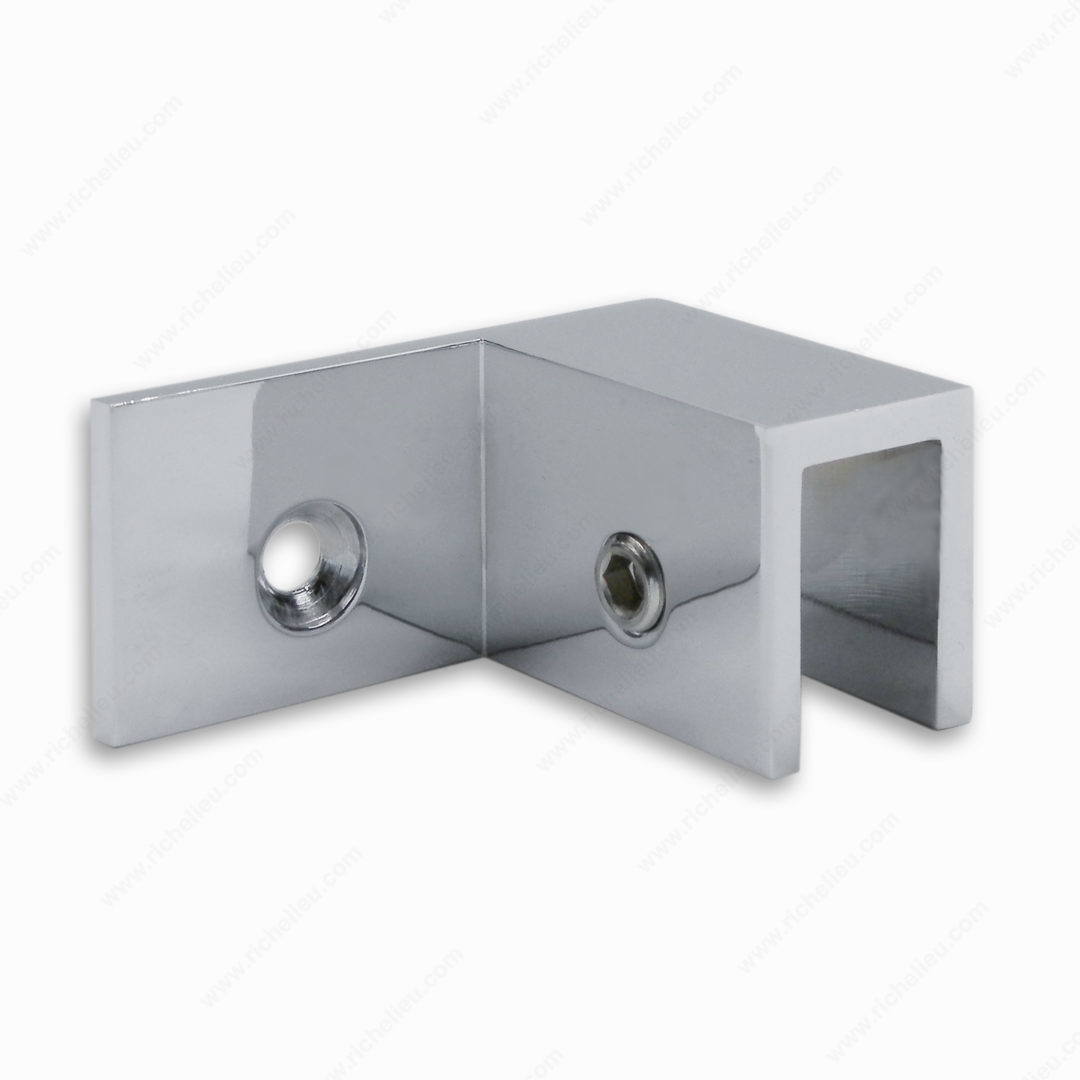

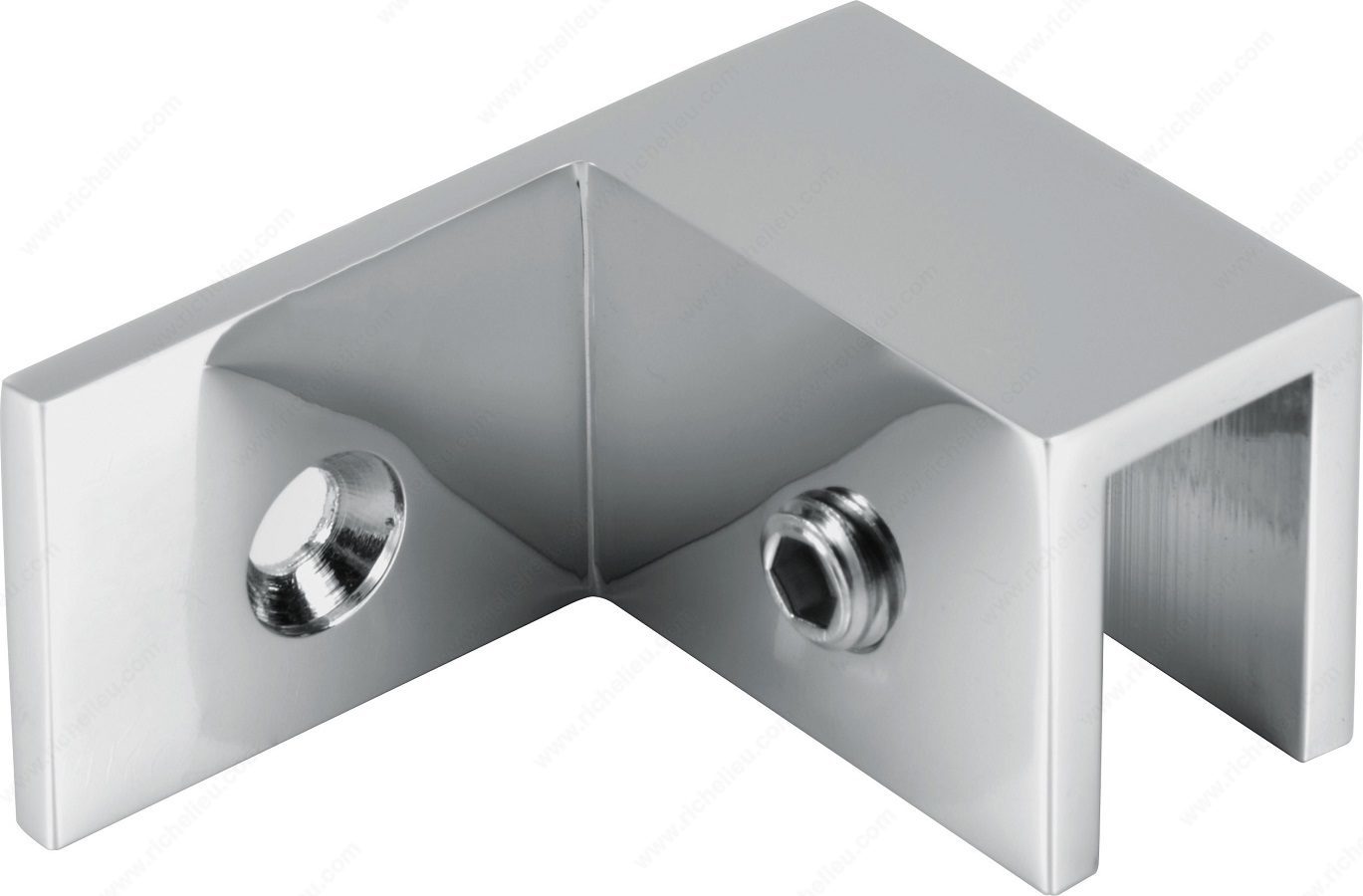

Wall Mount "Sleeve Over" Glass Clamp

Wall-mounted clamps help reduce shear forces on glass panels. These clamps are not designed to replace headers or support bars. Easy to install with nylon-tipped, hexagonal-engaging screws. No drilling of glass is required, let alone special maintenance, as the clamps are made of quality solid brass.

Important information

For safety purposes, use tempered glass.

Always set the product in a suitable material.
Never exceed the load or maximum size recommended by the manufacturer.
Never use a spray lubricant on this product.
Maintenance: clean with a soft cloth and non-abrasive soap or ammonia.
This illustration is provided for visual reference only. Actual product may differ from the illustration. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always use the instructions inside the package.

Drawings and technical documents contain examples of hardware from different manufacturers. The customer may in no case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project. Installation must be done by qualified personnell. Always make sure that the product is properly installed using suitable fixings to the support material. Never exceed the load or maximum size recommended by the manufacturer. Never use a spray lubricant on this product.
