Richelieu 87SFM005R900 Wall Mount Glass Clamp - Sleeve Over Design

Richelieu 87SFM005R900 Wall Mount Glass Clamp - Sleeve Over Design

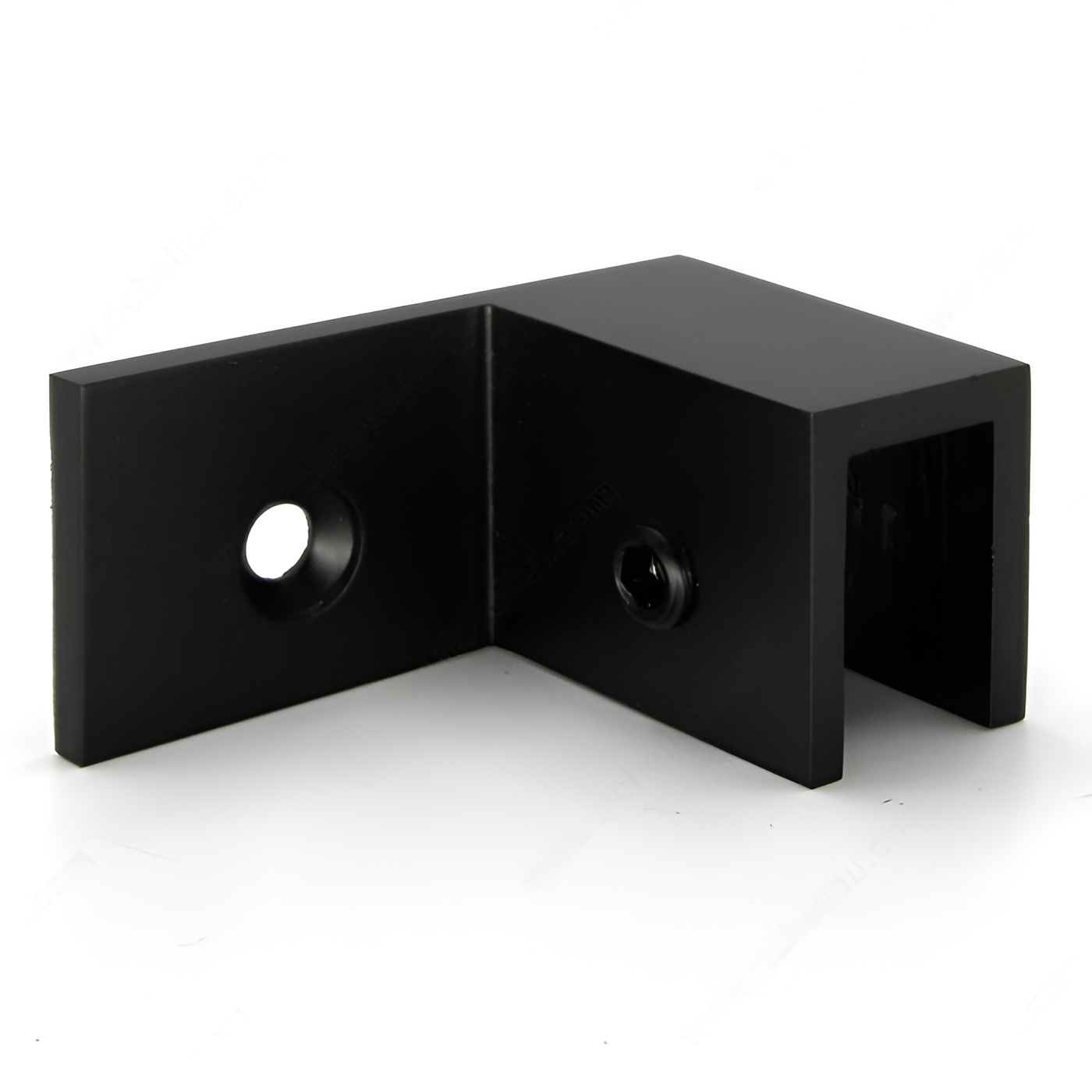

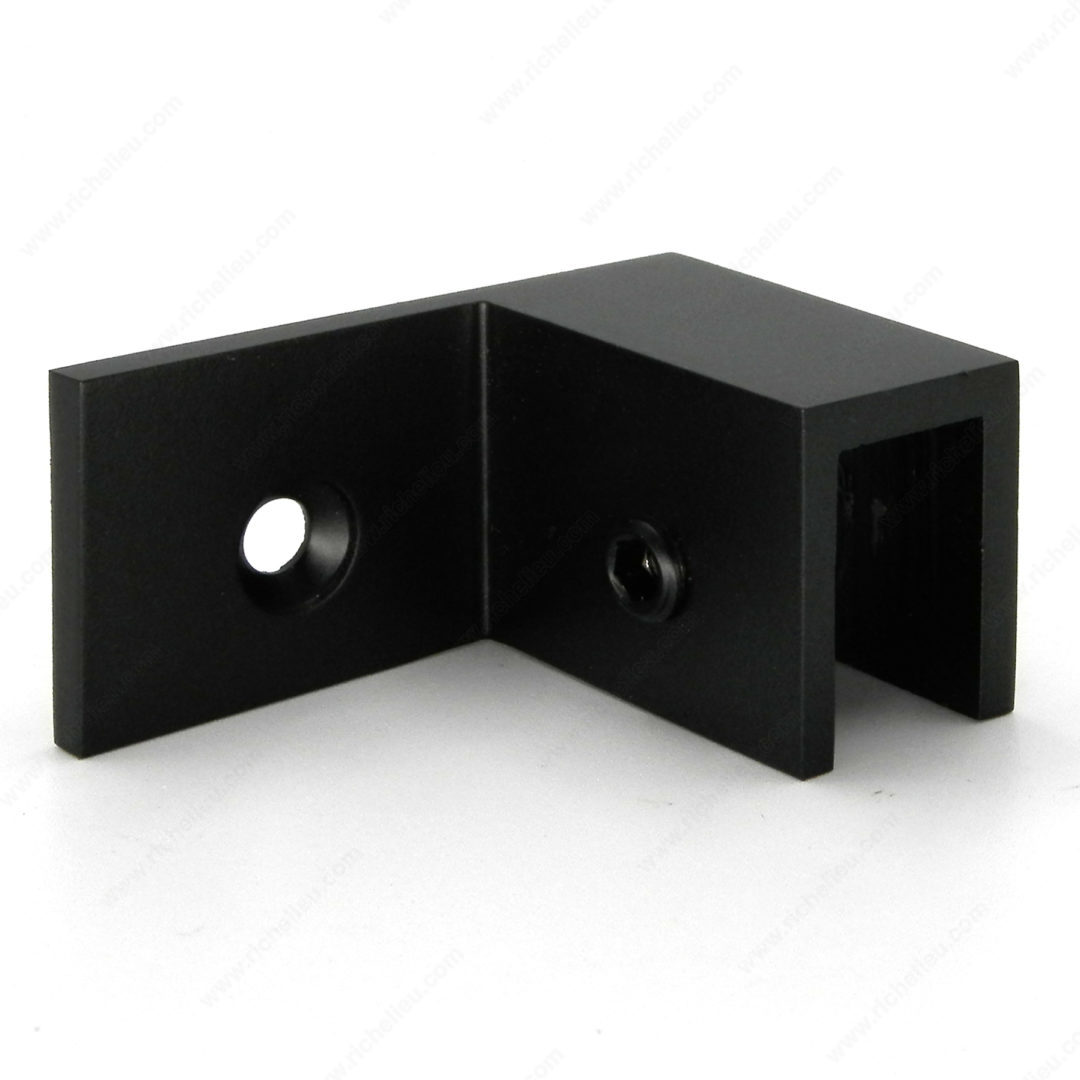

Richelieu 87SFM005R900 Wall Mount "Sleeve Over" Glass Clamp is designed to enhance the stability of glass panels while reducing shear forces. Ideal for fixed screens, corner showers, neo-angle showers, and doors, this clamp is a vital addition to any bathroom or architectural project. Constructed from high-quality solid brass, it not only ensures durability but also features a sleek matte black finish that complements modern aesthetics. With dimensions of 1 3/8 inches in length, 2 1/16 inches in width, and a height of 1 inch, this clamp is compatible with glass thicknesses ranging from 5/16 to 15/32 inches. The installation process is straightforward, utilizing nylon-tipped, hexagonal-engaging screws that eliminate the need for drilling into the glass, ensuring a seamless setup. For safety, it's essential to use tempered glass and adhere to the manufacturer's load and size recommendations. Maintenance is effortless, requiring only a soft cloth and non-abrasive soap or ammonia for cleaning. This right-handed, square-style clamp is a reliable choice for maintaining the integrity of your glass installations. Always follow the provided installation instructions for optimal results.

Wall Mount "Sleeve Over" Glass Clamp

Wall-mounted clamps help reduce shear forces on glass panels. These clamps are not designed to replace headers or support bars. Easy to install with nylon-tipped, hexagonal-engaging screws. No drilling of glass is required, let alone special maintenance, as the clamps are made of quality solid brass.

Important information

For safety purposes, use tempered glass.

Always set the product in a suitable material.
Never exceed the load or maximum size recommended by the manufacturer.
Never use a spray lubricant on this product.
Maintenance: clean with a soft cloth and non-abrasive soap or ammonia.
This illustration is provided for visual reference only. Actual product may differ from the illustration. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always use the instructions inside the package.

Drawings and technical documents contain examples of hardware from different manufacturers. The customer may in no case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project. Installation must be done by qualified personnell. Always make sure that the product is properly installed using suitable fixings to the support material. Never exceed the load or maximum size recommended by the manufacturer. Never use a spray lubricant on this product.

Resources

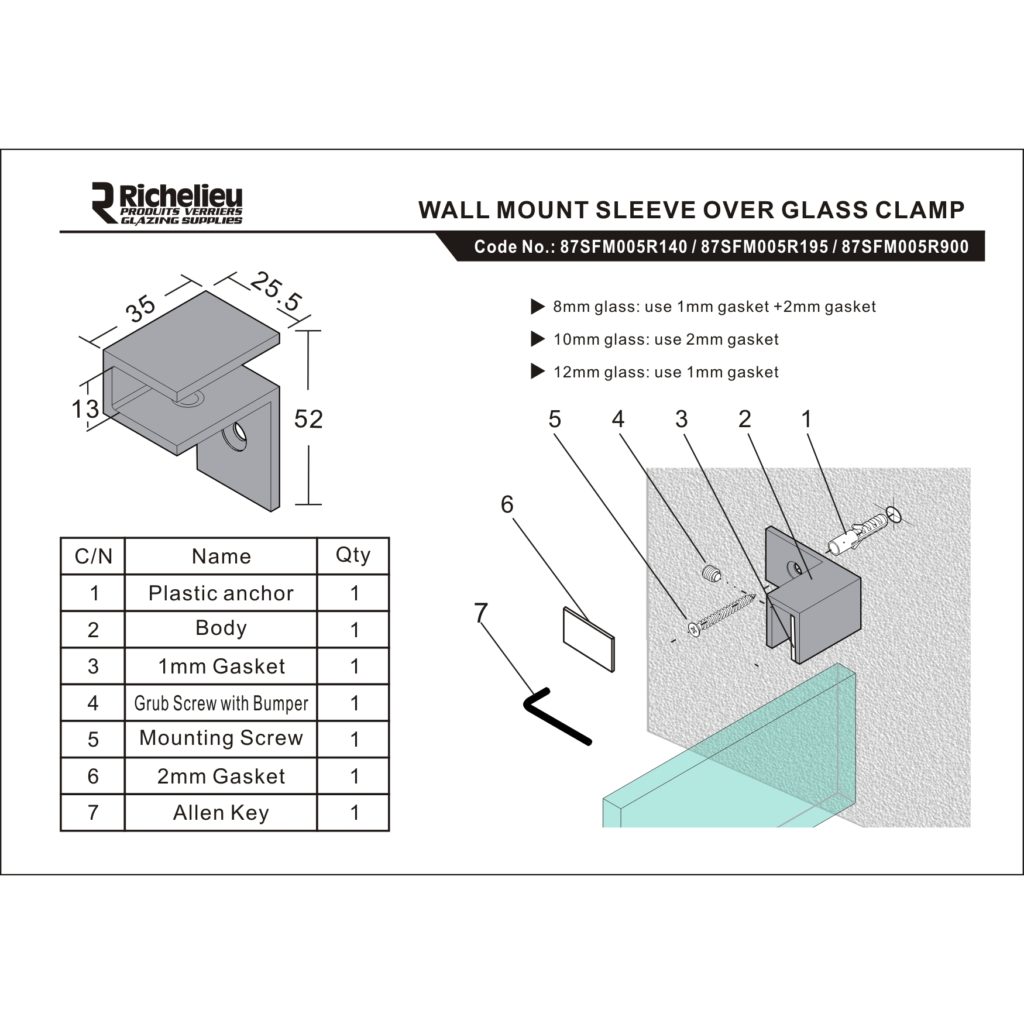

• Line art
• Line art
