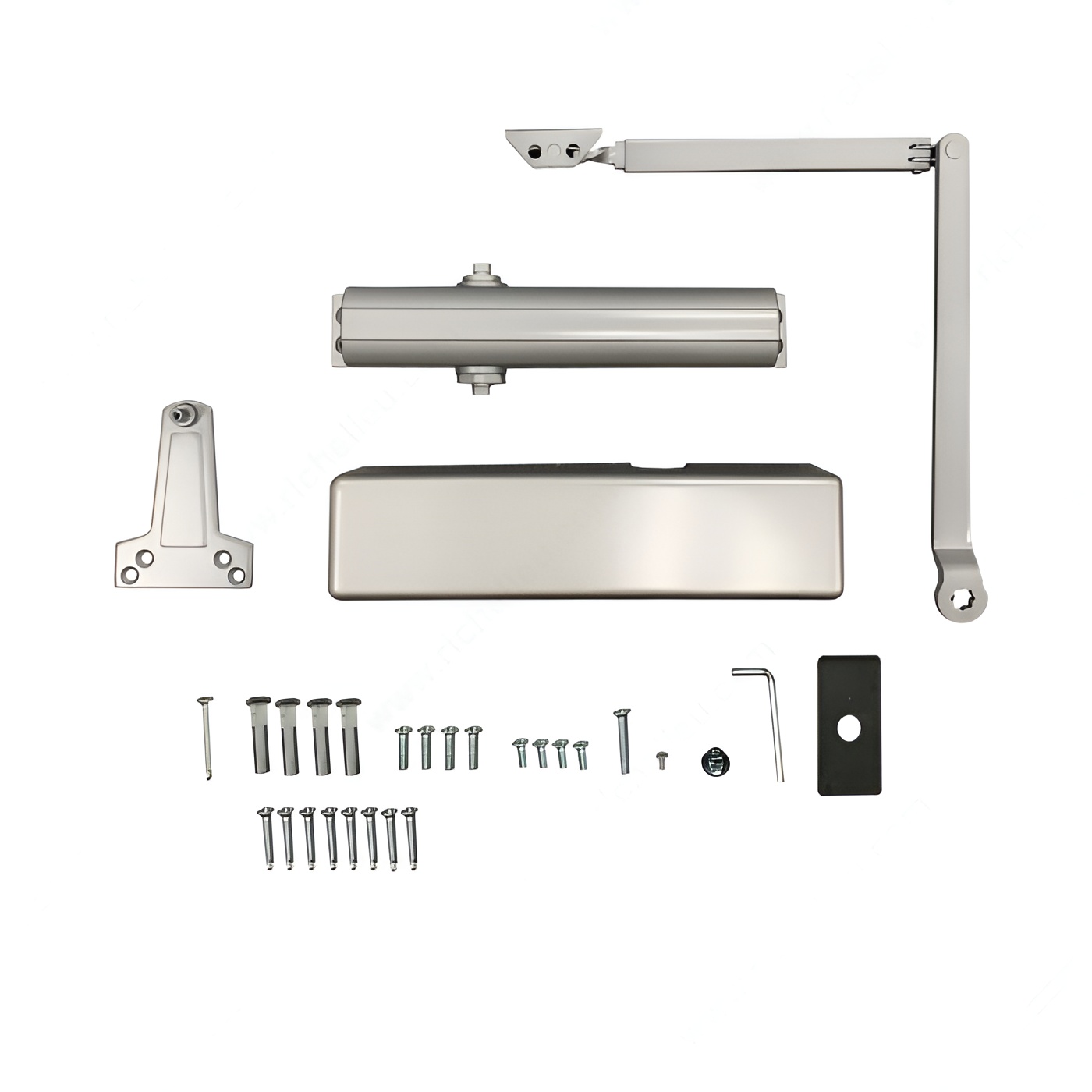

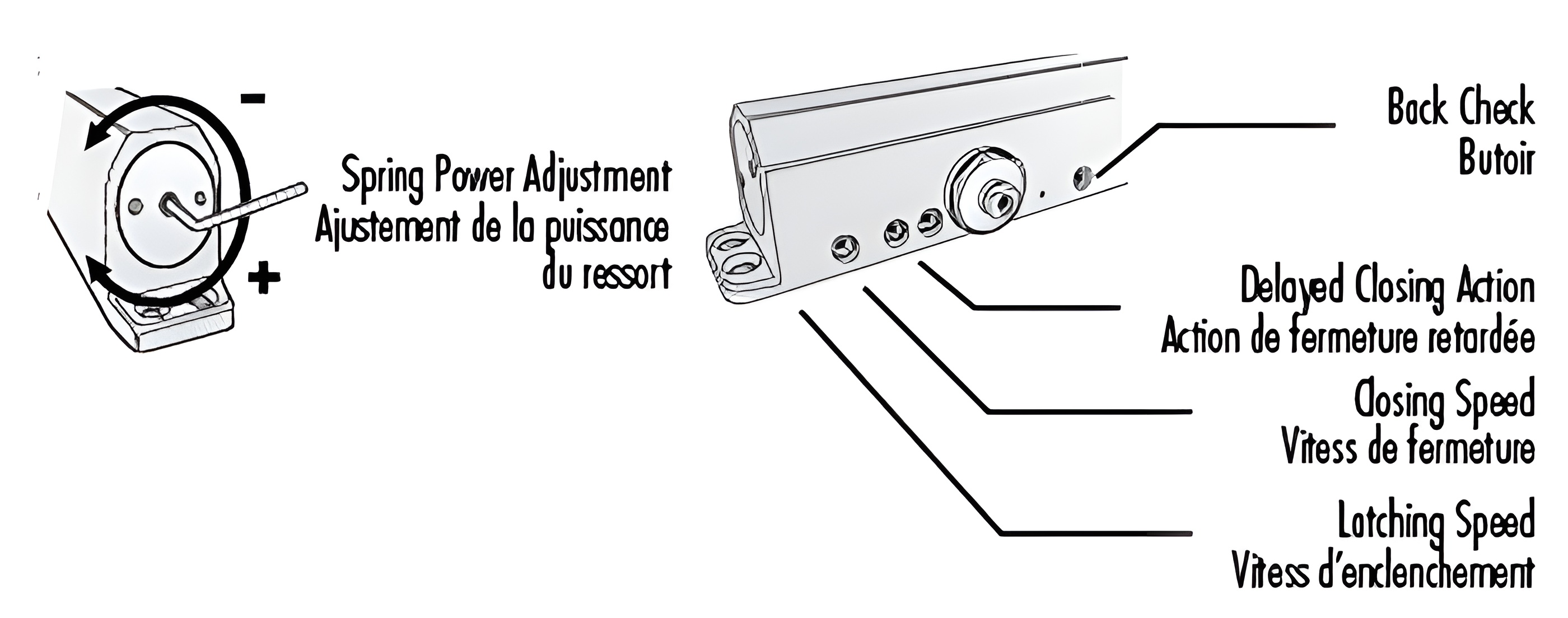

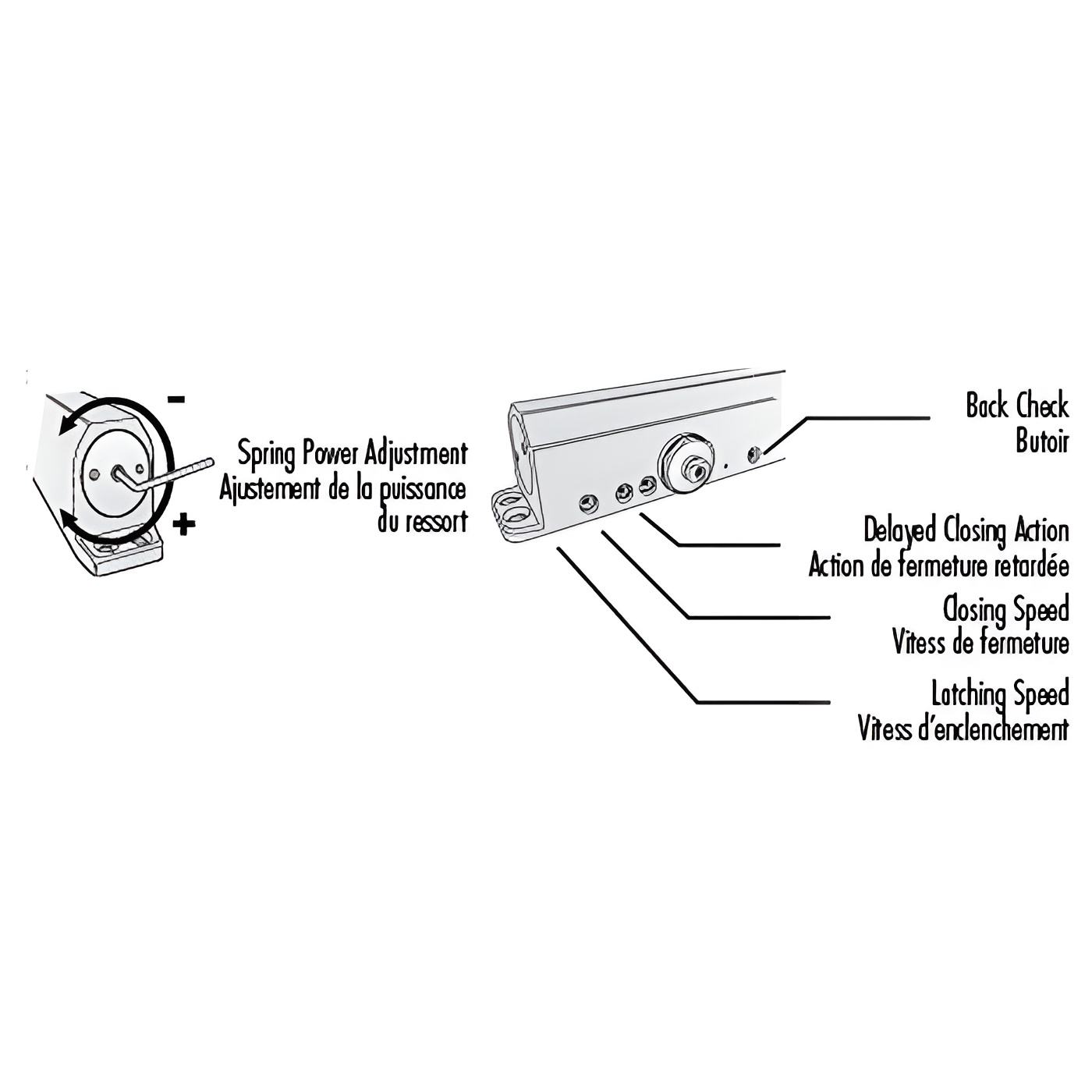

Richelieu 9016AL 9016 Series Adjustable Power Door Closer is designed to provide superior performance and reliability for both residential and commercial applications. This versatile door closer features adjustable latching and closing speeds, ensuring smooth operation tailored to your specific needs. Compatible with both left-hand and right-hand doors, it accommodates a maximum opening angle of 180°, making it an ideal choice for high-traffic areas. Constructed with a precision cast aluminum alloy housing, the 9016AL is built for durability. Its advanced rack and pinion mechanism, combined with non-critical thermostatic valves, guarantees consistent performance in various temperature conditions. The high-quality hydraulic fluid used is non-gumming and non-freezing, further enhancing its reliability. This door closer is available in a sleek satin aluminum finish and supports a weight capacity ranging from 33.1 to 331 lbs, making it suitable for a wide array of door types. It meets UL10C fire-rating standards with a 3-hour rating and is compliant with ANSI A156.4 and ADA specifications. With a ten-year limited warranty on finishes, you can trust in its longevity. The tri-pack installation supports regular, parallel arm, and top jamb configurations, providing flexibility for any project.
9016 Series Adjustable Power Door Closer
Characteristic: Non Hold-Open
Collection: Door Closers
Color/ Finish: Satin Aluminum
Depth: 2 23/64 in
Fire- Rating: 3 Hour Fire-Rating, UL10C
Force #: no. 2 - no. 6
Grade: 1
Guarantee: 10-year guarantee
Handing Position / Opening Side: Reversible for Left or Right
Height: 2 in
Level: 1
Manufacturing Material: Aluminum
Material: Aluminum
Product #: 9016AL
Product number: 9016AL
Product №: 9016AL
Screw: Mounting Hardware Included.
Standards and Certifications: Not Certified, UL10C, ANSI A156.4, ADA
Unit 1: case - 6
Usage: Commercial
Weight Capacity: 45 to 150 kg
Width: 11 27/32 in
