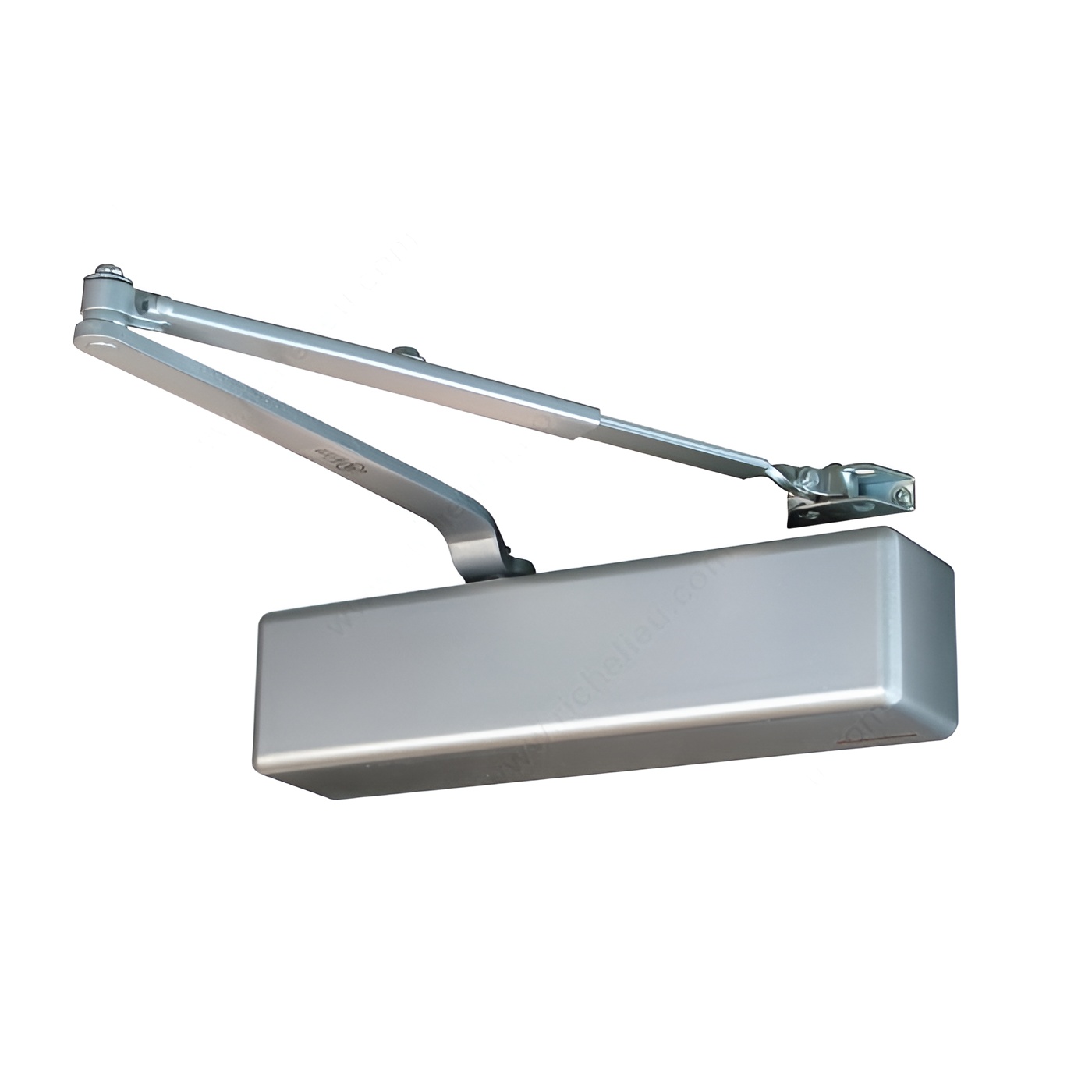

Richelieu 9016CSHAL 9016 Series Adjustable Power Door Closer offers a robust and versatile solution for both commercial and residential applications. Designed with adjustable latching and closing speeds, this door closer accommodates various user needs while ensuring smooth operation. Its compatibility with both left-hand and right-hand doors allows for flexible installation, making it suitable for a wide range of settings. The door closer features a maximum opening angle of 180°, providing easy access without compromising safety. The tri-pack installation design supports regular, parallel arm, and top jamb configurations, enhancing installation versatility. Crafted from precision cast aluminum alloy, the housing is not only durable but also lightweight, ensuring long-lasting performance. Equipped with a rack and pinion mechanism and non-critical thermostatic valves, the Richelieu 9016CSHAL utilizes high-quality hydraulic fluid that is non-gumming and non-freezing, ensuring reliable functionality even in varying temperatures. It boasts a 3-hour fire rating (UL10C), making it a reliable choice for fire-rated doors. With a weight capacity ranging from 33.1 to 331 lbs and a 10-year limited warranty on finishes, this door closer exemplifies quality and dependability in every application.
9016 Series Adjustable Power Door Closer
Characteristic: Hold-Open / Door Stop
Collection: Door Closers
Color/ Finish: Satin Aluminum
Depth: 2 23/64 in
Fire- Rating: 3 Hour Fire-Rating, UL10C
Force #: no. 2 - no. 6
Grade: 1
Guarantee: 10-year guarantee
Handing Position / Opening Side: Reversible for Left or Right
Height: 2 in
Level: 1
Manufacturing Material: Aluminum
Material: Aluminum
Product #: 9016CSHAL
Product number: 9016CSHAL
Product №: 9016CSHAL

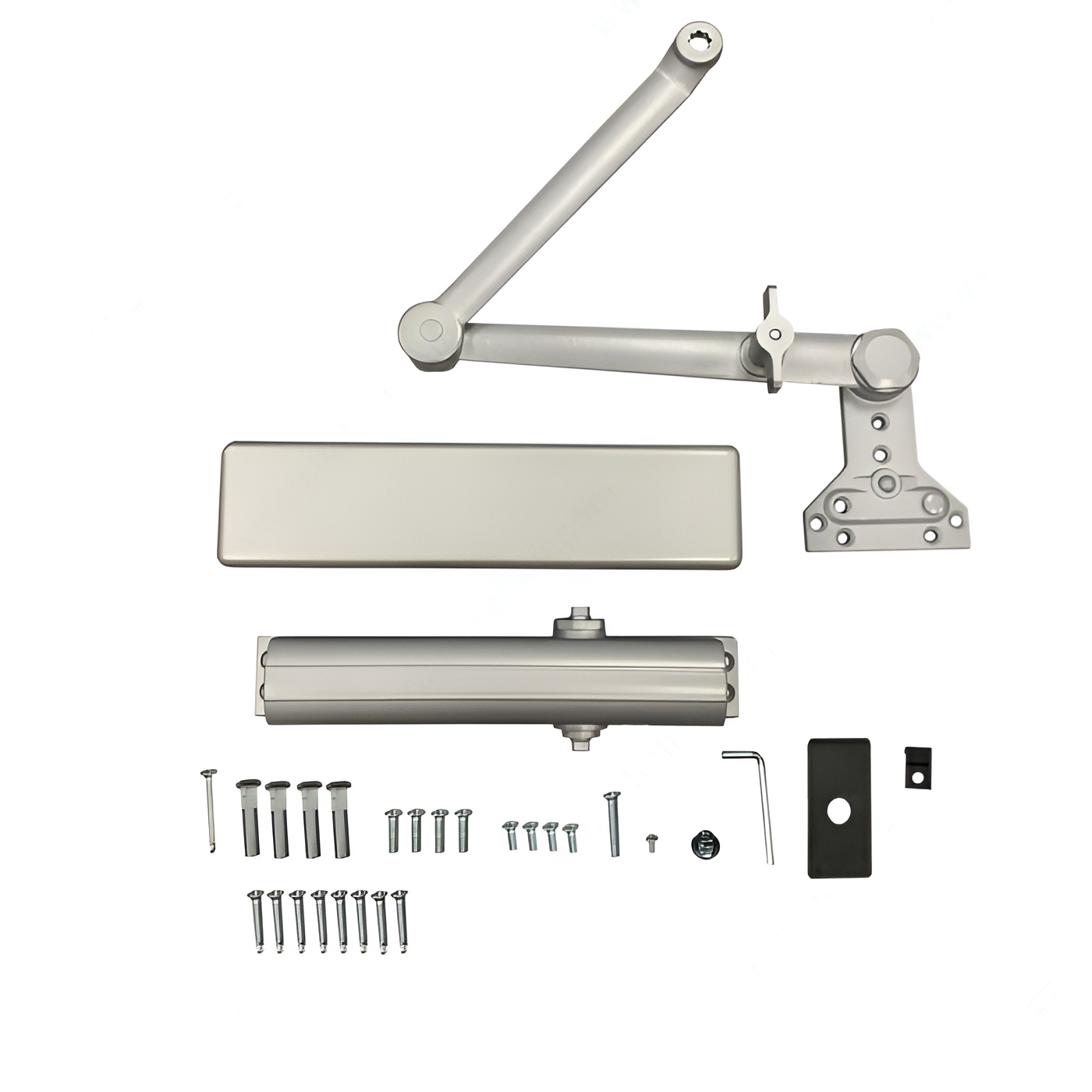

Screw: Mounting Hardware Included.
Standards and Certifications: Not Certified, UL10C, ANSI A156.4, ADA
Unit 1: case - 4
Usage: Commercial
Weight Capacity: 45 to 150 kg
Width: 11 27/32 in
