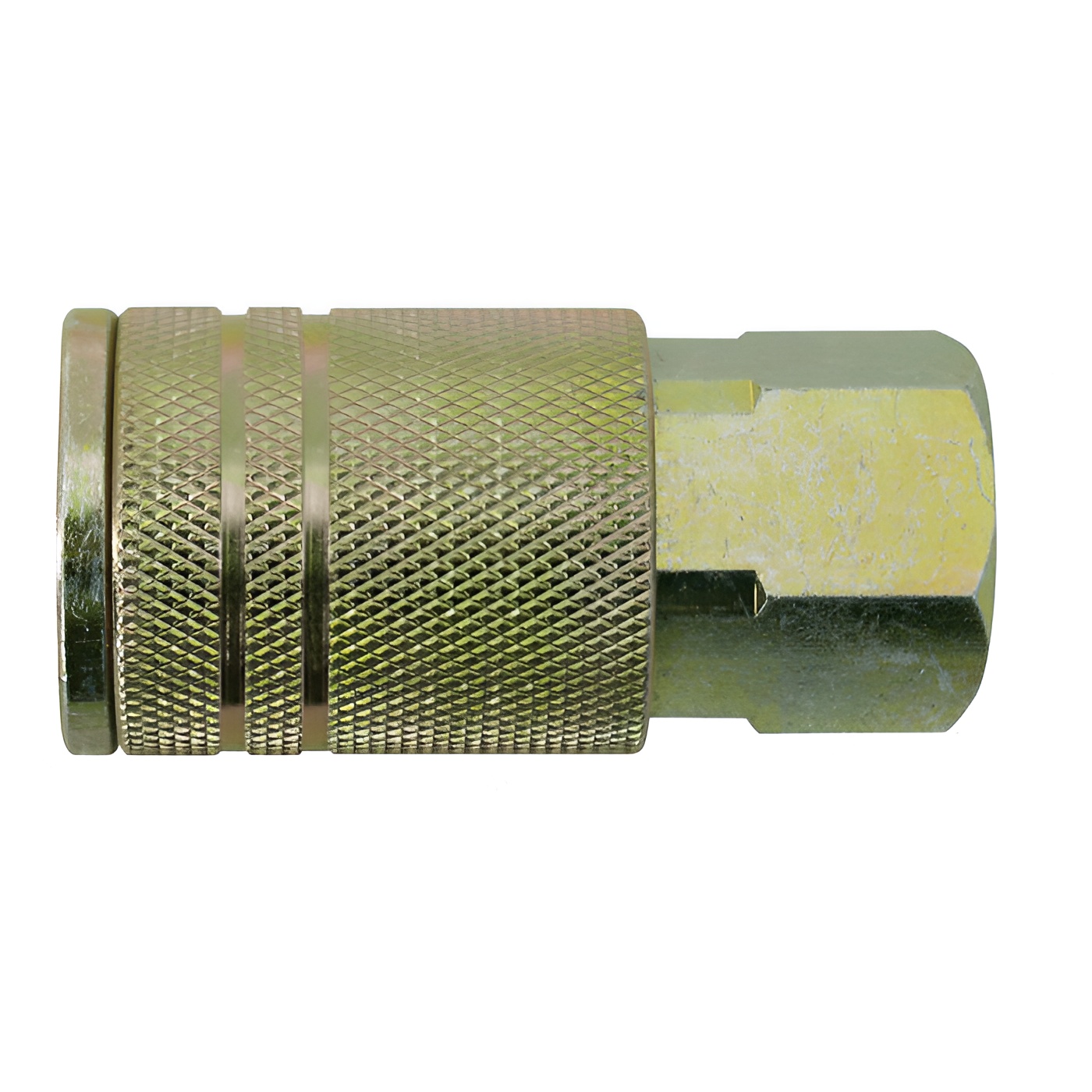

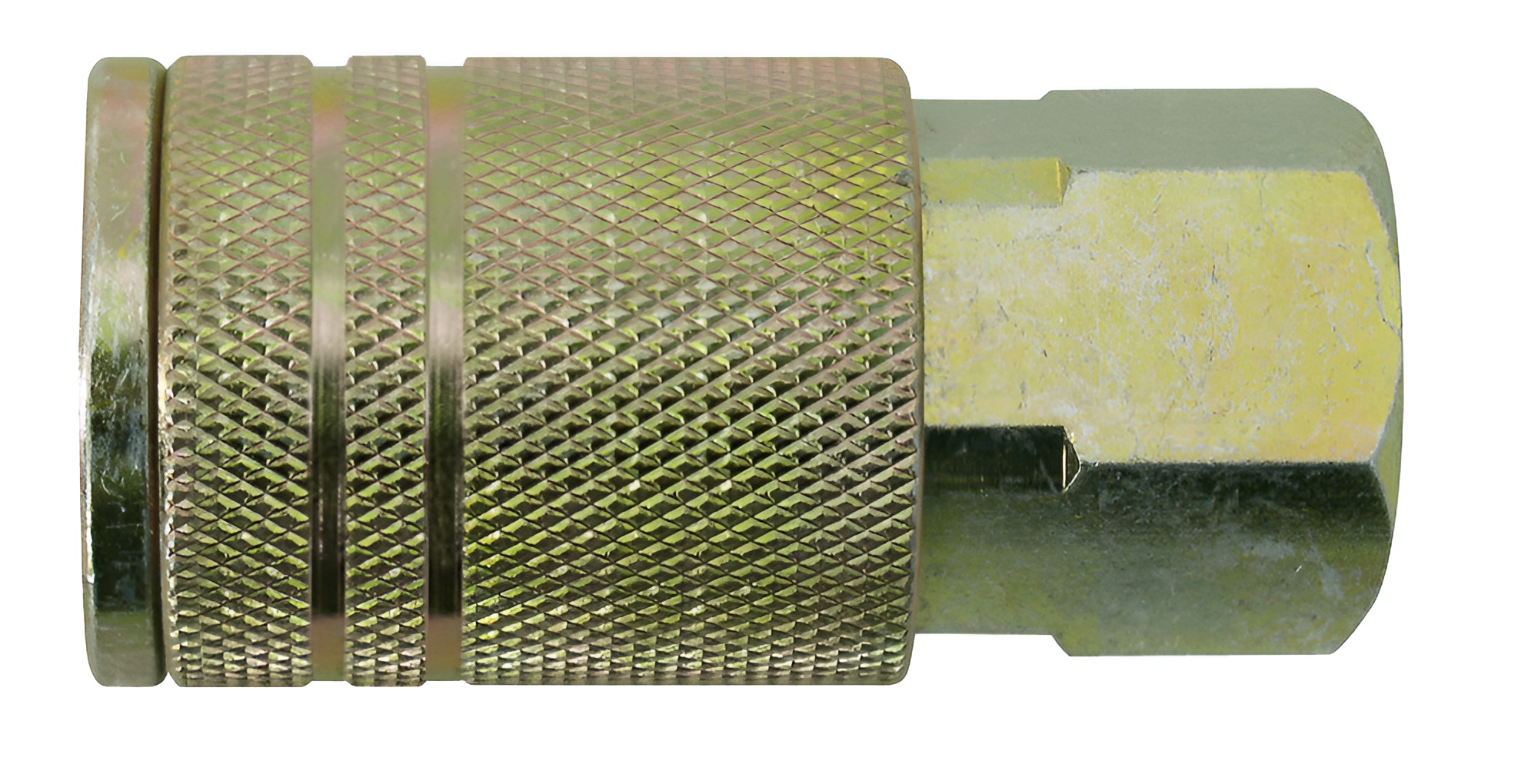

Richelieu 913520842 Maxquick 1/4" Industrial FittingRichelieu 913520842 Maxquick Industrial 1/4" Fitting offers a reliable solution for your industrial connection needs. Designed to accept 1/4" industrial-type plugs, this fitting features a compact and economical design that maximizes efficiency without sacrificing quality. The sleeve must be manually retracted for connecting or disconnecting the plug, ensuring a secure operation. Equipped with a robust 4-ball locking mechanism, this fitting guarantees a tight and long-lasting connection, while the sleeve guard prevents accidental disconnection during use. The deep knurled socket sleeve enhances grip, allowing for easy handling even in challenging environments. With a maximum working pressure of 250 PSI and a temperature range of -40 °F to 225 °F (-40 °C to 107 °C), the Richelieu Maxquick fitting is suitable for various applications. It delivers an air flow of 24 SCFM at a 100 PSIG inlet with a 10 PSIG pressure drop, making it an efficient choice for professionals. Constructed from zinc-plated steel, with nickel-plated steel components and Buna-N/Nitrile seals, this fitting offers durability and resistance to wear. Trust the Richelieu 913520842 Maxquick Industrial fitting for your next project, ensuring dependable performance and longevity.
Maxquick Industrial 1/4" Fitting
- Accepts 1/4" industrial-type plugs
- Sleeve must be manually retracted to connect or disconnect the plug
- Compact and economical design
- 4-ball locking mechanism for a tight and long-lasting connection
- Sleeve guard to prevent accidental disconnection
- Deep knurled socket sleeve for positive gripping
- Maximum working pressure: 250 PSI
- Temperature Range: -40 °F to 225 °F (-40 °C to 107 °C)
- Air Flow: 24 SCFM at 100 PSIG inlet with 10 PSIG pressure drop
Construction and materials:
- Socket body: Zinc-plated steel
- Backnut: Zinc-plated Steel
- Sleeve: Zinc-plated Steel
- Valve: Zinc-plated Steel
- Valve spring: Nickel-plated Steel
- Locking balls: Nickel-plated Steel
- Seals: Buna-N/Nitrile
Attributes
Air Flow ( SCFM): 24
Body: 1/4"
Brand: Topring
Plug: Female
Product #: 913520842
Product number: 913520842
Product №: 913520842
Thread: 1/4"
Type: Industrial
Unit: Blister
Unit 1: carton - 8
Unit 2: carton - 8
