Richelieu 91376145 3/4" Overlay Institutional Hinge - Series 370 is engineered to provide dependable support and smooth operation for institutional cabinetry. Designed with a 32 mm center and a 37 mm setback, this hinge is ideal for a variety of applications where durability is paramount. The hinge features a door overlay of 15/32 in and accommodates a door thickness of 13/16 in, ensuring a perfect fit for your projects. Crafted from high-quality steel and finished in sleek chrome, the hinge not only delivers strength but also adds a touch of elegance to any installation. The hinge opens to an impressive angle of +270°, allowing for maximum accessibility while maintaining a 3/4 in offset. Each unit is packaged individually for convenience, and installation is straightforward with a screw-on fixing type, although screws are not included (requires #8 screws). Complying with ANSI/BHMA 156.9 Grade 1 standards, this institutional hinge guarantees reliability and longevity. With its robust design and precise specifications, the Richelieu 91376145 hinge is an excellent choice for professionals seeking high-performance hardware for institutional settings.

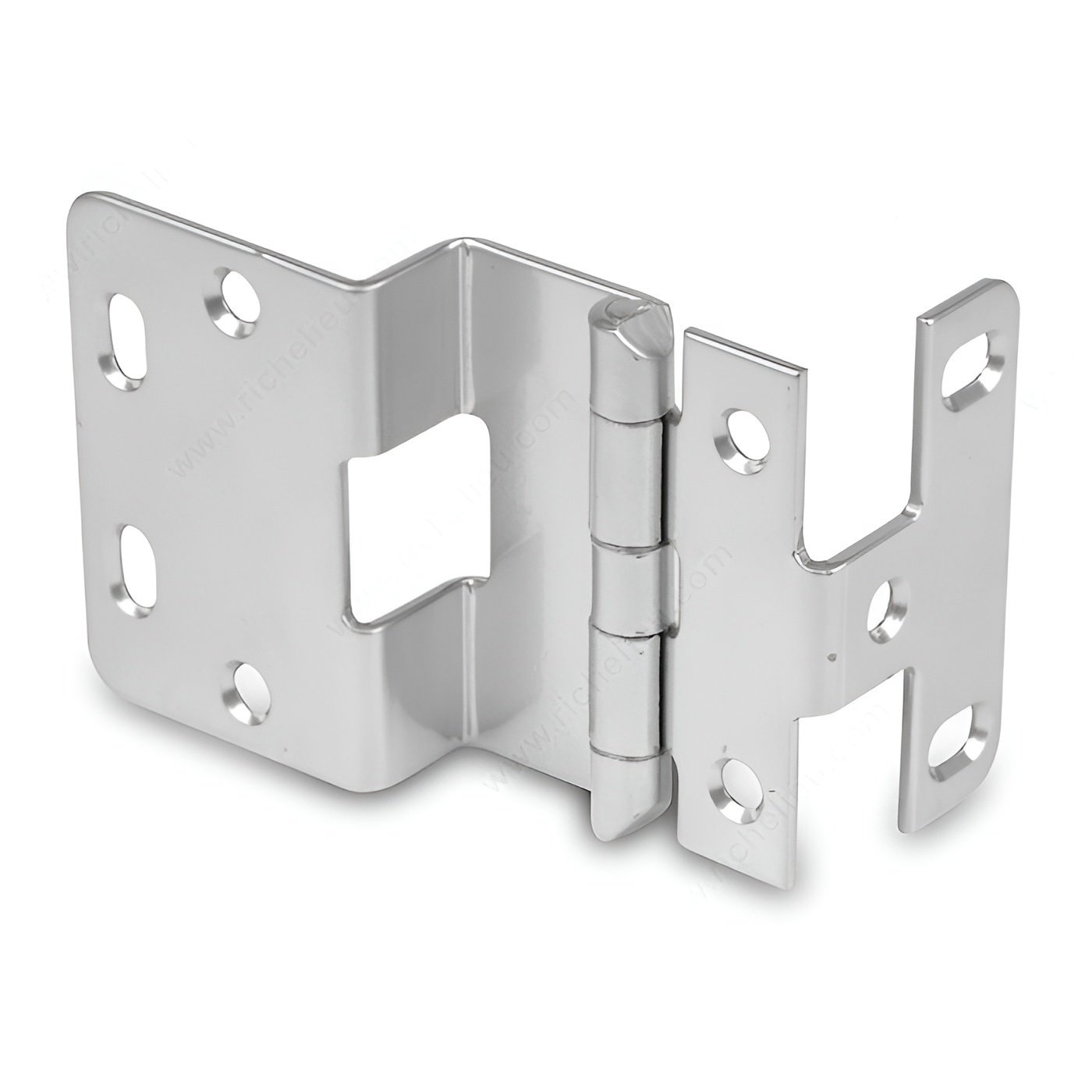

Five Knuckles Institutional Hinge 376 Series - 13/16" x 3/4"
Brand: RPC
Color/ Finish: Satin Chrome
Door Overlay: 15/32 in
Door Thickness: 13/16 in
Door overlay: 15/32 in
Door thickness: 13/16 in
Finish: Chrome
Fixing Type: Screw-On
Gauge: 2.4 mm
Height: 2 3/4 in
Hinge Opening Angle: +270°
Load Capacity: 60 lb
Material: Steel
Offset: 3/4 in
Overlay: 23/32 in
Packaging format: Per unit
Product #: 91376145
Product number: 91376145
Product №: 91376145
Screw/ Nail: #8, Flat Head (not included)
Side panel thickness: 3/4 in
Standards and Certifications: ANSI/BHMA 156.9 Grade 1
Type: Institutional Hinge
Unit 1: carton - 100
