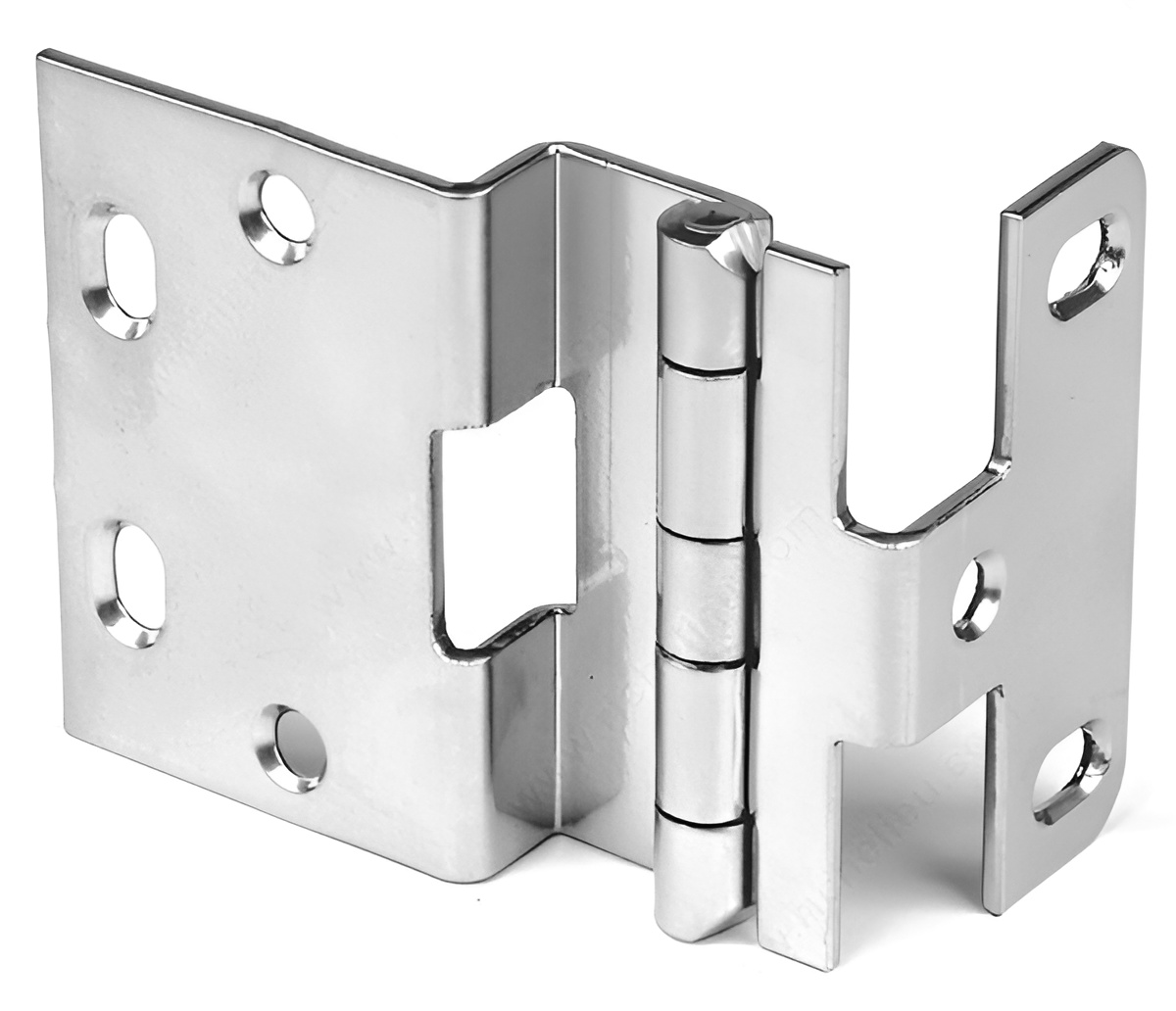

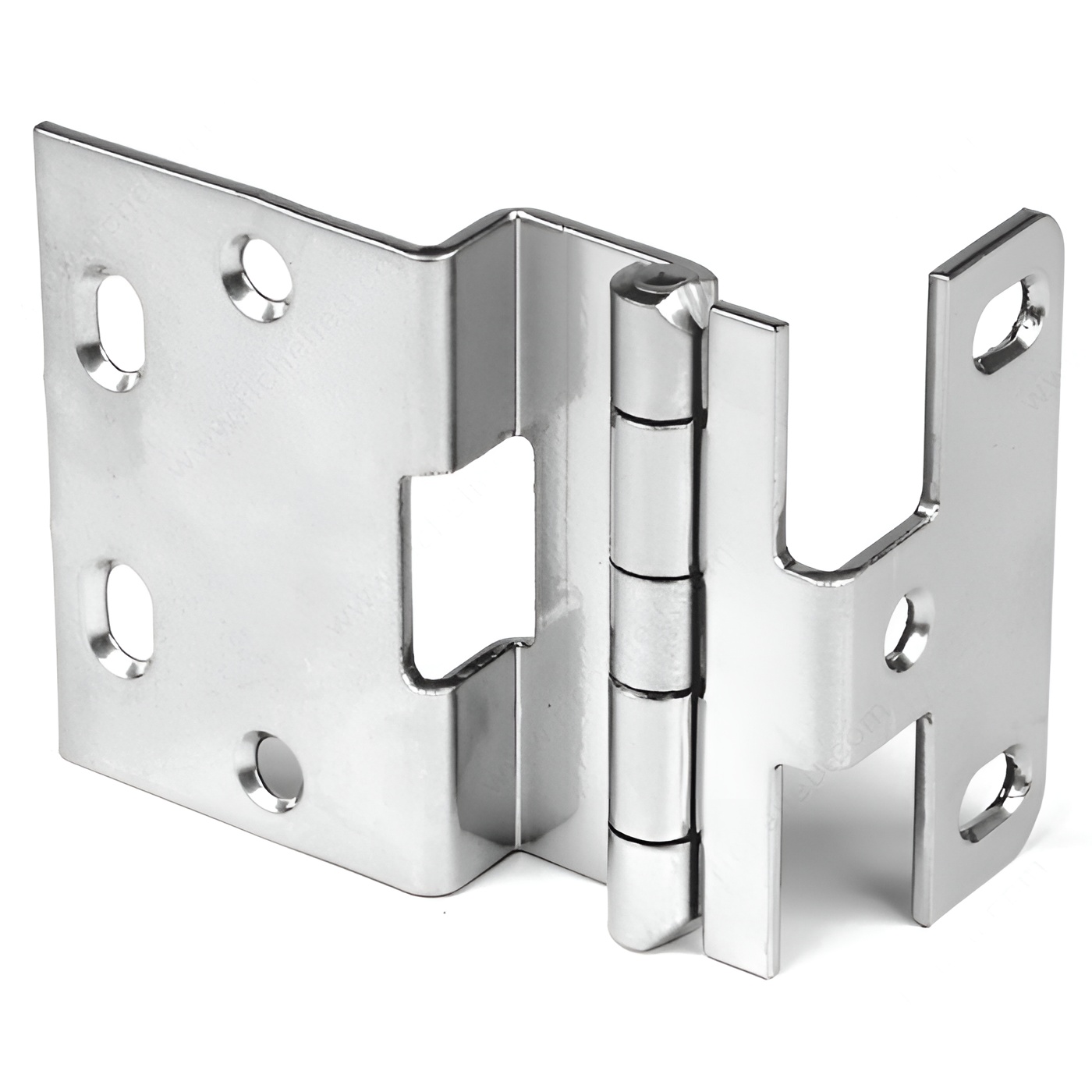

Richelieu 918314170 1/2" Overlay Institutional HingeRichelieu 918314170 1/2" Overlay Institutional Hinge is designed for seamless integration into casework, cabinets, wardrobes, and similar furniture, featuring hospital tips for enhanced safety and functionality. This hinge boasts a generous 270° opening angle, allowing for easy access to your cabinetry while its five smooth machine-knuckled edges ensure durability and effortless operation. Crafted from high-quality Stainless Steel 304, the hinge not only offers a sleek brushed finish that complements modern design aesthetics but also meets rigorous standards with ANSI/BHMA 156.9 Grade 1 certification. The hinge is designed for a door thickness of 1/2 inch and features a 9/32 inch overlay, making it a versatile choice for various applications. With a non-removable pin, security is prioritized, while the screw-on fixing type ensures straightforward installation. Included with the hinge are mounting screws for added convenience. The hinge is suitable for side panel thicknesses of 1/2 inch and is compatible with #8 screws (not included). Elevate your furniture's functionality and aesthetic appeal with the Richelieu 918314170 Institutional Hinge, a perfect blend of innovation and reliability for building professionals and discerning homeowners alike.
Five Knuckles Institutional Hinge 8314 Series - 1/2" x 1/2"
The "Rockford Hinge" -- Five Knuckle Overlay Hinges
RPC hinges have been the industry standard for five-knuckle hinges for over 75 years!
Hospital tips, 2 3/4" (69.9 mm) height, 270° opening angle, drilled knuckle ID with Teflon-coated pins.
All mounting holes are countersunk for #8 flat head screws.
Important information
Side Panel: 1/2" (12.7 mm)
Door Thickness: 1/2" (12.7 mm)
Hinge Overlay: 1/2" (12.7 mm)
Door Overlay: 9/32" (7.1 mm)
Gauge: 3/32" (2.3 mm)
Hole Pattern: Commonly used with Phenolic Materials, 1 17/64" (32 mm) centers with 1 29/64" (37 mm) setback
Attributes
Brand: RPC
Color/ Finish: Stainless Steel
Door Overlay: 9/32 in
Door Thickness: 1/2 in
Door Type: Narrow Aluminum-Framed Door
Door overlay: 9/32 in
Door thickness: 1/2 in
Finish: Brushed Stainless Steel
Fixing Type: Screw-On
Gauge: 2.3 mm
Height: 2 3/4 in
Hinge Opening Angle: +270°
Knuckle: 2 3/4 in
Material: Stainless Steel
Offset: 1/2 in
Overlay: 1/2 in
Product #: 918314170
Product number: 918314170
Product №: 918314170
Screw/ Nail: #8 Screw
Side panel thickness: 1/2 in
Standards and Certifications: ANSI/BHMA 156.9 Grade 1
Type: Institutional Hinge
Width - Overall Dimensions: 1/2 in
