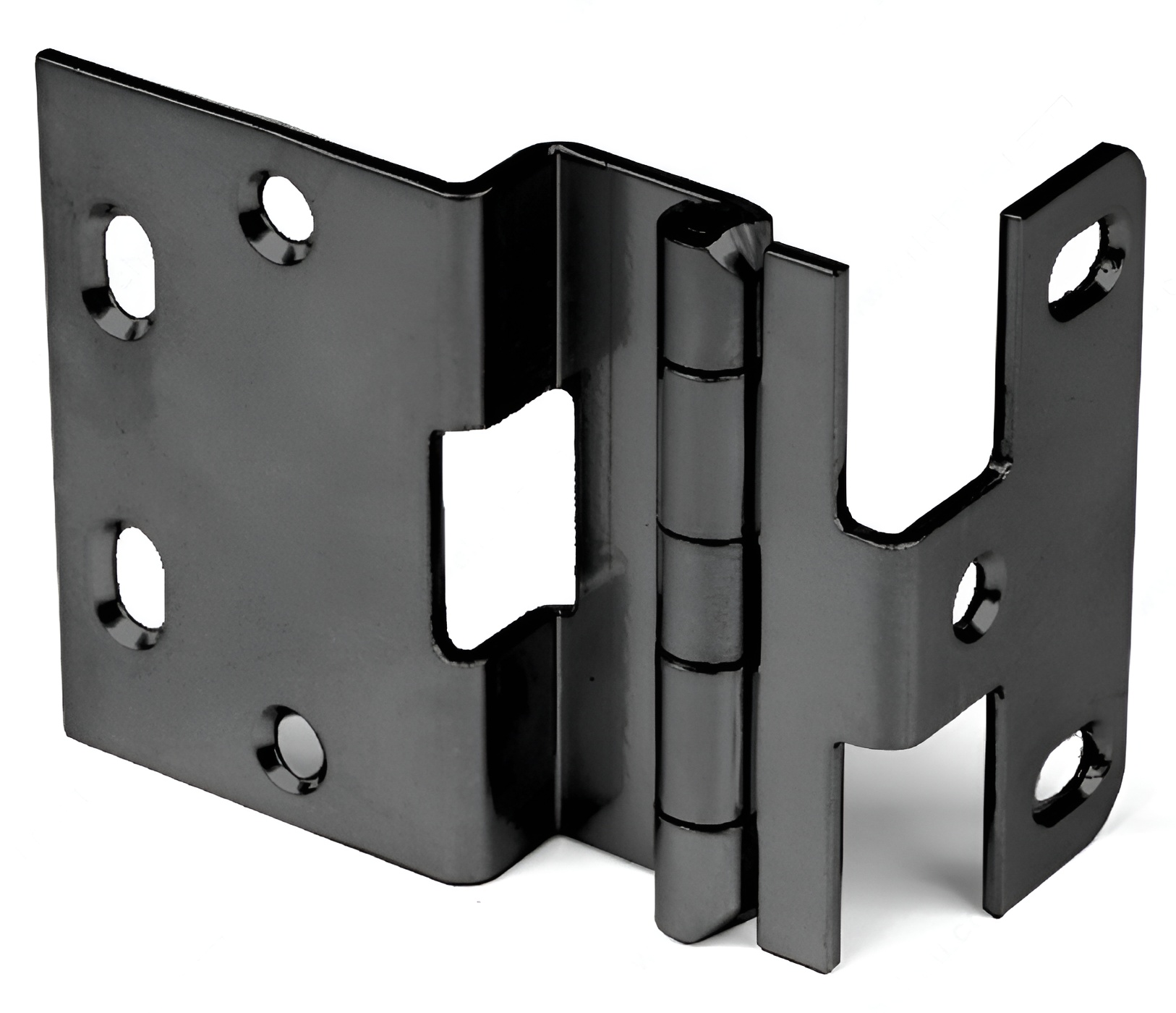

Richelieu 91831490 1/2" Overlay Institutional HingeRichelieu 91831490 1/2" Overlay Institutional Hinge offers a reliable solution for a variety of applications, including casework, cabinets, wardrobes, and similar furniture. Designed with hospital tips, this hinge ensures a clean and safe installation, making it ideal for institutional environments. The hinge boasts a generous 270° opening angle, providing easy access to your cabinets while featuring five smooth machine-knuckled edges for enhanced durability. Constructed from robust steel and finished in a sleek black, this hinge not only delivers strength but also complements modern cabinetry aesthetics. With an overlay of 1/2 inch and a door thickness of 1/2 inch, it seamlessly integrates into your design. The non-removable pin feature adds an extra layer of security, ensuring the hinge remains securely in place. Installation is straightforward, as the Richelieu 91831490 comes with mounting screws included, while it requires #8 screws (not included) for optimal stability. This product meets ANSI/BHMA 156.9 Grade 1 standards, assuring you of its quality and reliability. Enhance your cabinetry with this versatile and professional-grade hinge, designed to meet the demands of both building professionals and discerning homeowners.
Five Knuckles Institutional Hinge 8314 Series - 1/2" x 1/2"
The "Rockford Hinge" -- Five Knuckle Overlay Hinges
RPC hinges have been the industry standard for five-knuckle hinges for over 75 years!
Hospital tips, 2 3/4" (69.9 mm) height, 270° opening angle, drilled knuckle ID with Teflon-coated pins.
All mounting holes are countersunk for #8 flat head screws.
Important information
Side Panel: 1/2" (12.7 mm)
Door Thickness: 1/2" (12.7 mm)
Hinge Overlay: 1/2" (12.7 mm)
Door Overlay: 9/32" (7.1 mm)
Gauge: 3/32" (2.3 mm)
Hole Pattern: Commonly used with Phenolic Materials, 1 17/64" (32 mm) centers with 1 29/64" (37 mm) setback
Attributes
Brand: RPC
Color/ Finish: Black
Door Overlay: 9/32 in
Door Thickness: 1/2 in
Door Type: Narrow Aluminum-Framed Door
Door overlay: 9/32 in
Door thickness: 1/2 in
Finish: Black
Fixing Type: Screw-On
Gauge: 2.3 mm
Height: 2 3/4 in
Hinge Opening Angle: +270°
Knuckle: 2 3/4 in
Material: Stainless Steel
Offset: 1/2 in
Overlay: 1/2 in
Product #: 91831490
Product number: 91831490
Product №: 91831490
Screw/ Nail: #8 Screw
Side panel thickness: 1/2 in
Standards and Certifications: ANSI/BHMA 156.9 Grade 1
Type: Institutional Hinge
Width - Overall Dimensions: 1/2 in
