Richelieu AT00HD900 Atmos aiR SystemRichelieu AT00HD900 Atmos - aiR System is the innovative solution for modern cabinetry. This 107° ascending opening system is designed for strength and simplicity, eliminating the need for traditional hinges. Installation is straightforward-just screw it into your cabinet, allowing for a seamless integration into your design. Atmos is available in three sophisticated finishes: Black, Gray Anthracite, and Two-Toned White, making it easy to match with your drawer sides and kitchen accessories. The system caters to a range of applications, with three power factors-light, medium, and heavy charge-ensuring that it can accommodate doors from 7 7/8 to 19 5/8 inches in height and up to 47 1/4 inches in length. With its integrated soft-close mechanism, the Atmos system guarantees a smooth and gentle closure, while the adjustable closing power allows you to tailor the movement based on the weight and dimensions of your door. The stay-open feature provides convenience during use, making it ideal for various projects. Constructed from durable plastic and metal, the Atmos system meets KCMA standards for quality and reliability. Discover how Richelieu's Atmos can elevate your cabinetry with style and functionality.
Atmos - aiR System
Richelieu is launching aiR, its new line of opening systems!
Atmos is the very first series from this new line of opening systems.

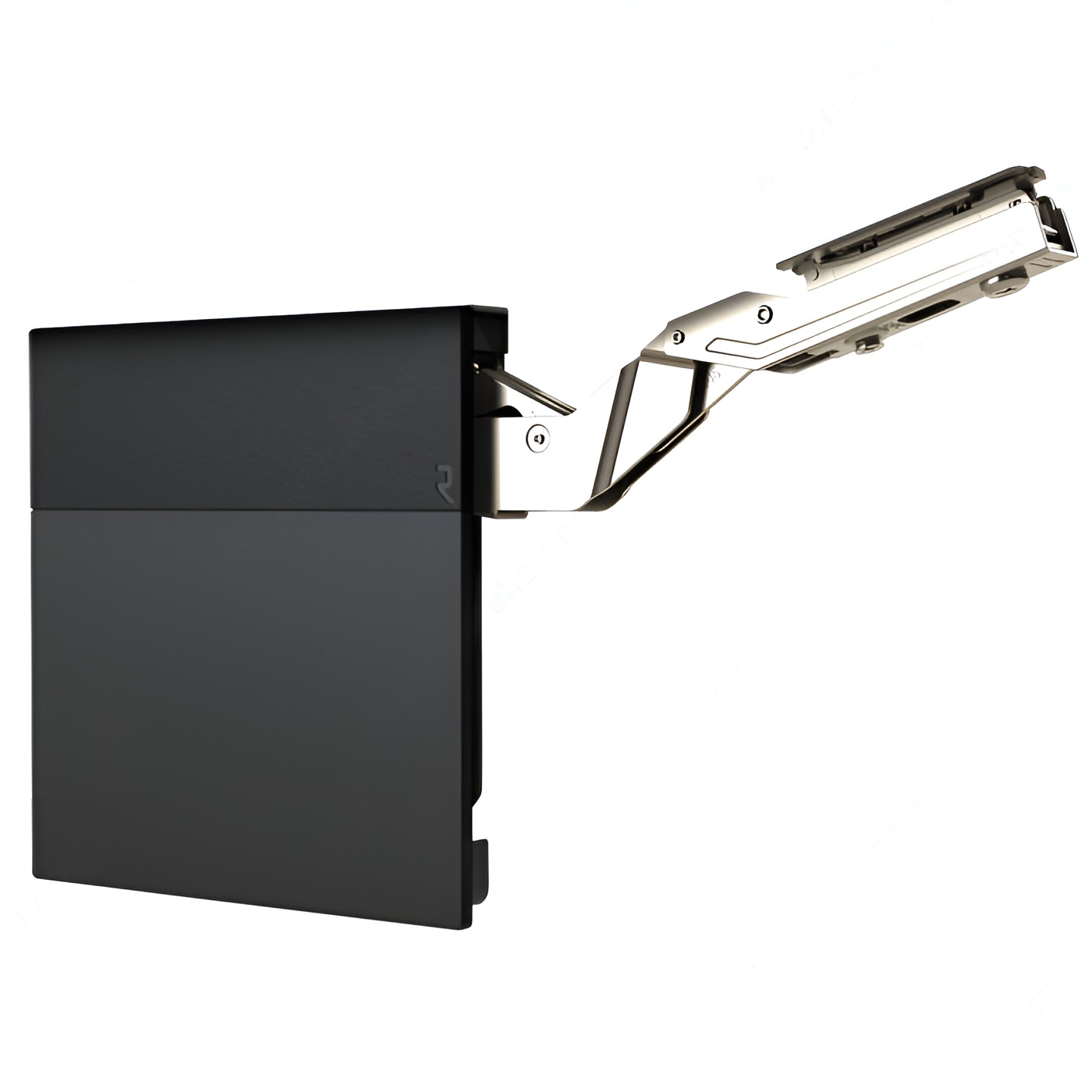

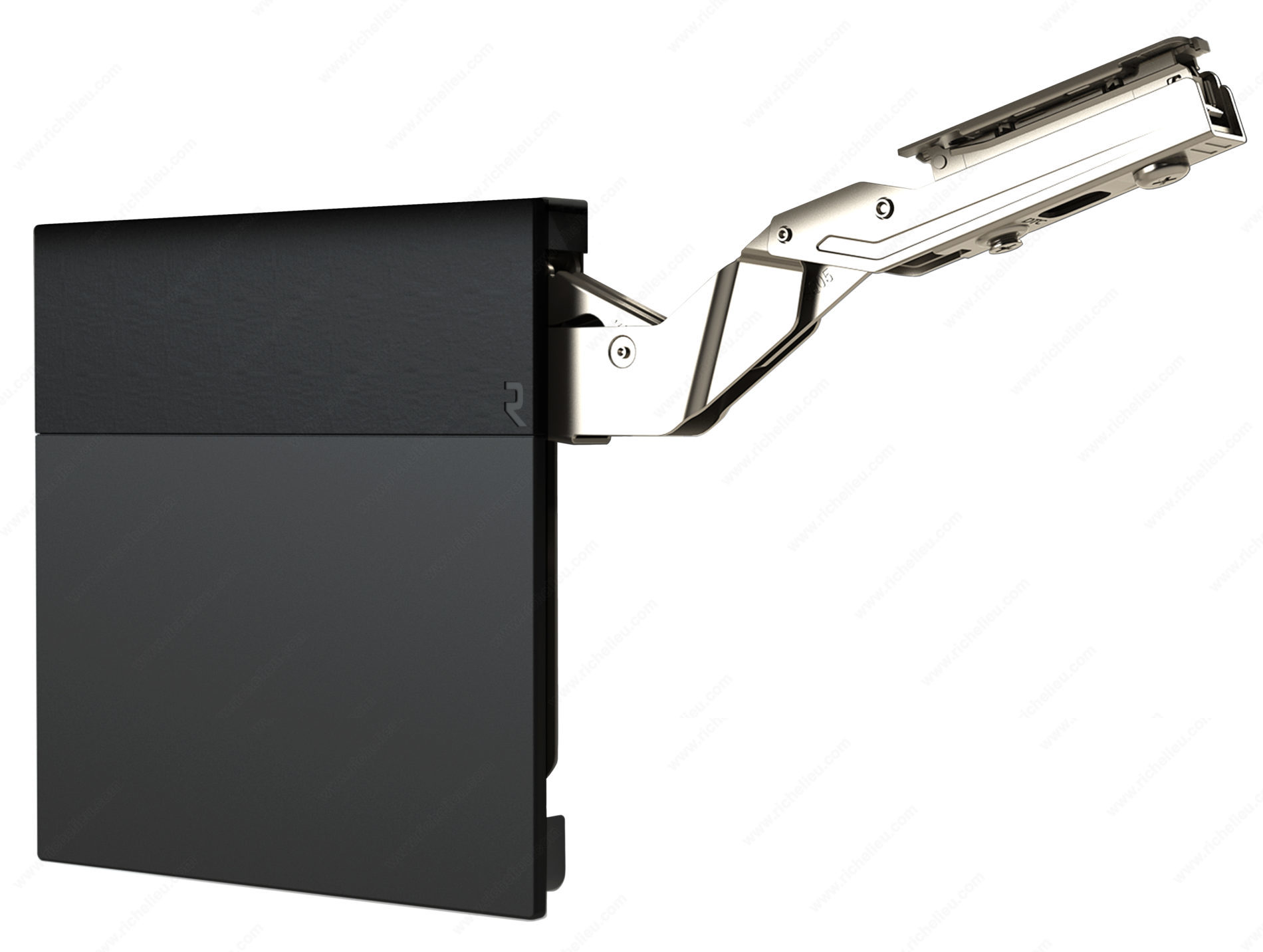

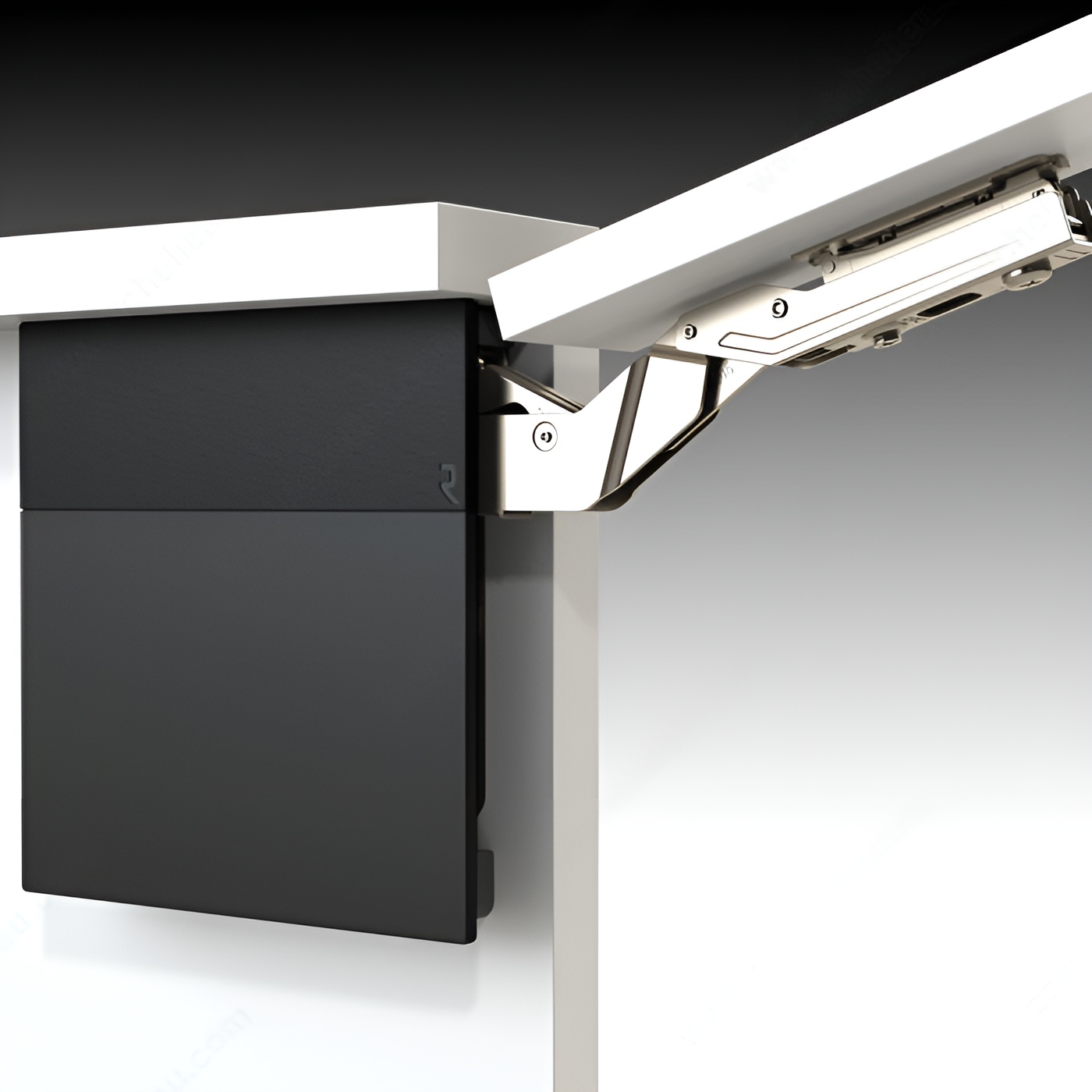

Atmos is a 107° ascending opening system that is incredibly strong and easy to install. In fact, Atmos works without any hinges! Simply screw inside your cabinet.
Discreet and elegant, this Richelieu-brand opening system is offered in three finishes:
- Black
- Gray anthracite
- Two-toned white
You can therefore choose your finish with ease to match your drawer sides and kitchen accessories. What's more, thanks to its three power factors (light, medium, and heavy charge), this system is suited to cover a wide variety of applications.
When opening Atmos, the system will stop at your chosen position. When closing Atmos, the integrated soft-close mechanism will offer a smooth movement. You can also adjust the power of the closing mechanism to adapt it to the weight and dimensions of any door.
Ideal for all your projects, Atmos adapts to meet your needs!
Attributes
Brand: Richelieu
Compatible with aluminum frame doors: Yes
Door Height: 200 to 500 mm
Door Length: 0 to 1 200 mm
Door Type: Wood Door, Wide Aluminum-Framed Door
Finish: Black
Hinge Opening Angle: +107°
Material: Plastic, Metal
Mechanism Strength: Heavy Weight
Model: aiR-Atmos
Motion Technology: Soft-Close, Stay Open
Opening Angle: 107°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 1 920 to 3 500
Product #: AT00HD900
Product number: AT00HD900
Product №: AT00HD900
Screw/ Nail: Screw/Nail (Included)
Side: 2 Sides
Standards and Certifications: KCMA
System Name: aiR Range - Atmos Series
Unit: Set
Unit 1: case - 10
Unit 2: case - 10
